Sq Ft
1,471 FT²
Bed
3
Bath
2.5
Stories
2
Garage
1
Depth
41'
Width
33'
On Sale
$1,835.15
$2,159.00
© copyright by designer
View All 2 Images | Photographs may reflect modified home
Sq Ft
1,471 FT²
From
$1,835.15
Bed
3
Bath
2.5
Stories
2
Garage
1
Depth
41'
Width
33'

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

Which unit is your favorite? Each side of this delightful duplex offers great livability and charming extras for a comfortable lifestyle.

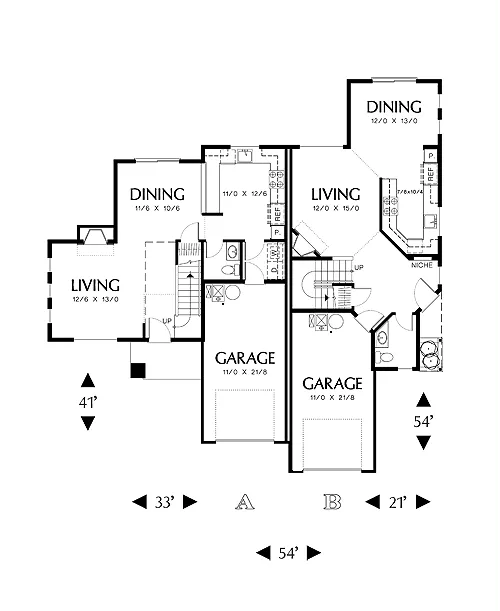

Unit A opens from a recessed entry to roomy living and dining rooms and a railed staircase to the upper level. The living room has a warm hearth; the dining room sports sliding glass doors to the rear yard. The U-shaped kitchen is tucked behind the one-car garage, near a half-bath and the laundry room. Three bedrooms upstairs include one with a private bath. Bedrooms 2 and 3 share a compartmented bath with dual sinks.
Unit B has an angled entry door opening to a spacious foyer. A coat closet, half-bath and garage access are found here. Living and dining areas are to the back. The living room has a corner hearth. Sliding glass doors in the dining room access the backyard. The upper level holds three bedrooms--two with walk-in closets--and a shared compartmented bath. The laundry room is also on the second floor in this unit.



FEATURES & DETAILS

Kitchen features
Peninsula / Eating Bar
Walk-in Pantry
Bedroom features
Double Vanity Sink
Primary Bdrm Upstairs
Exterior features
Front Porch
Foundation Options
Basement
Crawlspace
Slab
Lot Options
Suited for narrow lot
Additional features
2 Story Volume
Dining Room
Fireplace
Foyer
Great Room
Laundry 1st Fl
Open Floor Plan
Garage Location
Front
Garage Options
Attached
Front-entry
2,934 Ft
2
Total Structure
1,471 Ft
2
Unit Heated
654 Ft
2
1st Floor
817 Ft
2
2nd Floor
3
Bedrooms
2.5
Bathrooms
1
Garage
2
Stories
33' 0"
Width
41' 0"
Depth
28' 0"
Height
8' 0"
Main Floor Ceiling
8' 0"
Upper Floor Ceiling
2x6
Framing
Truss
Roof Framing
8/12
Primary Roof Pitch
Duplex
Dwelling Number
None
Bonus Access

Unheated Living Space
260 Ft
2
Garage
Exterior Styles


Plan Package Options

 Select Plan Package
$2,159
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$2,159
$2,359
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$2,359
$2,409
5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$2,409
$4,318
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$4,318
 Need To Reverse Plan? (Optional)
$225
Readable Reverse

Reverse house plans with readable text and dimensions

$225
  Select Foundation Option
  Add-Ons (Optional)

Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your house plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
