HOUSE PLANS
START AT $1,150
SQ FT
1,927
BEDS
3
BATHS
2.5
STORIES
1
CARS
2
WIDTH
64'
DEPTH
56'
© copyright by designer
Photographs may reflect modified homes.
SQ FT
1,927
BEDS
3
BATHS
2.5
STORIES
1
CARS
2

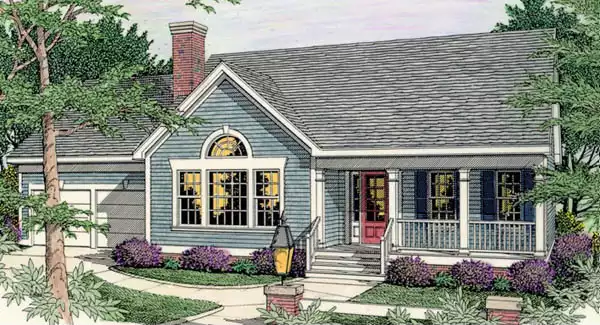

House Plan 3624: Broadhaven

A warming fireplace flanked by built-in cabinets adds to the vaulted greatroom. The two additional bedrooms share a bath with each having a single lavatory vanity and a walk-in closet; they share a tub with shower, comode and a large linen cabinet. Upstairs above the bedrooms there is an additional 400 square feet available for expansion.

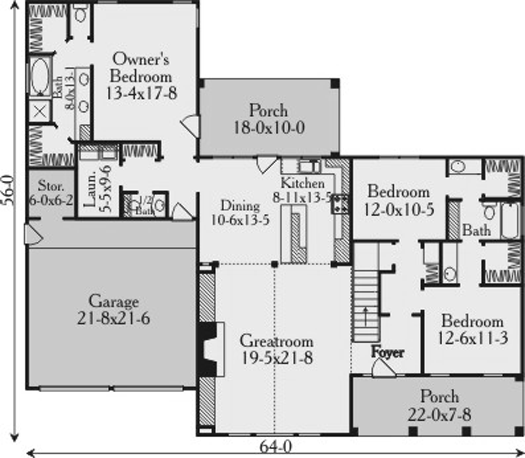

Click to Zoom In on Floor Plan
Floor Plans
© copyright by designer
Plan Packages
 Select Plan Package

PDF Single Build


Digital plans emailed to you in PDF format allowing minor changes, printing copies, and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build
PDFs NOW!™
Most recommended package
$1,150

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets
Five printed sets of house plans
$1,215

CAD Single Use


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Use
2D electronic editable computer files
$2,100
 Need To Reverse This Plan? (Optional)

Readable Reverse


Reverse house plans with readable text and dimensions

Readable Reverse
Reverses house plans with readable text and dimensions
$255
 Select Foundation Option
 Add-Ons (Optional)
Subtotal:
$0
Free Shipping
Features:
View All Plan Features
Kitchen features
Kitchen Island
Peninsula / Eating Bar
Bedroom features
Double Vanity Sink
His and Hers Master Closets
Master Bdrm Main Floor
Separate Tub and Shower
Split Bedrooms
Walk-in Closet
Additional features
Bonus Room
Fireplace
Foyer
Great Room
Laundry 1st Fl
Open Floor Plan
Storage Space
Unfinished Space
Vaulted Ceilings
Garage Location
Front
Garage Features
Attached
Front-entry

Hide Plan Features
Details:
View All Plan Details
1,927 Ft
2
Total Heated:
3
Bedrooms:
2.5
Bathrooms:
2
Garage:
1
Stories:
64' 0"
Width:
56' 0"
Depth:
23' 0"
Height:
9
Main Floor Ceiling:
8
Upper Floor Ceiling:
2x4
Framing:
Stick
Roof Framing:
8/12
Primary Roof Pitch:
Single
Dwelling Number:
2nd Floor
Bonus Access:
Unheated Living Space
522 Ft
2
Garage:
350 Ft
2
Porch:
400 Ft
2
Bonus Room:
Exterior Styles
Cottage
Country
Traditional

Hide Plan Details
