Recently Viewed Plans | Advanced Plan Search

Sq Ft
1,600 FT²

Beds
3

Baths
2

Stories
1.5

Garage
2

Depth
42'

Width
58'

On Sale
$830.00
$1,000.00

Front Rendering

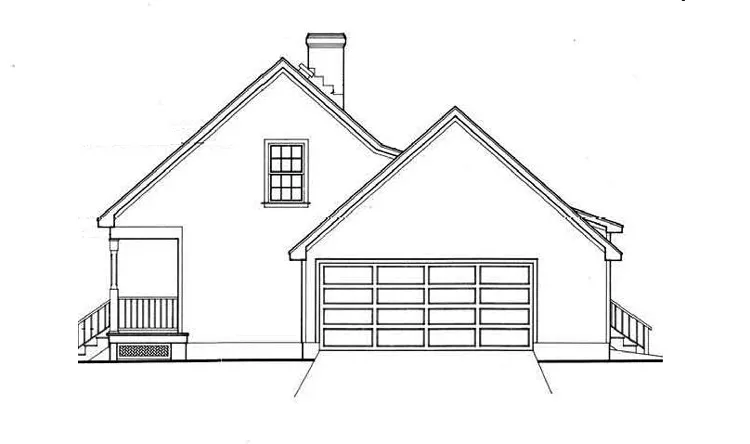

Right Side Elevation

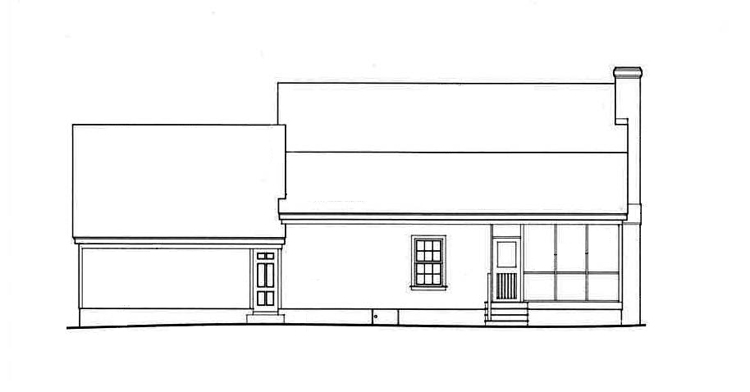

Rear Exterior

Living Room

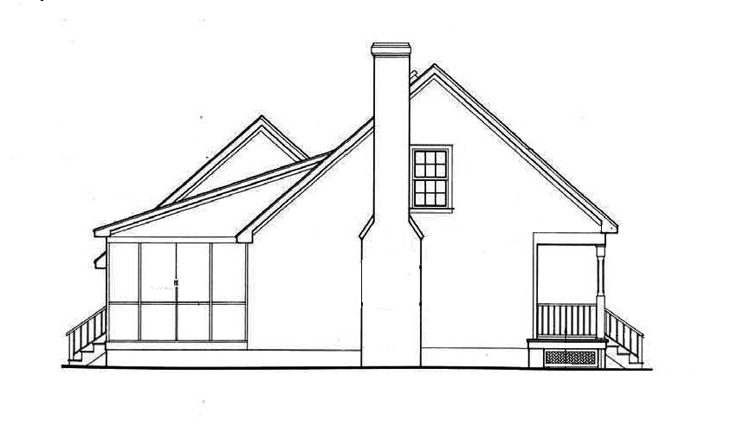

Left side elevation

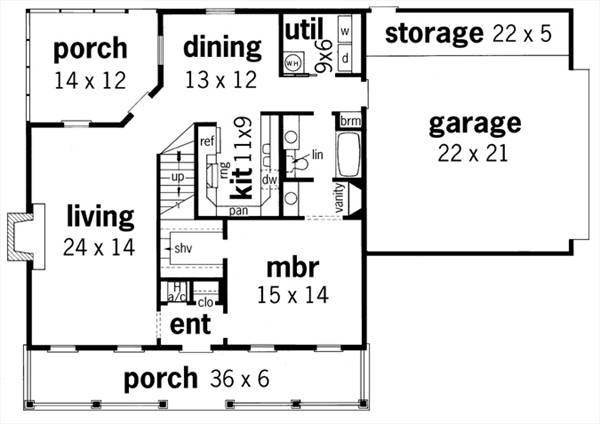

First Floor Plan

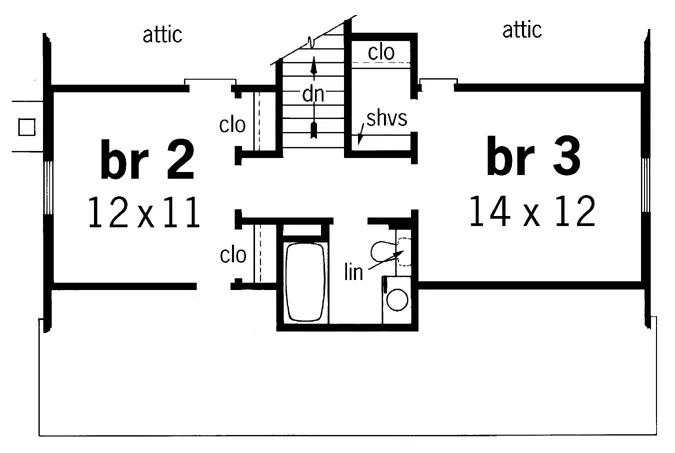

Second Floor Plan

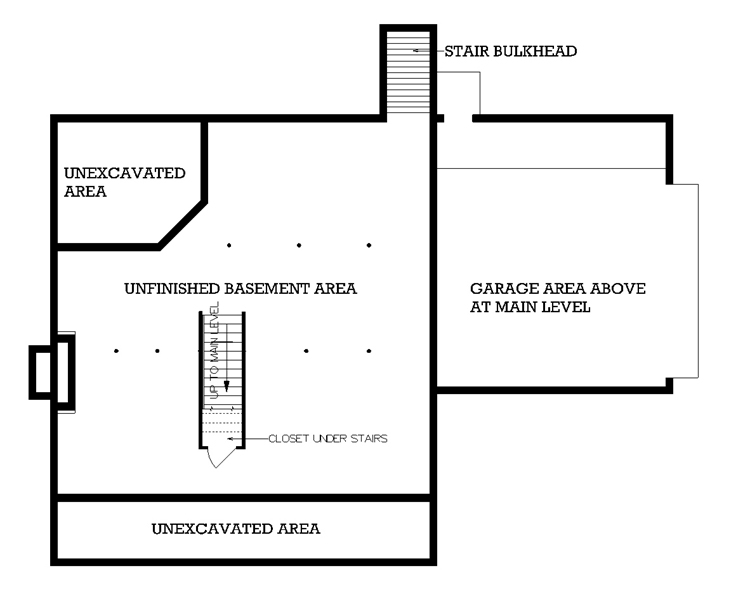

Optional Basement Foundation

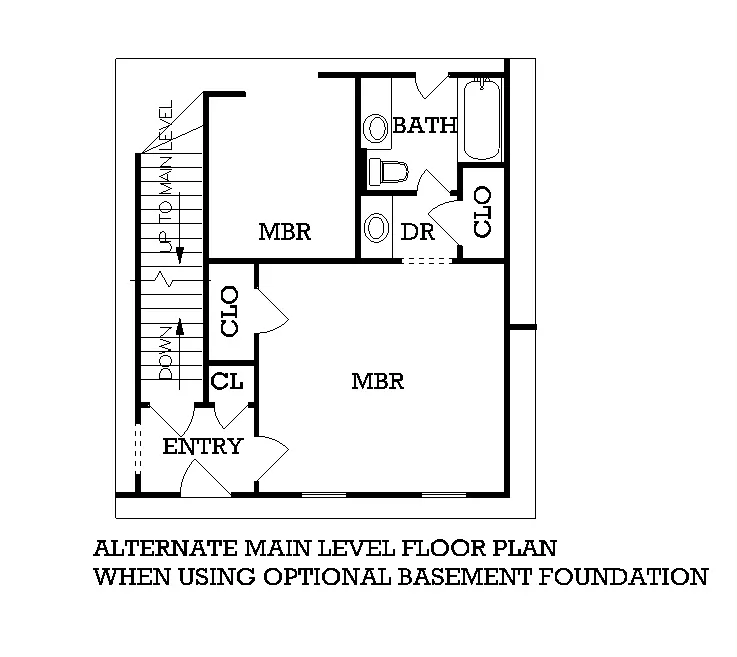

Main Level Stair Location with optional basement

View All 9 Images | Photographs may reflect modified home

Sq Ft

1,600 FT²

From

$830.00

Beds

Baths

Stories

1.5

Garage

Depth

42'

Width

58'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

First Floor Plan

Second Floor Plan

Optional Basement Foundation

Main Level Stair Location with optional basement

First Floor Plan

Second Floor Plan

Optional Basement Foundation

Main Level Stair Location with optional basement

About This Plan

This compactly designed country cottage has been extremely popular with clients looking for a home with a sprawling front porch that can be built on a modest budget. The ground floor master suite can be accessed from the entry or rear hall. The master bath has a vanity and dressing counter with a mirror surround. For spending leisure time protected from nagging insects, an old time screen porch has been designed on the rear of the home with easy access from the living dining area.

See All Plan Options

FEATURES & DETAILS

Bedroom features

Primary Bdrm Main Floor

Exterior features

Covered Front Porch
Front Porch

Foundation Options

Basement
Crawlspace
Slab

Lot Options

Suited for corner lot

Additional features

Laundry 1st Fl

Garage Location

Side

Garage Options

Attached
Side-entry

1,600 Ft

Total Heated

1,136 Ft

1st Floor

464 Ft

2nd Floor

Bedrooms

Bathrooms

Garage

1.5

Stories

58' 0"

Width

42' 0"

Depth

27' 0"

Height

8' 0"

Main Floor Ceiling

8' 0"

Upper Floor Ceiling

2x6

Framing

Stick

Roof Framing

10/12

Primary Roof Pitch

Single

Dwelling Number

None

Bonus Access

Unheated Living Space

965 Ft

Garage

Exterior Styles

Cape Cod

Country

Farmhouse

Collections

Old House Classics

Split Bedroom

Plan Package Options

Important info before you buy

Select Plan Package

Sale: $664

PDF Bid Set

~~$800~~

PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

Sale: $664

Sale: $830

PDF Single Build

~~$1,000~~

PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

Sale: $830

Sale: $901

4 Printed Sets

~~$1,085~~

Four printed sets of construction drawings shipped and received in 3-5 business days

Sale: $901

Sale: $938

5 Printed Sets

~~$1,130~~

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

Sale: $938

Sale: $1,029

8 Printed Sets

~~$1,240~~

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

Sale: $1,029

Sale: $1,577

CAD Single Build

~~$1,900~~

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

Sale: $1,577

Need To Reverse Plan? (Optional)

$150

Readable Reverse

Reverse house plans with readable text and dimensions

$150

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
