HOUSE PLANS
START AT $1,160
SQ FT
3,245
BEDS
4
BATHS
4
STORIES
2
CARS
2
WIDTH
74' 10"
DEPTH
63' 10"
© copyright by designer
Photographs may reflect modified homes.
SQ FT
3,245
BEDS
4
BATHS
4
STORIES
2
CARS
2



House Plan 5116: BELLINGHAM

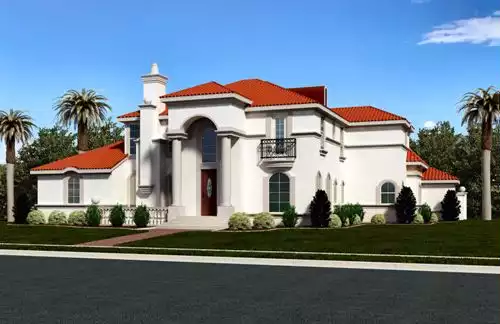

This luxury Italian house plan has lots of amenities. The columned defined porch welcomes guests into this two-story house plan. The inviting grand foyer invites a magnificent view of the spiral staircase. Two large, round, columns define the entrance to the elegant dining room, which is easily served through the butlery. This gourmet kitchen is open to the breakfast nook and cozy family room.  Read more >
Click to Zoom In on Floor Plan

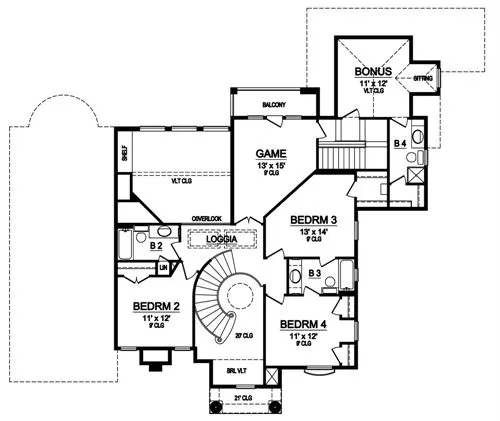

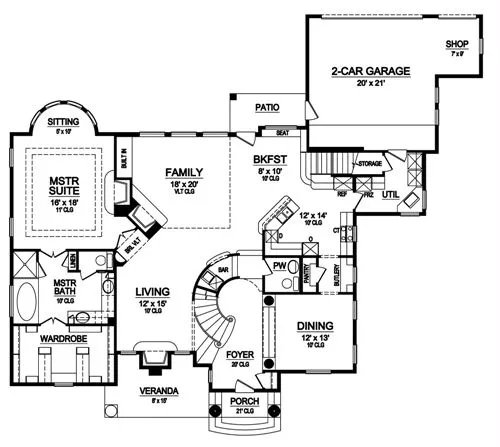

Floor Plans
© copyright by designer
Plan Packages
 Select Plan Package

PDF Single Build


Digital plans emailed to you in PDF format allowing minor changes, printing copies, and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build
Most recommended package
$1,160

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets
Five printed sets of house plans
$1,360

CAD Single Use


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Use
2D electronic editable computer files
$1,745
 Need To Reverse This Plan? (Optional)

Readable Reverse


Reverse house plans with readable text and dimensions

Readable Reverse
Reverses house plans with readable text and dimensions
$150
 Select Foundation Option
 Add-Ons (Optional)
Subtotal:
$0
Free Shipping
If a foundation or optional add-on is not listed, please live chat, email or call for availability.
Features:
View All Plan Features
Kitchen features
Butler's Pantry
Country Kitchen
Nook / Breakfast Area
Bedroom features
Master Bdrm Main Floor
Separate Tub and Shower
Sitting Area
Additional features
2 Story Volume
Arches
Bonus Room
Family Room
Fireplace
Foyer
Home Office
Laundry 1st Fl
Library/Media Rm
Loft / Balcony
Open Floor Plan
Storage Space
Unfinished Space
Garage Location
Rear
Garage Features
Attached
Rear-entry

Hide Plan Features
Details:
View All Plan Details
4,410 Ft
2
Total Structure:
3,245 Ft
2
Total Heated:
2,265 Ft
2
1st Floor:
980 Ft
2
2nd Floor:
4
Bedrooms:
4
Bathrooms:
2
Garage:
2
Stories:
74' 10"
Width:
63' 10"
Depth:
28' 0"
Height:
10
Main Floor Ceiling:
9
Upper Floor Ceiling:
2x4
Framing:
Stick
Roof Framing:
6
Primary Roof Pitch:
12
Secondary Roof Pitch:
Single
Dwelling Number:
Unheated Living Space
530 Ft
2
Garage:
45 Ft
2
Porch:
63 Ft
2
Deck:
66 Ft
2
Patio:
Exterior Styles
European
Traditional

Hide Plan Details
