Two-story home design with charm

Recently Viewed Plans | Advanced Plan Search

Sq Ft
3,173 FT²

Beds
4

Baths
3.5

Stories
2

Garage
2

Depth
80'

Width
38'

From
$1,325.00

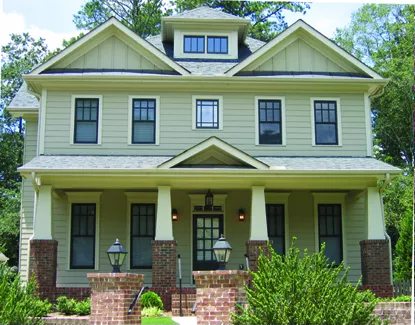

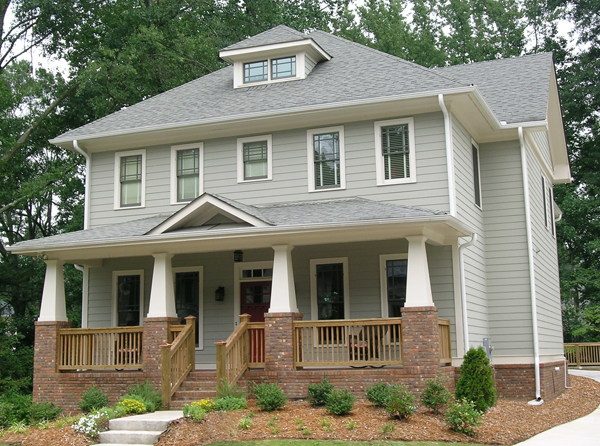

Front Photo

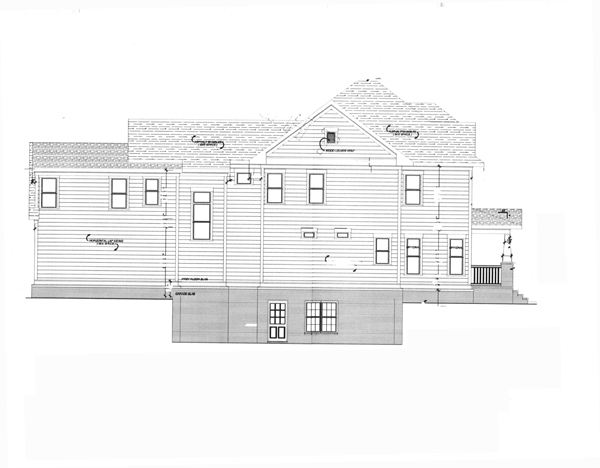

Left Elevation

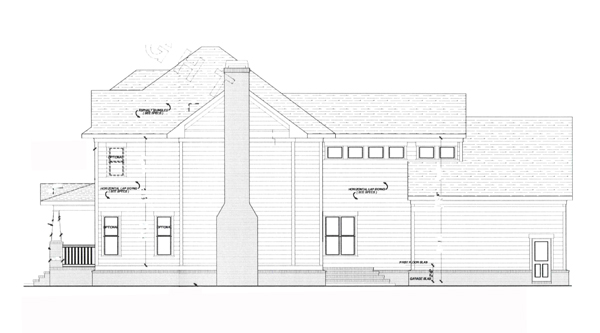

Right Elevation

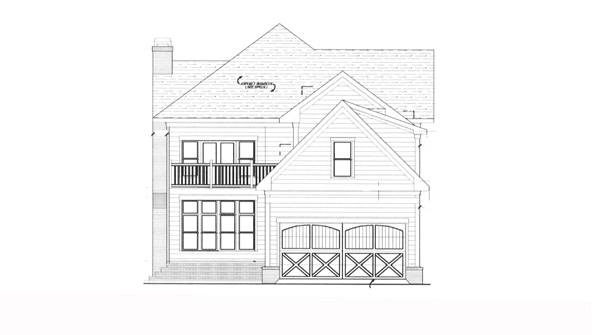

Rear Elevation

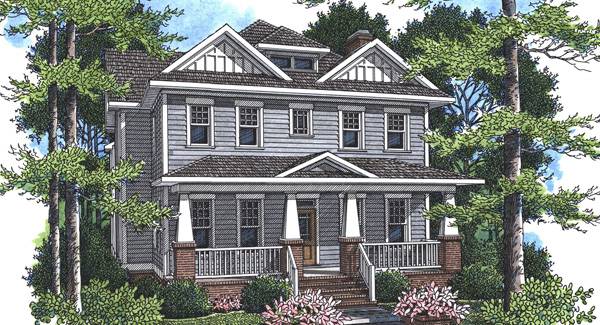

Rendering

Front Photo 2 Elev. C

View All 6 Images | Photographs may reflect modified home

Sq Ft

3,173 FT²

From

$1,325.00

Beds

Baths

3.5

Stories

Garage

Depth

80'

Width

38'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

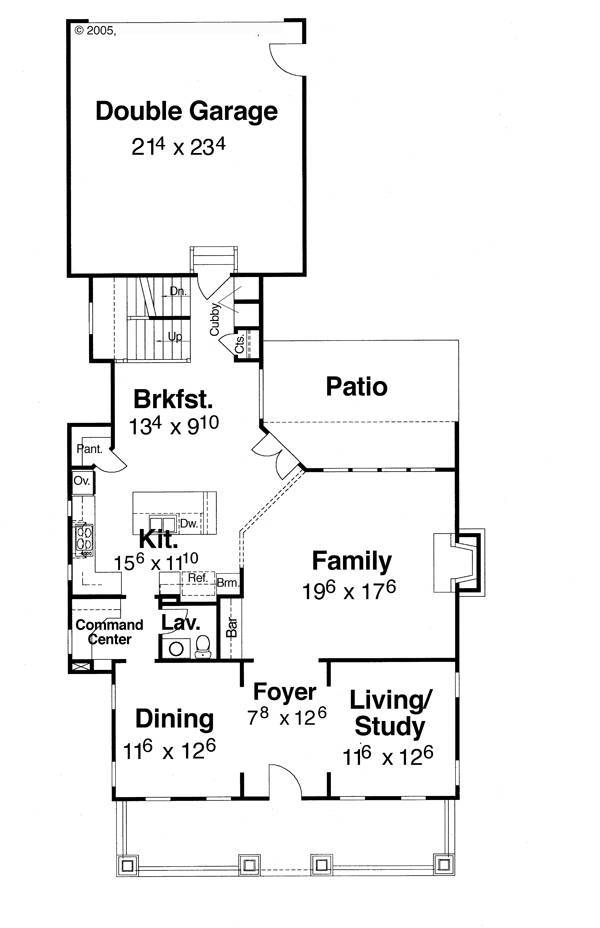

First Floor

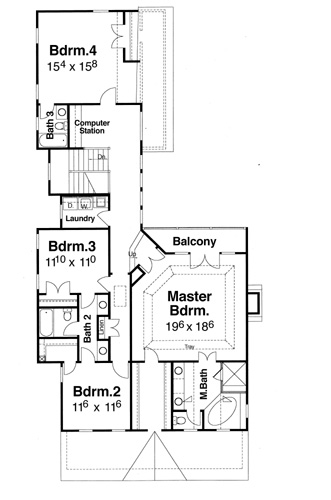

Second Floor

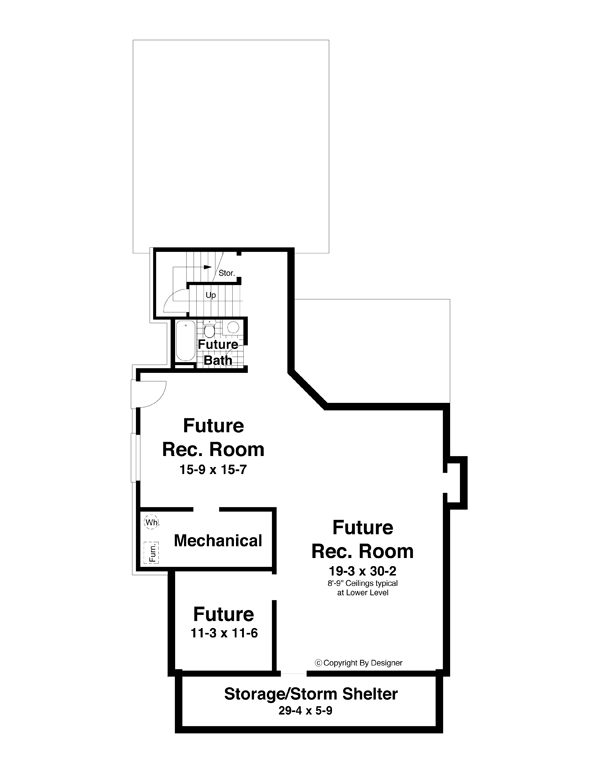

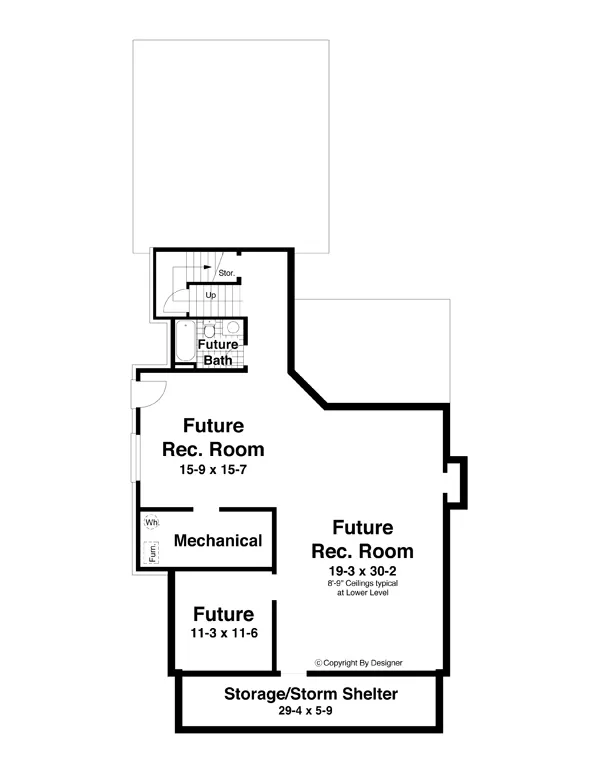

Lower Level

First Floor

Second Floor

Lower Level

About This Plan

This two story, narrow lot home design captures Turn of the 20th Century charm without sacrificing anything today's homeowner expects. The openness of the rear of the house helps bring the outside indoors despite a limited lot size. The rear staircase opens to a computer station outside the guest bedroom and is lit by a series of transom windows flooding the upper hall with light while preserving privacy.

The Master Suite has a platformed raised entry creating a dramatic entry while allowing for high ceilings in the foyer/living/family rooms below. The balcony off the master bedroom provides partial cover for the rear patio behind the family room.

FEATURES & DETAILS

Kitchen features

Butler's Pantry
Kitchen Island
Nook / Breakfast Area
Walk-in Pantry

Bedroom features

Double Vanity Sink
Primary Bdrm Upstairs
Separate Tub and Shower
Walk-in Closet

Exterior features

Covered Front Porch
Deck
Front Porch

Foundation Options

Basement
Walkout Basement

Lot Options

Suited for narrow lot

Additional features

Dining Room
Family Room
Fireplace
Formal LR
Foyer
Home Office
Library/Media Rm
Loft / Balcony
Open Floor Plan
Vaulted Ceilings

Garage Location

Rear

Garage Options

Attached
With Living Space

3,173 Ft

Total Heated

1,379 Ft

1st Floor

1,794 Ft

2nd Floor

1,379 Ft

Lower Floor

Bedrooms

3.5

Bathrooms

Garage

Stories

38' 0"

Width

80' 0"

Depth

34' 0"

Height

9' 0"

Main Floor Ceiling

8' 0"

Upper Floor Ceiling

2x4

Framing

Stick

Roof Framing

9/12

Primary Roof Pitch

3/12

Dormer Roof Pitch

3/12

Porch Roof Pitch

Single

Dwelling Number

Unheated Living Space

528 Ft

Garage

180 Ft

Storage

180 Ft

Porch

64 Ft

Deck

192 Ft

Patio

Exterior Styles

Craftsman

Farmhouse

Southern

Collections

Luxury

Old House Classics

PDFs Fast!

Plan Package Options

Important info before you buy

Select Plan Package

$850

PDF Bid Set
PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$850

$1,325

PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,325

$1,450

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,450

$1,988

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$1,988

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
