House Plan 2786: Barnstable

Like an old-world carriage house, this two-car garage accommodates a second-floor apartment, providing independent living for a single or couple. Enter the living quarters through a private, covered door. The windowed staircase rises to a foyer, complete with closet.  Read more >

House Plan Details

Sq. Ft.
1,345
Beds
1
Baths
1.0
Stories
2
Garages
2
Width
28' 0"
Depth
26' 0"
Select Plan Package
PDF Files - Single Build
$911
Select Foundation Options
$0
Slab Foundation-Included
$0
Optional Add-Ons
Subtotal: $0
If a foundation or optional add-on is not listed, please live chat, email or call for availability.

PLAN IMAGES

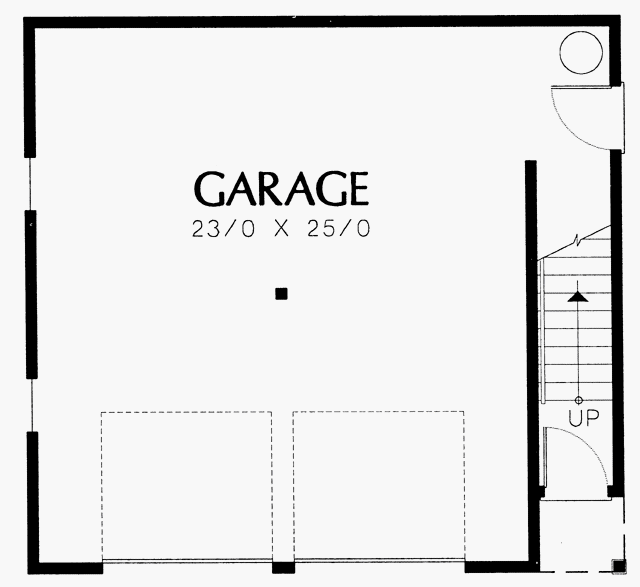

First Floor Plan

First Floor Plan
© copyright by designer
DETAILS
Total SQ. FT.:
1,345

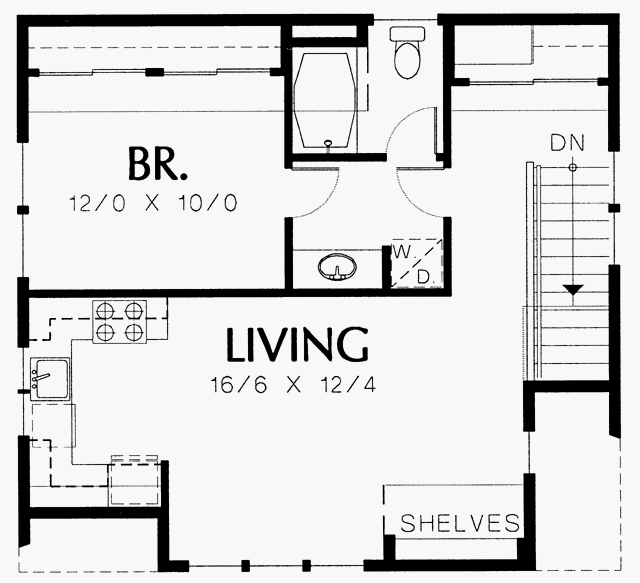

2nd Floor SQ. FT.:
633
Bedrooms:
1
Bathrooms:
1.0
Garage:
2
Stories:
2
Main Ceiling Height:
8'
Upper Ceiling Height:
8'
Framing:
2x6
Roof Framing:
Stick
Roof Pitch:
Primary: 9/12
Width:
28' 0"
Depth:
26' 0"
Height:
25' 0"
Exterior Styles:
Country
Craftsman
Traditional
Unheated Living Space:
Garage: 712
HOME FEATURES
Bedroom Features:
Kitchen Features:
Country Kitchen
Additonal Features:
Garage Features:
Attached
Front-entry
With Living Space
Garage Location:
Front
Lot Features:
Suited for narrow lot
