Sq Ft
2,647 FT²

Beds
3

Baths
3.5

Stories
2

Garage
2

Depth
77'

Width
25'

From
$1,323.00

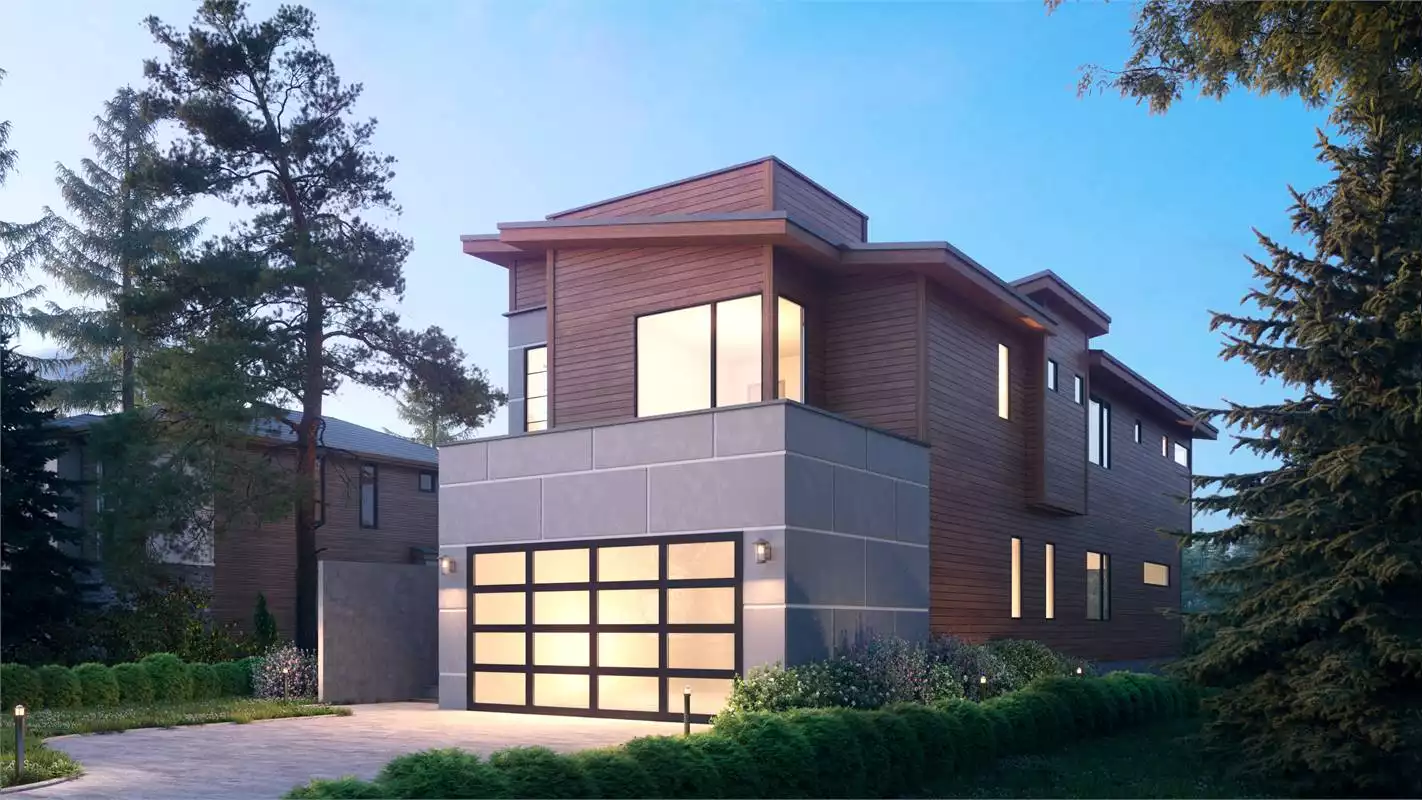

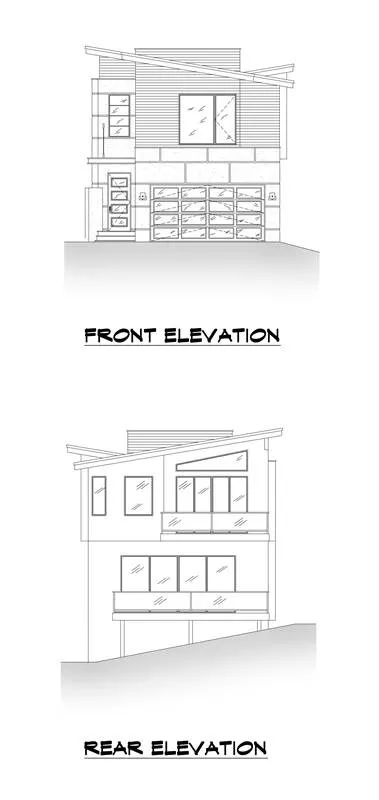

Front View

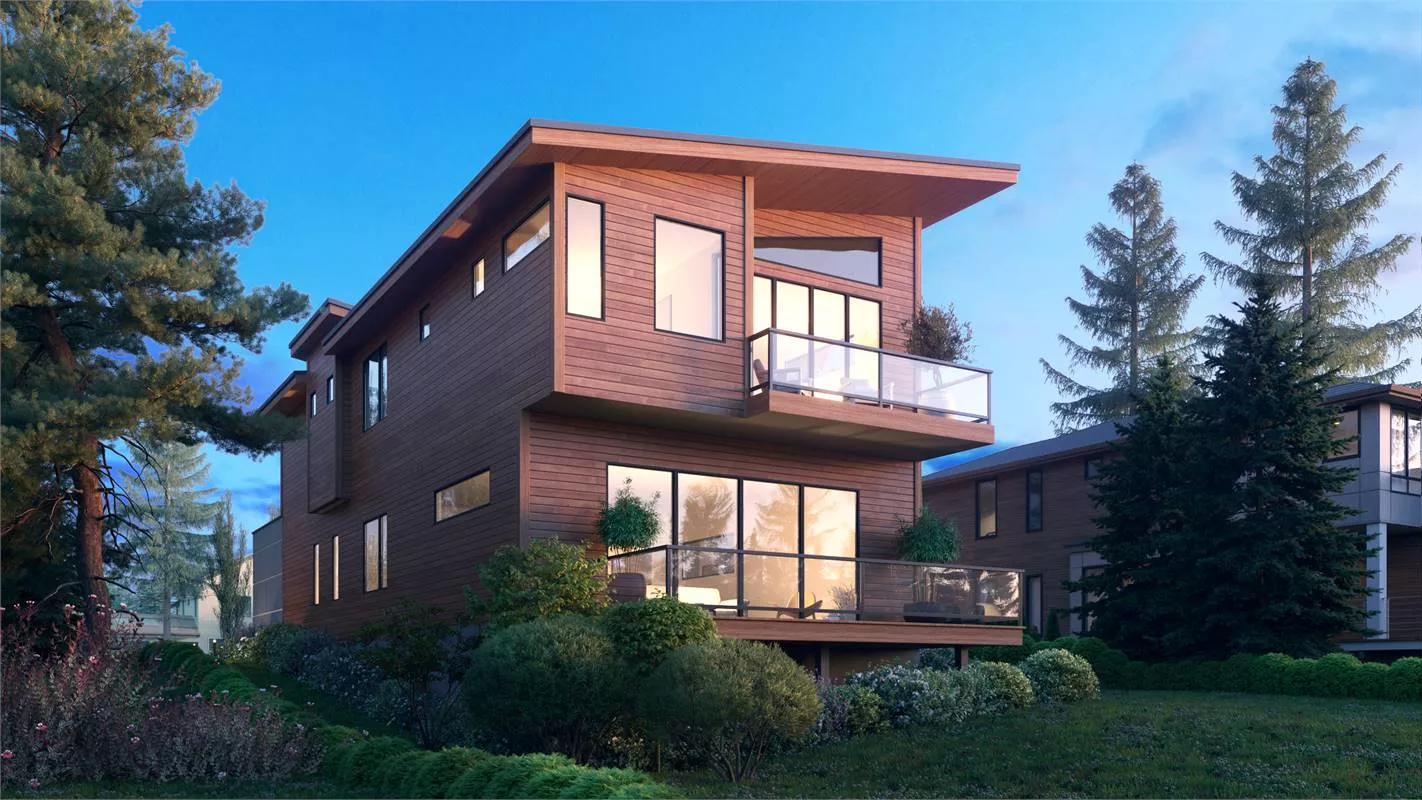

Rear View

Front View

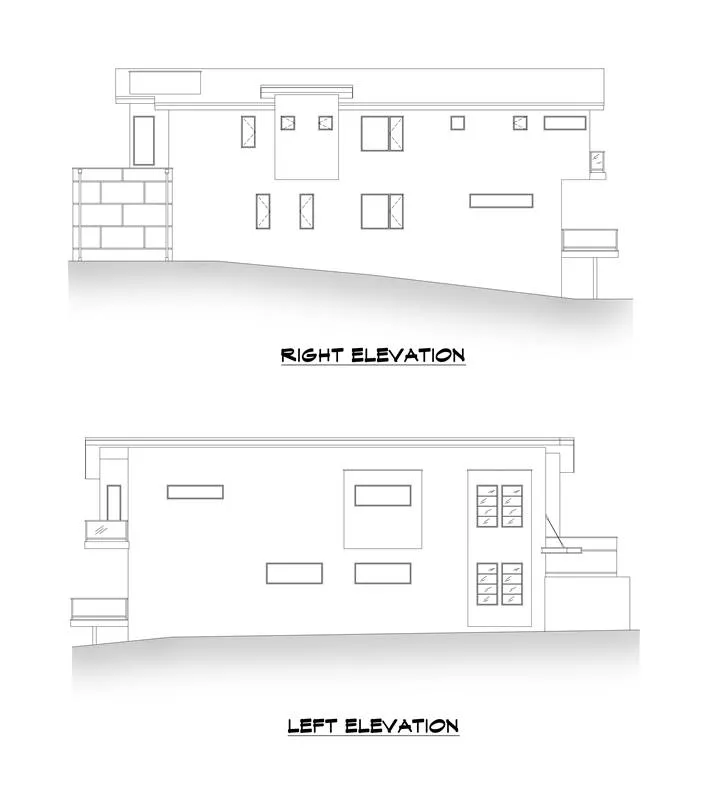

Side View

View All 6 Images | Photographs may reflect modified home

Sq Ft

2,647 FT²

From

$1,323.00

Beds

Baths

3.5

Stories

Garage

Depth

77'

Width

25'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

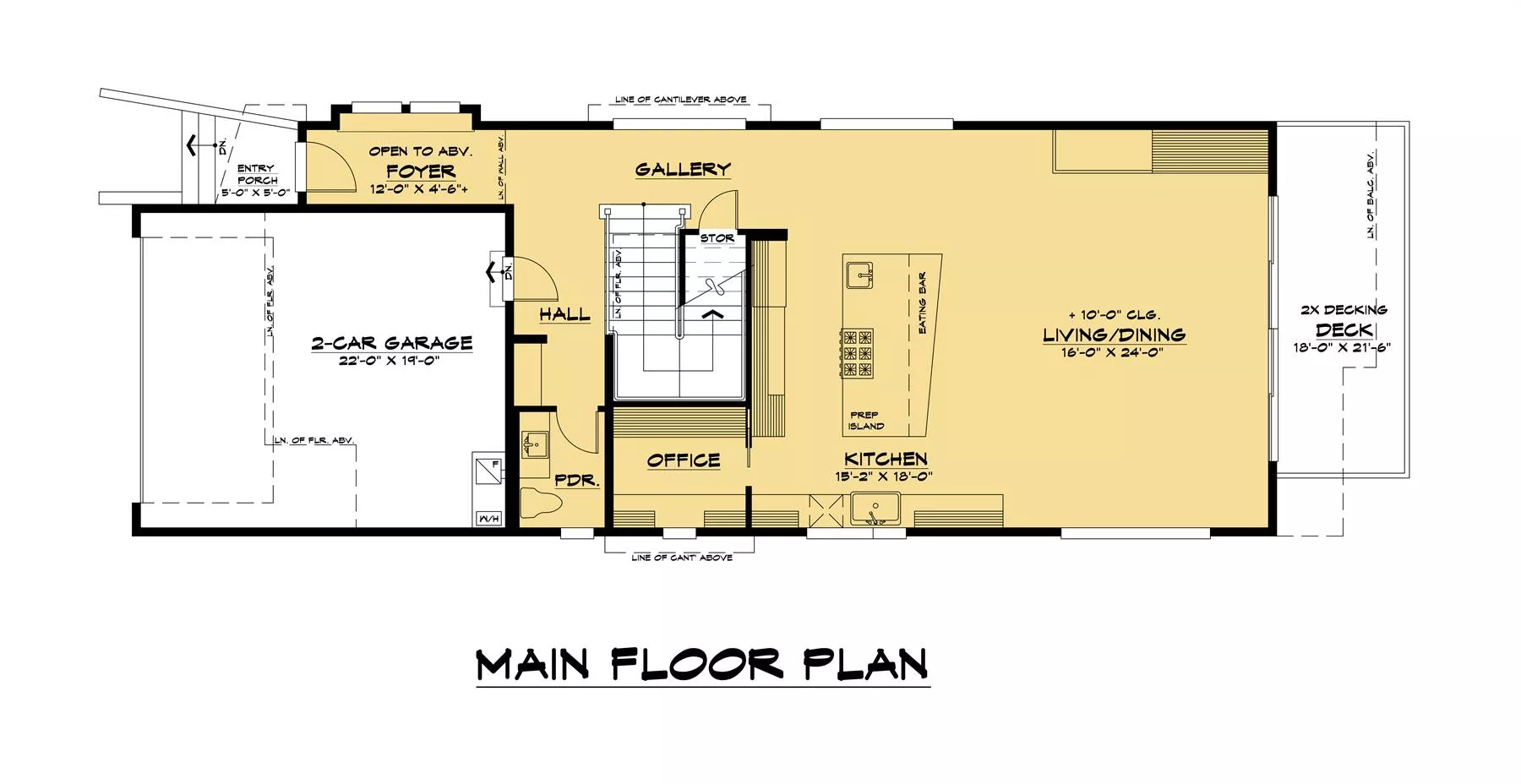

1st Floor

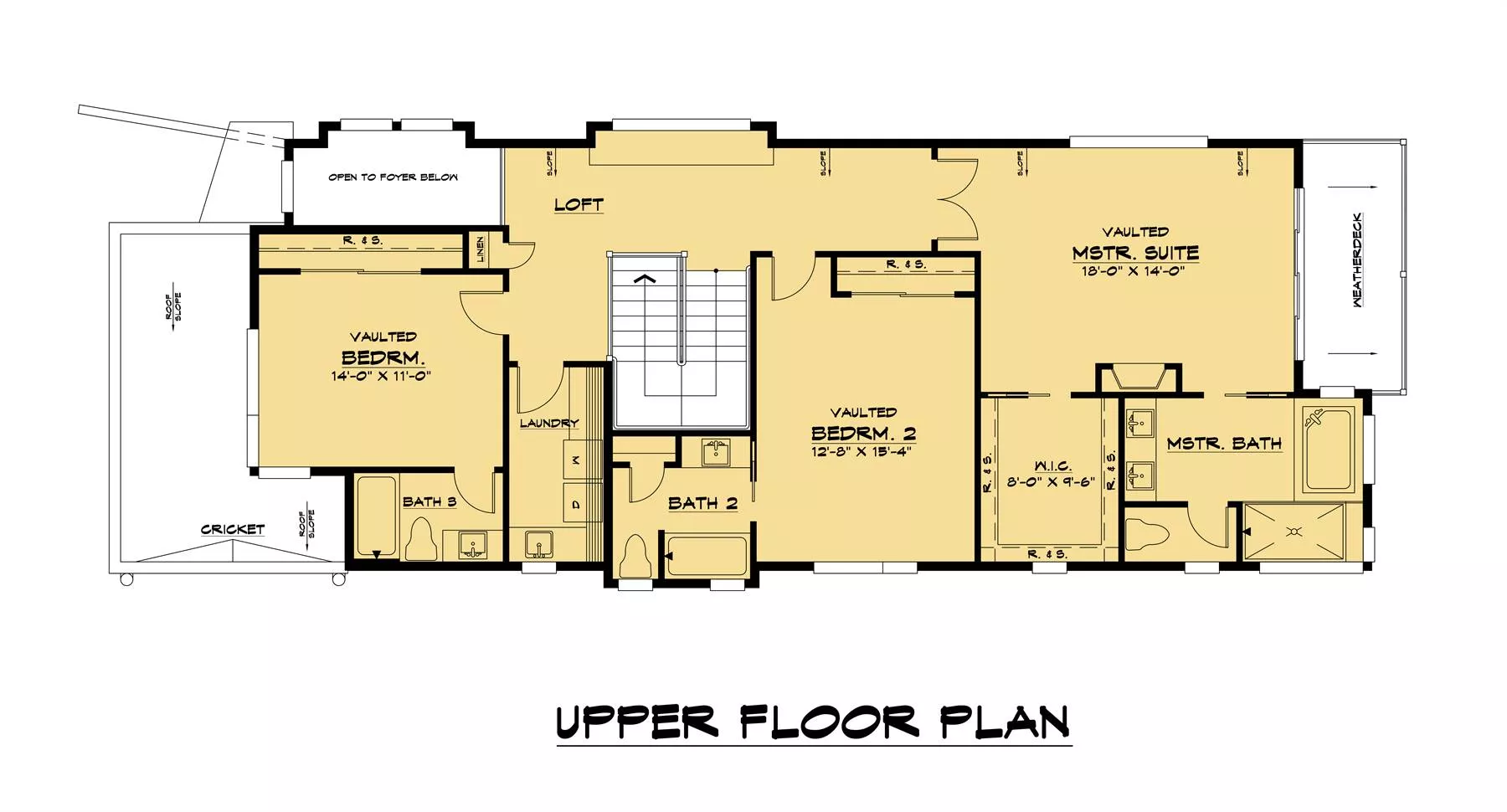

2nd Floor

1st Floor

2nd Floor

About This Plan

The Barker Residence is a modern contemporary house plan perfect for any family. This plan features three bedrooms and three-and-a-half bathrooms on 2,647 square feet of living space. The foyer welcomes guests into the home and flows into the great room, perfect for entertaining friends and family! The kitchen also opens up to this space, making it ideal for cooking dinner while catching up with guests. Upstairs you’ll find three spacious bedrooms including the master suite complete with a large walk-in closet and master bathroom. Make the most of your morning routine with the deck just off the master suite that provides the perfect place to watch the sunrise. If you need a little more time outdoors, head downstairs where you’ll find another spacious deck, perfect for your morning cup of coffee or a nighttime BBQ. The half bathroom on the first floor is located near extra storage space as well as access to the two-car tandem. The Barker Residence is a great choice for your new home!

FEATURES & DETAILS

Kitchen features

Kitchen Island
L-Shaped
Peninsula / Eating Bar

Bedroom features

Double Vanity Sink
Guest Suite
Primary Bdrm Upstairs
Walk-in Closet

Exterior features

Deck

Lot Options

Suited for narrow lot

Additional features

2 Story Volume
Dining Room
Formal LR
Laundry 2nd Fl
Loft / Balcony
Open Floor Plan

Garage Location

Front

Garage Options

Attached
Front-entry

2,647 Ft

Total Heated

1,240 Ft

1st Floor

1,407 Ft

2nd Floor

Bedrooms

3.5

Bathrooms

Garage

Stories

25' 0"

Width

77' 0"

Depth

27' 2"

Height

10' 0"

Main Floor Ceiling

9' 0"

Upper Floor Ceiling

2x6

Framing

Truss

Roof Framing

2/12

Primary Roof Pitch

Single

Dwelling Number

Unheated Living Space

418 Ft

Garage

25 Ft

Porch

208 Ft

Deck

Exterior Styles

Contemporary

Modern

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$1,323

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,323

$1,623

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,623

$1,773

8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

$1,773

$2,514

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,514

Need To Reverse Plan? (Optional)

$250

Readable Reverse

Reverse house plans with readable text and dimensions

$250

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
