House Plan 3601: Banner Hall-3000

The principal idea of this large family home is to allow the kids access to the upstairs without disrupting the adults downstairs. The key element is the rear-loading stairwell accessed from a rear entry that allows the younger members of the family to go outside or to the breakfast table with a minimum of disturbance.  Read more >

House Plan Details

Sq. Ft.
3,035
Beds
4
Baths
3.1
Stories
2
Garages
2
Width
66' 0"
Depth
74' 0"
1st Floor
2,008
2nd Floor
1,027
Garage
580
Porch
429
Select Plan Package
PDF Construction Set - 1
$1100
Select Foundation Options
$0
Crawl Space Foundation
$0
Optional Add-Ons
Subtotal: $0

PLAN IMAGES

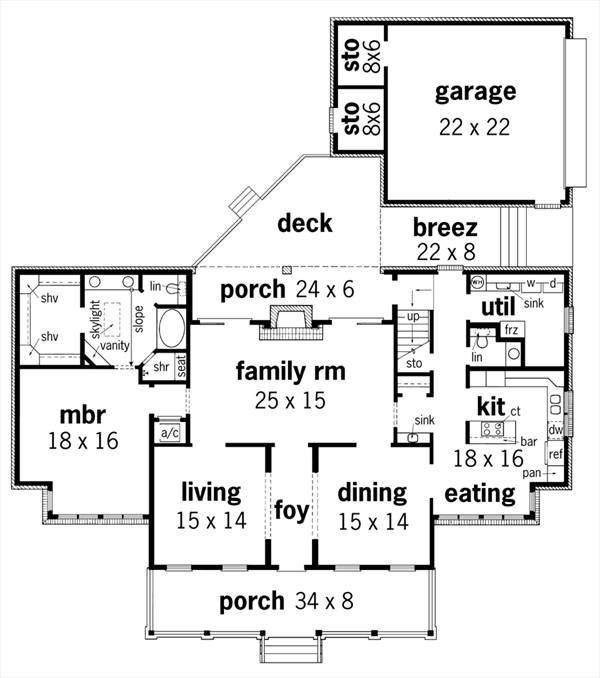

First Floor Plan

First Floor Plan
© copyright by designer

Plan Details

Basic Information
Bedrooms: 4
Bathrooms: 3.1
Garage: 2
Stories: 2
Exterior Style
Cape Cod
Country
Craftsman
Farm House
Southern
Traditional
Dimensions
Width: 66' 0"
Height: 29' 0"
Depth: 74' 0"
Heated Living Space
Total Sq. Ft: 3,035
1st Floor: 2,008
2nd Floor: 1,027
Unheated Living Space
Garage: 580
Porch: 429
Ceiling
Upper Ceiling Ft: 8
Main Ceiling Ft: 9
Framing Information
Framing: 2x6
Roof Framing:
Bedroom Features
Master Bdrm Main Floor
Kitchen Features
Kitchen Island
Additional Room Features
Family Room
Laundry 1st Fl
Garage Location
Side
Garage Features
Attached
Lot Features
Suited for corner lot
Roof Pitch
Primary: 9/12

Our Guarantee

  • Only the highest quality plans
  • Int’l Residential Code Compliant
  • Full structural details on all plans
  • Best plan price guarantee
  • Free modification Estimates
  • Builder-ready construction drawings
  • Expert advice from leading designers
  • PDFs NOW!™ plans delivered in minutes
  • 100% satisfaction guarantee
  • Free Home Building Organizer

Questions & Answers

Have questions about this plan?
Q.In the master bathroom there is a room with the corners marked with "shv". Perhaps it's very obvious but I can't figure out what that stands for. Please let me know.

A.These are corner shelves in the Master Bathroom.
