Sq Ft
7,798 FT²

Bed
5

Bath
5.5

Stories
2

Garage
4

Depth
88'

Width
173'

On Sale
$3,341.35
$3,931.00

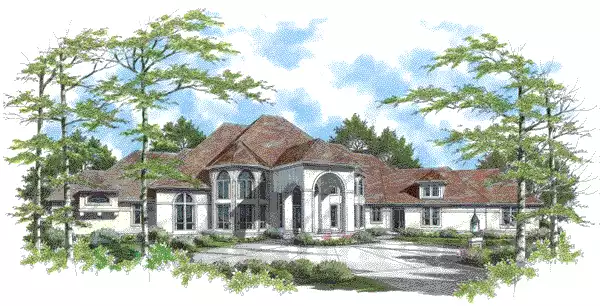

Front Rendering

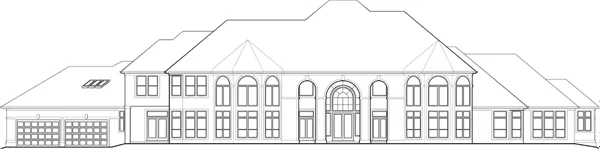

Rear Elevation

View All 2 Images | Photographs may reflect modified home

Sq Ft

7,798 FT²

From

$3,341.35

Bed

Bath

5.5

Stories

Garage

Depth

88'

Width

173'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

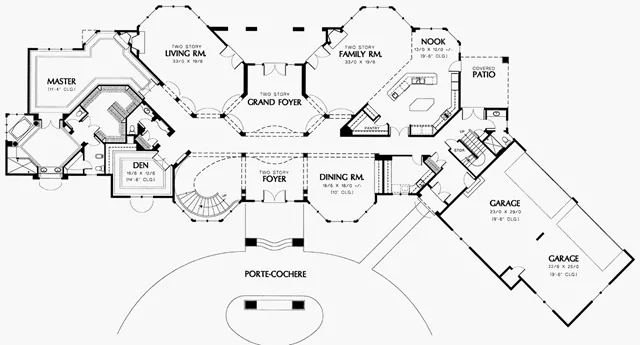

First Floor Plan

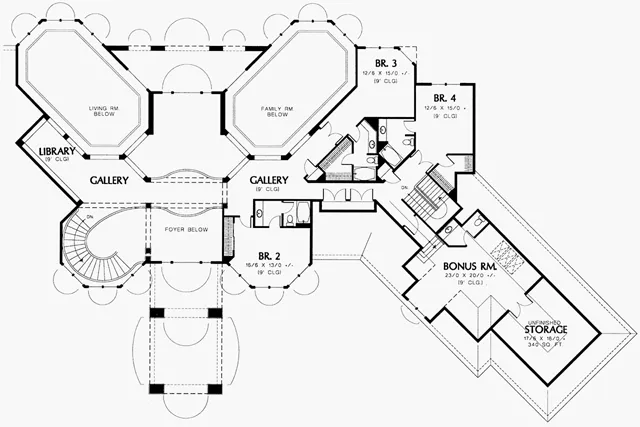

Second Floor Plan

First Floor Plan

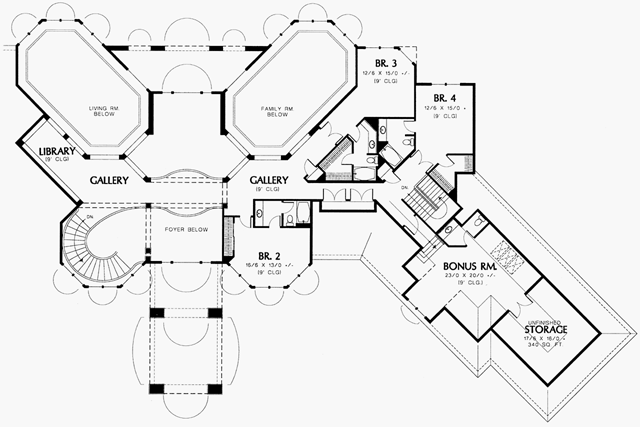

Second Floor Plan

About This Plan

Big and luxurious, this home is designed to last. It begins with a stucco facade and an elegant porte cochere leading to the two-story entry foyer. On the right is a formal dining room with ten-foot ceiling. Ahead is a two-story grand foyer, separating the living and family rooms. Decorative columns and archways lend a dramatic touch. A gourmet kitchen, with double islands, has an attached nook; a covered patio nearby allows for alfresco dining. The master suite, with sitting room, and a cozy den are found on the left side of the main level. Fireplaces warm the living and family rooms and the master bedroom.

Gain access to the upper level via one of two staircases - in the service hallway to the four-car garage or in the main hallway. The upper level has three additional bedrooms - each with a private bath - a gallery hall, a small library, a bonus room and unfinished storage.

FEATURES & DETAILS

Kitchen features

Kitchen Island
Nook / Breakfast Area
Walk-in Pantry

Bedroom features

Double Vanity Sink
Guest Suite
Primary Bdrm Main Floor
Separate Tub and Shower
Sitting Area
Split Bedrooms
Walk-in Closet

Exterior features

Covered Rear Porch
Front Porch

Foundation Options

Basement
Crawlspace
Slab

Additional features

2 Story Volume
Arches
Bonus Room
Dining Room
Family Room
Fireplace
Formal LR
Foyer
Home Office
Laundry 1st Fl
Library/Media Rm
Loft / Balcony
Mud Room
Storage Space
Vaulted Ceilings

Garage Location

Front

Garage Options

Attached
Front-entry
Rear-entry

7,798 Ft

Total Heated

5,801 Ft

1st Floor

1,997 Ft

2nd Floor

Bedrooms

5.5

Bathrooms

Garage

Stories

173' 0"

Width

88' 0"

Depth

43' 0"

Height

Varies' 0"

Main Floor Ceiling

9' 0"

Upper Floor Ceiling

2x6

Framing

Stick

Roof Framing

10/12

Primary Roof Pitch

Single

Dwelling Number

2nd Floor

Bonus Access

Unheated Living Space

1,308 Ft

Garage

315 Ft

Storage

464 Ft

Porch

560 Ft

Bonus Room

Exterior Styles

Contemporary

Mediterranean

Traditional

Collections

Luxury

PDFs Fast!

Plan Package Options

Important info before you buy

Select Plan Package

$3,931

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$3,931

$4,131

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$4,131

$4,181

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$4,181

$7,862

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$7,862

Need To Reverse Plan? (Optional)

$225

Readable Reverse

Reverse house plans with readable text and dimensions

$225

Select Foundation Option

Add-Ons (Optional)

	Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your house plan
	Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
