Recently Viewed Plans | Advanced Plan Search

Sq Ft
5,083 FT²

Beds
5

Baths
5.5

Stories
2

Garage
3

Depth
74'

Width
87'

From
$1,695.00

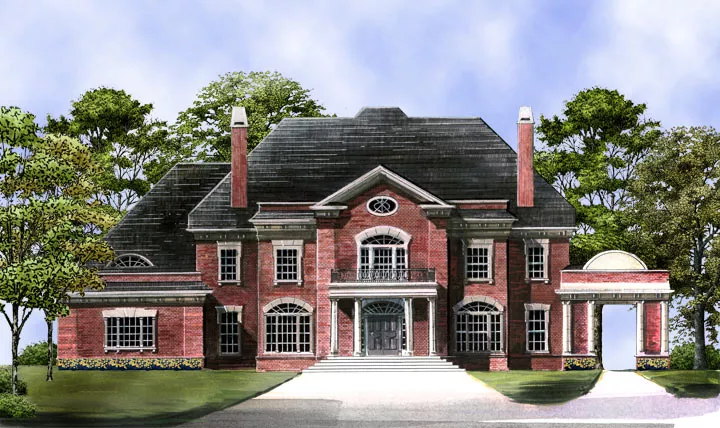

Front Rendering

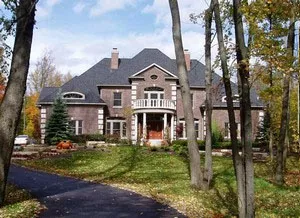

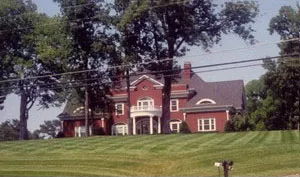

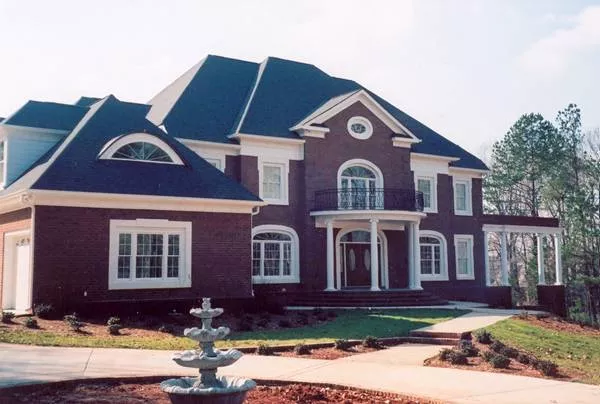

Front Exterior Photo

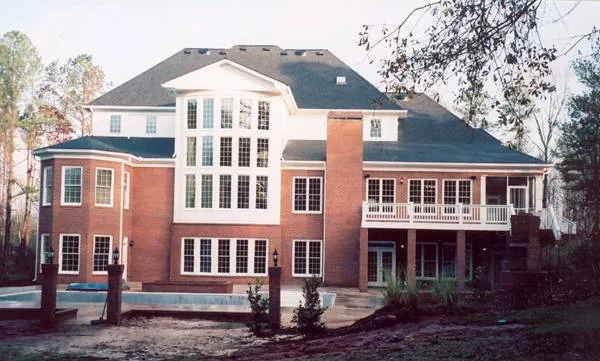

Rear Exterior Photo

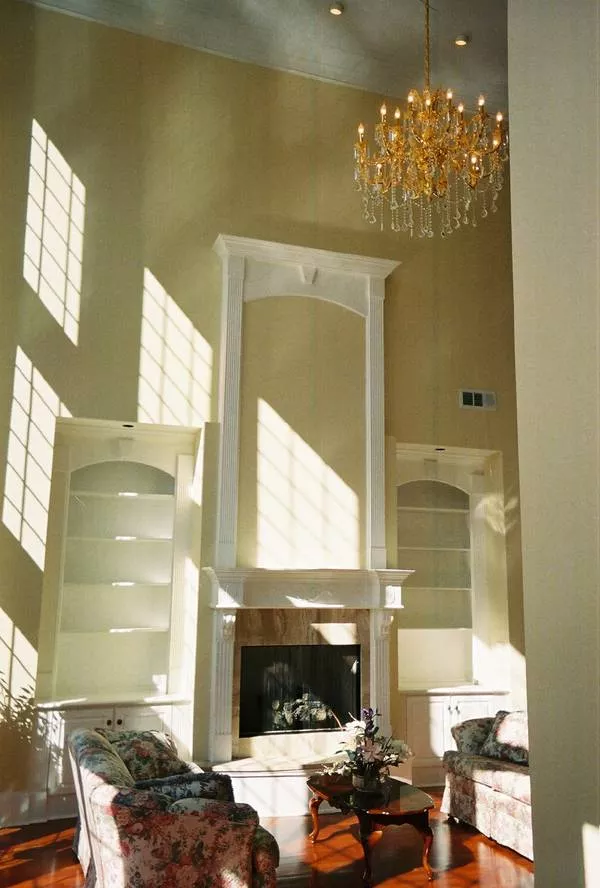

Grand Room

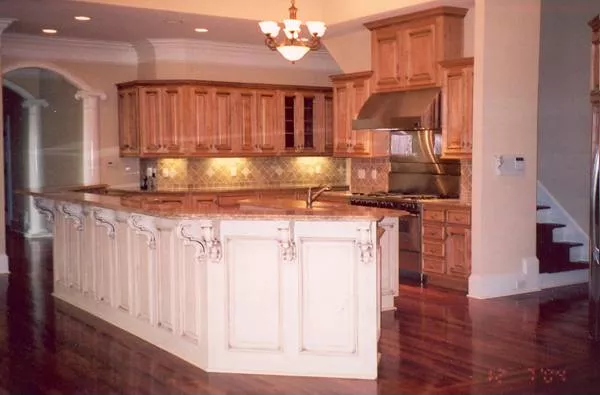

Kitchen

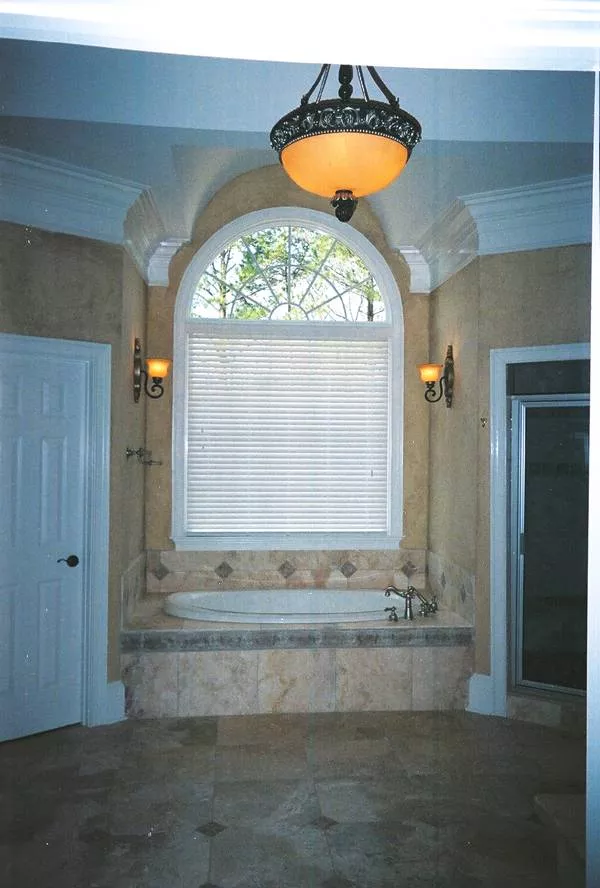

Master Bath

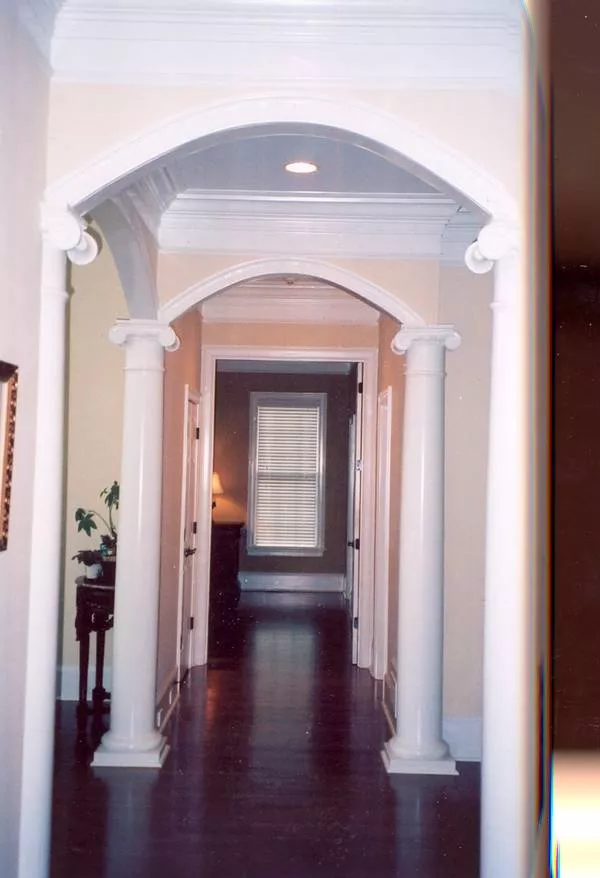

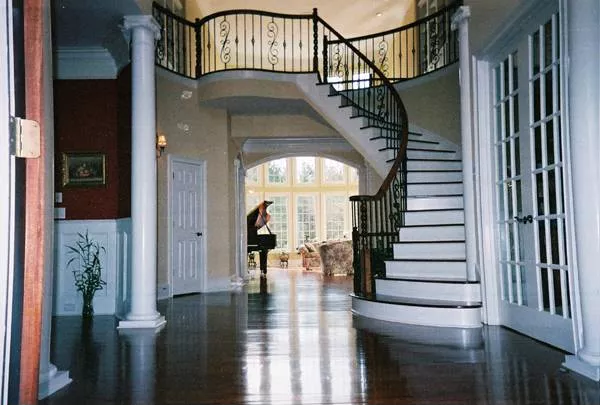

Interior Photo

Rear Elevation

View All 13 Images | Photographs may reflect modified home

Sq Ft

5,083 FT²

From

$1,695.00

Beds

Baths

5.5

Stories

Garage

Depth

74'

Width

87'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

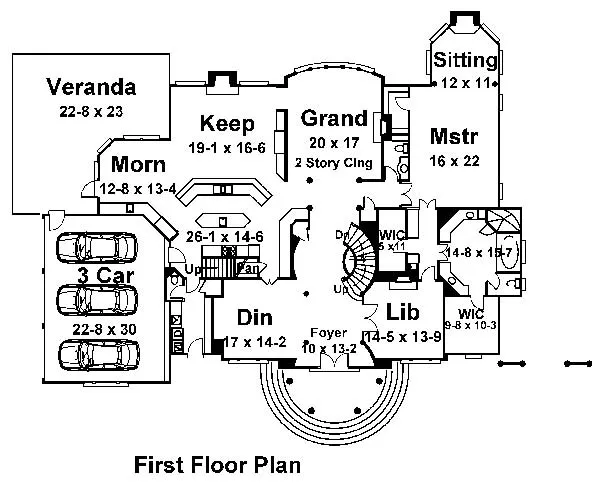

1st Floor Plan

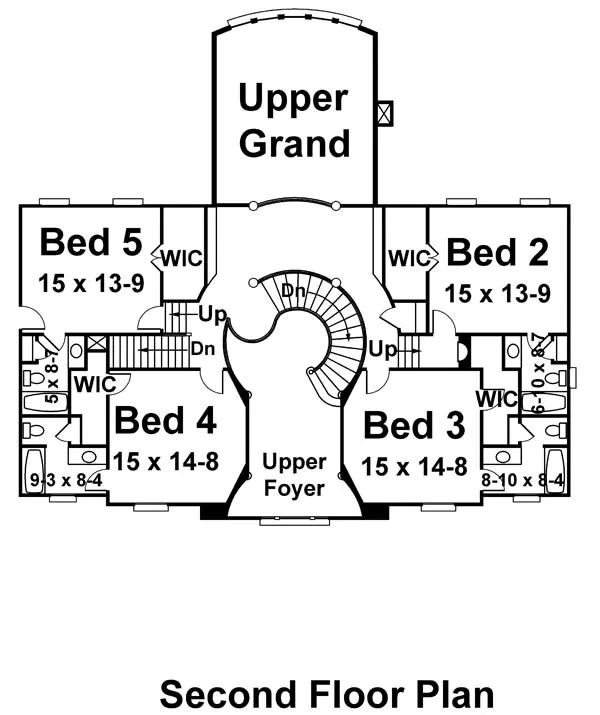

2nd Floor Plan

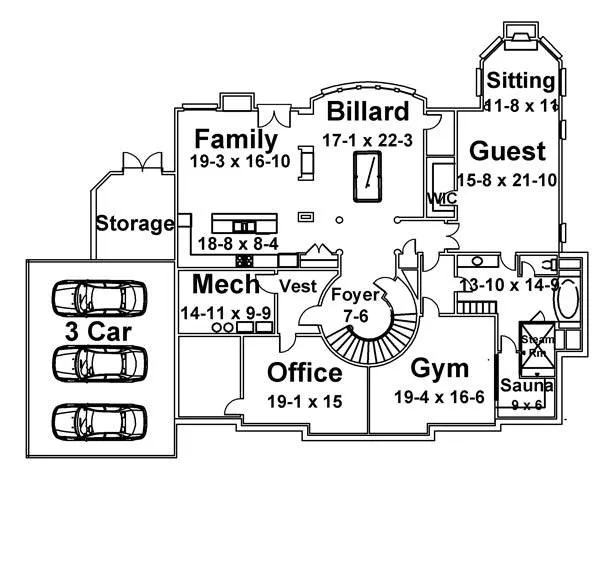

Basement Floor Plan

1st Floor Plan

2nd Floor Plan

Basement Floor Plan

About This Plan

Resplendence personified, this manor exudes opulence inside and out. An awe-inspiring portico, formed by full-height brick pilasters, second floor balcony, pedimented frontispiece, rounded steps, and Palladian windows, shelters the entrance and defines the exterior. Grand double doors open to the foyer, where a sweeping staircase is first to catch one's eye. The great room awaits at the other end, measuring 20 x 17 feet, and featuring a curved window wall for spectacular outdoor views. The decadent master suite constitutes most of the space of the right side of the plan on this level, bearing an opulent sitting room, coffered ceiling, and His-and-Hers walk-in closets. The left side of the floor hosts an ornate keeping room next to the salon, a kitchen with work island and breakfast nook, and a gorgeous morning room opening onto a veranda. An expansive three-car garage sits at the front.

FEATURES & DETAILS

Kitchen features

Kitchen Island
Walk-in Pantry

Bedroom features

Primary Bdrm Main Floor
Split Bedrooms
Walk-in Closet

Exterior features

Deck
Front Porch

Foundation Options

Daylight Basement
Walkout Basement

Additional features

Bonus Room
Dining Room
Family Room
Formal LR
Great Room
Home Office
Library/Media Rm
Mud Room
Wine Cellar

Garage Location

Side

Garage Options

Attached

5,083 Ft

Total Heated

3,438 Ft

1st Floor

1,645 Ft

2nd Floor

Bedrooms

5.5

Bathrooms

Garage

Stories

87' 0"

Width

74' 0"

Depth

41' 4"

Height

10' 0"

Main Floor Ceiling

9' 0"

Upper Floor Ceiling

2x4

Framing

Stick

Roof Framing

Single

Dwelling Number

Unheated Living Space

Exterior Styles

Classical

Colonial

Traditional

Collections

Luxury

Old House Classics

Plan Package Options

Important info before you buy

Select Plan Package

$1,695

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,695

$2,125

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$2,125

$2,225

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$2,225

$2,495

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,495

$3,290

CAD Unlimited Build

2D electronic computer files, completely editable, for design professional use when making extensive modifications; multi-license allows unlimited builds

$3,290

Need To Reverse Plan? (Optional)

$200

Readable Reverse

Reverse house plans with readable text and dimensions

$200

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
