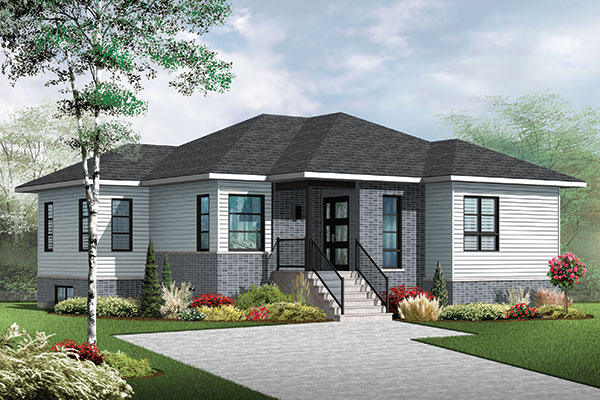

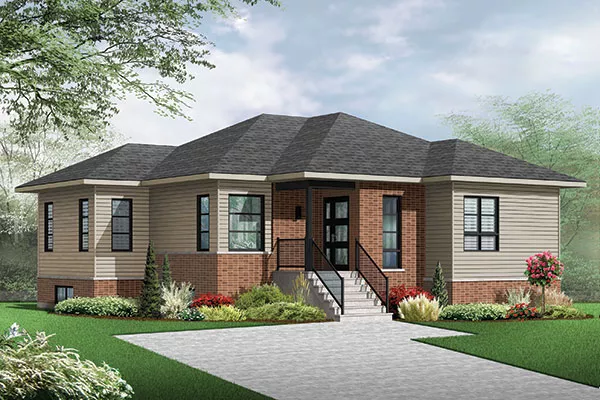

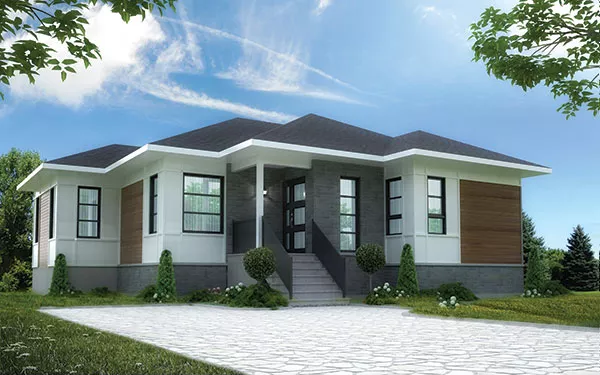

House Plan 9532: Ashbury 4

Contemporary 3 bedroom  house plan offers an unusually large closet in the foyer and an open activities area that bathes the living and dining rooms in natural light from the abundant windows. The kitchen is complete with a practical 3 x 7 island.  Read more >

House Plan Details

Sq. Ft.
1,247
Beds
3
Baths
1.0
Stories
1
Garages
0
Width
40' 4"
Depth
38' 4"
1st Floor
1,247
Select Plan Package
5 sets
$805
Select Foundation Options
$395
Crawlspace
$0
Optional Add-Ons
Subtotal: $0

PLAN IMAGES

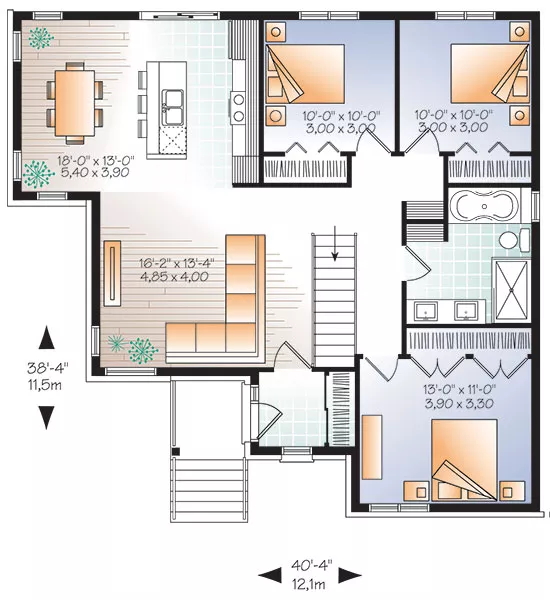

First level

First level
© copyright by designer

Plan Details

Basic Information
Bedrooms: 3
Bathrooms: 1.0
Garage: 0
Stories: 1
Exterior Style
Contemporary
Modern
Ranch
Dimensions
Width: 40' 4"
Height: 20' 5"
Depth: 38' 4"
Heated Living Space
Total Sq. Ft: 1,247
1st Floor: 1,247
Unheated Living Space
Ceiling
Upper Ceiling Ft:
Main Ceiling Ft: 8
Framing Information
Framing: 2x6
Roof Framing: Truss
Bedroom Features
Double Vanity Sink
His and Hers Master Closets
Master Bdrm Main Floor
Separate Tub and Shower
Kitchen Features
Kitchen Island
Additional Room Features
Family Room
Foyer
Great Room
Open Floor Plan
Unfinished Space
Garage Location
None
Garage Features
None
Lot Features
Suited for corner lot
Roof Pitch
Primary: 6/12

Our Guarantee

  • Only the highest quality plans
  • Int’l Residential Code Compliant
  • Full structural details on all plans
  • Best plan price guarantee
  • Free modification Estimates
  • Builder-ready construction drawings
  • Expert advice from leading designers
  • PDFs NOW!™ plans delivered in minutes
  • 100% satisfaction guarantee
  • Free Home Building Organizer
