Sq Ft
1,647 FT²

Bed
3

Bath
2

Stories
1

Garage
2

Depth
52' 6"

Width
51' 8"

On Sale
$799.00
$940.00

EXCLUSIVE PLAN

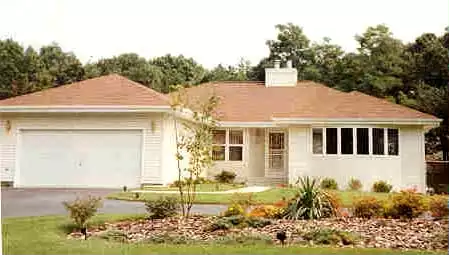

Front Photo #1

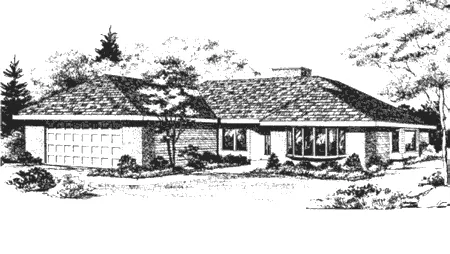

Front Rendering

Rear Elevation

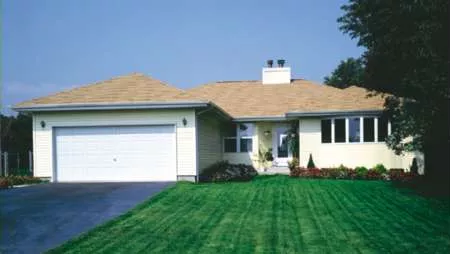

Front Photo #2

Family Room

View All 5 Images | Photographs may reflect modified home

Sq Ft

1,647 FT²

From

$799.00

Bed

Bath

Stories

Garage

Depth

52' 6"

Width

51' 8"

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

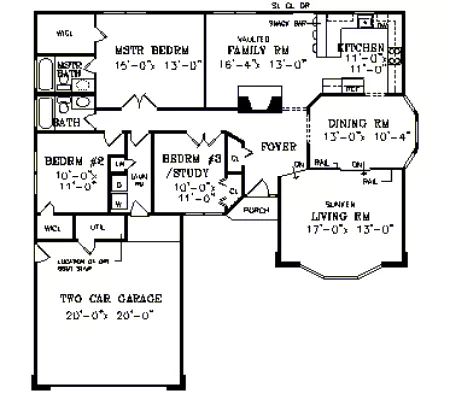

First Floor Plan

About This Plan

I created a modern rendition of the popular U-shaped home; this ranch offers a ground-hugging silhouette, a recessed front porch and a large front-facing bay window, in a relatively narrow footprint. The lovely sunken living room off the foyer has a corner entrance and adjoining formal dining room; only an open railing separates the two rooms, which creates an elegant and spacious formal entertaining area. The dramatic family room includes a sloping cathedral ceiling, a brick-faced, heat-circulating fireplace, sliding doors to the rear patio and a snack bar connecting it to the kitchen.
The perfect kitchen features a spacious work area with cabinets on four walls. The private master suite features an elegant double door entry, a generous walk-in closet and bath. Room for one or two additional bedrooms and a utility area are also included.

FEATURES & DETAILS

Kitchen features

Peninsula / Eating Bar

Bedroom features

Primary Bdrm Main Floor
Walk-in Closet

Foundation Options

Basement
Crawlspace
Slab

Lot Options

Suited for narrow lot

Additional features

Dining Room
Fireplace
Formal LR
Foyer
Laundry 1st Fl
Mud Room
Vaulted Ceilings

Garage Location

Front

Garage Options

Attached
Front-entry

1,647 Ft

Total Heated

Bedrooms

Bathrooms

Garage

Stories

51' 8"

Width

52' 6"

Depth

16' 6"

Height

8'-1"' 0"

Main Floor Ceiling

2x4

Framing

Stick

Roof Framing

6/12

Primary Roof Pitch

Single

Dwelling Number

Unheated Living Space

Exterior Styles

Contemporary

Ranch

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$710

PDF Bid Set
PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$710

$940

PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$940

$1,050

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,050

$1,125

8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

$1,125

Select Foundation Option

Add-Ons (Optional)

	Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your house plan
	Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
