HOUSE PLANS
START AT $1,050
SQ FT
1,931
BEDS
3
BATHS
2.5
STORIES
1
CARS
2
WIDTH
62'
DEPTH
69' 6"
© copyright by designer

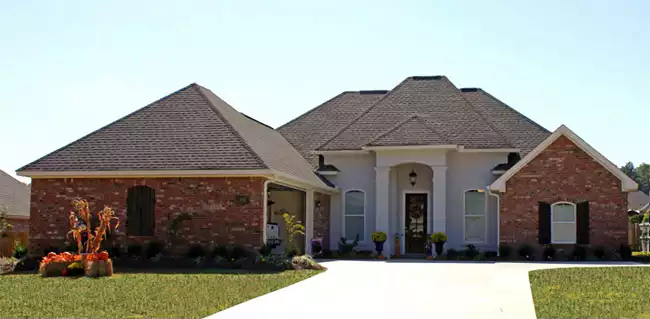

Photographs may reflect modified homes.   View all 5 photos
SQ FT
1,931
BEDS
3
BATHS
2.5
STORIES
1
CARS
2



House Plan 3097: Arlington

Spacious family area is provided in this home design featuring a gas fireplace, built-ins and a great rear view. An open feeling is provided with the arched openings to the foyer, dining and breakfast area. The 11' ceiling in the greatroom expands to the dining and foyer. The private master suite includes a large walk-in closet.
Click to Zoom In on Floor Plan

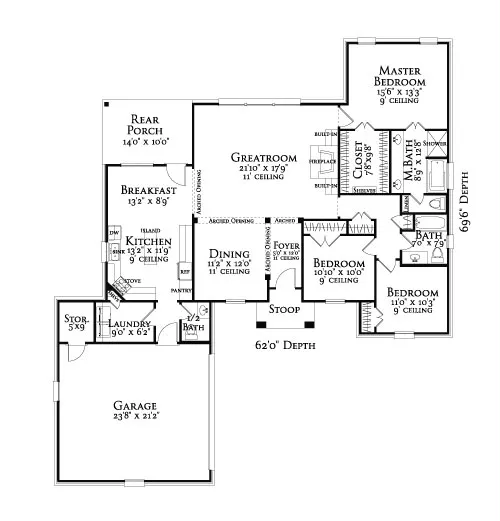

Floor Plans
© copyright by designer
Plan Packages
 Select Plan Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build
PDFs NOW!™
Most recommended package
$1,050

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets
Five printed sets of house plans
$1,115

CAD Single Use


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Use
2D electronic editable computer files
$1,950
 Need To Reverse This Plan? (Optional)

Readable Reverse


Reverse house plans with readable text and dimensions

Readable Reverse
Reverses house plans with readable text and dimensions
$255
 Select Foundation Option
 Add-Ons (Optional)
Subtotal:
$0
Free Shipping
Features:
View All Plan Features
Kitchen features
Kitchen Island
Nook / Breakfast Area
Bedroom features
Double Vanity Sink
Separate Tub and Shower
Split Bedrooms
Walk-in Closet
Lot features
Suited for view lot
Additional features
Arches
Dining Room
Fireplace
Foyer
Great Room
Laundry 1st Fl
Storage Space
Vaulted Ceilings
Garage Location
Front
Garage Features
Attached
Side-entry

Hide Plan Features
Details:
View All Plan Details
2,714 Ft
2
Total Structure:
1,931 Ft
2
Total Heated:
3
Bedrooms:
2.5
Bathrooms:
2
Garage:
1
Stories:
62' 0"
Width:
69' 6"
Depth:
9 & 11
Main Floor Ceiling:
2x4
Framing:
Stick
Roof Framing:
10/12
Primary Roof Pitch:
14/12
Secondary Roof Pitch:
Single
Dwelling Number:
Unheated Living Space
596 Ft
2
Garage:
187 Ft
2
Porch:

Hide Plan Details
