HOUSE PLANS
START AT $1,150
SQ FT
2,062
BEDS
3
BATHS
2
STORIES
1
CARS
2
WIDTH
68'
DEPTH
49' 5"
© copyright by designer
SQ FT
2,062
BEDS
3
BATHS
2
STORIES
1
CARS
2

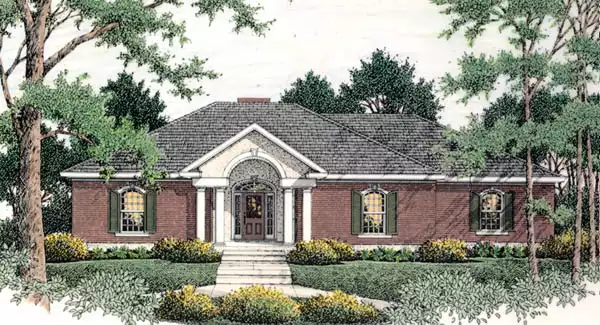

House Plan 5229: Arbordale

The foyer greets guests with a graceful round top arch which leads into the open greatroom and kitchen area. The built-in corner entertainment center is attractively enclosed with rounded glass doors. The rounded gracefullness is carried throughout the home from the rounded arch entrance at the front door to the round windows and 1/2 round transoms.

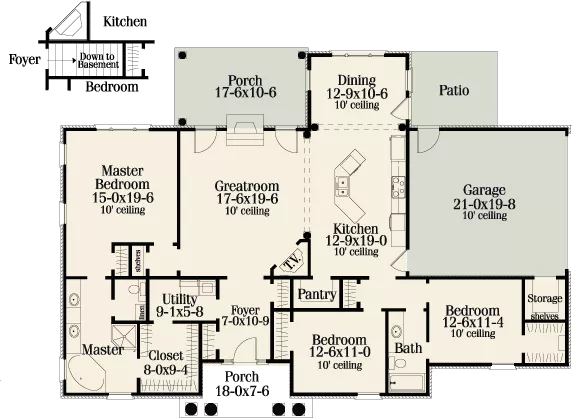

Click to Zoom In on Floor Plan
Floor Plans
© copyright by designer
Plan Packages
Select Plan Package

PDF Single Build


Digital plans emailed to you in PDF format allows making minor changes and printing copies on home printer or local print shop and sharing with contractors, subs, decorators and more Digital plans emailed to you in PDF format allows making minor changes and printing copies on home printer or local print shop and sharing with contractors, subs, decorators and more.

PDF Single Build
Immediate Delivery!
Most recommended package
$1,150

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets
Five printed sets of house plans
$1,215

CAD Single Use


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Use
2D electronic editable computer files
$2,100
Standard or Readable Reverse?
Standard
Immediate Delivery!
$0

Readable Reverse


Reverse house plans with readable text and dimensions

Readable Reverse
Reverses house plans with readable text and dimensions
$255
Select Foundation Option
Optional Add-Ons
Subtotal:
$0
Free Shipping
If a foundation or optional add-on is not listed, please live chat, email or call for availability.
Features:
View All Plan Features
Kitchen features
Country Kitchen
Kitchen Island
Walk-in Pantry
Bedroom features
Double Vanity Sink
His and Hers Master Closets
Master Bdrm Main Floor
Separate Tub and Shower
Split Bedrooms
Walk-in Closet
Lot features
Suited for corner lot
Suited for view lot
Additional features
Fireplace
Foyer
Great Room
Laundry 1st Fl
Open Floor Plan
Storage Space
Garage Location
Rear
Garage Features
Attached
Side-entry
Details:
View All Plan Details
2,062
Total Sq. Ft.:
3
Bedrooms:
2
Bathrooms:
2
Garage:
1
Stories:
68' 0"
Width:
49' 5"
Depth:
23' 0"
Height:
10
Main Floor Ceiling:
2x4
Framing:
Stick
Roof Framing:
8/12
Primary Roof Pitch:
Single
Dwelling Number:
Unheated Living Space
430 Ft
2
Garage:
36 Ft
2
Storage:
270 Ft
2
Porch:
Exterior Styles
French Country
Traditional
