House Plan 3866: ANN MAE

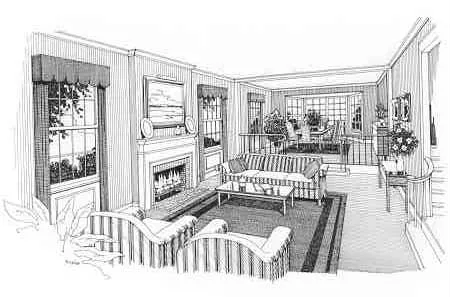

A large fireplace warms the spacious, sunken living room of this home. A railing separates the living room from the dining room, up two steps. Sliding glass doors set in a bay window access a terrace. The U-shaped kitchen and the dinette flow together to create an informal space that is sure to become the heart of family life.  Read more >

House Plan Details

Sq. Ft.
2,035
Beds
3
Baths
3.0
Stories
2
Garages
2
Width
62' 0"
Depth
42' 0"
1st Floor
1,238
2nd Floor
797
Garage
436
Deck
337
Select Plan Package
PDF Construction Set - Si
$975
Select Foundation Options
$0
Crawl Space
$0
Optional Add-Ons
Subtotal: $0

PLAN IMAGES

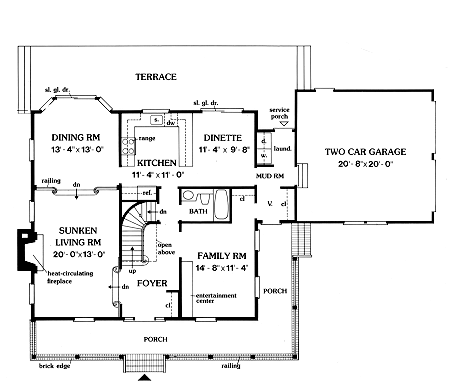

First Floor Plan

First Floor Plan
© copyright by designer

Plan Details

Basic Information
Bedrooms: 3
Bathrooms: 3.0
Garage: 2
Stories: 2
Exterior Style
Country
Traditional
Dimensions
Width: 62' 0"
Height: 30' 0"
Depth: 42' 0"
Heated Living Space
Total Sq. Ft: 2,035
1st Floor: 1,238
2nd Floor: 797
Unheated Living Space
Garage: 436
Deck: 337
Ceiling
Upper Ceiling Ft: 8'-1"
Main Ceiling Ft: 8'-1"
Framing Information
Framing: 2x6
Roof Framing: Stick
Bedroom Features
Double Vanity Sink
Master Bdrm Upstairs
Walk-in Closet
Kitchen Features
Nook / Breakfast Area
Peninsula / Eating Bar
Additional Room Features
Dining Room
Family Room
Fireplace
Formal LR
Foyer
Laundry 1st Fl
Mud Room
Storage Space
Garage Location
Side
Garage Features
Attached
Lot Features
Roof Pitch
Primary: 9-1/2: 12
Secondary: 5/ 12

Our Guarantee

  • Only the highest quality plans
  • Int’l Residential Code Compliant
  • Full structural details on all plans
  • Best plan price guarantee
  • Free modification Estimates
  • Builder-ready construction drawings
  • Expert advice from leading designers
  • PDFs NOW!™ plans delivered in minutes
  • 100% satisfaction guarantee
