Search Plans

Sq Ft
1,697 FT²
Bed
3
Bath
2.5
Stories
1
Garage
2
Depth
37' 9"
Width
83' 8"
From
$940.00
EXCLUSIVE PLAN
© copyright by designer

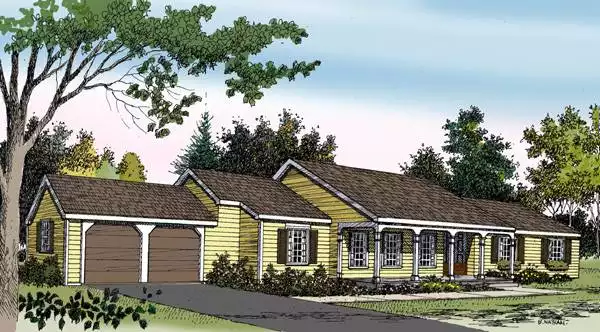

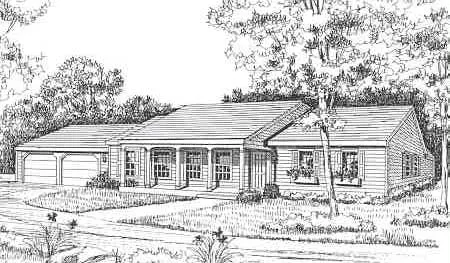

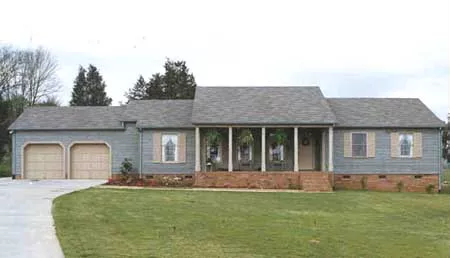

View All 3 Images | Photographs may reflect modified home
Sq Ft
1,697 FT²
From
$940.00
Bed
3
Bath
2.5
Stories
1
Garage
2
Depth
37' 9"
Width
83' 8"

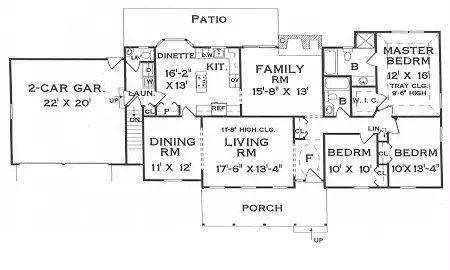

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

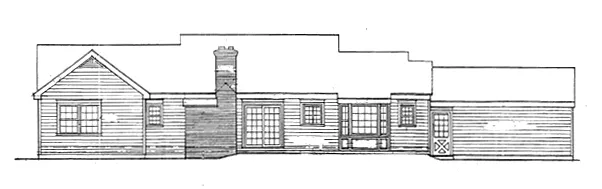

This is another in the series of traditional linear ranches that were designed by Sam Paul, Architect. This plan, however also includes a large master suite with a walk-in closet and large bath. The formal entertaining rooms straddle the front porch in the higher central section. The informal rooms are stretched across the rear and include a lovely family room and spacious kitchen, with an adjoining bayed breakfast room. All face out through large window areas to the rear patio.


FEATURES & DETAILS

Kitchen features
Kitchen Island
Nook / Breakfast Area
Bedroom features
Primary Bdrm Main Floor
Separate Tub and Shower
Walk-in Closet
Exterior features
Front Porch
Foundation Options
Basement
Crawlspace
Slab
Additional features
Dining Room
Family Room
Fireplace
Foyer
Laundry 1st Fl
Vaulted Ceilings
Garage Location
Side
Garage Options
Attached
Front-entry
1,697 Ft
2
Total Heated
3
Bedrooms
2.5
Bathrooms
2
Garage
1
Stories
83' 8"
Width
37' 9"
Depth
17' 6"
Height
8'-1"' 0"
Main Floor Ceiling
2x4
Framing
Stick
Roof Framing
6/12
Primary Roof Pitch
Single
Dwelling Number

Unheated Living Space
461 Ft
2
Garage


Plan Package Options

 Select Plan Package
$710
PDF Bid Set
PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$710
$940
PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$940
$1,050
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,050
$1,125
8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

$1,125
  Select Foundation Option
  Add-Ons (Optional)

Free Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
