Recently Viewed Plans | Advanced Plan Search

Sq Ft
4,090 FT²

Beds
4

Baths
4.5

Stories
3

Garage
4

Depth
60'

Width
40'

From
$2,045.00

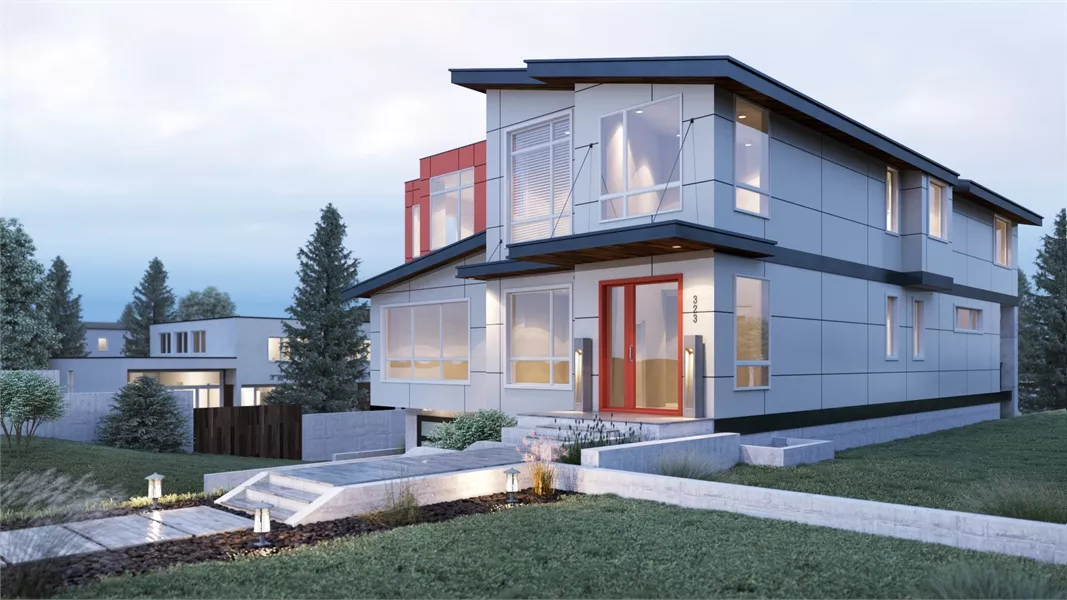

Front Photo

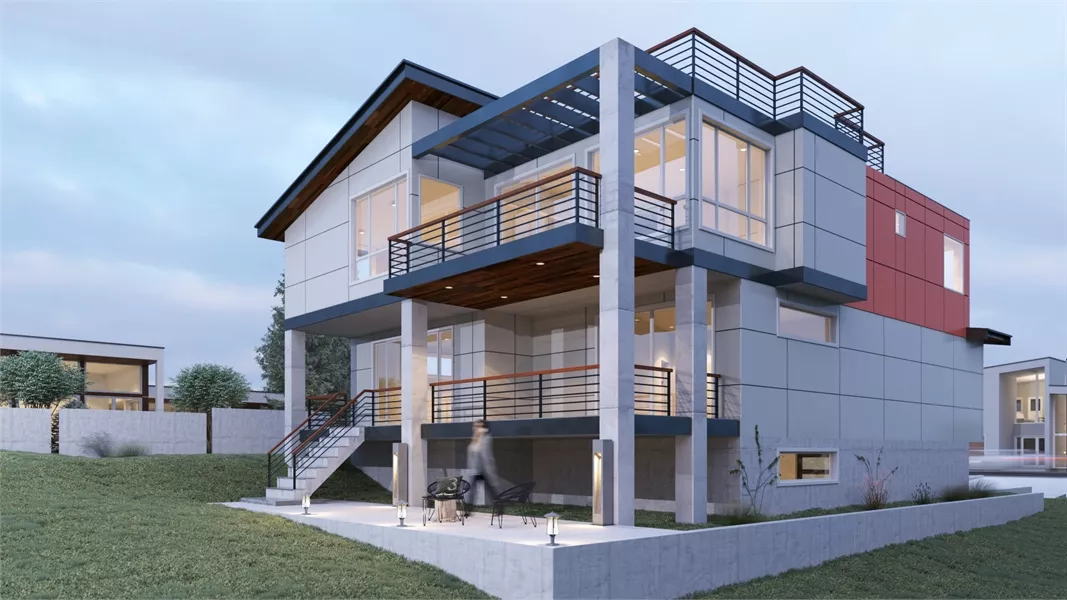

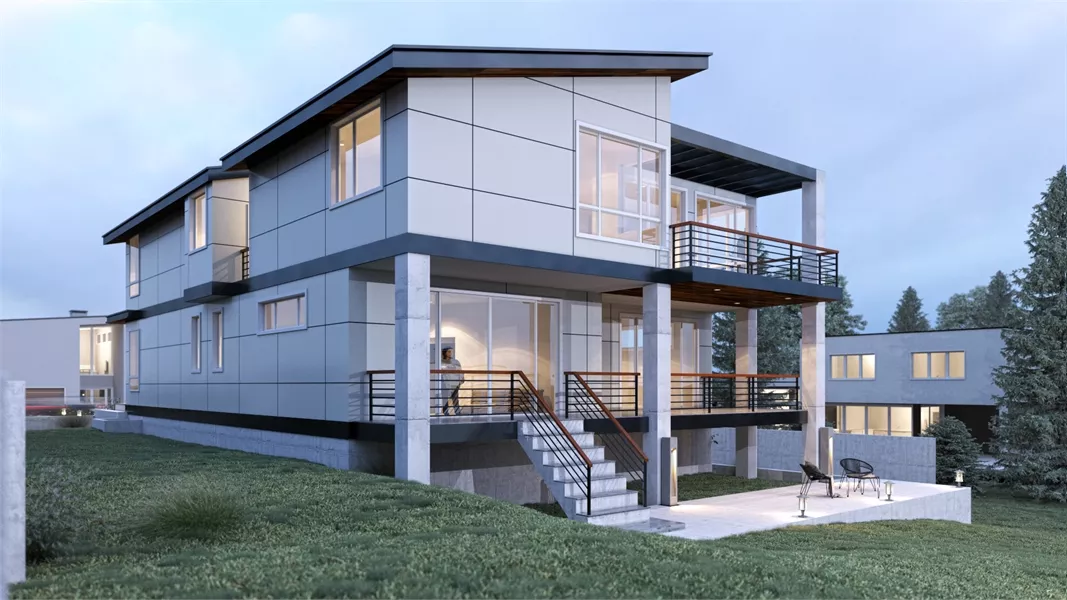

Rear Photo

View All 7 Images | Photographs may reflect modified home

Sq Ft

4,090 FT²

From

$2,045.00

Beds

Baths

4.5

Stories

Garage

Depth

60'

Width

40'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

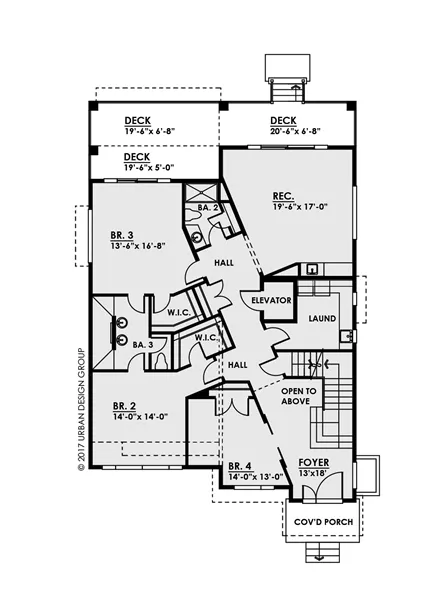

1st Floor Plan

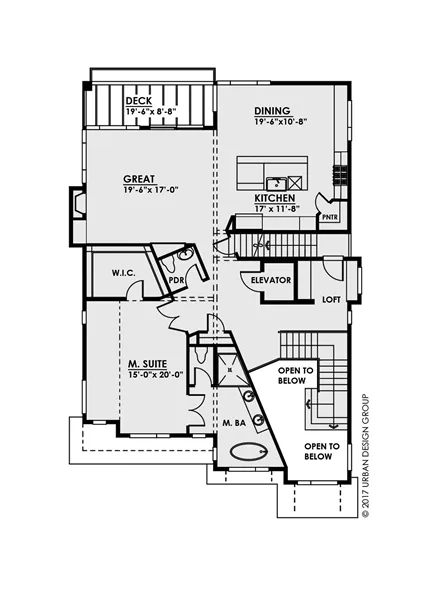

2nd Floor Plan

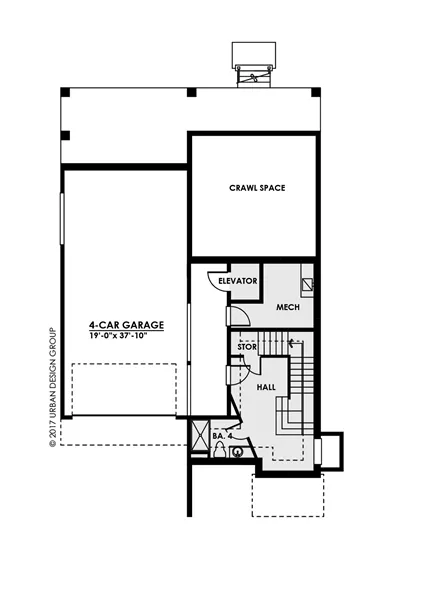

Lower level floor plan

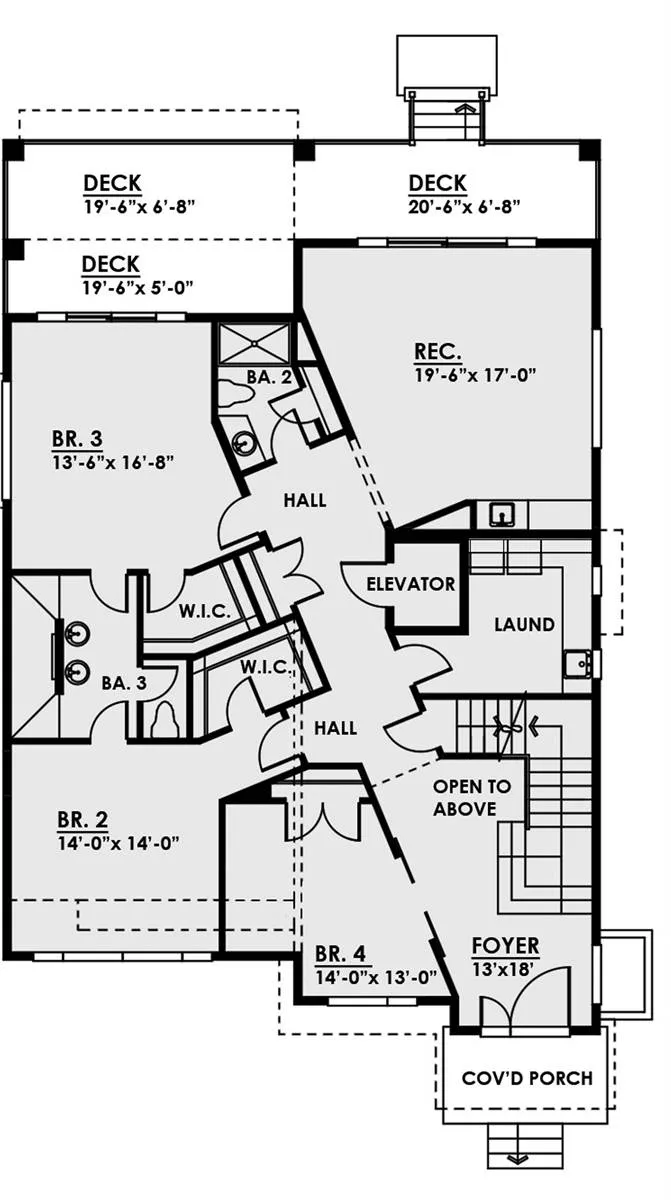

1st Floor Plan

2nd Floor Plan

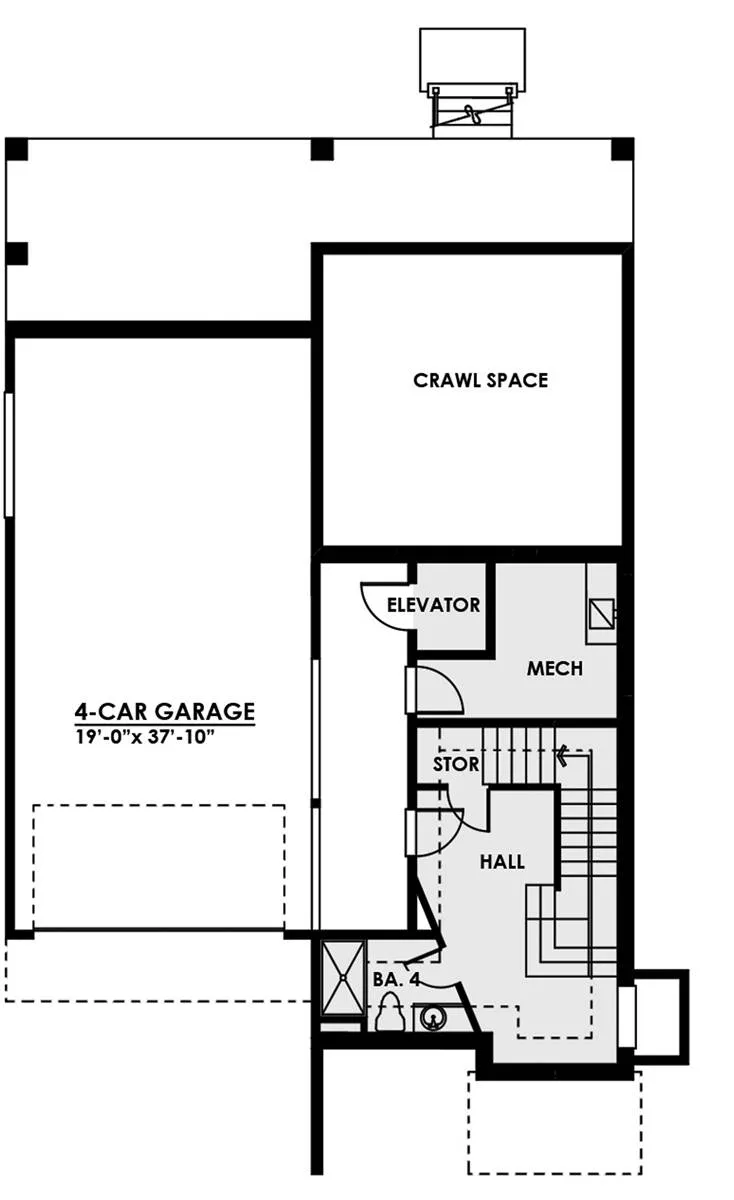

Lower level floor plan

About This Plan

Perfect for a narrow or sloping lot, this 3 story contemporary plan is equal parts beautiful and spacious. You'll love the totally unique exterior which is sure to capture your eye from first glance. Take note of the sharp contrasting lines which seamlessly join together. Enter inside the 4,090 square foot layout either via the drive-under 4-car garage, or via the front walkway. The garage level provides access to the two other levels, both by stairs and your own personal elevator. The first thing that you will notice with this home's 4 bed 4.5 bath floor plan is that it is an inverted layout. This means that your bedrooms are all conveniently on the main floor, while your living spaces and master suite are on the upper floor, resulting in gorgeous views all around. The main level offers 3 bedrooms along with 2 full bathrooms, a covered rear deck, and a great-sized rec room. Upstairs is where you can take in all of the views, thanks to massive windows throughout, highlighting the family room and island kitchen, as well as the spacious master suite.

FEATURES & DETAILS

Bedroom features

Double Vanity Sink
Primary Bdrm Upstairs
Separate Tub and Shower
Split Bedrooms
Walk-in Closet

Exterior features

Covered Rear Porch
Front Porch

Foundation Options

Basement

Lot Options

Suited for sloping lot

Additional features

2 Story Volume
Bonus Room
Dining Room
Family Room
Inverted Living
Laundry 1st Fl
Rec Room

Garage Options

Attached
Front-entry
Tandem

4,090 Ft

Total Heated

1,917 Ft

1st Floor

1,938 Ft

2nd Floor

338 Ft

Lower Floor

Bedrooms

4.5

Bathrooms

Garage

Stories

40' 0"

Width

60' 0"

Depth

26' 4"

Height

9' 0"

Main Floor Ceiling

9' 0"

Upper Floor Ceiling

2x6

Framing

Stick

Roof Framing

3:12

Primary Roof Pitch

Single

Dwelling Number

Unheated Living Space

719 Ft

Garage

67 Ft

Porch

531 Ft

Deck

Exterior Styles

Contemporary

Modern

Collections

Budget

Luxury

Split Bedroom

Plan Package Options

Important info before you buy

Select Plan Package

$2,045

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$2,045

$2,345

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$2,345

$2,490

8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

$2,490

$3,885

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$3,885

Need To Reverse Plan? (Optional)

$250

Readable Reverse

Reverse house plans with readable text and dimensions

$250

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
