House Plan 5647:

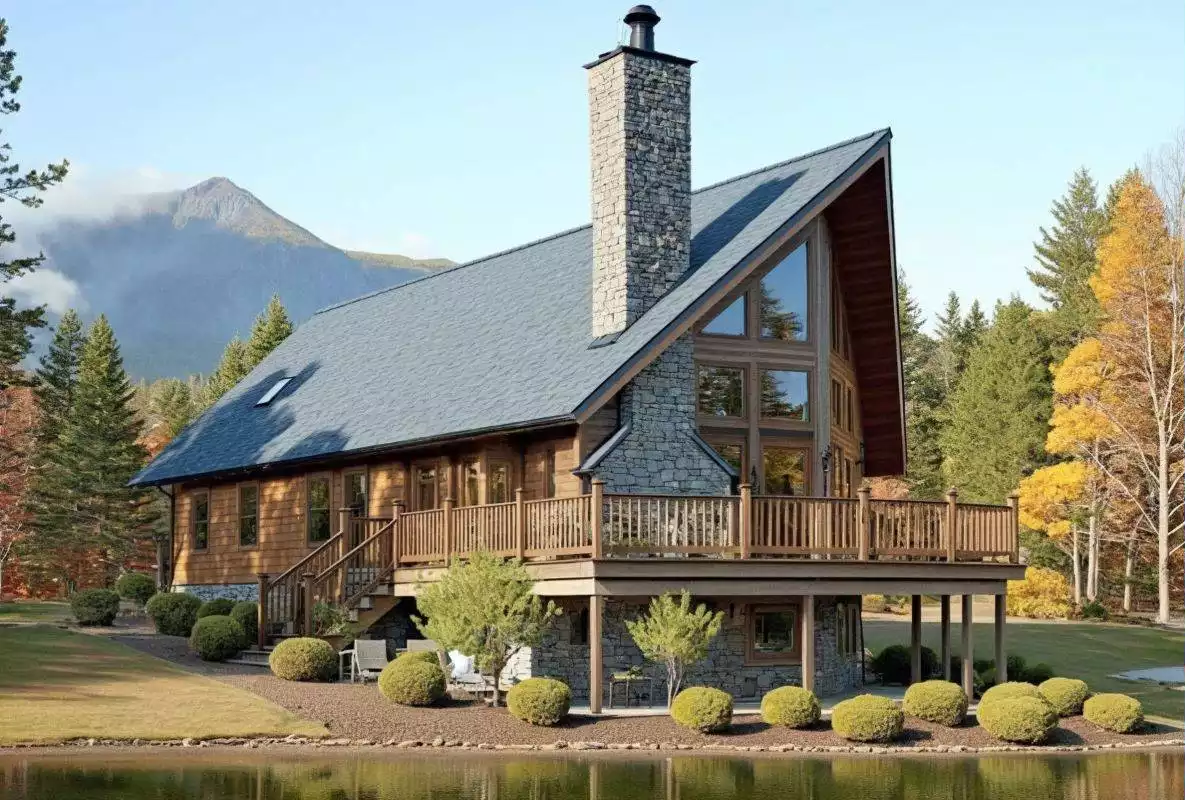

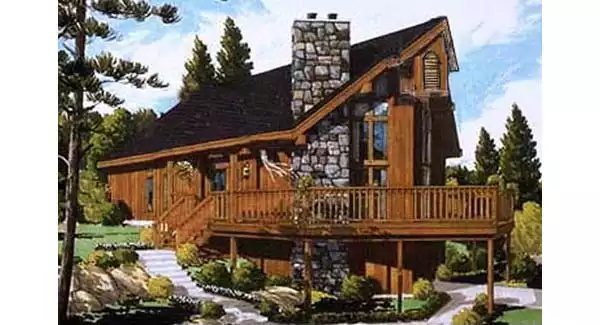

17 ft. high cathedral ceiling and warm fireplace grace the great room of this rustic chalet.Large windows above glass doors provide a breathtaking panoramic view. The great room unfolds to the open kitchen, which features a six-person snack bar.  Read more >

House Plan Details

Sq. Ft.
1,114
Beds
3
Baths
2.0
Stories
2
Garages
1
Width
24' 4"
Depth
38' 6"

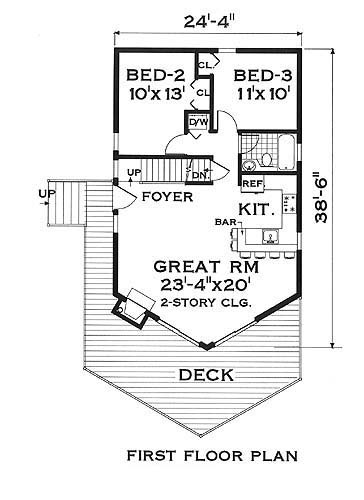

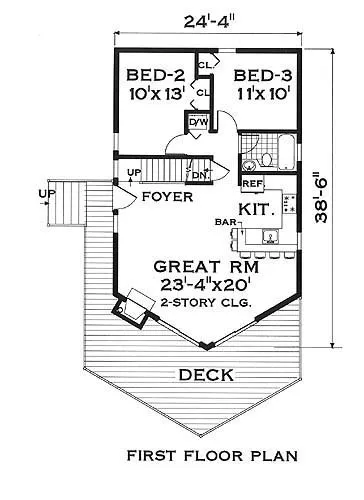

1st Floor
854

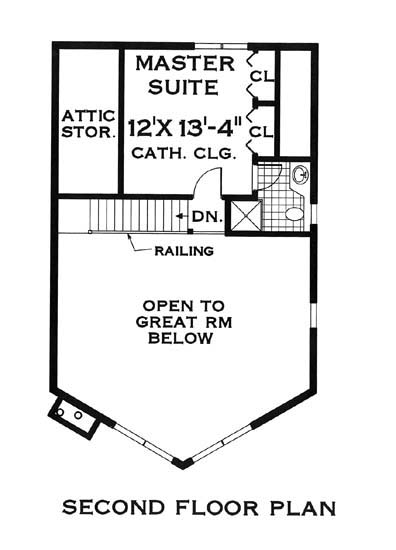

2nd Floor
260
Lower
344
Garage
510
Select Plan Package
Four Sets
$483
Select Foundation Options
$0
Basement
$0
Optional Add-Ons
Subtotal: $420

PLAN IMAGES

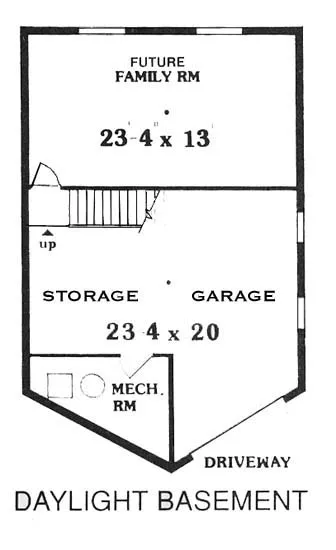

Basement

Basement
© copyright by designer

Plan Details

Basic Information
Bedrooms: 3
Bathrooms: 2.0
Garage: 1
Stories: 2
Exterior Style
Beach
Contemporary
Lake
Dimensions
Width: 24' 4"
Height: 0' 0"
Depth: 38' 6"
Heated Living Space
Total Sq. Ft: 1,114
1st Floor: 854
2nd Floor: 260
Lower: 344
Unheated Living Space
Garage: 510
Ceiling
Upper Ceiling Ft:
Main Ceiling Ft:
Framing Information
Framing: 2x4 or 2x6
Roof Framing: Stick
Bedroom Features
Kitchen Features
Additional Room Features
Garage Location
Front
Garage Features
Attached
Drive-under
Lot Features
Suited for narrow lot
Roof Pitch
