The Windsor Unique Tiny Contemporary Style House, Plan 1743

Sq Ft
832 FT²
Bed
2
Bath
2.5
Stories
2
Garage
1
Depth
31'
Width
26'
On Sale
$845.75
$845.75
© copyright by architect

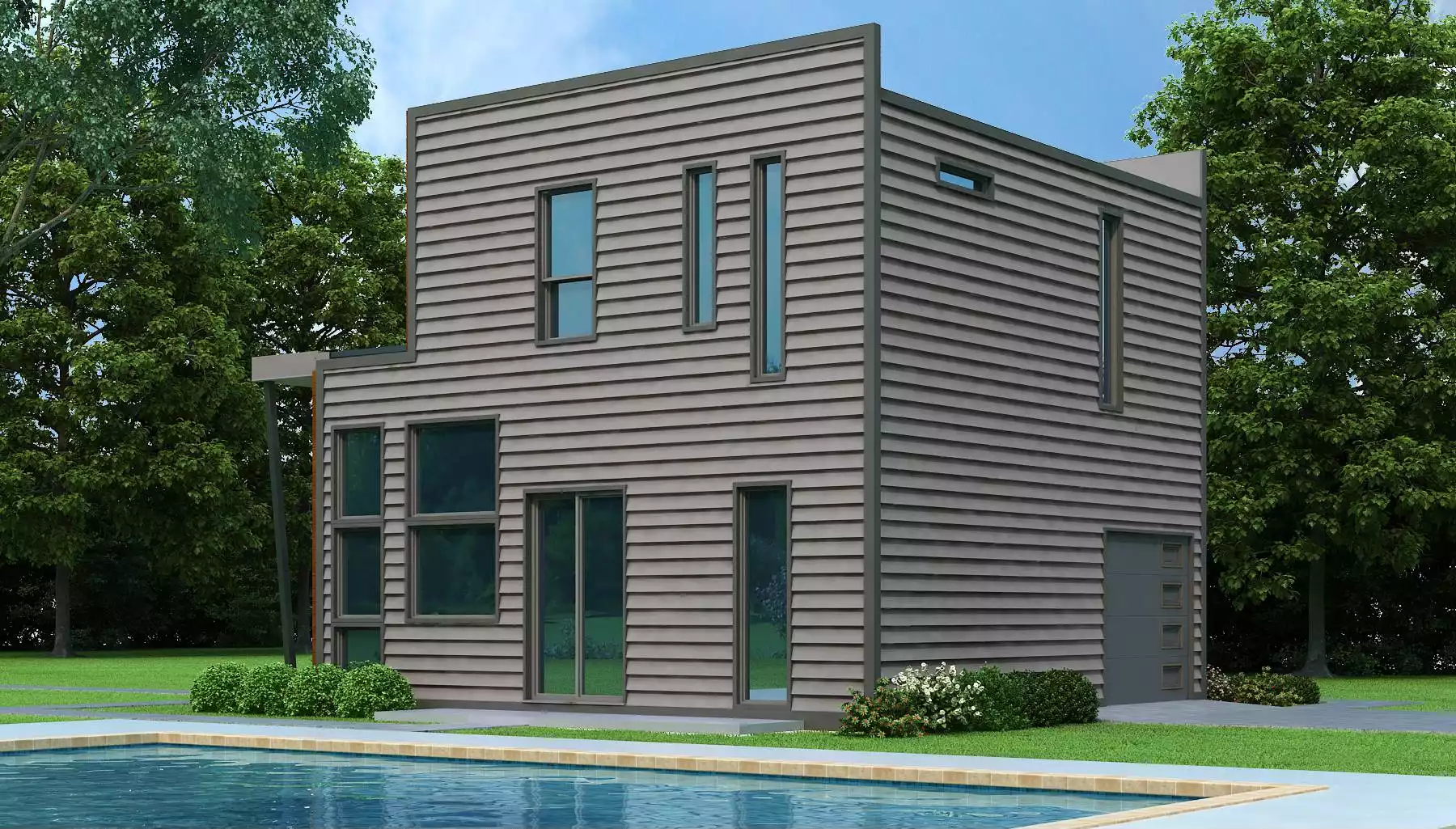

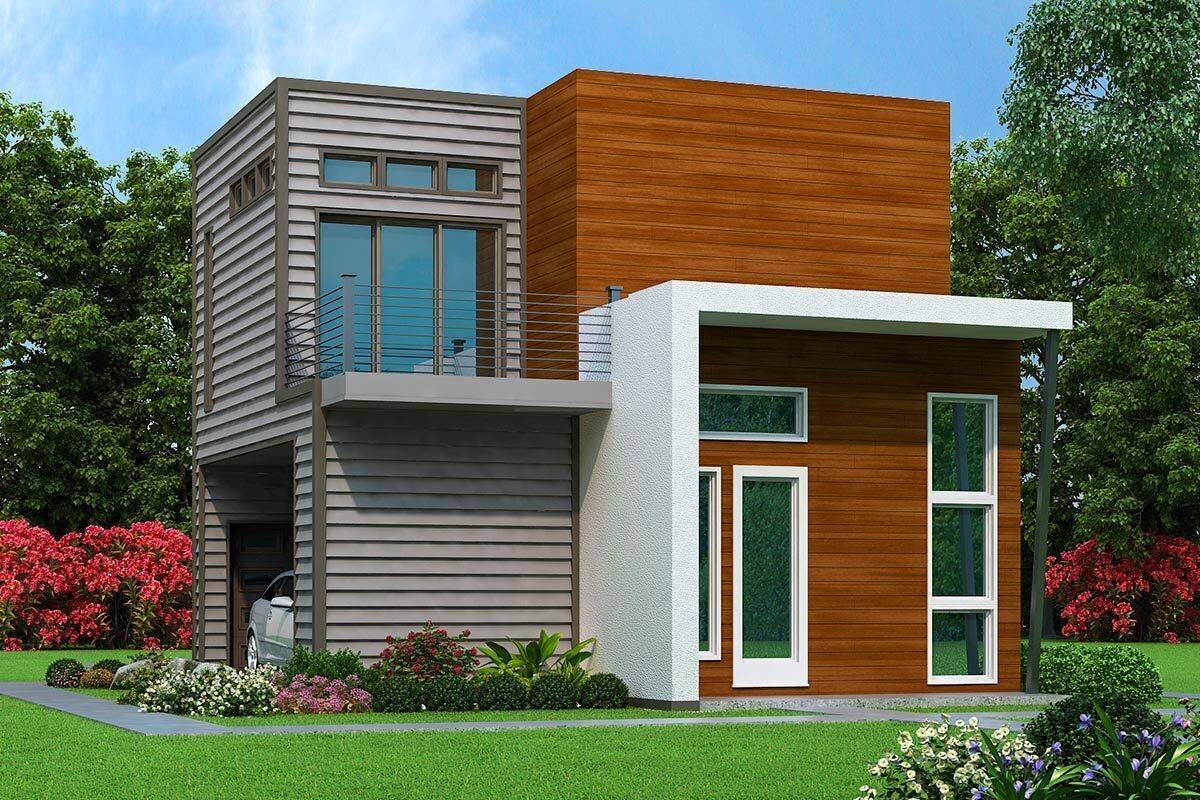

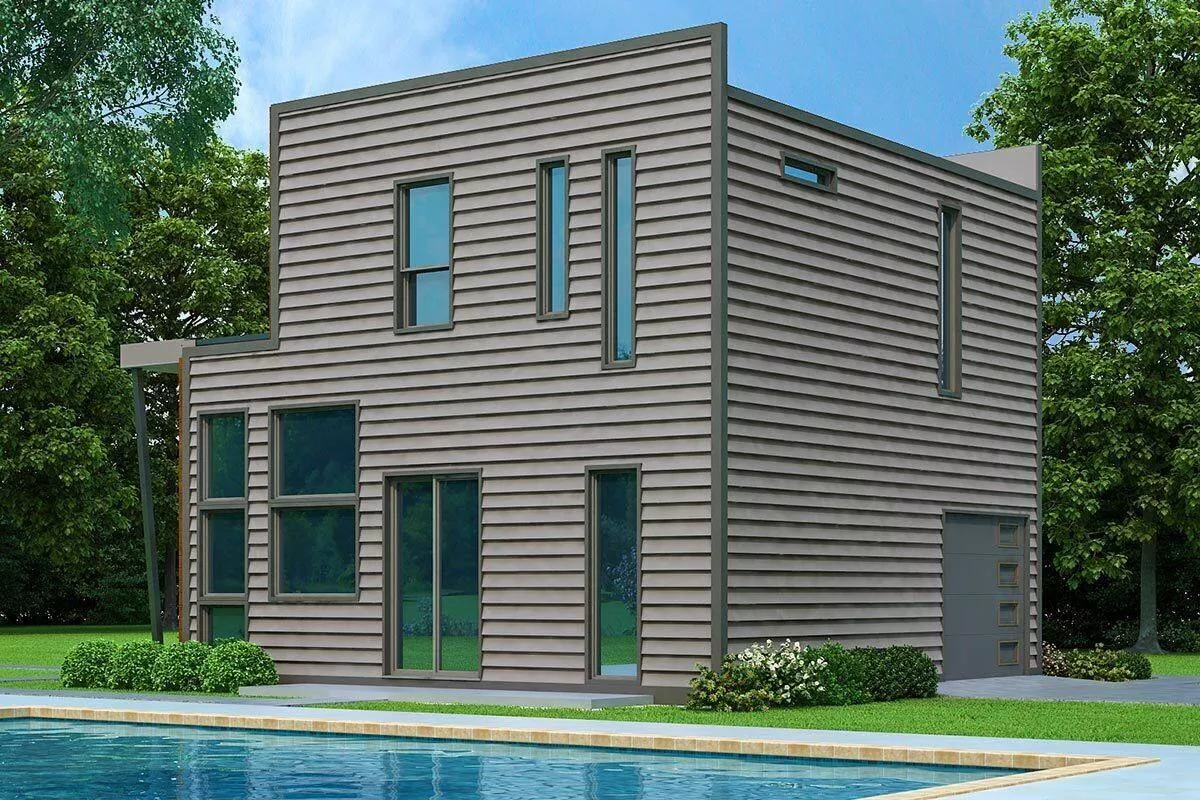

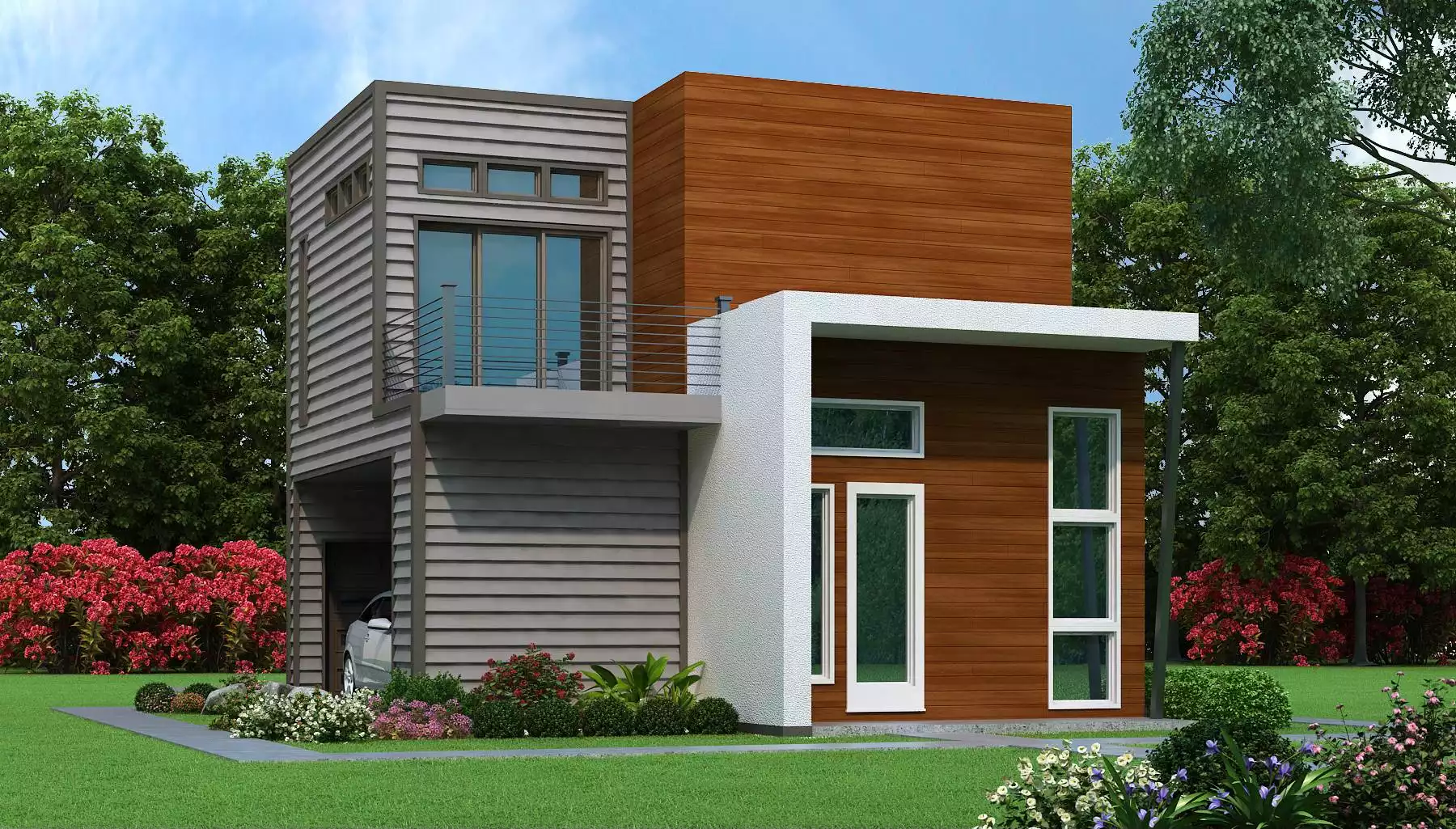

View All 2 Images | Photographs may reflect modified home
Sq Ft
832 FT²
From
$845.75
Bed
2
Bath
2.5
Stories
2
Garage
1
Depth
31'
Width
26'

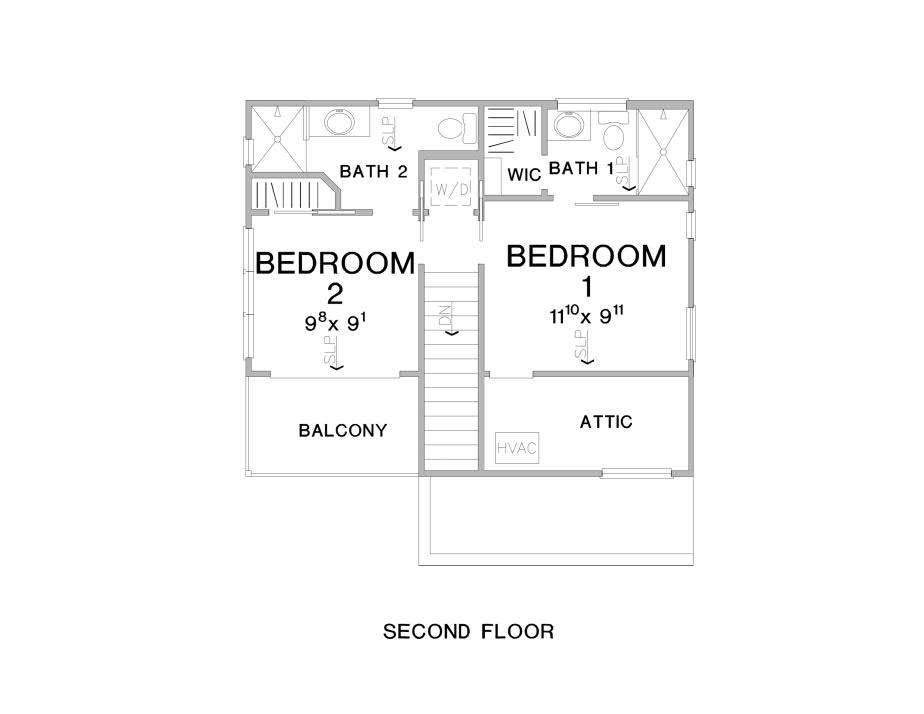

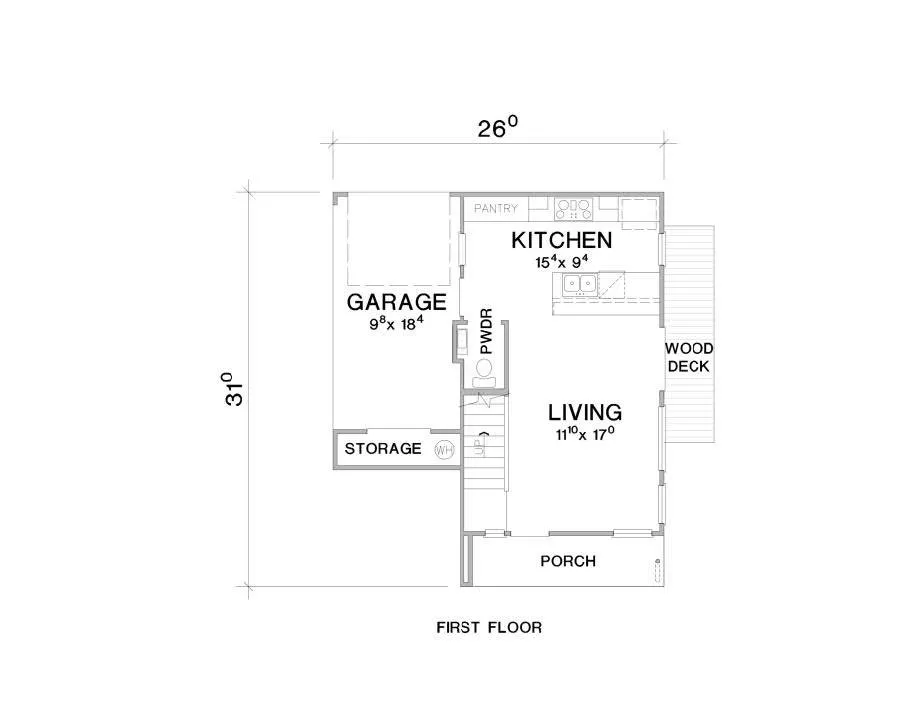

Click to Zoom In on Floor Plan
© copyright by architect



About This Plan

This modern two story tiny home offers functional living spaces, stylish design, and a unique open garage that sets it apart from other homes and can be easily used as a covered outdoor living area. The exterior of the home is clad in sleek, vertical wood siding that adds warmth and texture to this unique, 832 square foot design. The main level of the home is open and airy, featuring a spacious great room with large windows that fill the space with natural light. The kitchen is efficient and well-equipped, with a large island for food prep and casual dining. Upstairs are two cozy bedrooms with a shared bath and a balcony.


FEATURES & DETAILS

Kitchen features
Pantry
Peninsula / Eating Bar
Bedroom features
Master Bdrm Upstairs
Walk-in Closet
Exterior features
Covered Front Porch
Deck
Lot Options
Suited for corner lot
Suited for narrow lot
Additional features
Family Room
Laundry 2nd Fl
Loft / Balcony
Open Floor Plan
Storage Space
Vaulted Ceilings
Vaulted Master
Garage Location
Rear
Garage Options
Attached
Carport
1,112 Ft
2
Total Structure
832 Ft
2
Total Heated
434 Ft
2
1st Floor
398 Ft
2
2nd Floor
2
Bedrooms
2.5
Bathrooms
1
Garage
2
Stories
26' 0"
Width
31' 0"
Depth
22' 11"
Height
10' 0"
Main Floor Ceiling
9' 0"
Upper Floor Ceiling
12' 0"
Living/Great Room Ceiling
9' 0"
Master Ceiling
2x4
Framing
Combination
Roof Framing
1:12
Primary Roof Pitch
Single
Dwelling Number

Unheated Living Space
218 Ft
2
Garage
64 Ft
2
Porch
68 Ft
2
Deck


Plan Package Options

 Select Plan Package
$995
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$995
$1,995
CAD Single Build
States N/A: TX,NM,LA

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$1,995
 Need To Reverse Plan? (Optional)
$200
Readable Reverse

Reverse house plans with readable text and dimensions

$200
  Select Foundation Option
  Add-Ons (Optional)

Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your house plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
IMPORTANT NOTE: Due to state regulations, the CAD version may not be sold to residents of AL, TN, TX, NM and LA. If residing in any of the aforementioned states, the PDF version does not come with a release to make plan modifications. Modifications can be provided by the original architect. Please contact us for more information.

Note: NO CAD to TX, NM, LA, AL, TN
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
