Sq Ft
1,790 FT²

Beds
3

Baths
2.5

Stories
2

Garage
0

Depth
52'

Width
20' 2"

From
$995.00

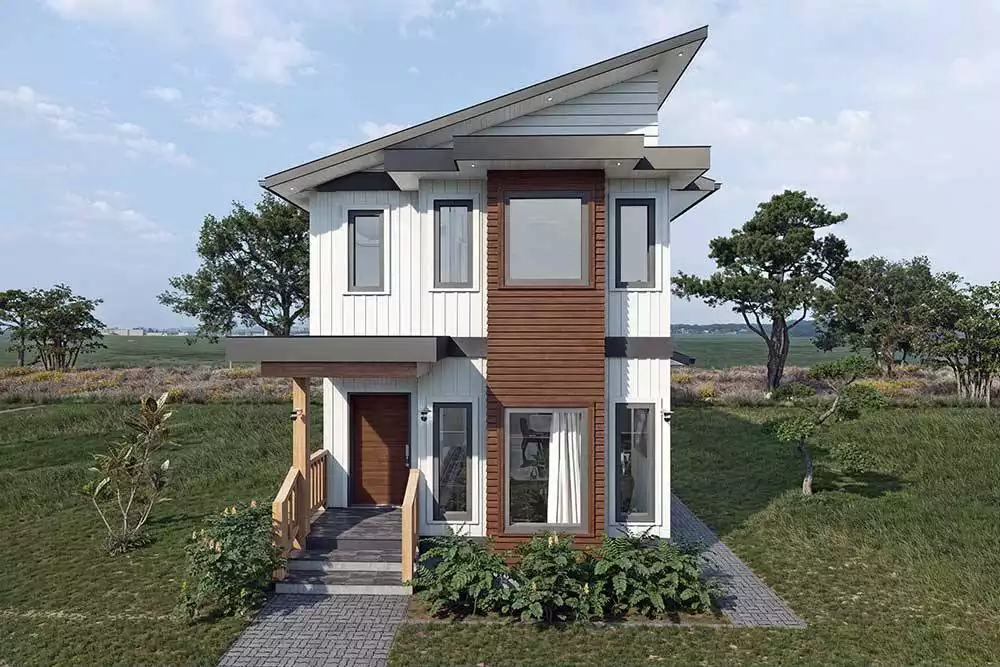

Front View

Rear View

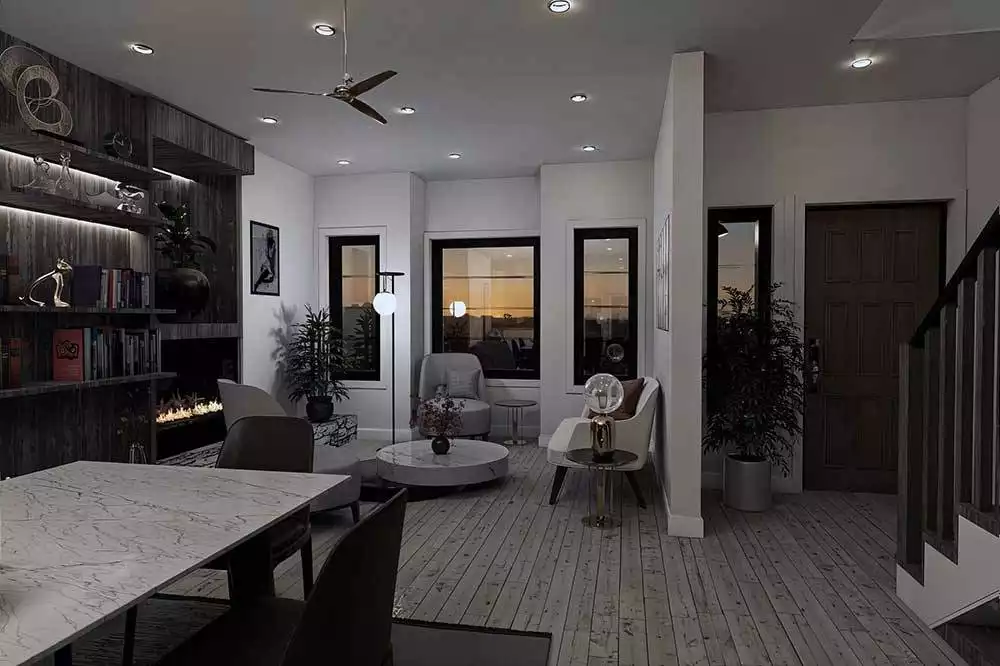

Parlor

Dining Room

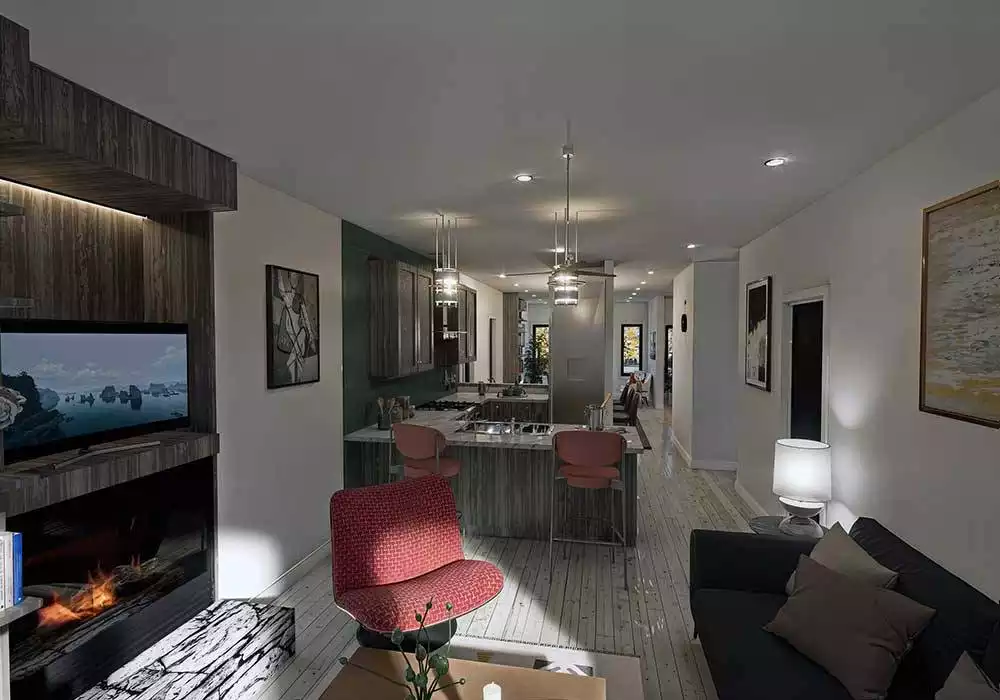

Kitchen

Family Room

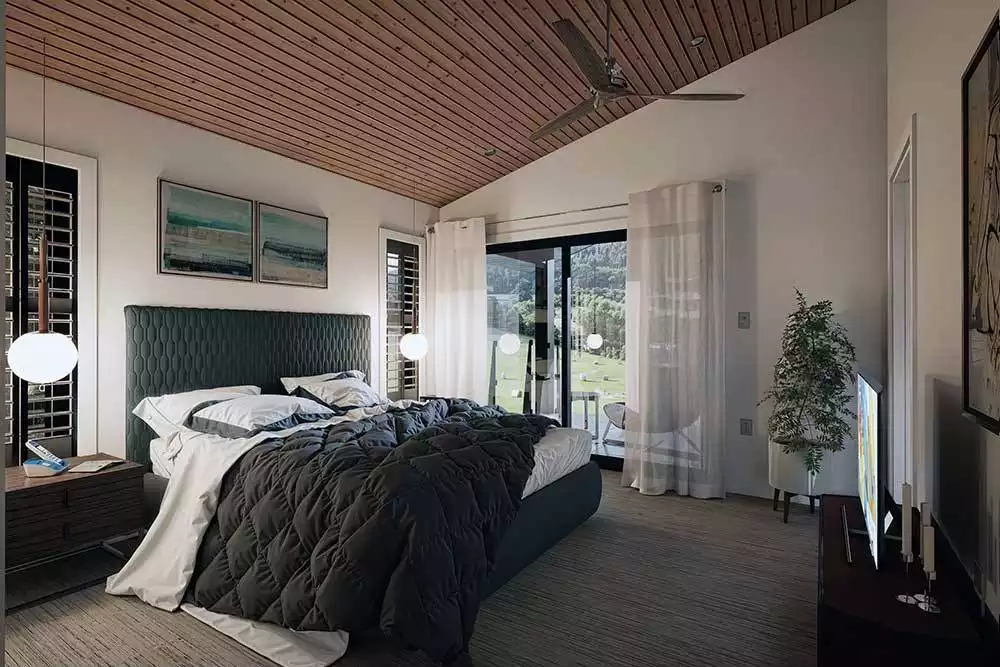

Primary Bedroom

Front View

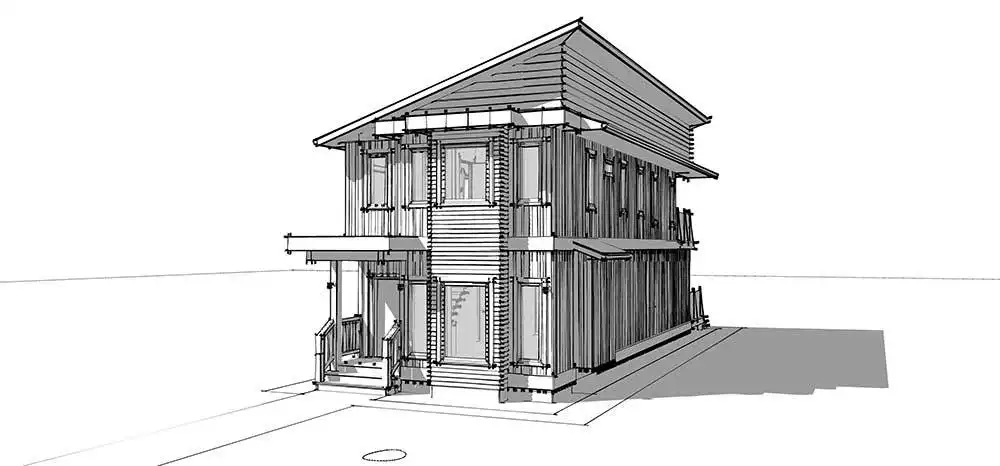

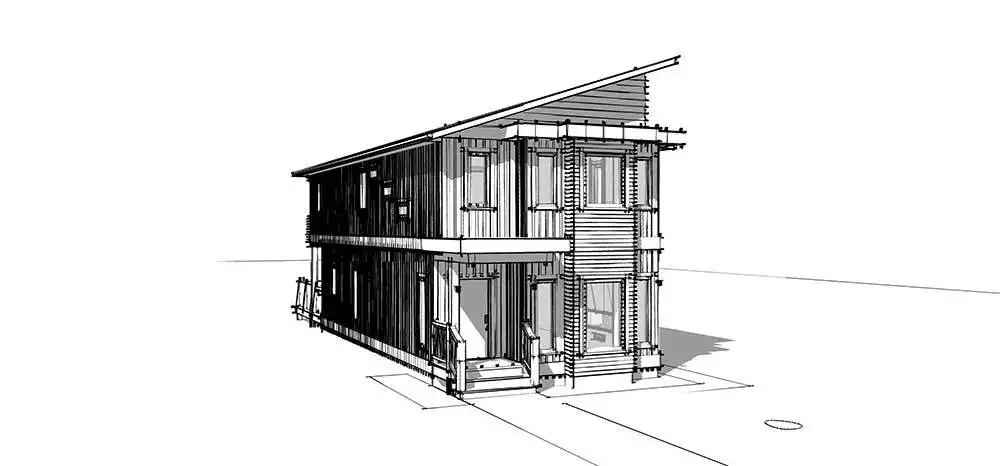

Front Left View

Front Right View

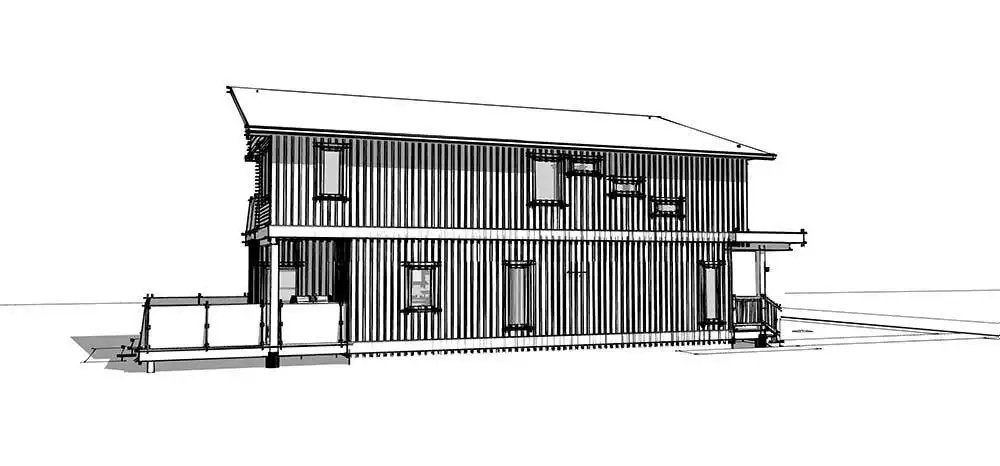

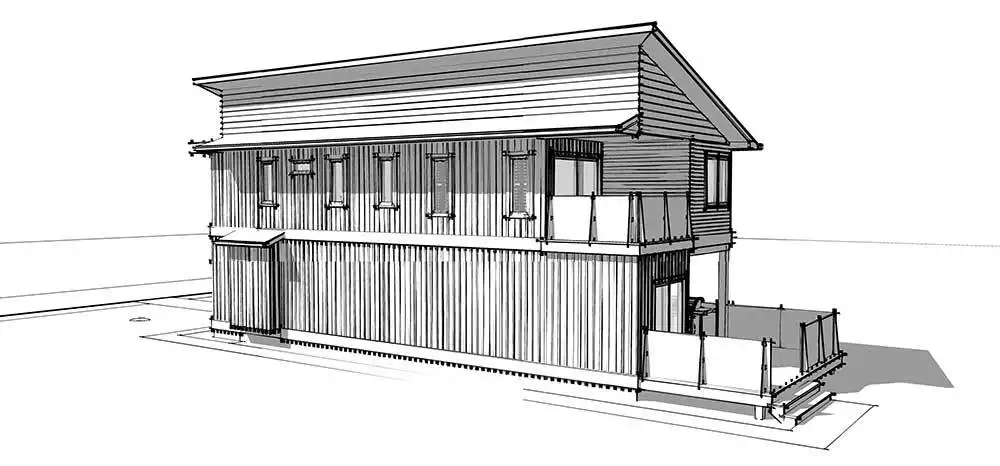

Left View

Right View

1st Floor

2nd Floor

View All 15 Images | Photographs may reflect modified home

Sq Ft

1,790 FT²

From

$995.00

Beds

Baths

2.5

Stories

Garage

Depth

52'

Width

20' 2"

Modify

Cost Estimator

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

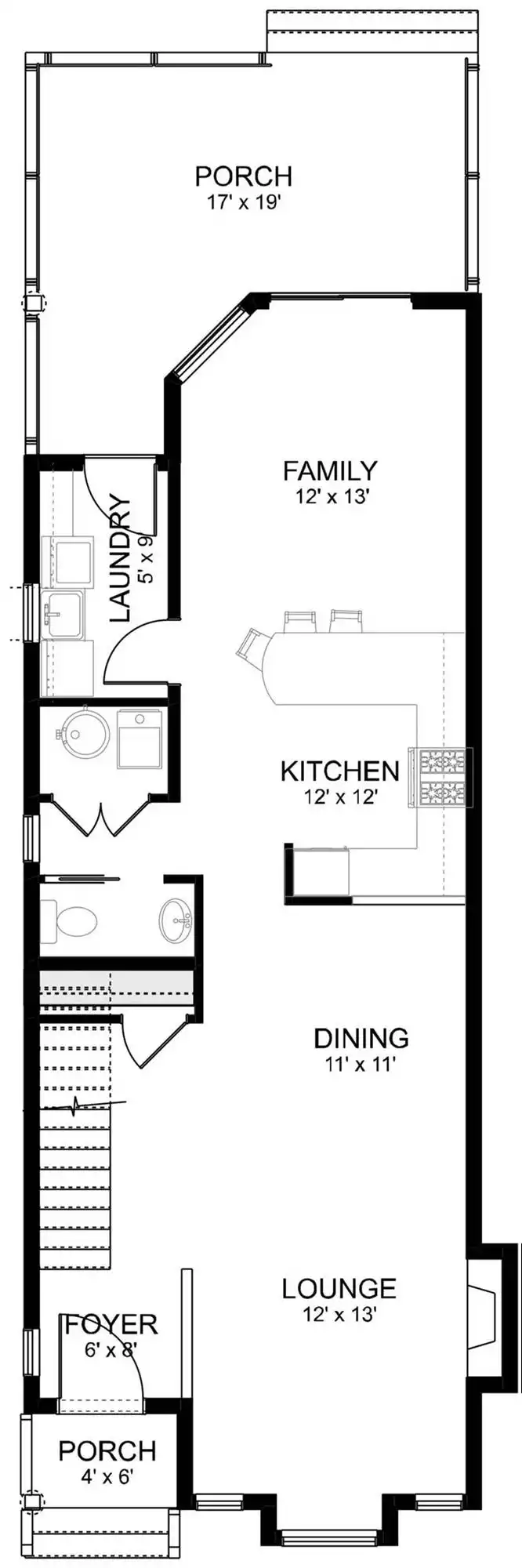

1st Floor

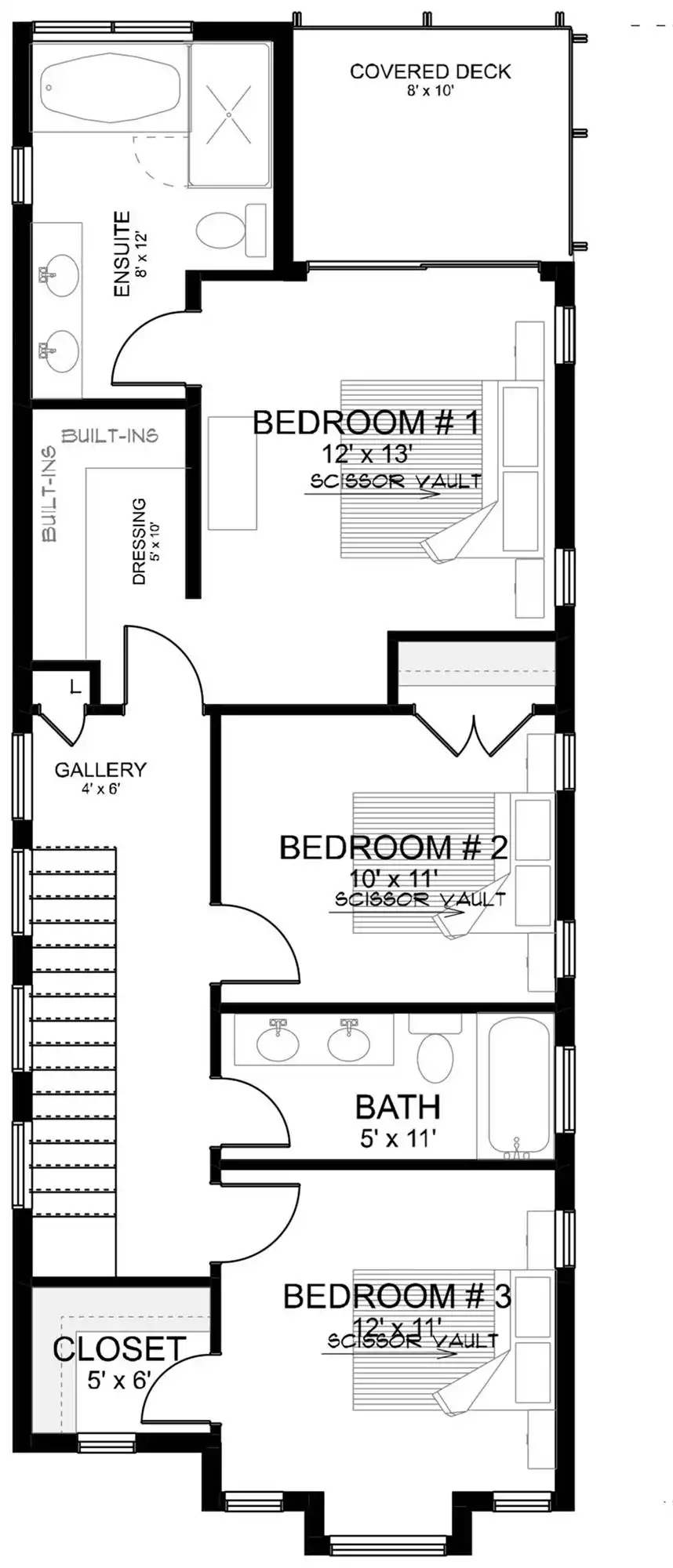

2nd Floor

1st Floor

2nd Floor

About This Plan

If you need a modern home ready to fit onto a super narrow lot, check out House Plan 10647! At just over 20' wide, this design still manages to provide a comfortable living experience with 1,790 square feet, three bedrooms, and two-and-a-half baths thanks to its deep, two-story layout. The main level has all the common spaces with a lounge and dining area up front and the U-shaped peninsula kitchen and family room in back. There's also a powder room and a laundry/mudroom, and don't gloss over the back porch that extends your space into the fresh air! Upstairs, the primary suite boasts a five-piece bath, a dressing room closet, and its own private deck while the secondary bedrooms share a four-piece hall bath between them.

See All Plan Options

FEATURES & DETAILS

Kitchen features

Peninsula / Eating Bar
U-Shaped

Bedroom features

Double Vanity Sink
Family Style
Primary Bdrm Upstairs
Separate Tub and Shower
Walk-in Closet

Exterior features

Deck
Front Porch
Rear Porch

Lot Options

Suited for narrow lot

Additional features

Family Room
Fireplace
Foyer
Great Room
Laundry 1st Fl
Mud Room
Open Floor Plan

Garage Options

None

2,136 Ft

Total Structure

1,790 Ft

Total Heated

909 Ft

1st Floor

881 Ft

2nd Floor

Bedrooms

2.5

Bathrooms

Garage

Stories

20' 2"

Width

52' 0"

Depth

27' 4"

Height

9' 0"

Main Floor Ceiling

8' 0"

Upper Floor Ceiling

9' 0"

Living/Great Room Ceiling

9' 0"

Foyer Ceiling

8' 0"

Primary Ceiling

2x6

Framing

Combination

Roof Framing

4/12

Primary Roof Pitch

1/50

Secondary Roof Pitch

Single

Dwelling Number

Unheated Living Space

265 Ft

Porch

27 Ft

Front Porch

238 Ft

Rear Porch

81 Ft

Deck

Exterior Styles

Contemporary

Modern

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$995

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$995

$1,395

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$1,395

$1,695

PDF Unlimited Build

Digital plans with an unlimited build license emailed in PDF format, that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators and more

$1,695

$1,995

CAD Unlimited Build

2D electronic computer files, completely editable, for design professional use when making extensive modifications; multi-license allows unlimited builds

$1,995

Need To Reverse Plan? (Optional)

$245

Readable Reverse

Reverse house plans with readable text and dimensions

$245

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
