The Henly Affordable Narrow Lot Cottage Style House, Plan 2328

Sq Ft
1,074 FT²
Bed
3
Bath
2.5
Stories
2
Garage
1
Depth
33'
Width
29'
On Sale
$845.75
$995.00
© copyright by architect
View All 2 Images | Photographs may reflect modified home
Sq Ft
1,074 FT²
From
$845.75
Bed
3
Bath
2.5
Stories
2
Garage
1
Depth
33'
Width
29'

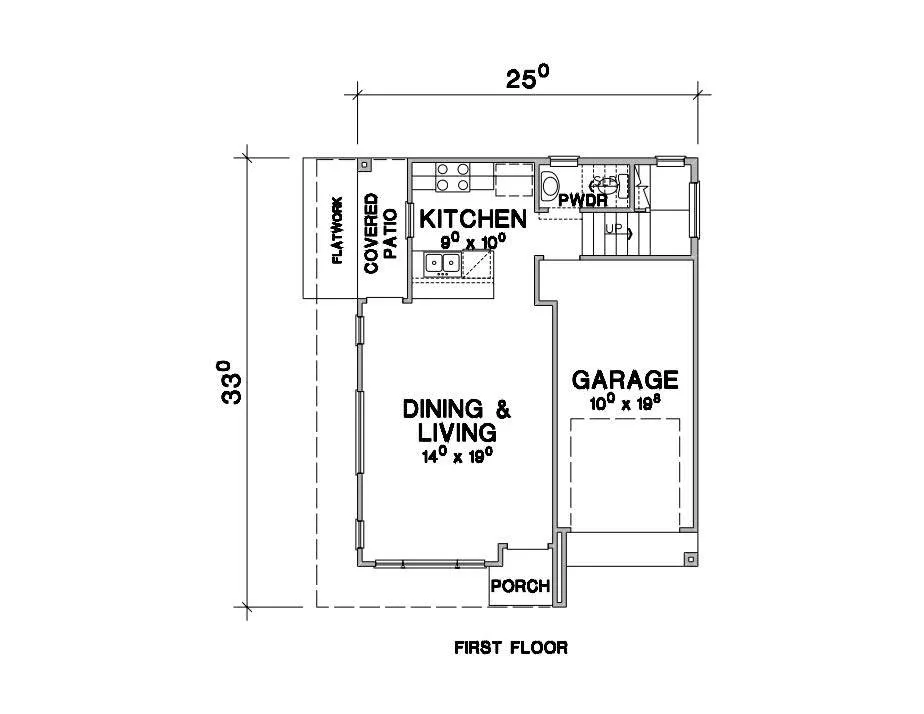

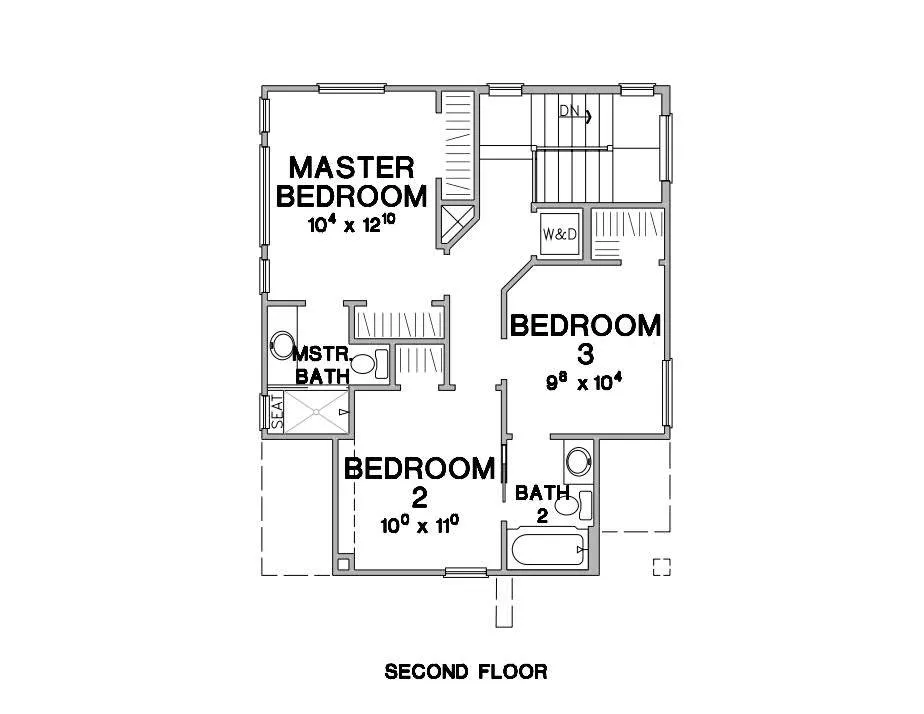

Click to Zoom In on Floor Plan
© copyright by architect



About This Plan

This affordable 3-bedroom cottage features 1,074 square feet. The main level combines the living room and dining area that flows seamlessly into the small, yet efficient country kitchen. Upstairs are 3 bedrooms, including a master bedroom with ensuite bath, stackable washer and dryer and additional full bath for the secondary bedrooms.


FEATURES & DETAILS

Kitchen features
Country Kitchen
Peninsula / Eating Bar
Bedroom features
His and Hers Primary Closets
Primary Bdrm Upstairs
Exterior features
Covered Front Porch
Covered Rear Porch
Lot Options
Suited for narrow lot
Additional features
Formal LR
Laundry 2nd Fl
Open Floor Plan
Garage Location
Front
Garage Options
Attached
Front-entry
1,074 Ft
2
Total Heated
470 Ft
2
1st Floor
604 Ft
2
2nd Floor
3
Bedrooms
2.5
Bathrooms
1
Garage
2
Stories
29' 0"
Width
33' 0"
Depth
27' 2"
Height
9' 0"
Main Floor Ceiling
9' 0"
Upper Floor Ceiling
9' 0"
Primary Ceiling
2x4
Framing
Stick
Roof Framing
12:12
Primary Roof Pitch
3:12
Secondary Roof Pitch
.25:12
Porch Roof Pitch
Single
Dwelling Number

Unheated Living Space
209 Ft
2
Garage
22 Ft
2
Porch
38 Ft
2
Deck


Plan Package Options

 Select Plan Package
$995
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$995
$1,995
CAD Single Build
States N/A: TX,NM,LA

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$1,995
 Need To Reverse Plan? (Optional)
$200
Readable Reverse

Reverse house plans with readable text and dimensions

$200
  Select Foundation Option
  Add-Ons (Optional)

Free Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
IMPORTANT NOTE: Due to state regulations, the CAD version may not be sold to residents of AL, TN, TX, NM and LA. If residing in any of the aforementioned states, the PDF version does not come with a release to make plan modifications. Modifications can be provided by the original architect. Please contact us for more information.
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
