Sq Ft
2,786 FT²

Bed
4

Bath
3.5

Stories
2

Garage
2

Depth
71' 6"

Width
45' 10"

From
$1,245.00

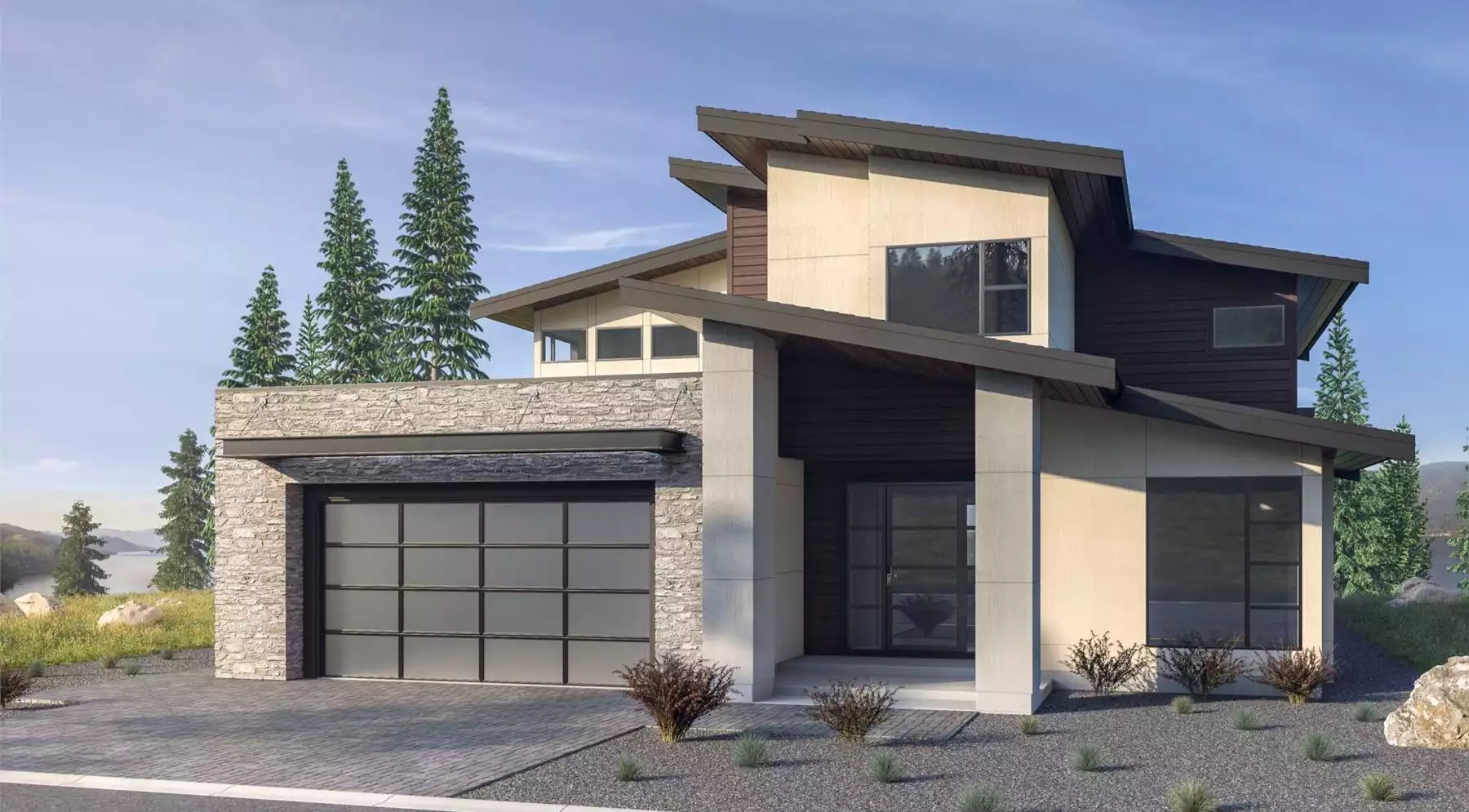

Front View

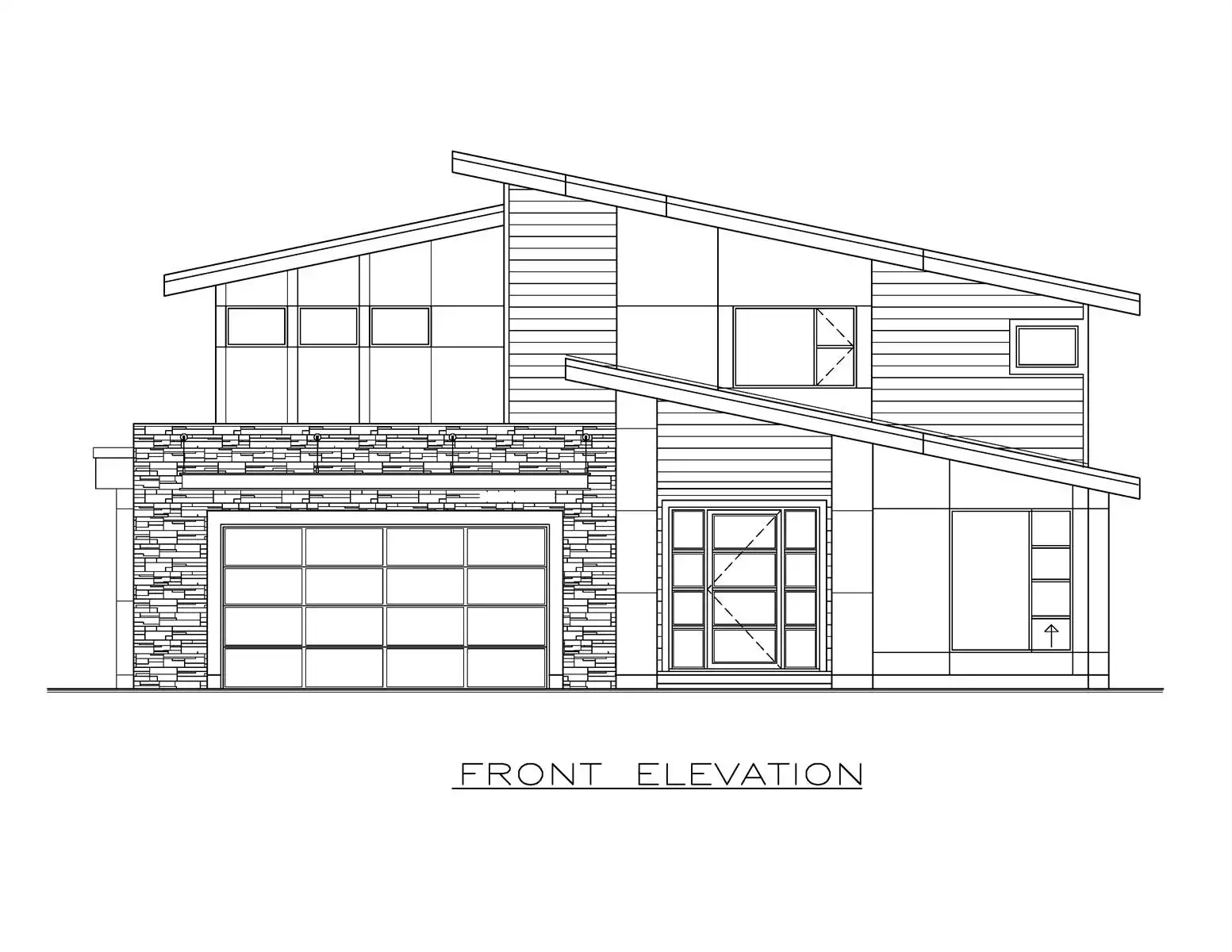

Front Elevation

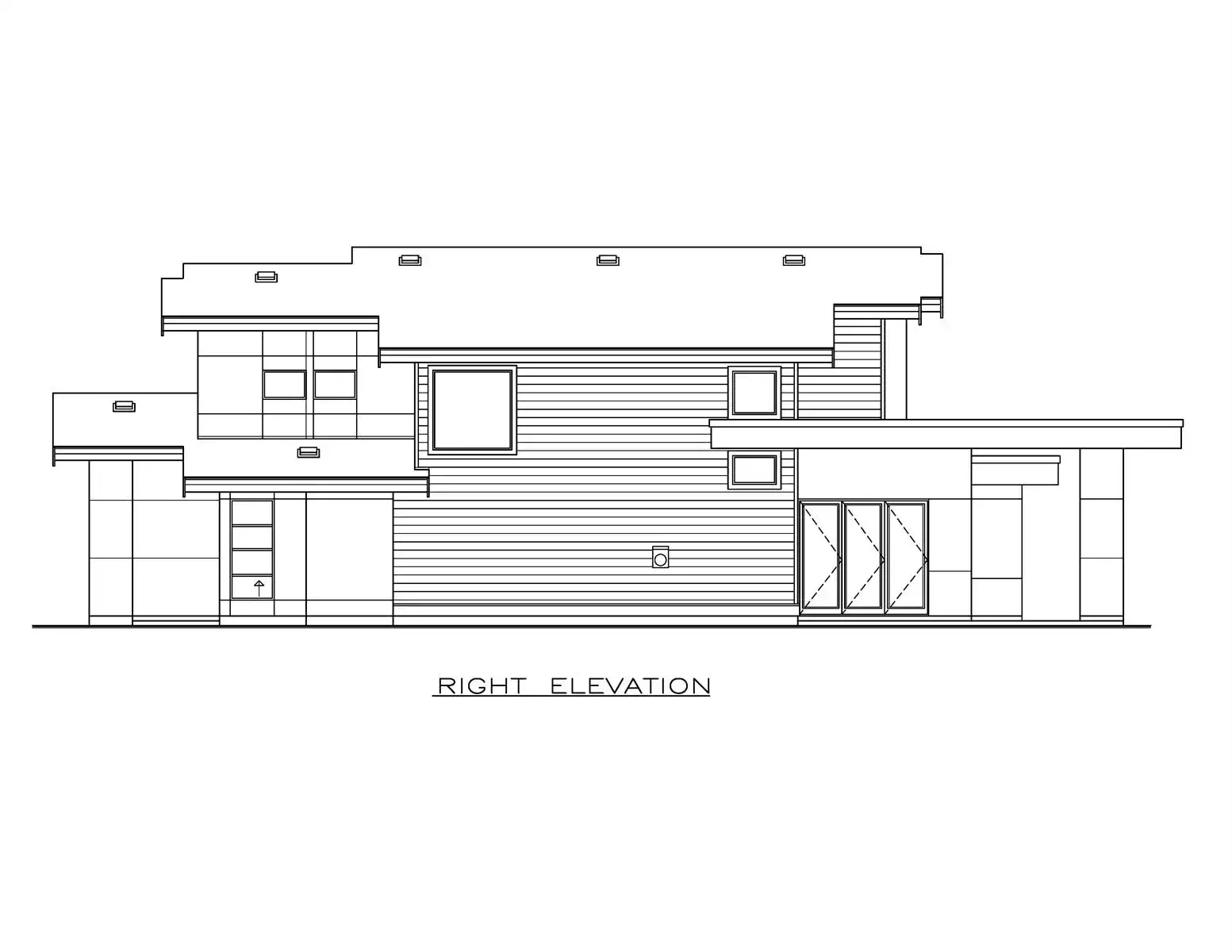

Right Elevation

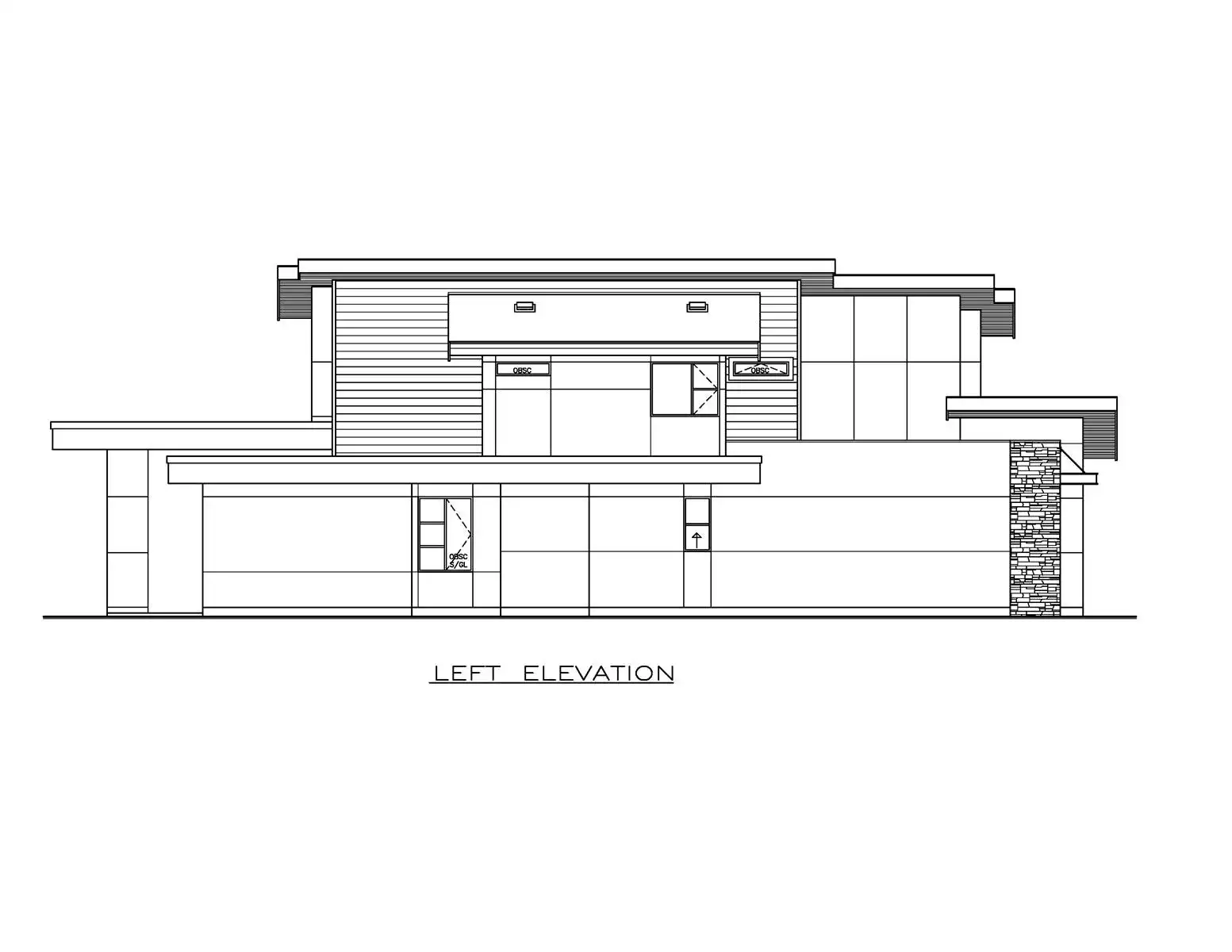

Left Elevation

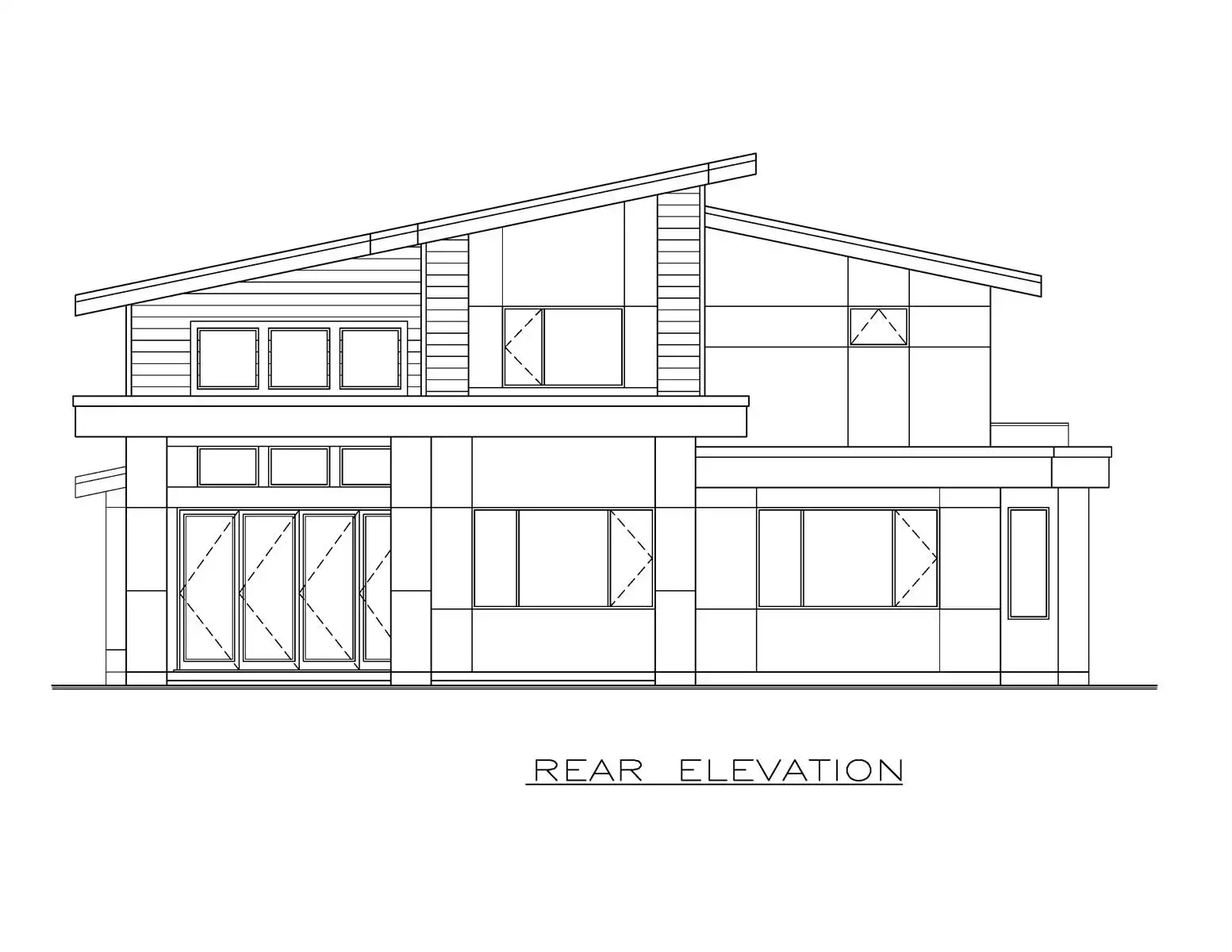

Rear Elevation

View All 5 Images | Photographs may reflect modified home

Sq Ft

2,786 FT²

From

$1,245.00

Bed

Bath

3.5

Stories

Garage

Depth

71' 6"

Width

45' 10"

Modify

Cost Estimator

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

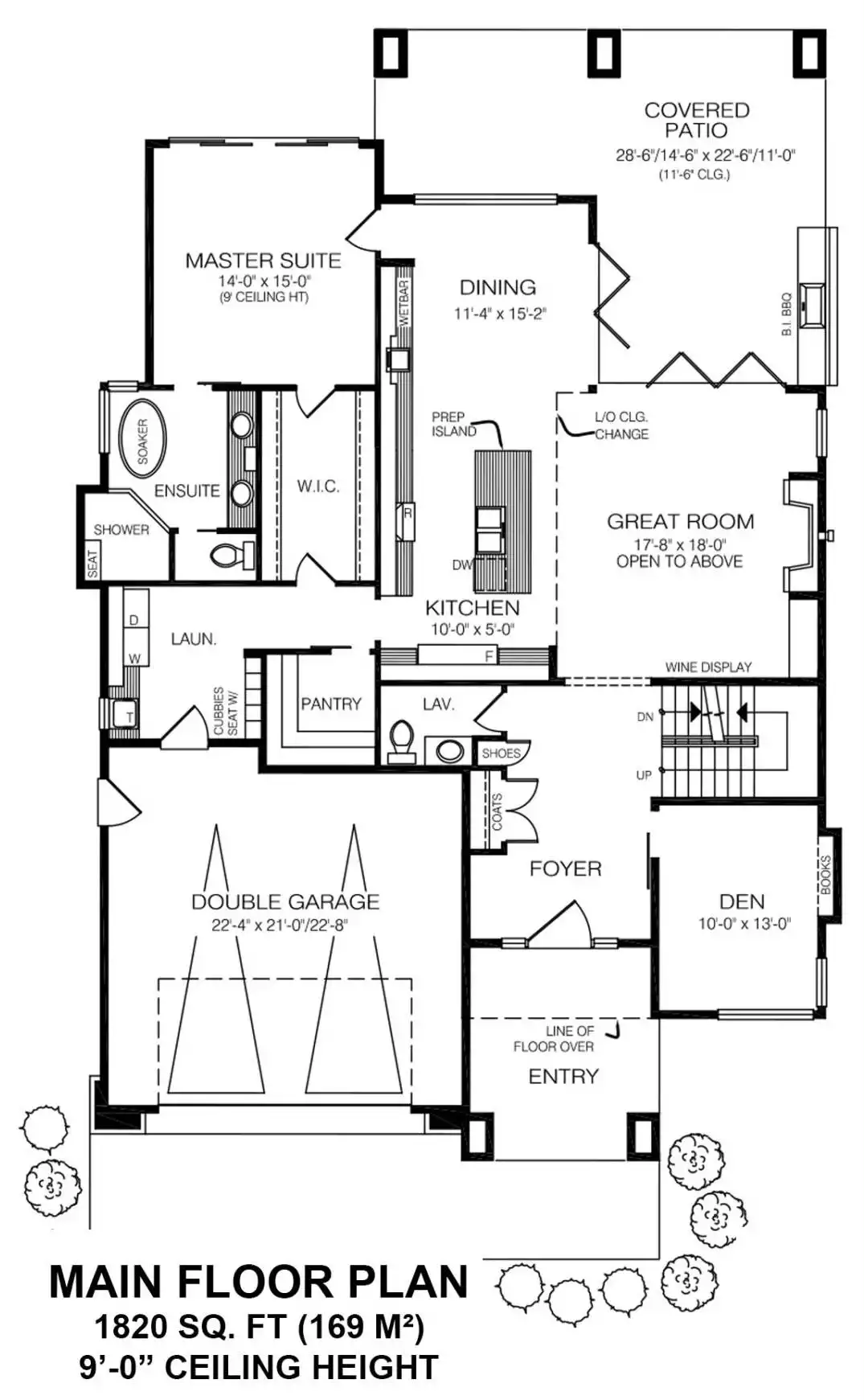

1st Floor

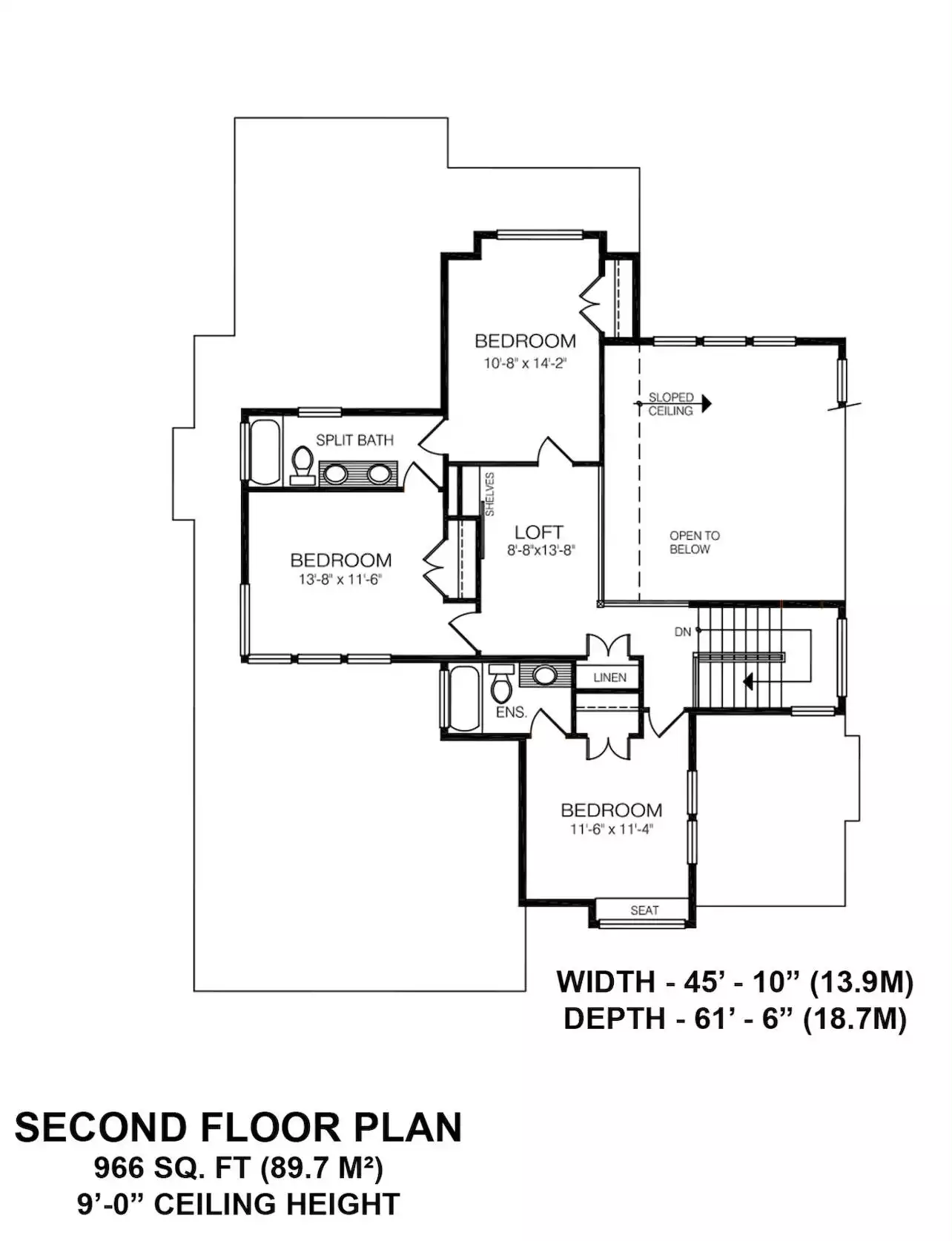

2nd Floor

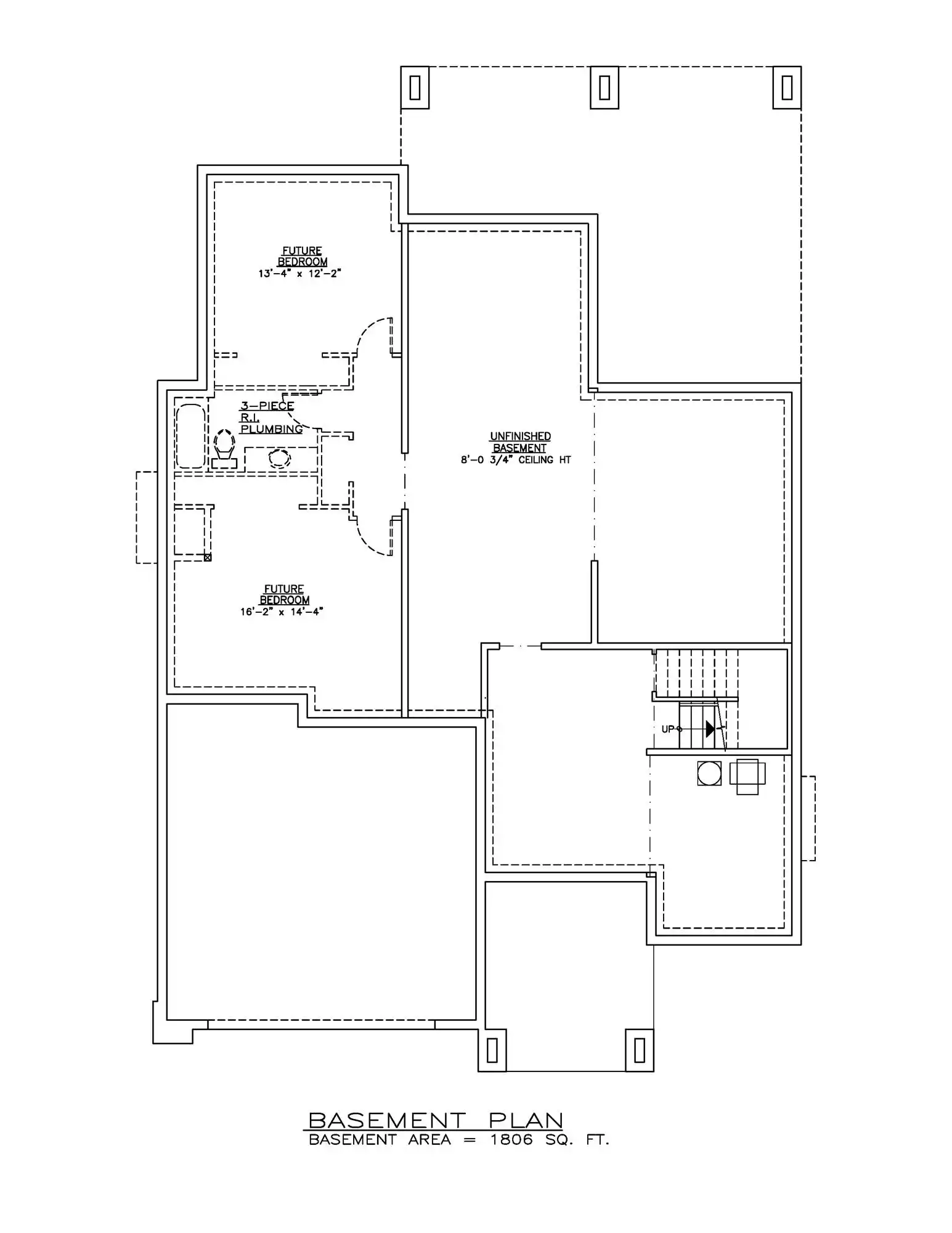

Basement Plan

1st Floor

2nd Floor

Basement Plan

About This Plan

Welcome to this stunning modern house plan, boasting 5,105 sq. ft. of thoughtfully designed living space. The open-concept great room seamlessly integrates the fireplace, dining, and kitchen areas, creating an inviting atmosphere perfect for entertaining. A split bedroom design places the luxurious primary suite on the main floor for added privacy, while an optional basement plan offers versatility. Step outside to enjoy a spacious outdoor living area, complete with a BBQ zone, ideal for summer gatherings. The front den/office adds functionality, catering to your work-from-home needs, while the sizeable double garage provides convenient access to the laundry room with a pantry off the kitchen. Experience a perfect blend of modern living and practicality in this exceptional home.

FEATURES & DETAILS

Kitchen features

Butler's Pantry
Country Kitchen
Kitchen Island
L-Shaped
Nook / Breakfast Area
Peninsula / Eating Bar
Walk-in Pantry

Bedroom features

Double Vanity Sink
Primary Bdrm Main Floor
Separate Tub and Shower
Split Bedrooms
Walk-in Closet

Exterior features

Covered Rear Porch
Deck

Lot Options

Suited for view lot

Additional features

Dining Room
Fireplace
Foyer
Great Room
Home Office
Laundry 1st Fl
Loft / Balcony
Mud Room
Open Floor Plan
Unfinished Space
Vaulted Ceilings

Garage Location

Front

Garage Options

Attached
Tandem

5,105 Ft

Total Structure

2,786 Ft

Total Heated

1,819 Ft

1st Floor

967 Ft

2nd Floor

1,806 Ft

Lower Floor

Bedrooms

3.5

Bathrooms

Garage

Stories

45' 10"

Width

71' 6"

Depth

26' 2"

Height

9' 0"

Main Floor Ceiling

9' 0"

Upper Floor Ceiling

2x6

Framing

Truss

Roof Framing

2.5/12

Primary Roof Pitch

Flat

Secondary Roof Pitch

Single

Dwelling Number

Unheated Living Space

513 Ft

Garage

462 Ft

Deck

Exterior Styles

Contemporary

Modern

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$1,245

Five Sets

Five Printed Sets of Residential Construction Drawings that are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Most jurisdictions require up to four copies of your house plans when applying for a building permit. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators, and more.

$1,245

$2,167

PDF Bid Set

$2,167

$2,417

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$2,417

$4,194

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$4,194

$8,388

CAD Unlimited Build

2D electronic computer files, completely editable, for design professional use when making extensive modifications; multi-license allows unlimited builds

$8,388

Select Foundation Option

Add-Ons (Optional)

	Free Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
