HOUSE PLANS SALE
START AT $845.75
SQ FT
1,267
BEDS
3
BATHS
2
STORIES
1
CARS
0
WIDTH
42'
DEPTH
45' 6"
© copyright by architect
Photographs may reflect modified home | View all 2 images
SQ FT
1,267
BEDS
3
BATHS
2
STORIES
1
CARS
0

The Medina Rustic Lake Cabin Style House Plan 1983

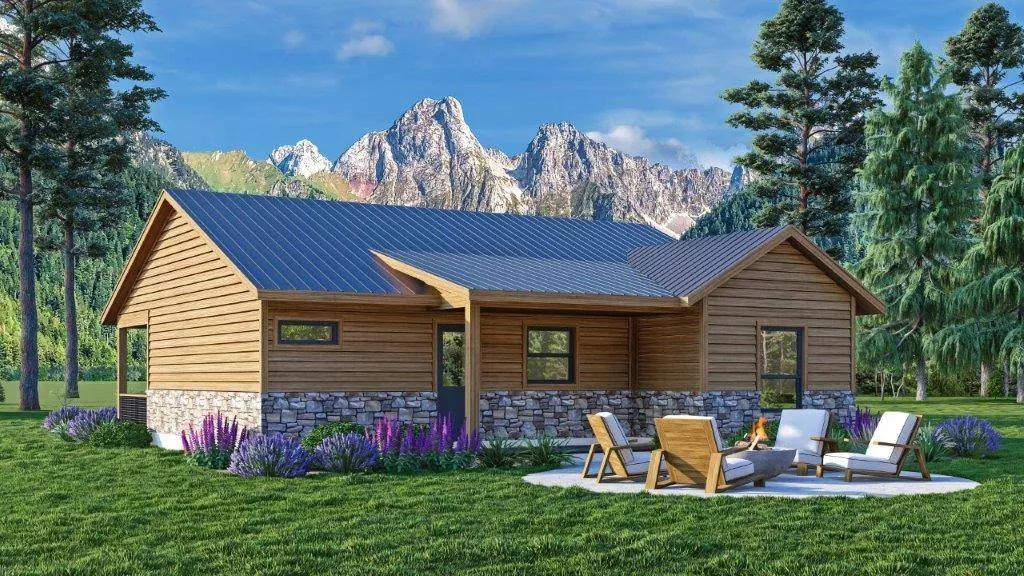

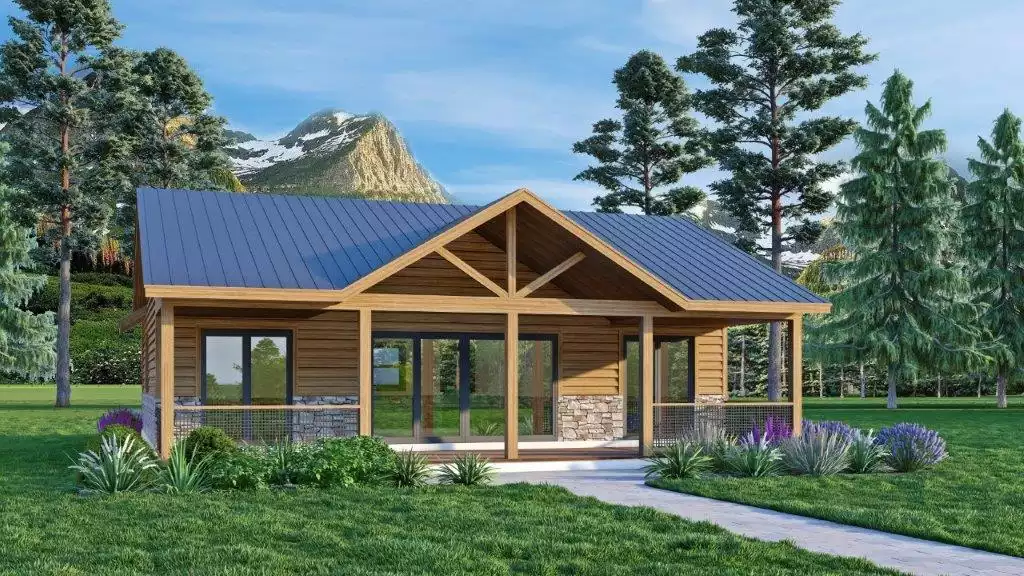

This rustic cabin house plan is a charming and cozy retreat that offers all the comforts of modern living while maintaining a classic cabin aesthetic. This 1,271 s.f. plan includes three bedrooms and two bathrooms, making it the perfect vacation getaway or affordable design for those looking to downsize. The heart of the home is a vaulted living room that creates a spacious and airy atmosphere. A cozy L-shaped kitchen with an island makes it efficient for casual dining or entertaining. The exterior of the cabin is clad in wood siding and features a charming covered front porch, offering the perfect spot for enjoying the beautiful scenery. The roofline features a mix of gables and shed roofs, adding visual interest and character to the home.

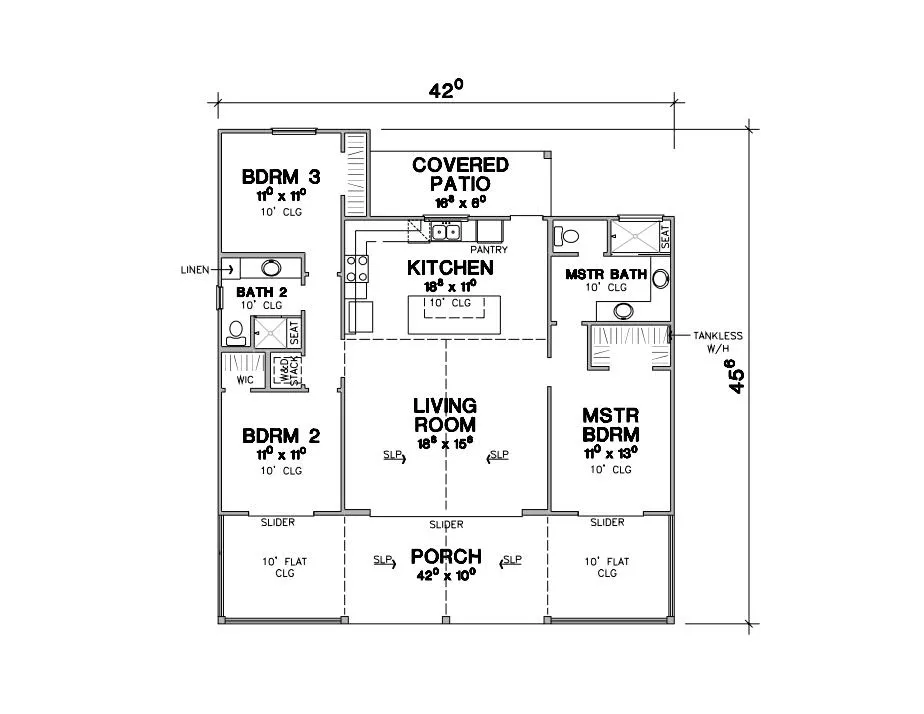

Click to Zoom In on Floor Plan
Floor Plans
© copyright by architect
Plan Packages
 Select Plan Package
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build
Most recommended package
$995
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build
States N/A: TX,NM,LA
2D electronic editable computer files
$1,995
 Need To Reverse Plan? (Optional)

Readable Reverse


Reverse house plans with readable text and dimensions

Readable Reverse
Reverses house plans with readable text and dimensions
$200
 Select Foundation Option
 Add-Ons (Optional)
Subtotal:
$0
Free Shipping
IMPORTANT NOTE: Due to state regulations, the CAD version may not be sold to residents of AL, TN, TX, NM and LA. If residing in any of the aforementioned states, the PDF version does not come with a release to make plan modifications. Modifications can be provided by the original architect. Please contact us for more information.

Note: NO CAD to TX, NM, LA, TN, AL
Features:
View All Plan Features
Kitchen features
Kitchen Island
L-Shaped
Bedroom features
Double Vanity Sink
Master Bdrm Main Floor
Split Bedrooms
Walk-in Closet
Additional features
Family Room
Laundry 1st Fl
Open Floor Plan
Vaulted Ceilings
Vaulted Great Room/Living
Exterior features
Covered Front Porch
Covered Rear Porch
Garage Location
None
Garage Options
None
Lot Options
Suited for view lot

Hide Plan Features
Details:
View All Plan Details
1,267 Ft
2
Total Heated:
3
Bedrooms:
2
Bathrooms:
0
Garage:
1
Stories:
42' 0"
Width:
45' 6"
Depth:
18' 8"
Height:
10' 0"
Main Floor Ceiling:
Sloped' 0"
Living/Great Room Ceiling:
2x4
Framing:
Stick
Roof Framing:
5:12
Primary Roof Pitch:
7:12
Secondary Roof Pitch:
3:12
Porch Roof Pitch:
Single
Dwelling Number:
Unheated Living Space
420 Ft
2
Porch:
100 Ft
2
Deck:
Exterior Styles
Cottage
Country
Lake
Ranch
Collections
Budget
Cabin
Empty Nester
Mountain
Open Floor Plan
Outdoor Living
Split Bedroom
Texas
Vacation

Hide Plan Details
