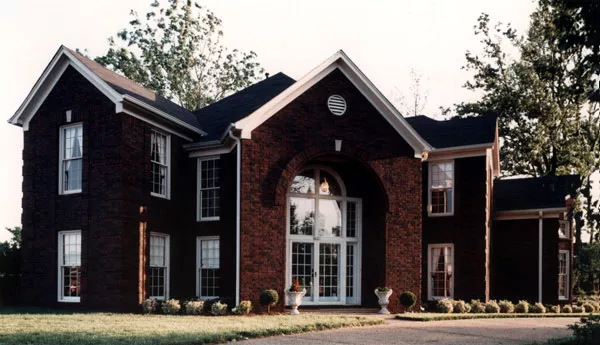

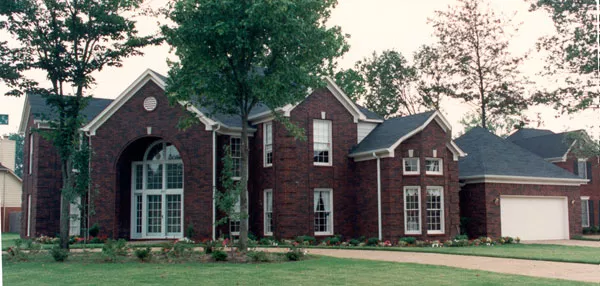

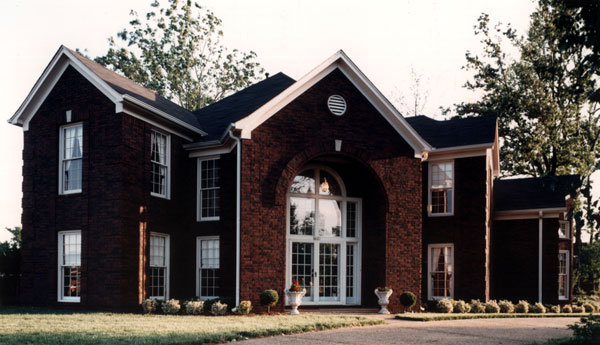

See all 4 photos (photographs may reflect modified homes)
© copyright by designer

Mouse over photo to pause

House Plan 8417: Trailing Oaks

Entering the Foyer, a lovely split stair moves upward to the second floor. The Dining Room opens to the right and a private study to the left. The Kitchen features a cook top work island and Pantry. The Master Suite is located on the rear of the home with a Master Bath that is a sumptuous retreat.  Read more >
See Architect Preferred Products For This Plan >

House Plan Details

Sq. Ft.
2,838
Beds
4
Baths
3.0
Stories
2
Garages
2
Width
79' 10"
Depth
63' 10"
1st Floor
1,966
2nd Floor
872
Garage
569
Porch
191
Customize this Home Plan
Estimate Cost to Build
Free Cost Estimator >
For assistance, email, live chat, or call us at 866-214-2242
Select Plan Package
Vellum
$1000
Select Foundation Options
$0
Crawl Space
$0
Optional Add-Ons
Subtotal: $1000
SEE DETAILED PLAN OPTIONS
What You Should Know Before Buying! >

PLAN IMAGES

Add to Favorites   Save

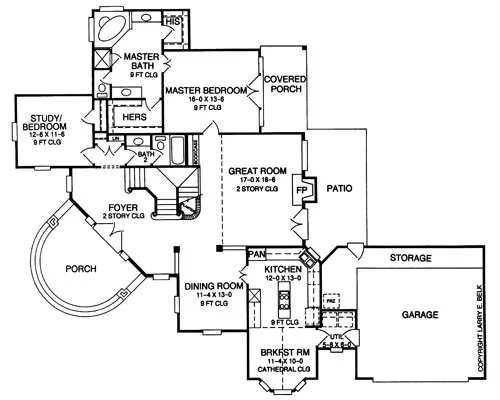

First Floor Plan

First Floor Plan
© copyright by designer

Plan Details

Basic Information
Bedrooms: 4
Bathrooms: 3.0
Garage: 2
Stories: 2
Exterior Style
Traditional
Dimensions
Width: 79' 10"
Height: 29' 6"
Depth: 63' 10"
Heated Living Space
Total Sq. Ft: 2,838
1st Floor: 1,966
2nd Floor: 872
Unheated Living Space
Garage: 569
Porch: 191
Ceiling
Upper Ceiling Ft: 8
Main Ceiling Ft: 9
Framing Information
Framing: 2x4
Roof Framing: Stick
Bedroom Features
Guest Suite
Master Bdrm Main Floor
Split Bedrooms
Walk-in Closet
Kitchen Features
Kitchen Island
Additional Room Features
2 Story Volume
Arches
Dining Room
Fireplace
Foyer
Great Room
Home Office
Laundry 1st Fl
Open Floor Plan
Garage Location
Side
Garage Features
Attached
Side-entry
Lot Features
Suited for corner lot
Roof Pitch
Primary: 10/12
Secondary: 12/12
