House Plan 5766: The Rawl Springs

The "open" nature of this home's floorplan is designed to meet the needs of many homeowners and builders who are looking to build on a relatively narrow lot. The focal point of the great room is the entertainment center. The open area boasts a raised bar for conversations with family and friends while isolating them away from the work triangle.  Read more >

House Plan Details

Sq. Ft.
1,603
Beds
3
Baths
2.0
Stories
1
Garages
2
Width
50' 0"
Depth
65' 0"
1st Floor
1,603
Garage
498
Storage
42
Porch
30
Select Plan Package
Five Sets
$1015
Select Foundation Options
$0
Crawl Space
$0
Optional Add-Ons
Subtotal: $950

PLAN IMAGES

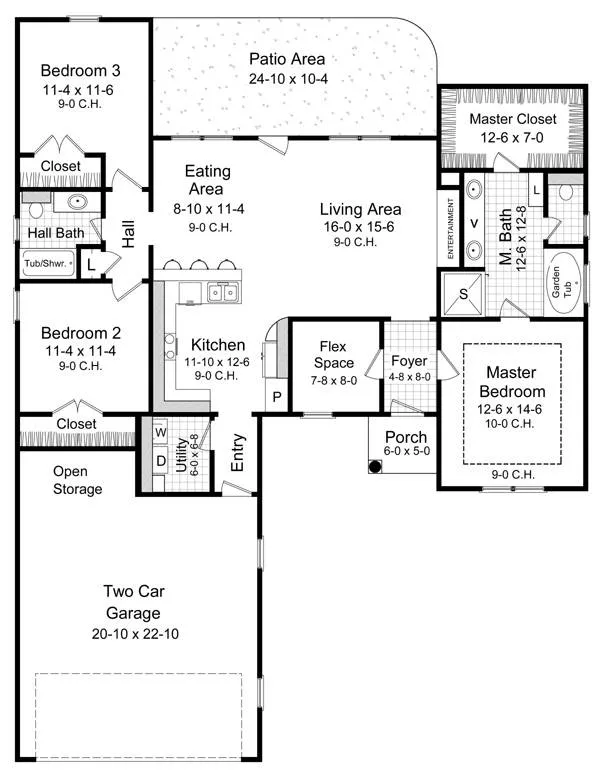

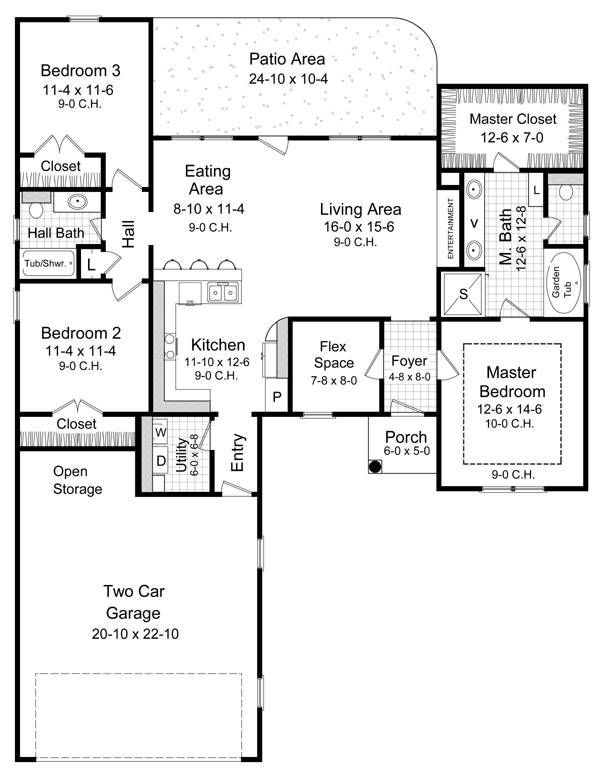

Floorplan

Floorplan
© copyright by designer

Plan Details

Basic Information
Bedrooms: 3
Bathrooms: 2.0
Garage: 2
Stories: 1
Exterior Style
European
Ranch
Traditional
Dimensions
Width: 50' 0"
Height: 20' 2"
Depth: 65' 0"
Heated Living Space
Total Sq. Ft: 1,603
1st Floor: 1,603
Unheated Living Space
Garage: 498
Storage: 42
Porch: 30
Ceiling
Upper Ceiling Ft:
Main Ceiling Ft: 9
Framing Information
Framing: 2x4
Roof Framing: Stick
Bedroom Features
Double Vanity Sink
Master Bdrm Main Floor
Separate Tub and Shower
Split Bedrooms
Walk-in Closet
Kitchen Features
Country Kitchen
Nook / Breakfast Area
Peninsula / Eating Bar
Additional Room Features
Exercise Room
Foyer
Great Room
Home Office
Laundry 1st Fl
Open Floor Plan
Storage Space
Workshop
Garage Location
Front
Garage Features
Attached
Oversized
Lot Features
Suited for corner lot
Suited for narrow lot
Suited for sloping lot
Suited for view lot
Roof Pitch
Primary: 10:12
