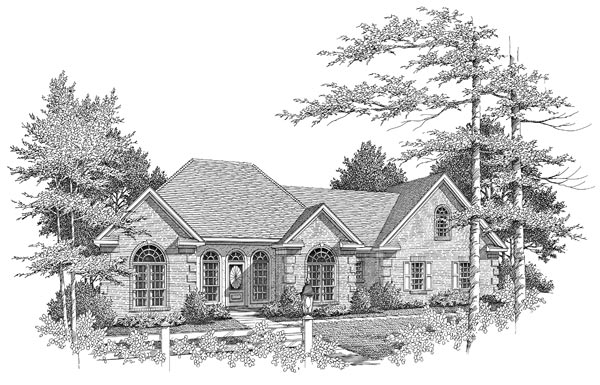

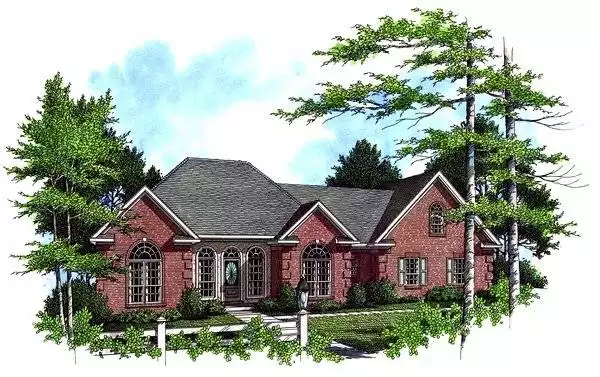

House Plan 5877: The Gabriel

This traditional split bed room plan has a lot to offer. Can be build as a 2, 2 1/2, or 3 bath plan with 3 or 4 bedrooms. Raised ceiling in great room. Note how close the master suite is to the refrigerator. Large master suite.  Read more >

House Plan Details

Sq. Ft.
2,024
Beds
3
Baths
2.0
Stories
2
Garages
2
Width
72' 10"
Depth
41' 0"
1st Floor
2,024
Bonus
386
Garage
519
Storage
35
Select Plan Package
Five Sets
$1060
Select Foundation Options
$0
Basement
$0
Optional Add-Ons
Subtotal: $990

PLAN IMAGES

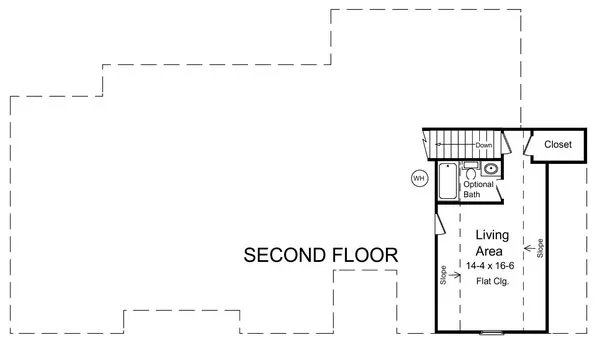

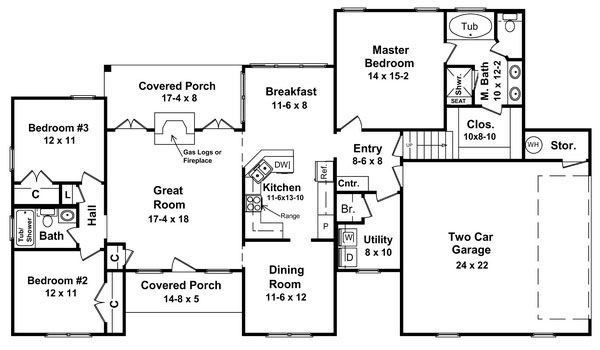

Floorplan

Floorplan
© copyright by designer

Plan Details

Basic Information
Bedrooms: 3
Bathrooms: 2.0
Garage: 2
Stories: 2
Exterior Style
Country
European
French Country
Traditional
Dimensions
Width: 72' 10"
Height: 22' 0"
Depth: 41' 0"
Heated Living Space
Total Sq. Ft: 2,024
1st Floor: 2,024
Bonus: 386
Unheated Living Space
Garage: 519
Storage: 35
Porch: 203
Ceiling
Upper Ceiling Ft:
Main Ceiling Ft: 9
Framing Information
Framing: 2x4
Roof Framing: Stick
Bedroom Features
Double Vanity Sink
Master Bdrm Main Floor
Separate Tub and Shower
Split Bedrooms
Walk-in Closet
Kitchen Features
Country Kitchen
Nook / Breakfast Area
Peninsula / Eating Bar
Additional Room Features
Bonus Room
Exercise Room
Great Room
Home Office
Laundry 1st Fl
Open Floor Plan
Storage Space
Unfinished Space
Workshop
Garage Location
Side
Garage Features
Attached
Oversized
Lot Features
Roof Pitch
Primary: 10:12
Secondary: 12:12
