House Plan 5727: The Carlton

Great floorplan, including the basement foundation plan that so many have requested. Split bedroom plan. Covered front and rear porch. A great Master Bedroom with trayed ceiling and 2 large walk-in closets. Jet Tub. Separate shower.  Read more >

House Plan Details

Sq. Ft.
1,800
Beds
3
Baths
2.0
Stories
2
Garages
2
Width
64' 0"
Depth
39' 0"
1st Floor
1,639
2nd Floor
161
Garage
474
Porch
206
Select Plan Package
Five Sets
$1015
Select Foundation Options
$0
Basement
$0
Optional Add-Ons
Subtotal: $950

PLAN IMAGES

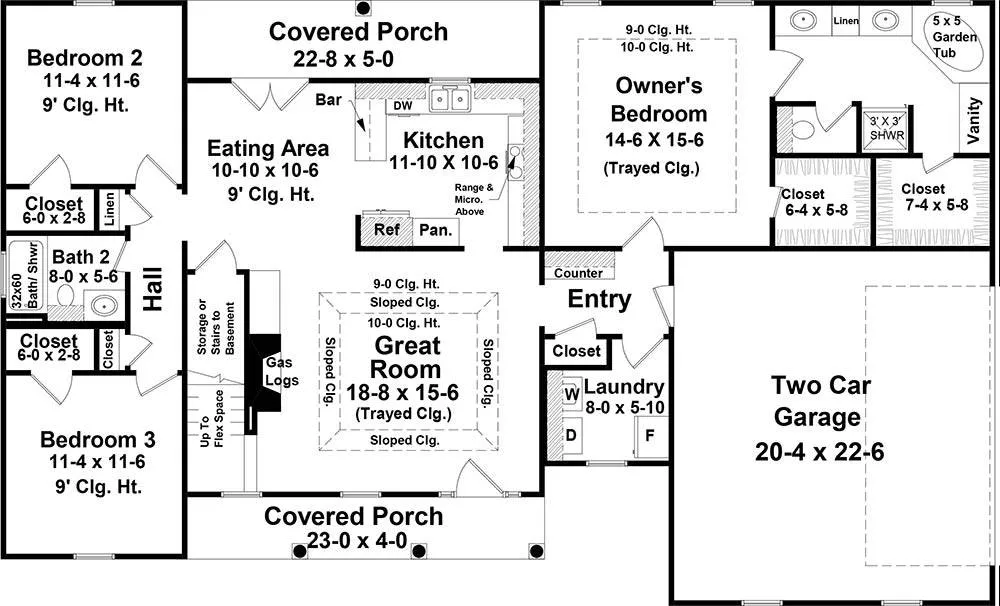

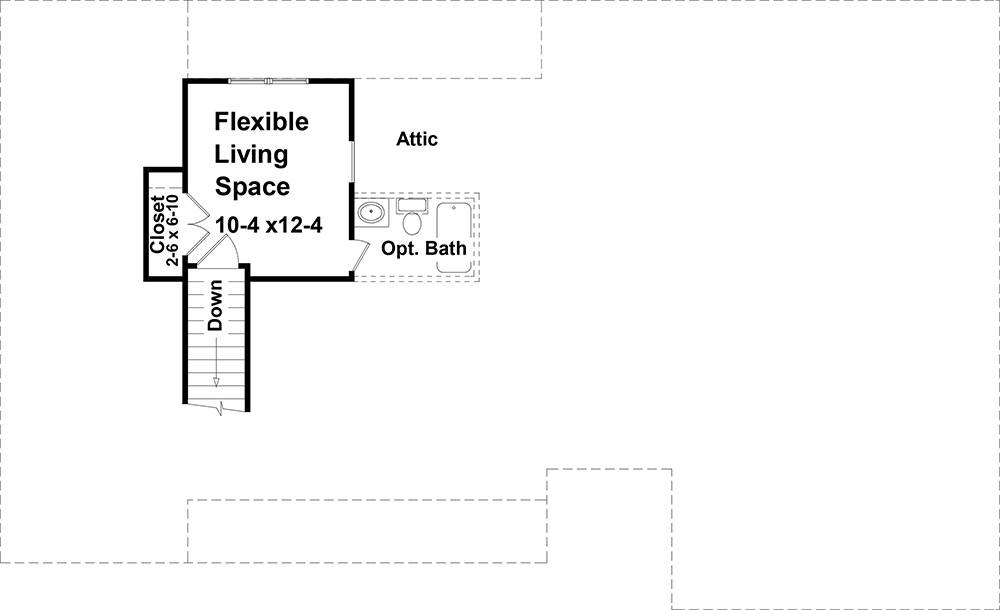

Floorplan

Floorplan
© copyright by designer

Plan Details

Basic Information
Bedrooms: 3
Bathrooms: 2.0
Garage: 2
Stories: 2
Exterior Style
Country
Ranch
Traditional
Dimensions
Width: 64' 0"
Height: 22' 0"
Depth: 39' 0"
Heated Living Space
Total Sq. Ft: 1,800
1st Floor: 1,639
2nd Floor: 161
Unheated Living Space
Garage: 474
Porch: 206
Ceiling
Upper Ceiling Ft: 8
Main Ceiling Ft: 9
Framing Information
Framing: 2x4
Roof Framing: Stick
Bedroom Features
Double Vanity Sink
His and Hers Master Closets
Master Bdrm Main Floor
Separate Tub and Shower
Split Bedrooms
Walk-in Closet

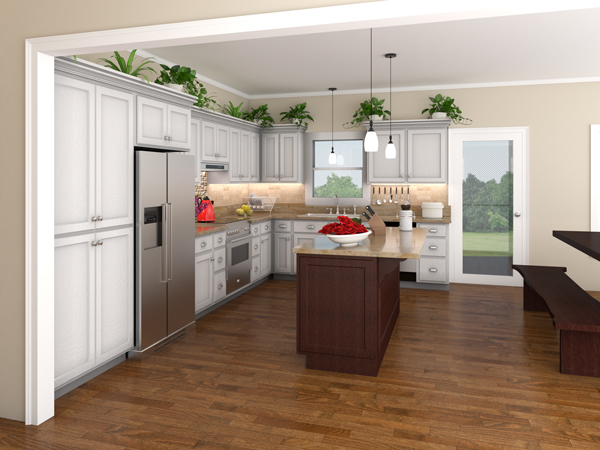

Kitchen Features
Country Kitchen
Nook / Breakfast Area
Peninsula / Eating Bar
Additional Room Features
Bonus Room
Fireplace

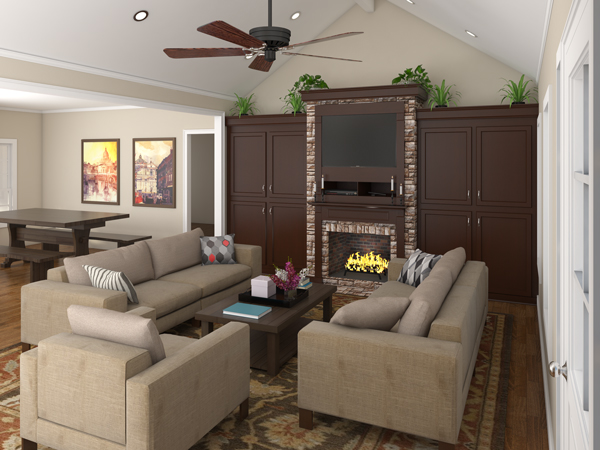

Great Room
Home Office
Laundry 1st Fl
Open Floor Plan
Storage Space
Garage Location
Side
Garage Features
Attached
Oversized
Lot Features
Suited for corner lot
Suited for sloping lot
Suited for view lot
Roof Pitch
Primary: 8:12
Secondary: 10:12

Our Guarantee

  • Only the highest quality plans
  • International Residential Code compliant
  • Complete structural details on all plans
  • Best plan and modification price guaranteed
  • Builder-ready construction drawings
  • Expert advice from leading designers
  • House plans delivered in minutes
  • 100% satisfaction guarantee
