Sunkist Duplex 4 Bedroom Beach Style House, Plan 9171

Sq Ft
1,851 FT²
Bed
4
Bath
3.5
Stories
4
Garage
2
Depth
36'
Width
40'
On Sale
$1,572.50
$1,572.50
© copyright by designer
View All 5 Images | Photographs may reflect modified home
Sq Ft
1,851 FT²
From
$1,572.50
Bed
4
Bath
3.5
Stories
4
Garage
2
Depth
36'
Width
40'

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

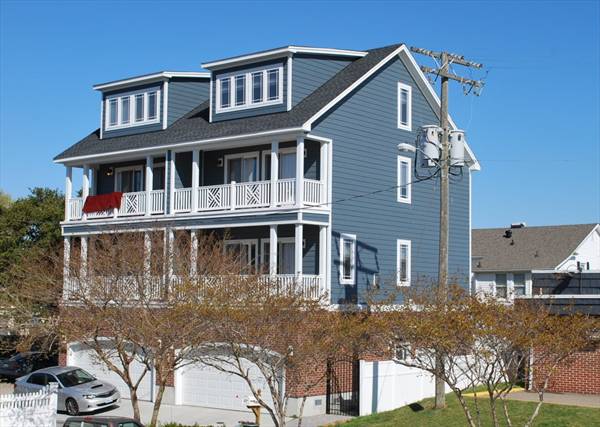

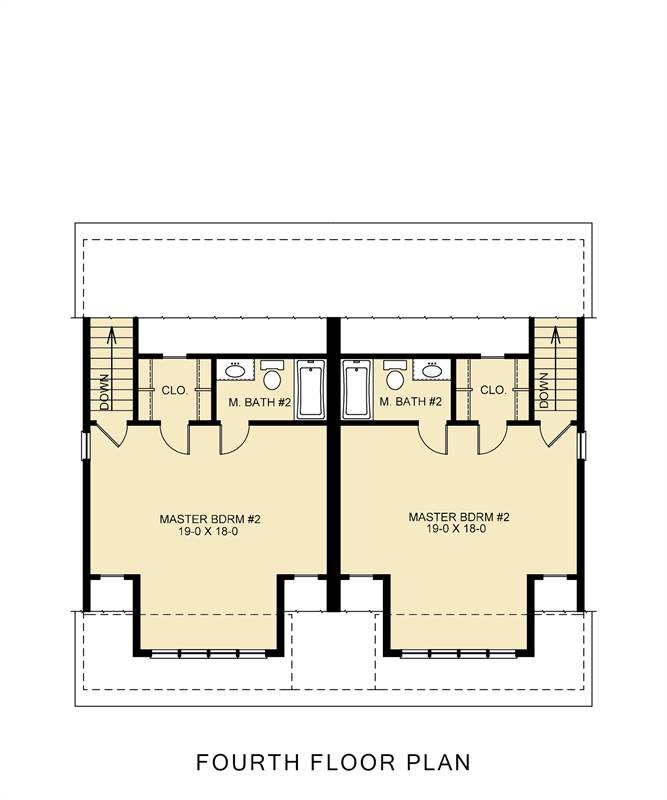

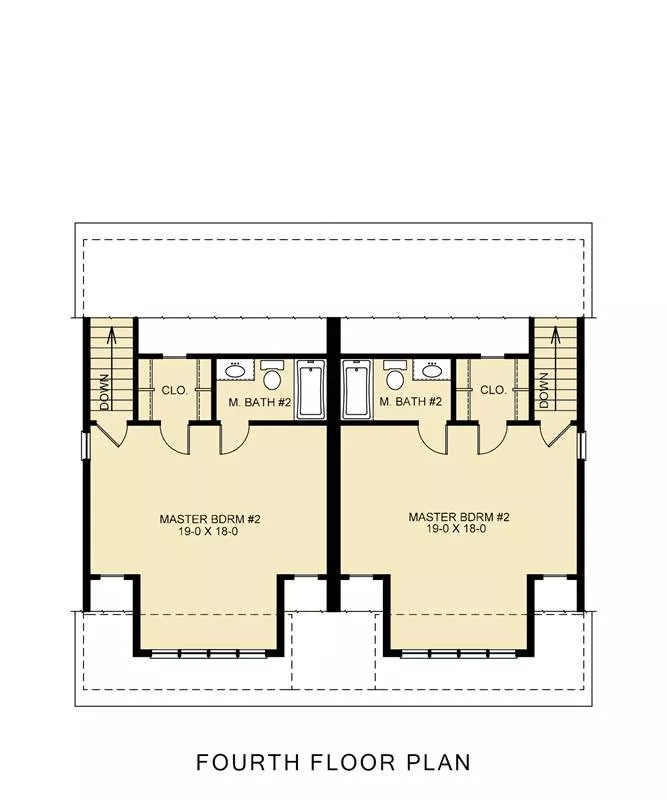

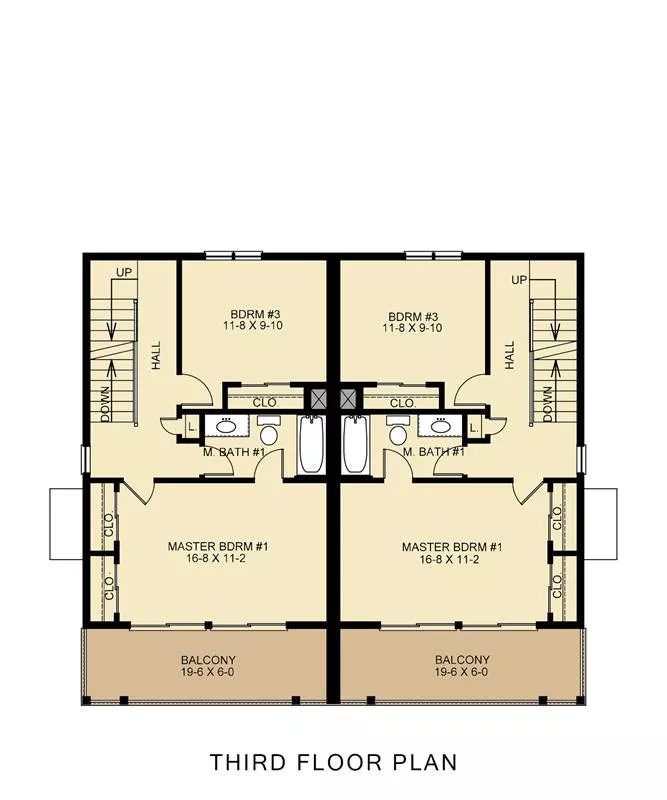

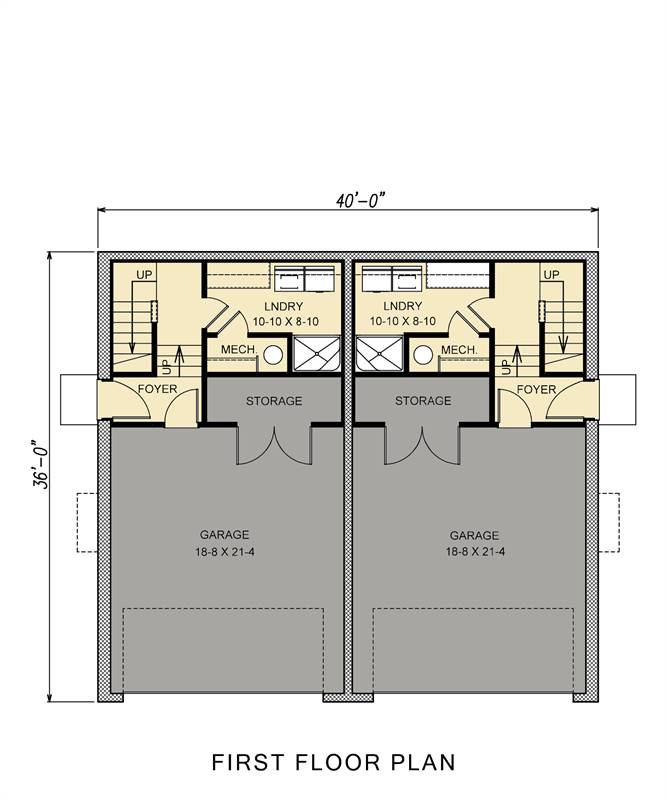

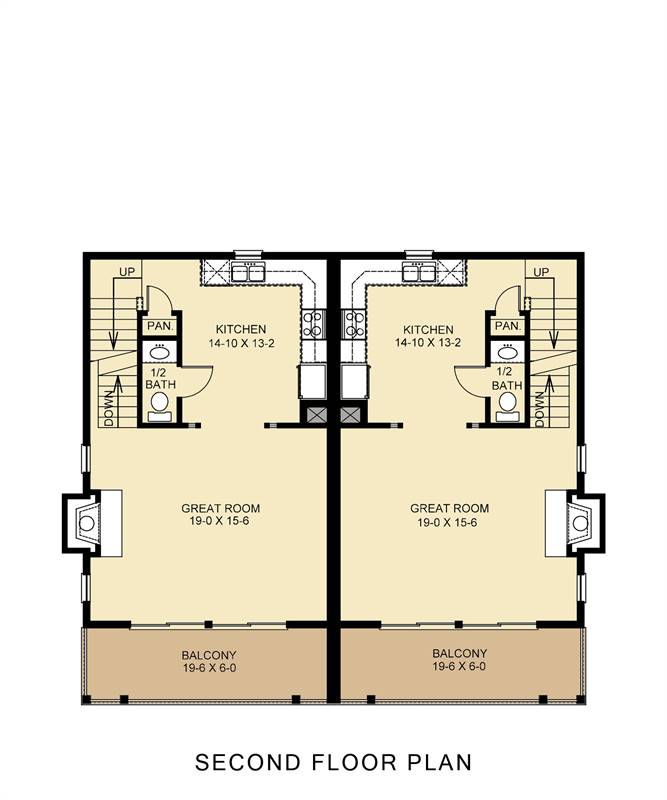

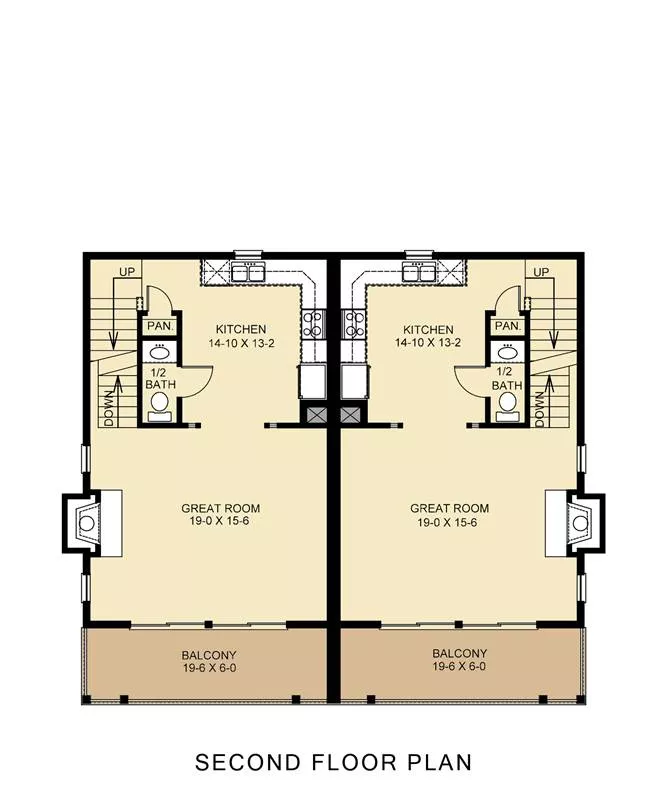

This duplex is two side-by-side four-story residences, attached by a common fire wall. It was designed for an extremely compact site, on a very narrow street.This attractive beach bungalow offers views and spacious rooms to accommodate families on vacation or daily living. From the garage you enter into a guest suite with a full bathroom. The stairs lead up to the kitchen and large great room with fireplace. From the kitchen, there is access to a sun room and further a balcony to share morning coffee or evening dinners. The third level boosts a large Master Bedroom and smaller bedroom that can be used as a study or baby's room. The upper fourth floor is available for an additional Master Bedroom or attic space. This house has incredible outdoor space!


FEATURES & DETAILS

Kitchen features
Country Kitchen
L-Shaped
Bedroom features
2 Master Suites
Master Bdrm Upstairs
Exterior features
Covered Front Porch
Foundation Options
Crawlspace
Lot Options
Suited for corner lot
Suited for sloping lot
Additional features
Family Room
Foyer
Great Room
Inverted Living
Laundry 2nd Fl
Loft / Balcony
Open Floor Plan
Storage Space
Garage Location
Front
Garage Options
Attached
Front-entry
4,050 Ft
2
Total Structure
1,851 Ft
2
Unit Heated
600 Ft
2
1st Floor
600 Ft
2
2nd Floor
416 Ft
2
3rd Floor
289 Ft
2
Lower Floor
4
Bedrooms
3.5
Bathrooms
2
Garage
4
Stories
40' 0"
Width
36' 0"
Depth
43' 8"
Height
8' 0"
Main Floor Ceiling
8' 0"
Upper Floor Ceiling
2x4 or 2x6
Framing
Stick
Roof Framing
8/12
Primary Roof Pitch
3/12
Secondary Roof Pitch
3:12
Dormer Roof Pitch
Duplex
Dwelling Number
None
Bonus Access

Unheated Living Space
431 Ft
2
Garage
120 Ft
2
Porch


Plan Package Options

 Select Plan Package
$450
PDF Bid Set

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$450
$1,850
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,850
$1,950
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,950
$2,750
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,750
  Select Foundation Option
  Add-Ons (Optional)

Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your house plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
