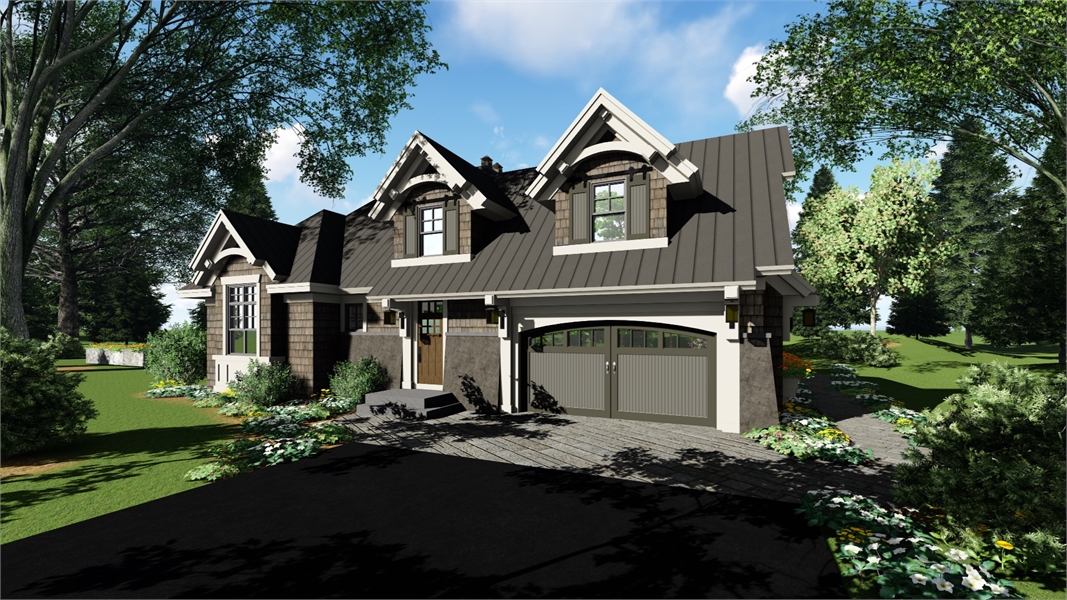

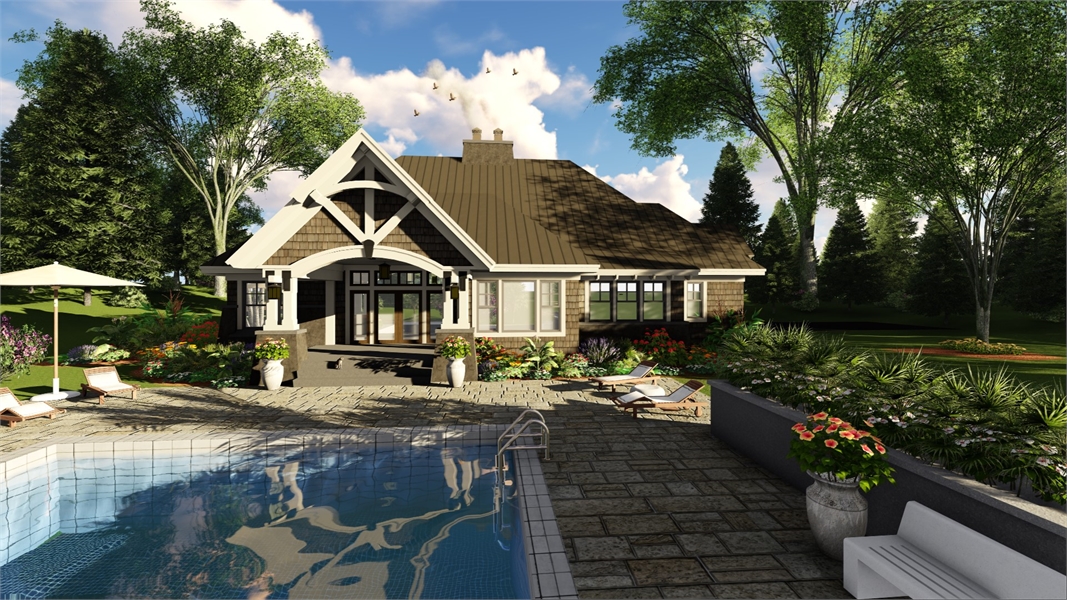

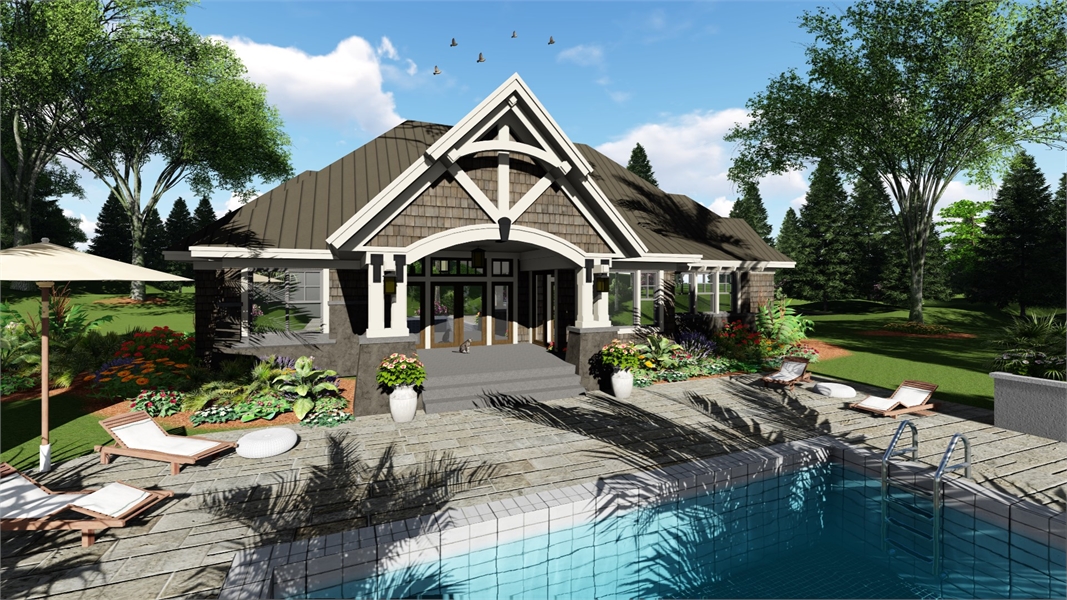

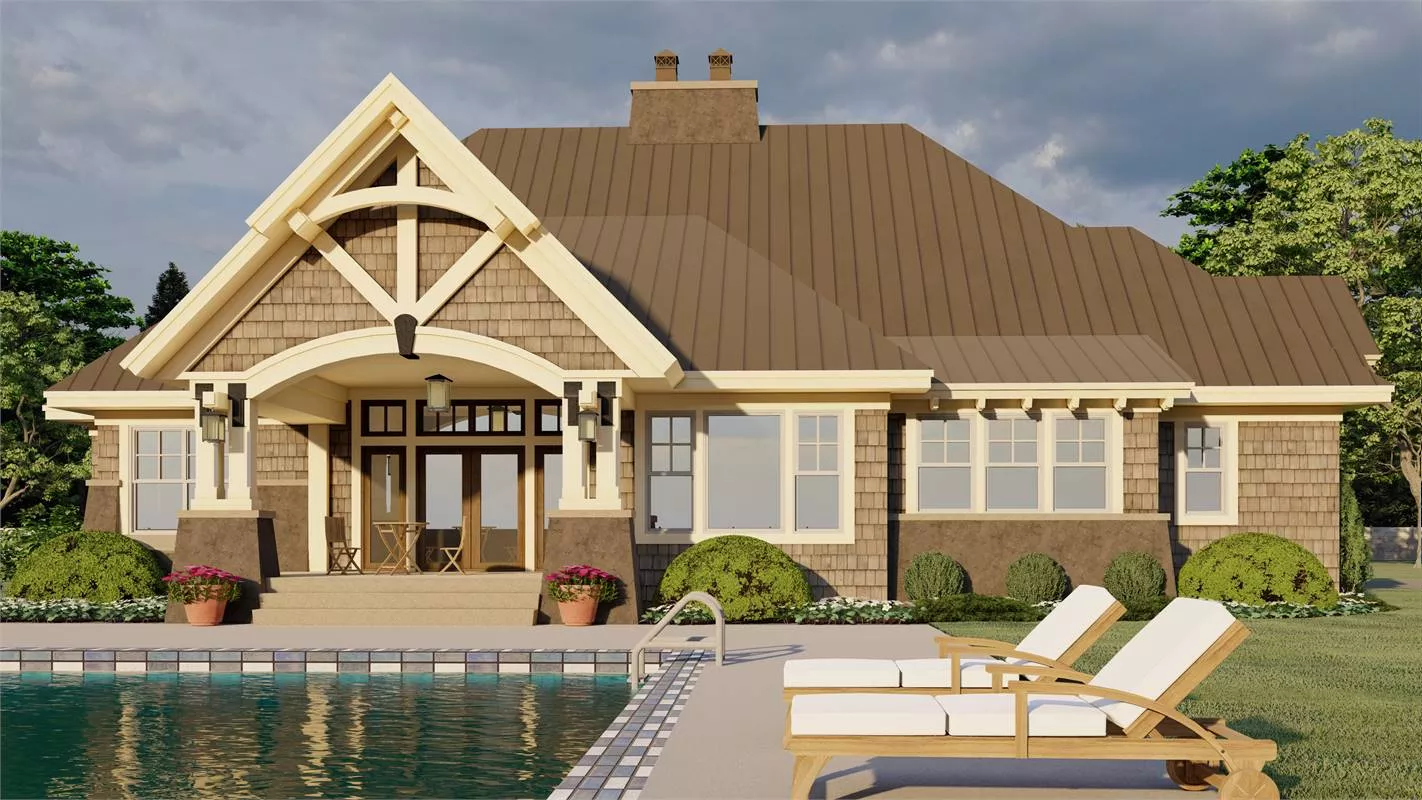

See all 10 photos (photographs may reflect modified homes)
© copyright by designer

Mouse over photo to pause

House Plan 9719: Smugglers Notch

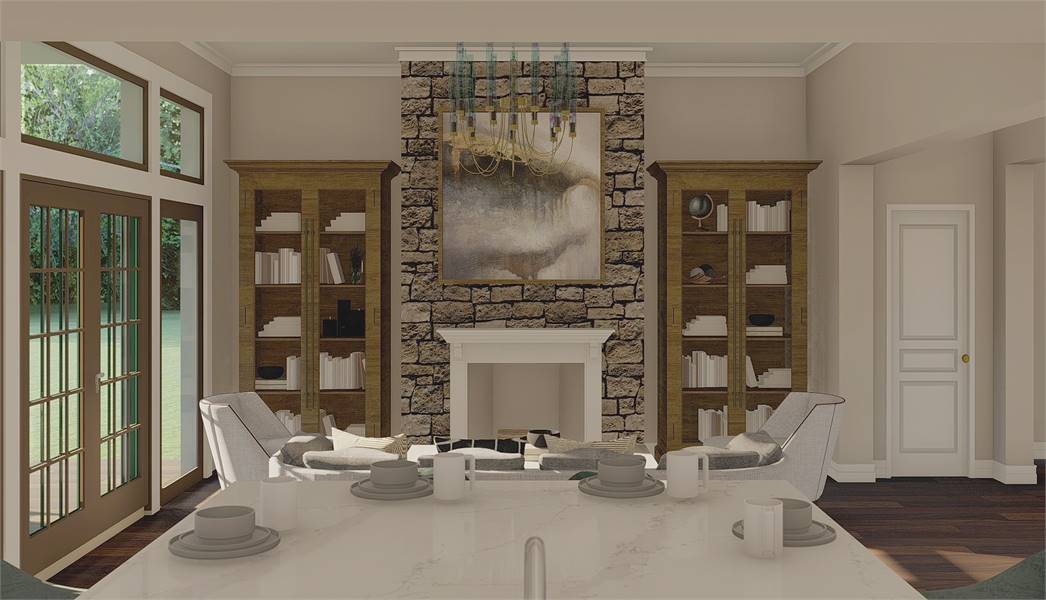

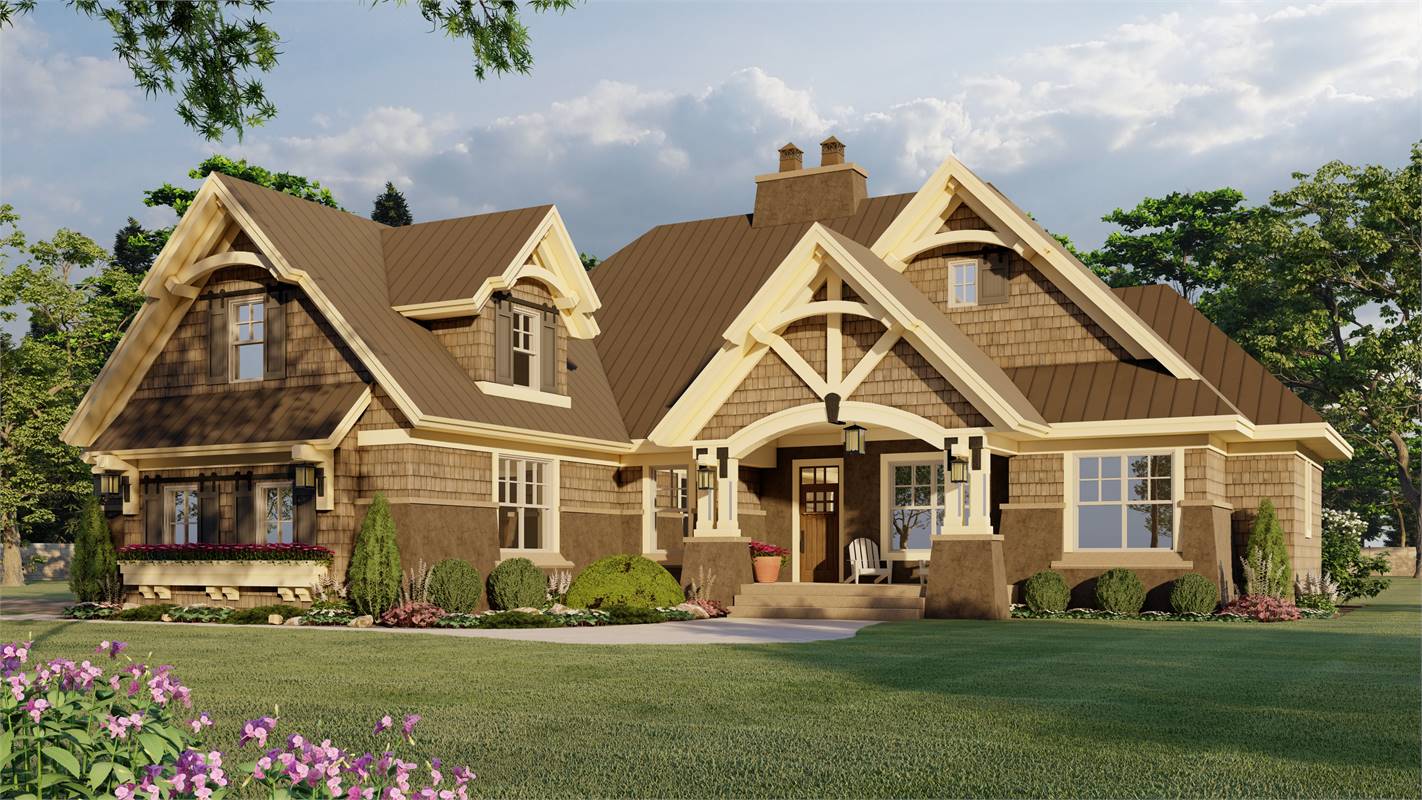

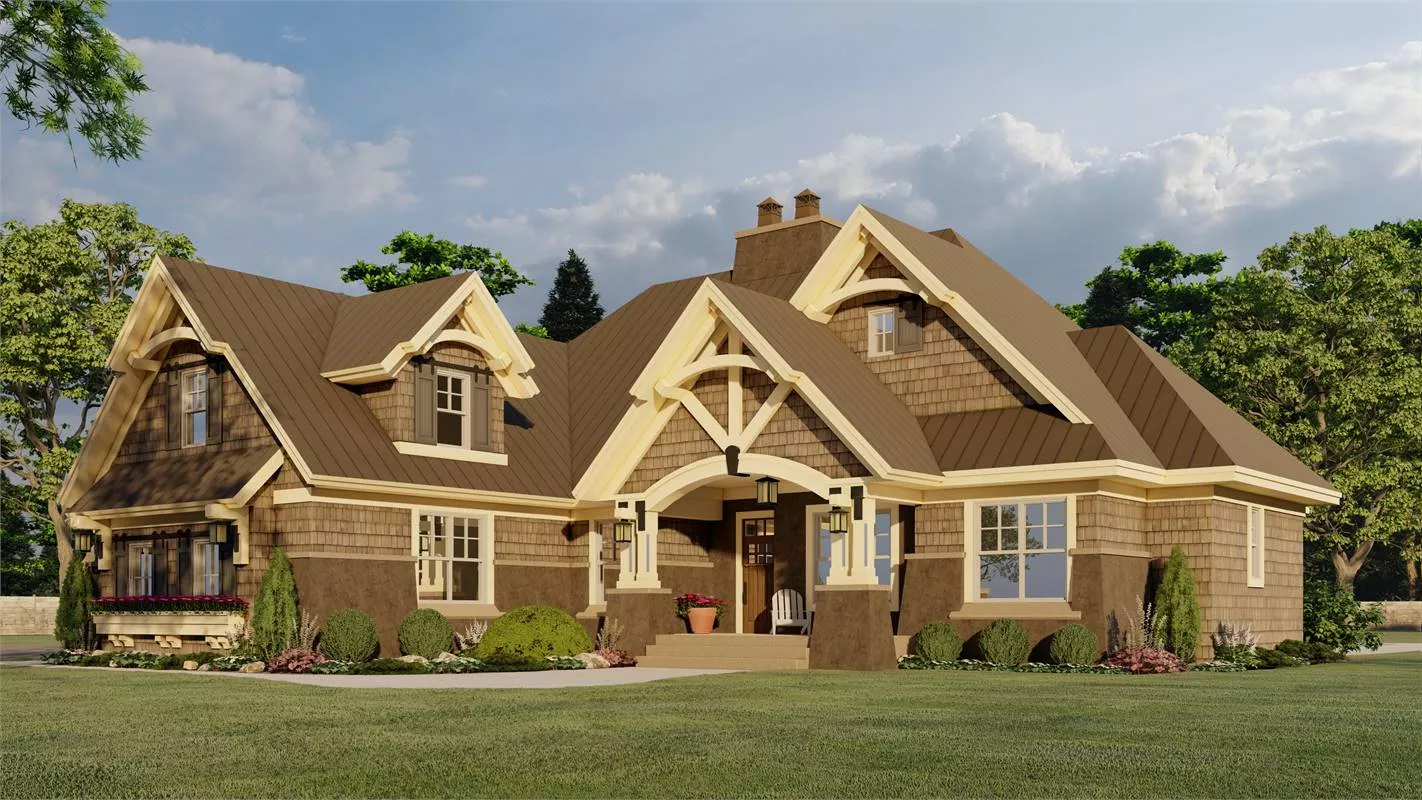

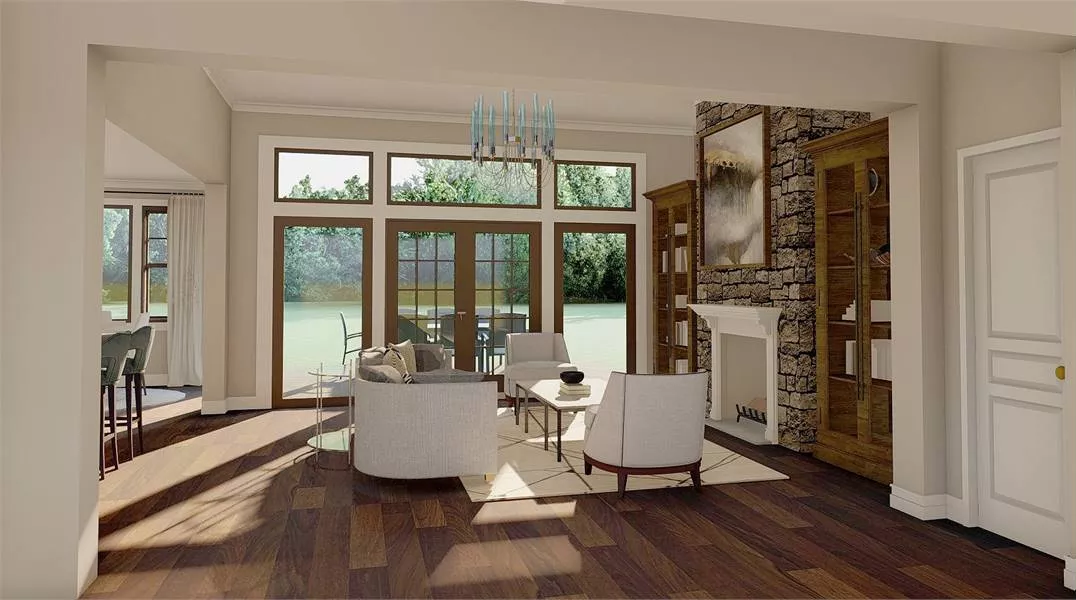

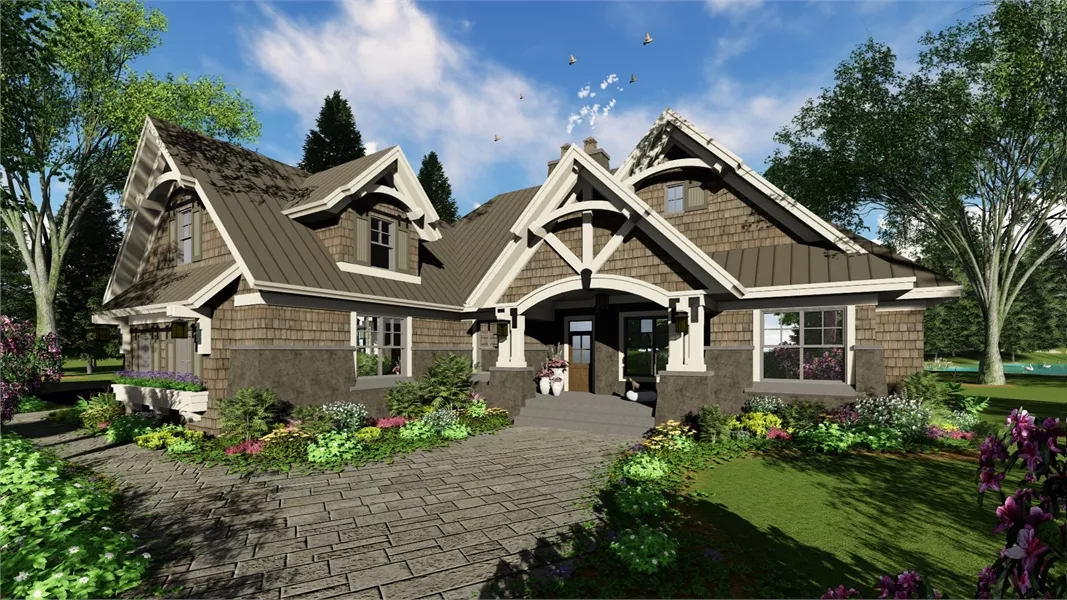

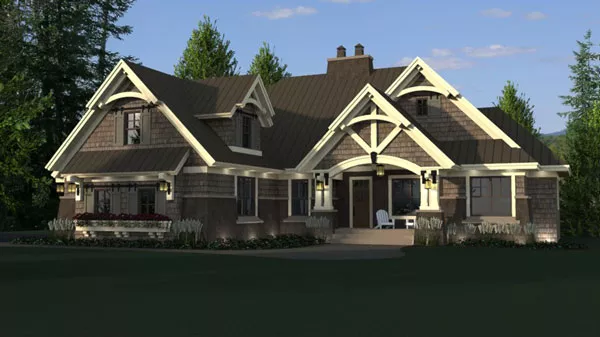

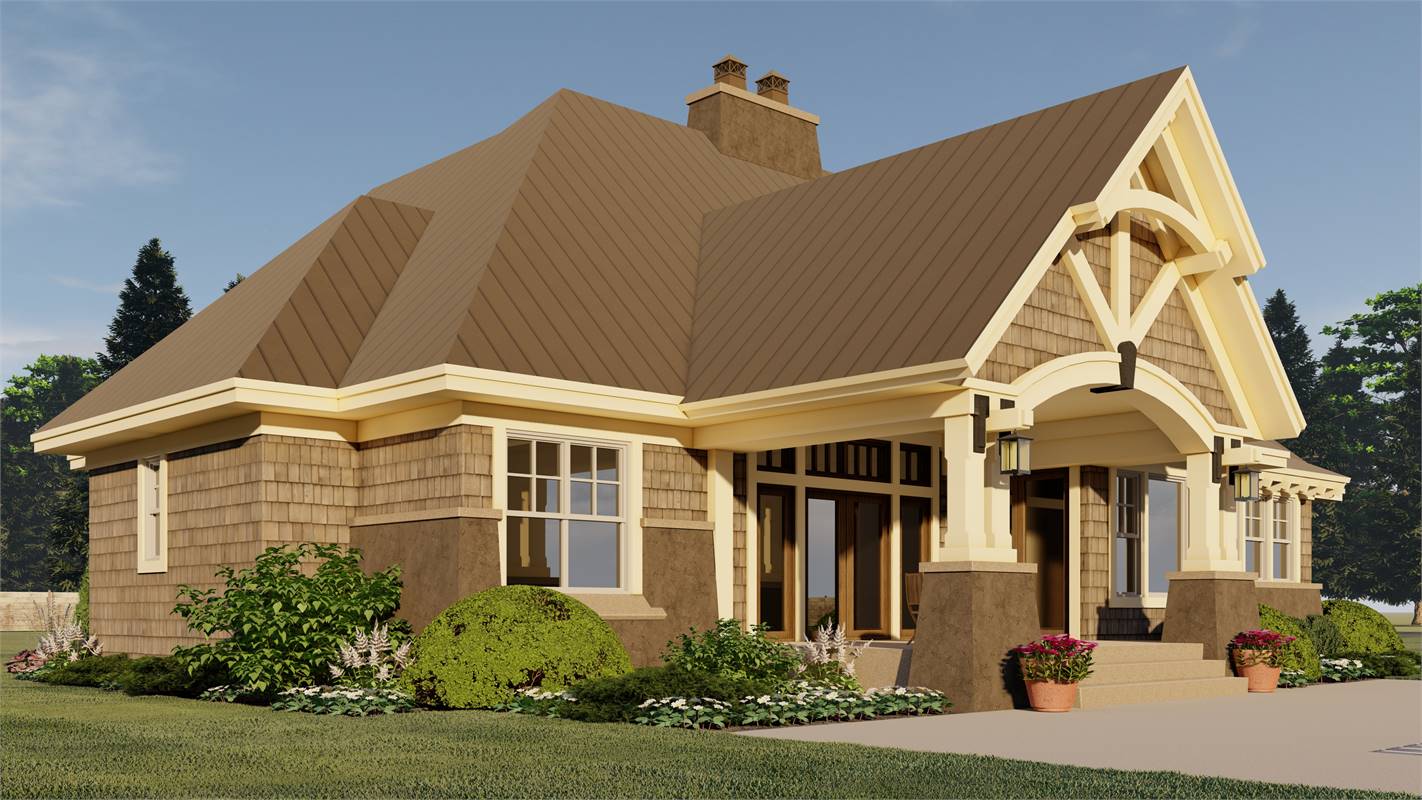

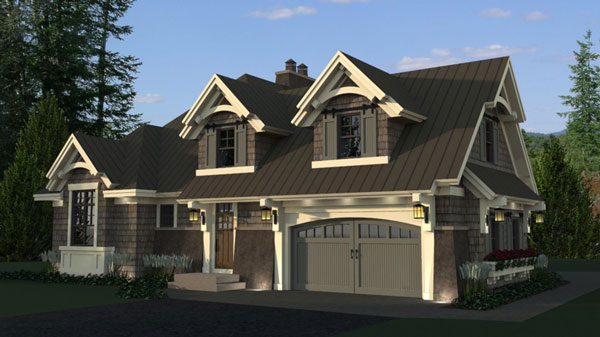

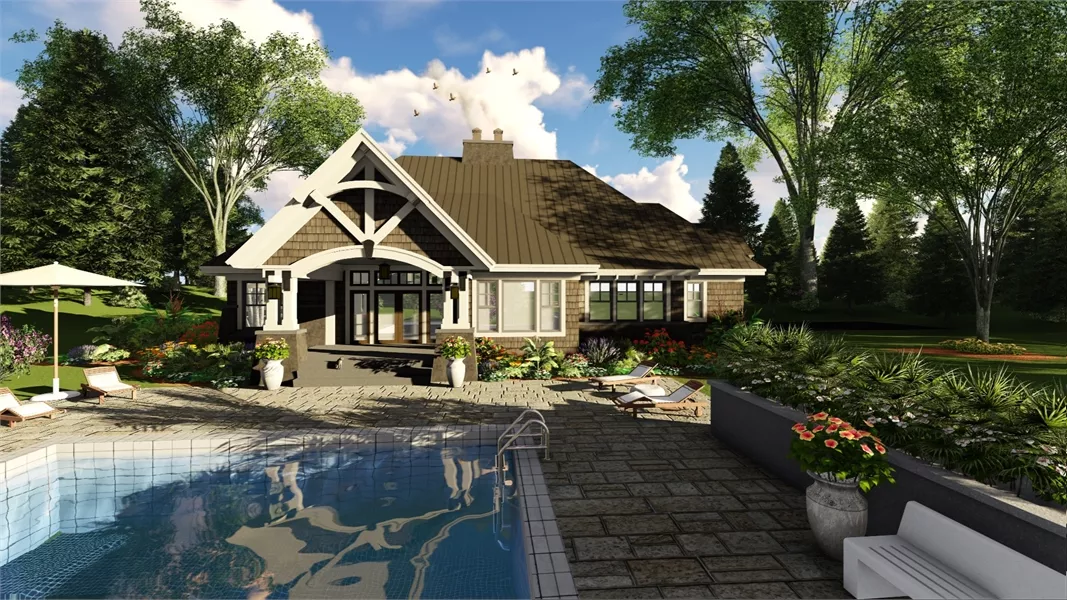

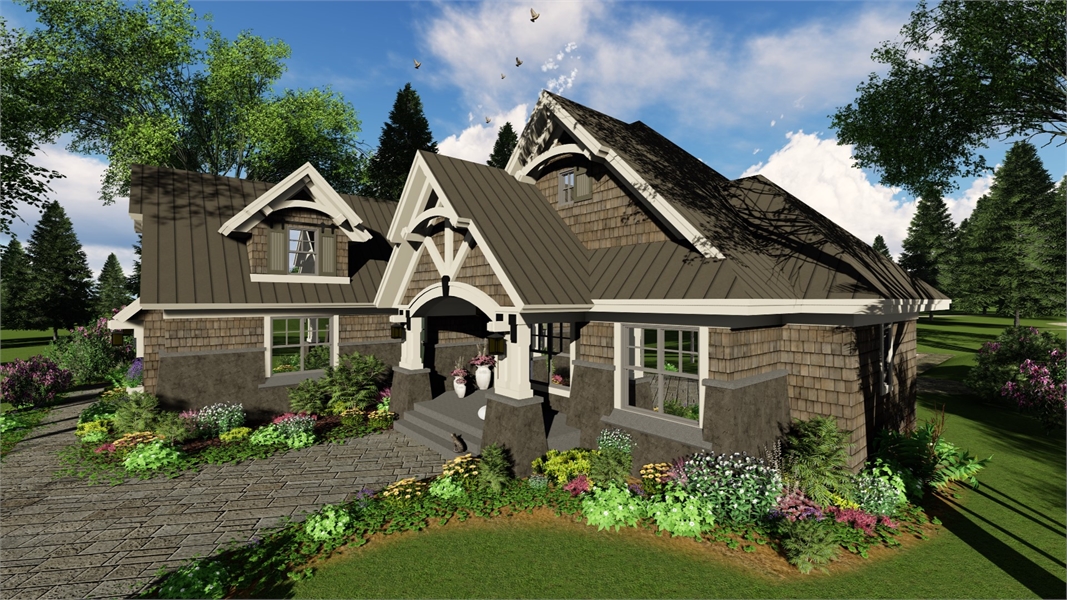

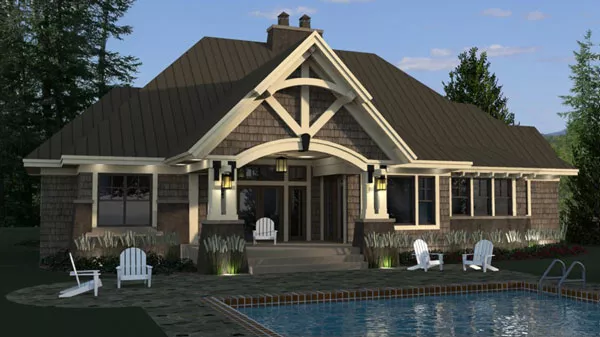

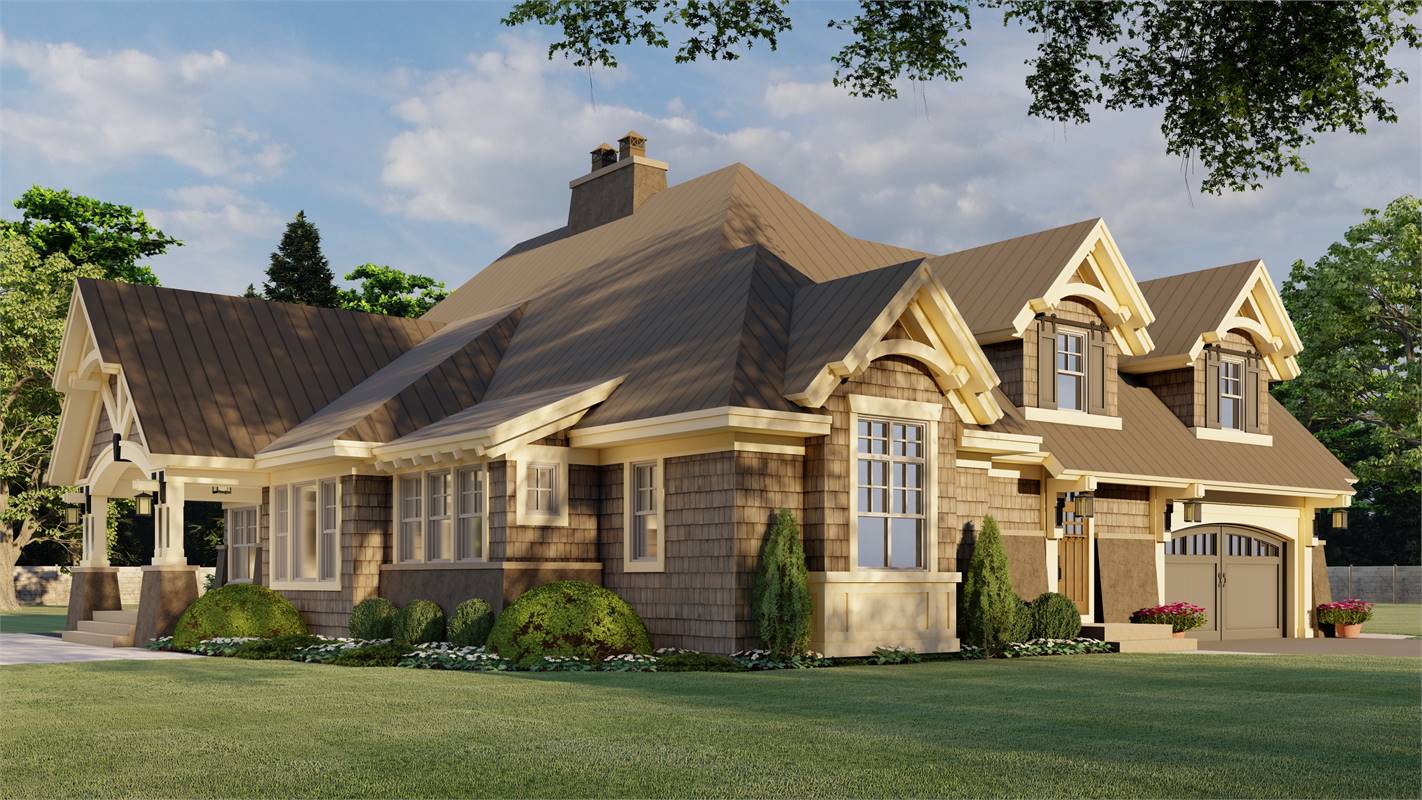

Arches and gables enhance the exterior of this gorgeous Craftsman, one-story home that is becoming a customer favorite!. A vaulted ceiling adorns the central great room providing a fabulous space to entertain family and friends.  Read more >
See Architect Preferred Products For This Plan >

House Plan Details

Sq. Ft.
2,372
Beds
4
Baths
3.0
Stories
1
Garages
2
Width
72' 10"
Depth
73' 10"
1st Floor
2,372
Bonus
696
Storage
634
Customize this Home Plan
Estimate Cost to Build
Free Cost Estimator >
For assistance, email, live chat, or call us at 866-214-2242
Select Plan Package
Five Sets
$1395
Select Foundation Options
$0
Crawl Space
$0
Optional Add-Ons
Subtotal: $0
SEE DETAILED PLAN OPTIONS
What You Should Know Before Buying! >

PLAN IMAGES

Add to Favorites   Save

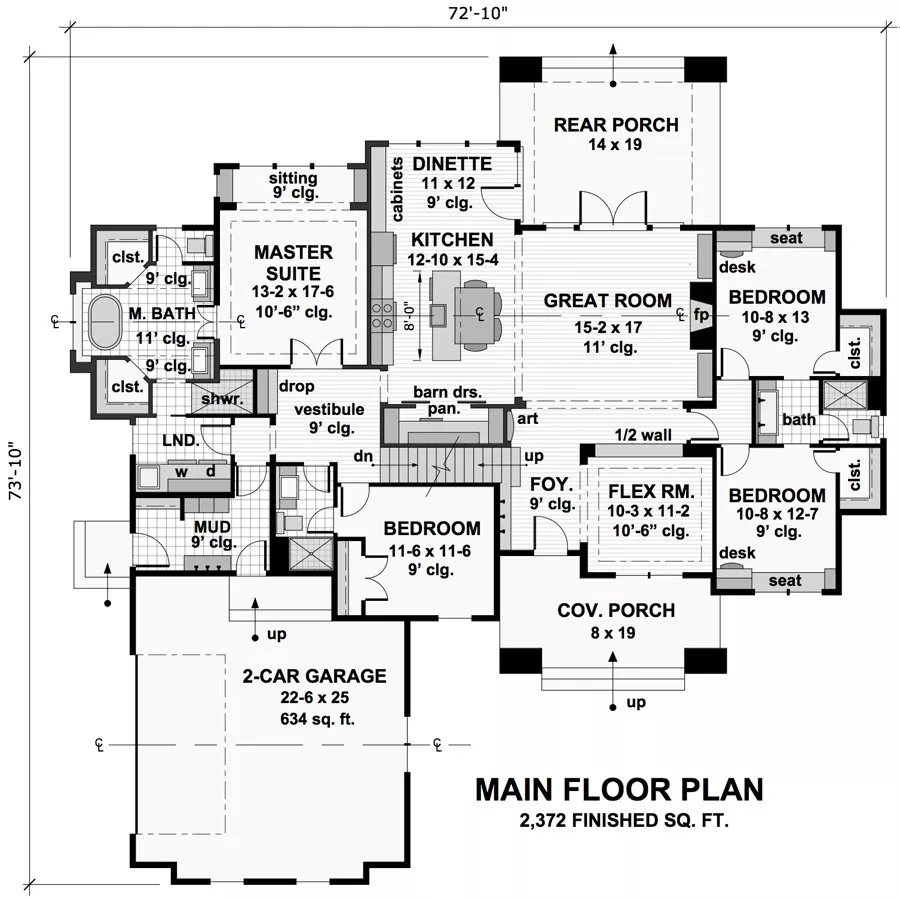

1st Floor Plan

1st Floor Plan
© copyright by designer

Plan Details

Basic Information
Bedrooms: 4
Bathrooms: 3.0
Garage: 2
Stories: 1
Exterior Style
Craftsman
Ranch
Traditional
Dimensions
Width: 72' 10"
Height: 29' 1"
Depth: 73' 10"
Heated Living Space
Total Sq. Ft: 2,372
1st Floor: 2,372
Bonus: 696
Unheated Living Space
Storage: 634
Ceiling
Upper Ceiling Ft:
Main Ceiling Ft: 9
Framing Information
Framing: 2x6
Roof Framing: Truss
Bedroom Features
His and Hers Master Closets
Sitting Area
Walk-in Closet

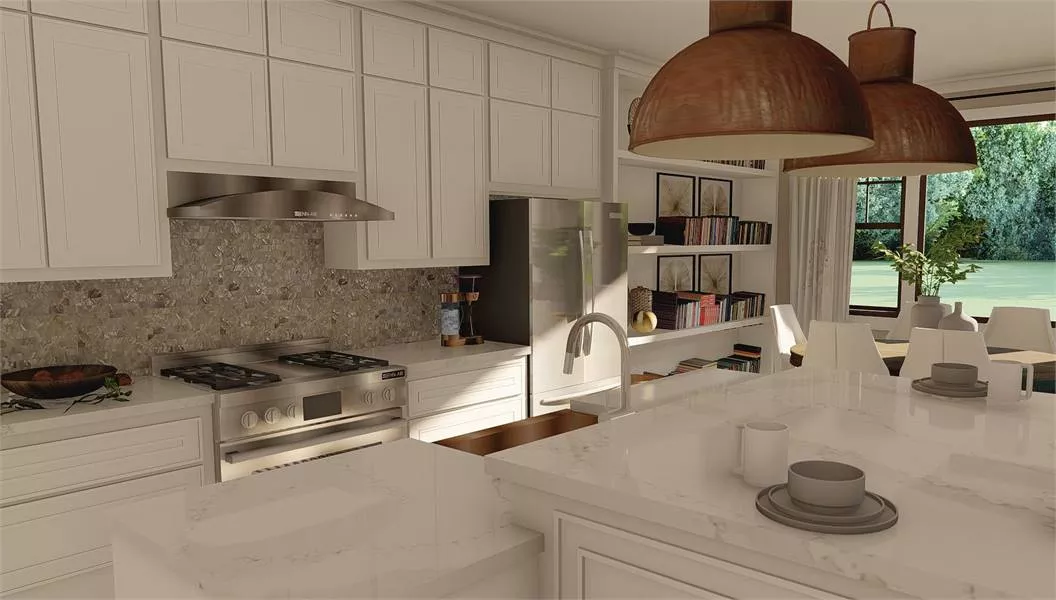

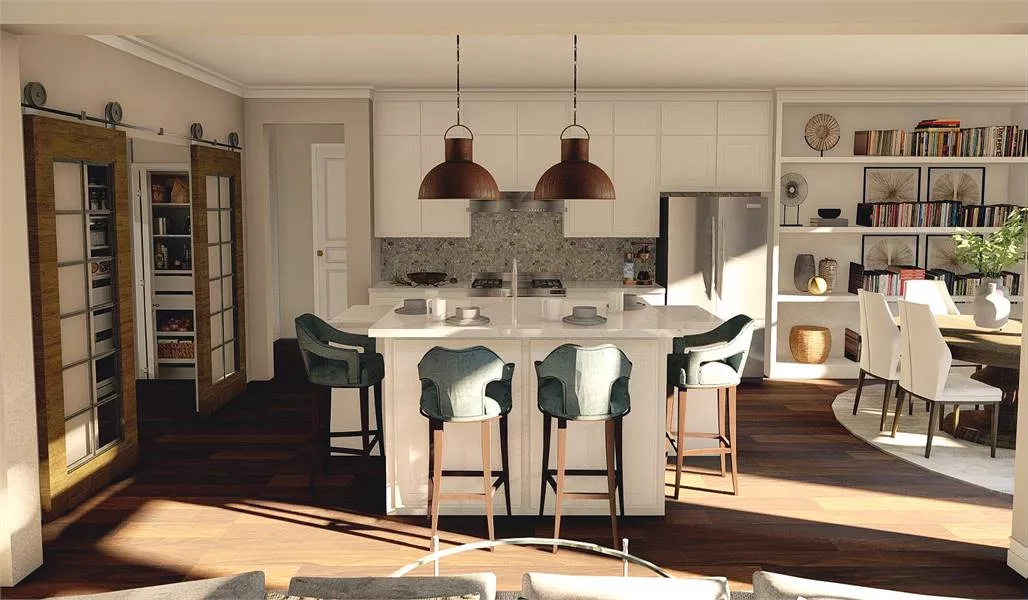

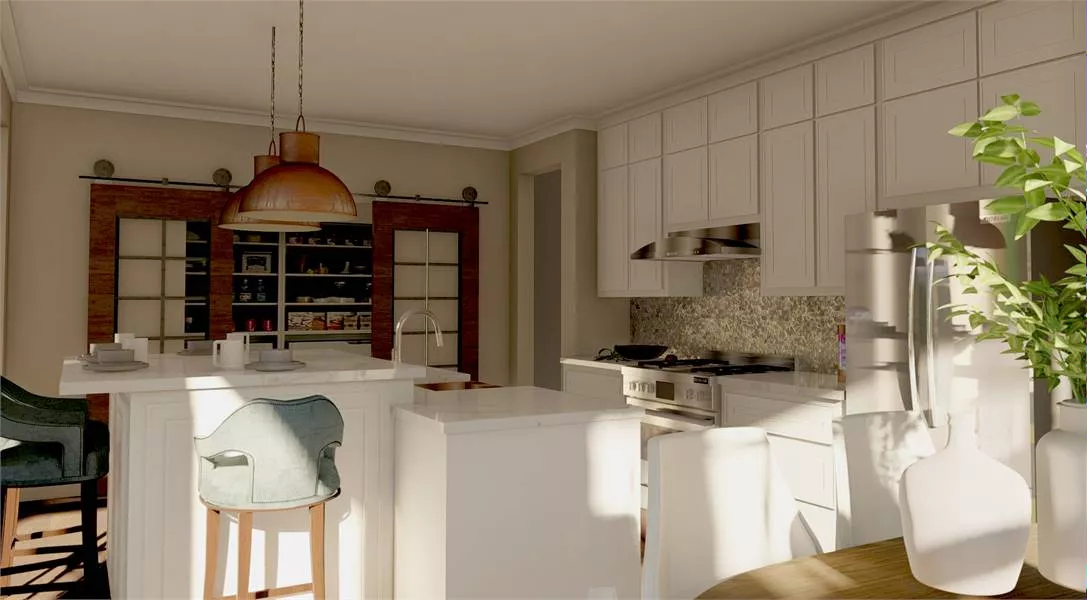

Kitchen Features
Kitchen Island
Nook / Breakfast Area
Walk-in Pantry
Additional Room Features
Bonus Room
Family Room
Fireplace
Great Room
Home Office
Laundry 1st Fl
Mud Room
Open Floor Plan
Storage Space
Unfinished Space
Vaulted Ceilings
Garage Location
Front
Garage Features
Attached
Side-entry
Lot Features
Roof Pitch
Primary: 12/12

Our Guarantee

  • Only the highest quality plans
  • Int’l Residential Code Compliant
  • Full structural details on all plans
  • Best plan price guarantee
  • Free modification Estimates
  • Builder-ready construction drawings
  • Expert advice from leading designers
  • PDFs NOW!™ plans delivered in minutes
  • 100% satisfaction guarantee
  • Free Home Building Organizer
