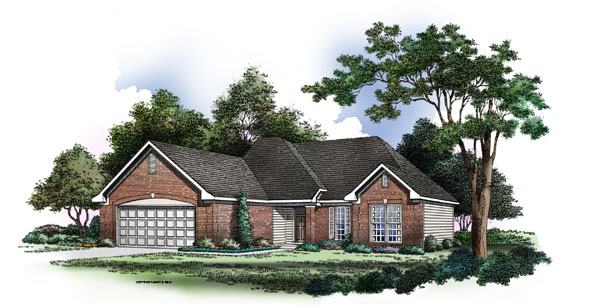

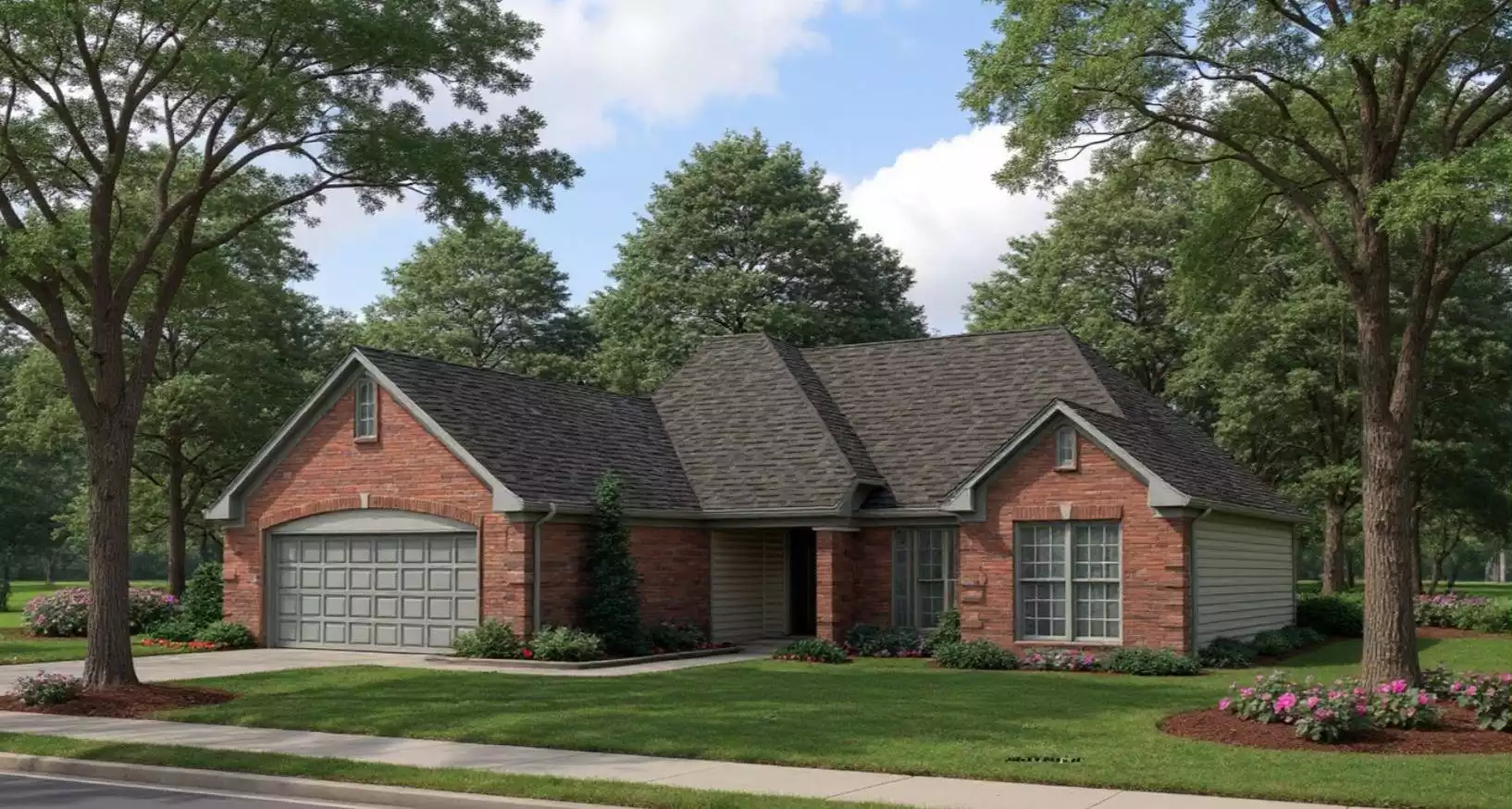

See all 2 photos (photographs may reflect modified homes)
© copyright by designer

Mouse over photo to pause

House Plan 8391: Sedgewick

An angled Entry creates the illusion of space and makes this split bedroom home feel larger. Two square columns flank the bar separating the Kitchen from the Living Room and add detail to this open concept home. A Dining Room located off the Kitchen serves both formal and informal occasions.  Read more >
See Architect Preferred Products For This Plan >

House Plan Details

Sq. Ft.
1,282
Beds
3
Baths
2.0
Stories
1
Garages
2
Width
48' 10"
Depth
52' 6"
1st Floor
1,282
Garage
501
Porch
32
Customize this Home Plan
Estimate Cost to Build
Free Cost Estimator >
For assistance, email, live chat, or call us at 866-214-2242
Select Plan Package
Vellum
$870
Select Foundation Options
$0
Crawl Space
$0
Optional Add-Ons
Subtotal: $870
SEE DETAILED PLAN OPTIONS
What You Should Know Before Buying! >

PLAN IMAGES

Add to Favorites   Save

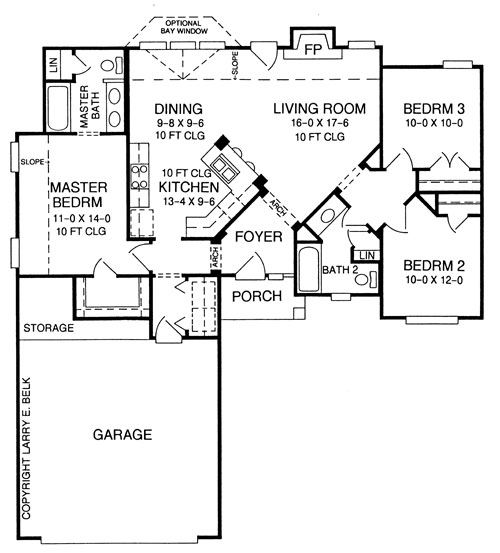

Floor Plan

Floor Plan
© copyright by designer

Plan Details

Basic Information
Bedrooms: 3
Bathrooms: 2.0
Garage: 2
Stories: 1
Exterior Style
Traditional
Dimensions
Width: 48' 10"
Height: 20' 0"
Depth: 52' 6"
Heated Living Space
Total Sq. Ft: 1,282
1st Floor: 1,282
Unheated Living Space
Garage: 501
Porch: 32
Ceiling
Upper Ceiling Ft:
Main Ceiling Ft: 10
Framing Information
Framing: 2x4
Roof Framing: Stick
Bedroom Features
Split Bedrooms
Split Bedrooms
Walk-in Closet
Walk-in Closet
Kitchen Features
Additional Room Features
Fireplace
Fireplace
Open Floor Plan
Open Floor Plan
Garage Location
Front
Garage Features
Attached
Attached
Lot Features
Suited for narrow lot
Suited for narrow lot
Roof Pitch
Primary: 7/12
Secondary: 10/12

Our Guarantee

  • Only the highest quality plans
  • Int’l Residential Code Compliant
  • Full structural details on all plans
  • Best plan price guarantee
  • Free modification Estimates
  • Builder-ready construction drawings
  • Expert advice from leading designers
  • PDFs NOW!™ plans delivered in minutes
  • 100% satisfaction guarantee
  • Free Home Building Organizer
More Plans By This Designer >
