House Plan 8252: RAVINIA

Dormers create a country cottage feel for this split bedroom ranch. One dormer opens into the foyer to provide a volume ceiling and natural light. The interior fireplace centers on the cathedral for a dramatic mantel wall while opening the rear wall to full light through the doors and windows overlooking the patio.  Read more >

House Plan Details

Sq. Ft.
1,850
Beds
3
Baths
2.1
Stories
1
Garages
2
Width
60' 0"
Depth
64' 0"
1st Floor
1,850
Garage
568
Porch
100
Patio
98
Select Plan Package
PDF THD Exclusive Product
$975
$0
Optional Add-Ons
Subtotal: $0

PLAN IMAGES

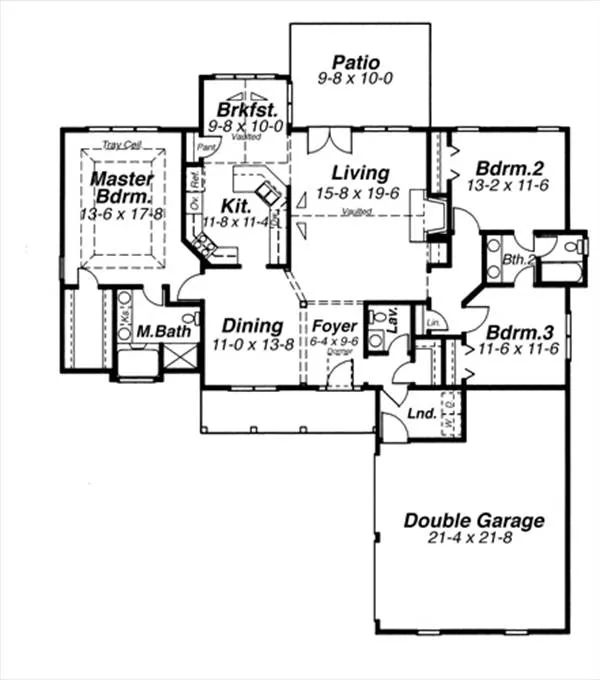

Floor Plan

Floor Plan
© copyright by designer
DETAILS
Total SQ. FT.:
1,850
1st Floor SQ. FT.:
1,850
Bedrooms:
3
Bathrooms:
2.1
Garage:
2
Stories:
1
Main Ceiling Height:
9'
Upper Ceiling Height:
'
Framing:
2x4
Roof Framing:
Stick
Roof Pitch:
Primary: 9/12
Gable: 9/12
Dormer: 12/12
Width:
60' 0"
Height:
22' 9"
Depth:
64' 0"
Exterior Styles:
Country
Southern
Unheated Living Space:
Garage: 568
Porch: 100
Patio: 98
HOME FEATURES
Bedroom Features:
Double Vanity Sink
Master Bdrm Main Floor
Separate Tub and Shower
Split Bedrooms
Walk-in Closet
Kitchen Features:
Nook / Breakfast Area
Peninsula / Eating Bar
Additonal Features:
Arches
Dining Room
Fireplace
Foyer
Great Room
Laundry 1st Fl
Open Floor Plan
Storage Space
Vaulted Ceilings
Garage Features:
Attached
Side-entry
Garage Location:
Front
Lot Features:
Suited for corner lot
