HOUSE PLANS
START AT $1,150
SQ FT
2,165
BEDS
4
BATHS
3
STORIES
2
CARS
2
WIDTH
46' 6"
DEPTH
53' 6"
© copyright by designer
Photographs may reflect modified homes.
SQ FT
2,165
BEDS
4
BATHS
3
STORIES
2
CARS
2

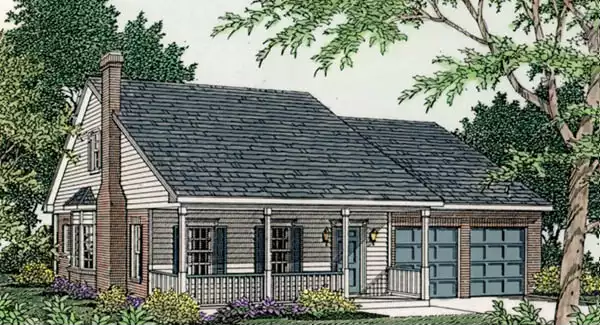

House Plan 3463: Raven

Though designed for narrow spaces the floor plan includes four bedrooms and three full baths. The kitchen/dining and great room flow together. Bay windows enhance the dining space and the master suite. The stair has open spindles leading to the two additional bedrooms and full bath with a double vanity.
Click to Zoom In on Floor Plan

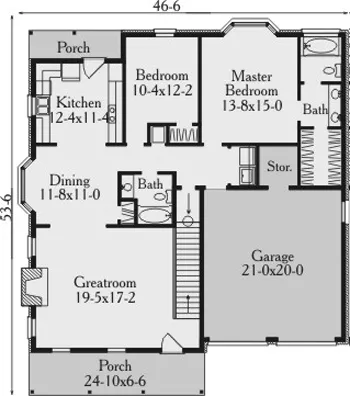

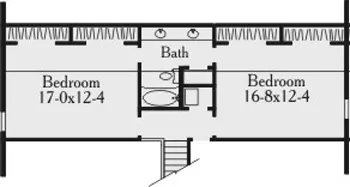

Floor Plans
© copyright by designer
Plan Packages
 Select Plan Package

PDF Single Build


Digital plans emailed to you in PDF format allowing minor changes, printing copies, and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build
Most recommended package
$1,150

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets
Five printed sets of house plans
$1,215

CAD Single Use


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Use
2D electronic editable computer files
$2,100
 Need To Reverse This Plan? (Optional)

Readable Reverse


Reverse house plans with readable text and dimensions

Readable Reverse
Reverses house plans with readable text and dimensions
$255
 Select Foundation Option
 Add-Ons (Optional)
Subtotal:
$0
Free Shipping
If a foundation or optional add-on is not listed, please live chat, email or call for availability.
Features:
View All Plan Features
Bedroom features
Master Bdrm Main Floor
Walk-in Closet
Lot features
Suited for narrow lot
Additional features
Fireplace
Great Room
Laundry 1st Fl
Storage Space
Garage Location
Front
Garage Features
Attached
Front-entry

Hide Plan Features
Details:
View All Plan Details
2,165 Ft
2
Total Heated:
1,467 Ft
2
1st Floor:
698 Ft
2
2nd Floor:
4
Bedrooms:
3
Bathrooms:
2
Garage:
2
Stories:
46' 6"
Width:
53' 6"
Depth:
24' 0"
Height:
8
Main Floor Ceiling:
2x4
Framing:
Stick
Roof Framing:
7/12
Primary Roof Pitch:
Single
Dwelling Number:
None
Bonus Access:
Unheated Living Space
494 Ft
2
Garage:
190 Ft
2
Porch:
Exterior Styles
Country
Southern
Traditional

Hide Plan Details
