Silver Bay 1 Bedroom Affordable Style House, Plan 10047




Sq Ft
632 FT²

Beds
1

Baths
1

Stories
2

Garage
3

Depth
27' 6"

Width
48' 6"
On Sale
$1,071.72
$1,374.00
© copyright by designer
 View All 7 Images | Photographs may reflect modified home
Sq Ft
632 FT²
Beds
1
Baths
1
Stories
2
Garage
3
Depth
27' 6"
Width
48' 6"

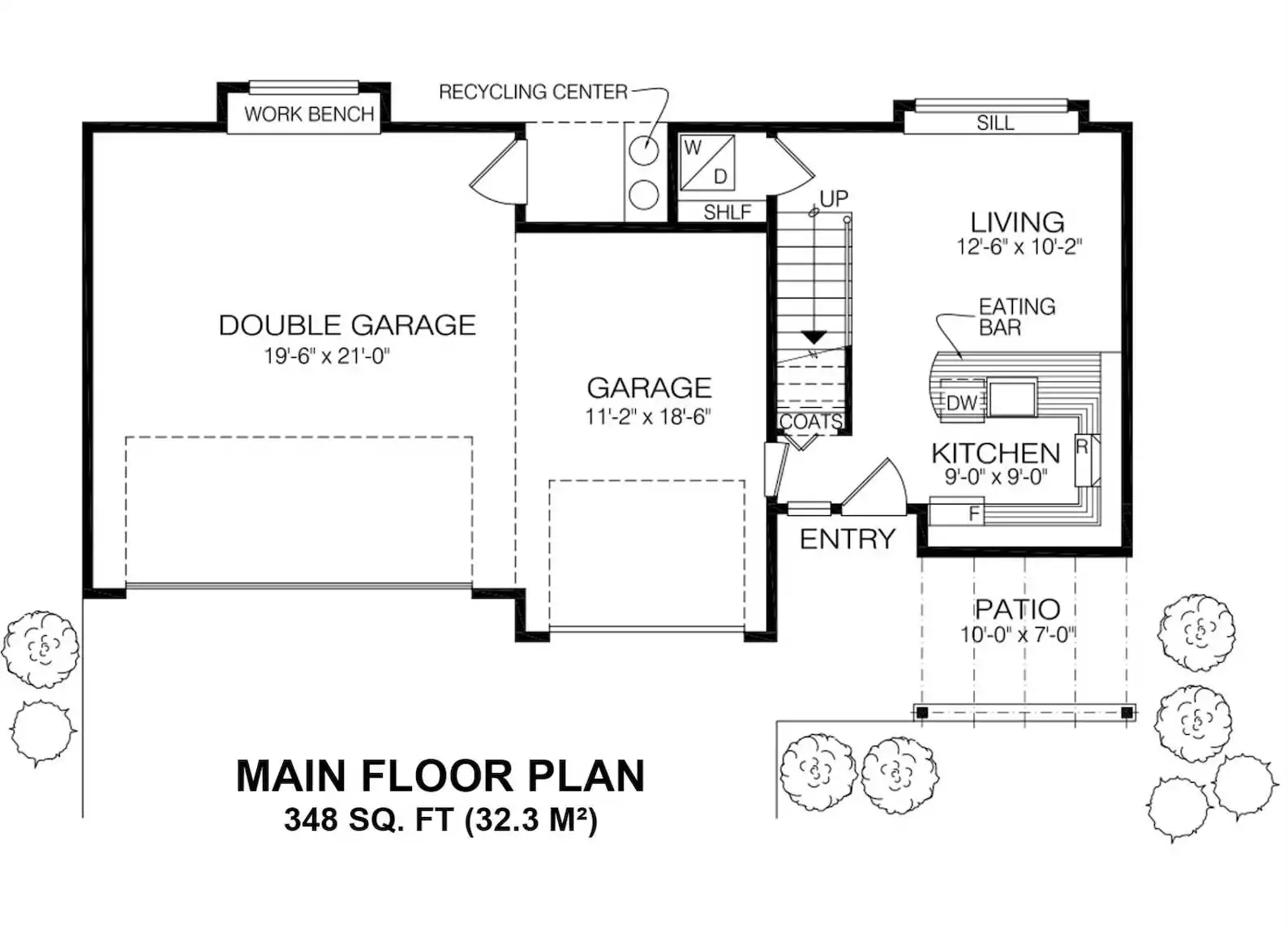

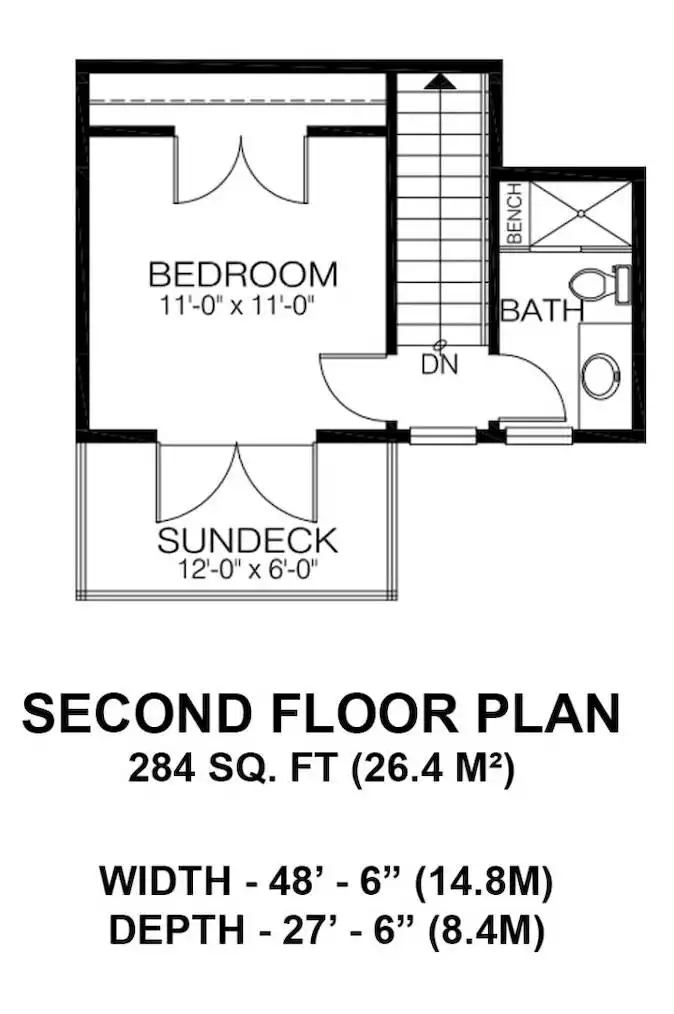

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

Silver Bay is a beautifully designed garage and coach house, perfect as a standalone dwelling or an addition to a larger property. The lower level features a three-vehicle garage with an integrated workshop, along with a thoughtfully designed living space. A welcoming foyer leads to an efficient kitchen with an eating bar that doubles as a dining and prep area, seamlessly connecting to the living room with a wide-silled window for natural light. A stacked washer and dryer nook near the staircase adds functionality. Upstairs, the primary bedroom offers a private retreat with French doors opening onto a sundeck, and the three-piece bathroom includes a shower stall with a built-in bench.



See All Plan Options


FEATURES & DETAILS

Kitchen features
Country Kitchen
Peninsula / Eating Bar
U-Shaped
Bedroom features
Primary Bdrm Upstairs
Exterior features
Courtyard
Deck
Lot Options
Suited for narrow lot
Suited for view lot
Additional features
Laundry 1st Fl
Open Floor Plan
Workshop
Garage Location
Front
Garage Options
Attached
Front-entry
Oversized
Tandem
1,348 Ft
2
Total Structure
632 Ft
2
Total Heated
348 Ft
2
1st Floor
284 Ft
2
2nd Floor
1
Bedrooms
1
Bathrooms
3
Garage
2
Stories
48' 6"
Width
27' 6"
Depth
20' 8"
Height
8' 0"
Main Floor Ceiling
8' 0"
Upper Floor Ceiling
8' 0"
Living/Great Room Ceiling
8' 0"
Foyer Ceiling
8' 0"
Primary Ceiling
2x6
Framing
Truss
Roof Framing
4/12
Primary Roof Pitch
Single
Dwelling Number
1st Floor
Bonus Access

Unheated Living Space
715 Ft
2
Garage
70 Ft
2
Front Porch
72 Ft
2
Deck


Plan Package Options

 Select Plan Package
Sale: $1,072
PDF Single Build
$1,374

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

Sale: $1,072
Sale: $1,204
5 Printed Sets + PDF
$1,543

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

Sale: $1,204
Sale: $1,990
CAD + PDF Single Build
$2,551

CAD files are a complete set of construction drawings delivered electronically. They can be used for any type of modification—including major design changes and engineering—and include a release granting permission to modify the plan. Most CAD plan orders are emailed the same or next business day.

This package also comes with a PDF set of plans and a copyright release for making modifications and printing unlimited copies.

CAD files are provided in .dwg format. For details on the specific CAD program used, please refer to the PLAN DETAILS section located above the floor plan on each plan’s page.

Sale: $1,990
Sale: $3,903
CAD + PDF Unlimited Build
$5,004

CAD files are a complete set of construction drawings delivered electronically. They can be used for any type of modification—including major design changes and engineering—and include a release granting permission to modify the plan. Most CAD plan orders are emailed the same or next business day.

This package also comes with a PDF set of plans and a multi-use building license, granting permission to construct the home an unlimited number of times, along with a copyright release for making modifications and printing unlimited copies.

CAD files are provided in .dwg format. For details on the specific CAD program used, please refer to the PLAN DETAILS section located above the floor plan on each plan’s page.

Sale: $3,903
 Need To Reverse Plan? (Optional)
$200
Readable Reverse

Reverse house plans with readable text and dimensions

$200
  Select Foundation Option
  Add-Ons (Optional)
INCLUDED WITH YOUR PURCHASE

Free Ground shipping in the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your plan

Home Building & Product Ideas Organizer

Sub Total
$0
Free Shipping

Note: A
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractors, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 30-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
