HOUSE PLANS
START AT $450
SQ FT
2,202
BEDS
4
BATHS
3.5
STORIES
3
CARS
0
WIDTH
44'
DEPTH
41'
© copyright by designer

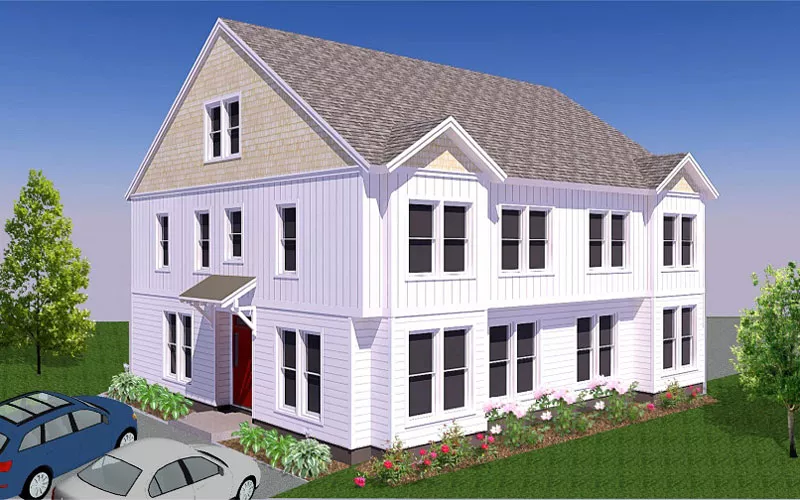

Photographs may reflect modified homes.   View all 3 photos
SQ FT
2,202
BEDS
4
BATHS
3.5
STORIES
3
CARS
0



Old Virginia Duplex 4 Bedroom Cottage Style House Plan 9166

This cottage design is a duplex with four bedrooms in each unit. The welcoming foyer includes a handy coat closet. Enjoy some laughter in the ample great room; sliding glass doors allow you to step outside for some fresh air. The up-to-date kitchen helps you to prepare any meal in style.  Read more >

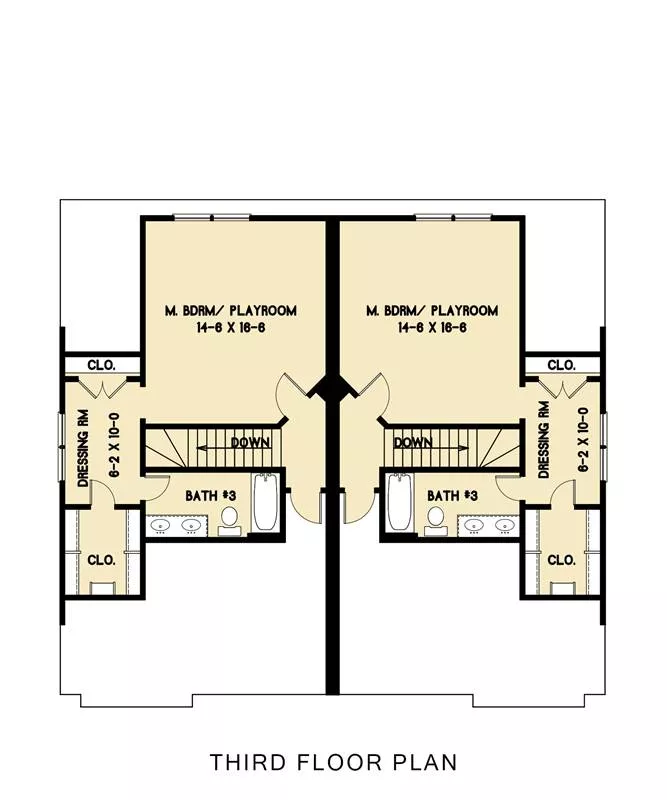

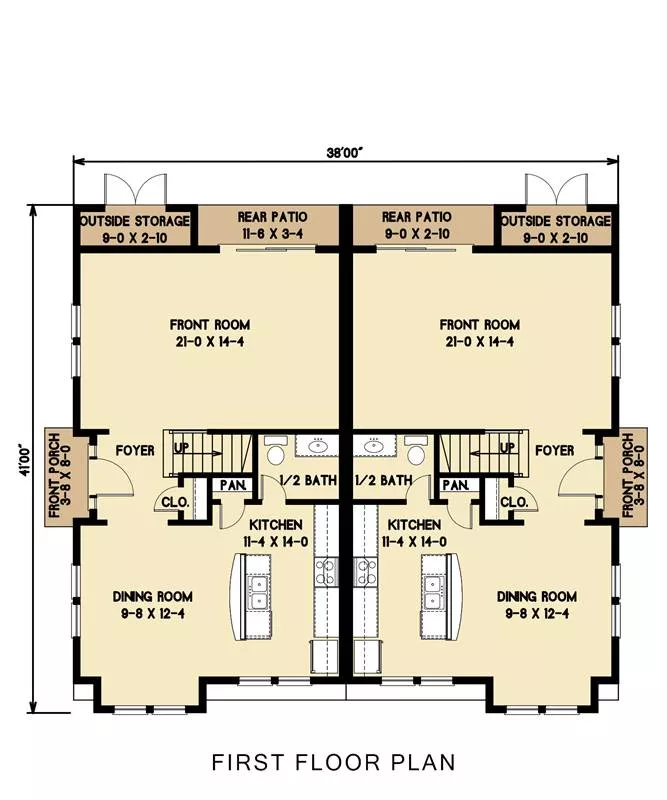

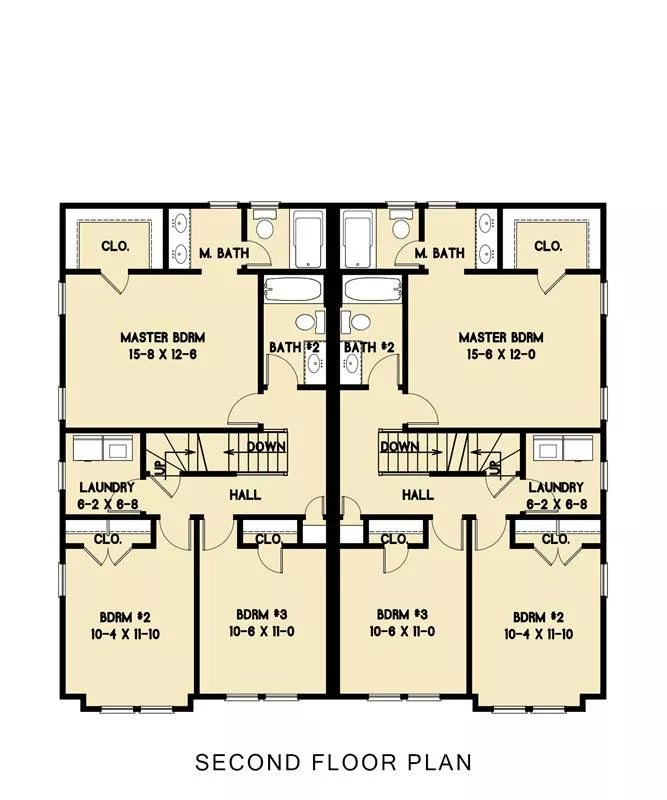

Click to Zoom In on Floor Plan
Floor Plans
© copyright by designer
Plan Packages
 Select Plan Package

PDF Bid Set


Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set
Digital set of plans for bidding purposes only
$450

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets
Five printed sets of house plans
$1,850

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build
Most recommended package
$1,850

CAD Single Use


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Use
2D electronic editable computer files
$2,750
 Select Foundation Option
 Add-Ons (Optional)
Subtotal:
$0
Free Shipping
Features:
View All Plan Features
Kitchen features
Kitchen Island
Bedroom features
2 Master Suites
Double Vanity Sink
Master Bdrm Upstairs
Lot features
Suited for corner lot
Suited for sloping lot
Additional features
Family Room
Great Room
Laundry 2nd Fl
Open Floor Plan
Storage Space
Unfinished Space
Garage Location
None
Garage Features
None

Hide Plan Features
Details:
View All Plan Details
4,602 Ft
2
Total Structure:
2,202 Ft
2
Unit Heated:
789 Ft
2
1st Floor:
889 Ft
2
2nd Floor:
524 Ft
2
3rd Floor:
4
Bedrooms:
3.5
Bathrooms:
0
Garage:
3
Stories:
44' 0"
Width:
41' 0"
Depth:
34' 7"
Height:
9
Main Floor Ceiling:
8
Upper Floor Ceiling:
2x4
Framing:
Stick
Roof Framing:
8/12
Primary Roof Pitch:
4:12
Secondary Roof Pitch:
Duplex
Dwelling Number:
Unheated Living Space
33 Ft
2
Storage:
28 Ft
2
Porch:
38 Ft
2
Patio:

Hide Plan Details
