Sq Ft
2,523 FT²

Beds
3

Baths
3

Stories
2

Garage
3

Depth
50'

Width
63'

On Sale
$1,635.10
$1,970.00

Front Rendering

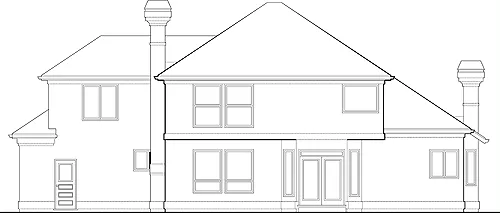

Rear Elevation

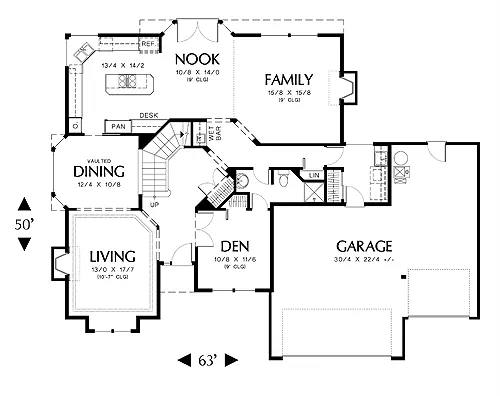

First Floor Plan

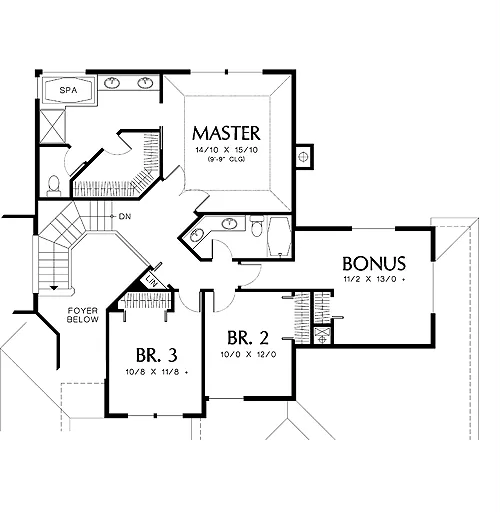

Second Floor Plan

View All 4 Images | Photographs may reflect modified home

Sq Ft

2,523 FT²

From

$1,635.10

Beds

Baths

Stories

Garage

Depth

50'

Width

63'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

First Floor Plan

Second Floor Plan

First Floor Plan

Second Floor Plan

About This Plan

Start with a dramatic entry, add tall rooflines and wide, bright windows, and you'll have the beginnings of a wonderful design like this one. Interior spaces are centered around a main hallway that features a curved staircase to the upper level and a coat closet. A den sits on the right side of the entry; the living room is on the left. The living room features a tray ceiling, a fireplace and a box-bay window. Formal dining takes place in a vaulted dining room that lies between the living room and the island kitchen. The family room also has a fireplace and is open to the breakfast nook. A wet bar in the hallway just outside the family room comes in handy for entertaining. Down the service hall to the three-car garage is a full bath, a linen closet and a laundry area with closet.

Bedrooms are on the second floor: two family bedrooms and a master suite with private bath and walk-in closet. A bonus room on this floor could become an additional bedroom in the future.

See All Plan Options

FEATURES & DETAILS

Foundation Options

Basement
Crawlspace
Slab

Additional features

Bonus Room
Home Office

Garage Location

Front

Garage Options

Attached
Front-entry

3,452 Ft

Total Structure

2,523 Ft

Total Heated

1,580 Ft

1st Floor

943 Ft

2nd Floor

Bedrooms

Bathrooms

Garage

Stories

63' 0"

Width

50' 0"

Depth

28' 0"

Height

9' 1"' 0"

Main Floor Ceiling

8' 1"' 0"

Upper Floor Ceiling

2x6

Framing

8/12

Primary Roof Pitch

Single

Dwelling Number

Unheated Living Space

680 Ft

Garage

249 Ft

Bonus Room

Exterior Styles

Contemporary

Collections

PDFs Fast!

Plan Package Options

Important info before you buy

Select Plan Package

Sale: $1,635

PDF Single Build

~~$1,970~~

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

Sale: $1,635

Sale: $1,884

5 Printed Sets + PDF

~~$2,270~~

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

Sale: $1,884

Sale: $3,270

CAD Single Build

~~$3,940~~

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

Sale: $3,270

Need To Reverse Plan? (Optional)

$250

Readable Reverse

Reverse house plans with readable text and dimensions

$250

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 30-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
