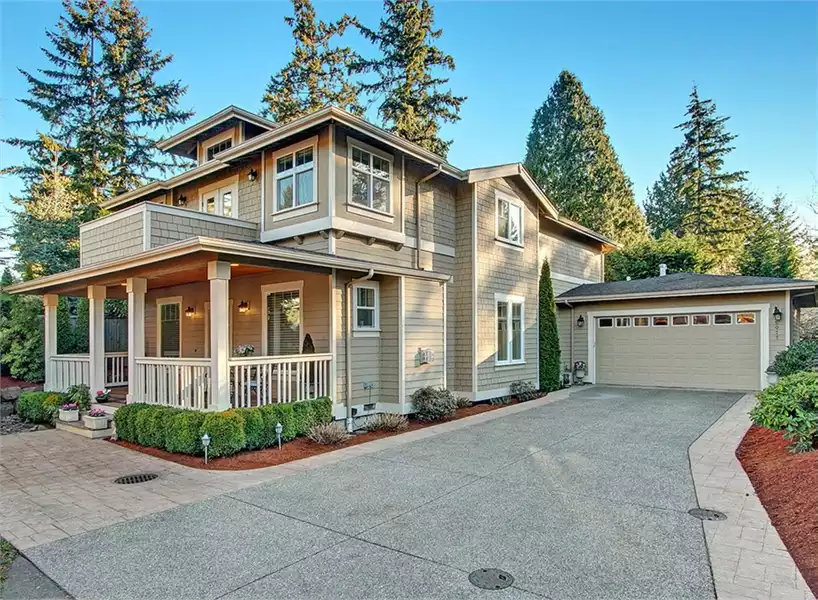

Front View

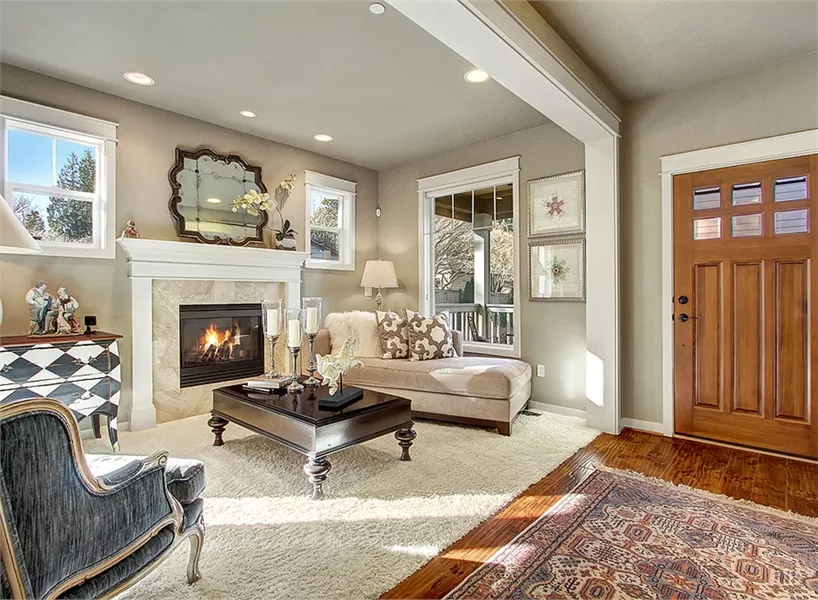

Foyer

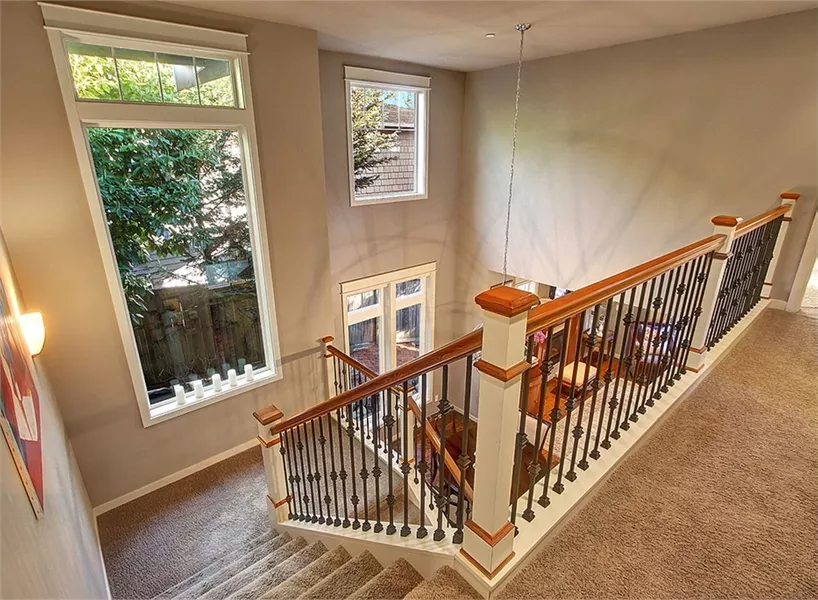

Stairs

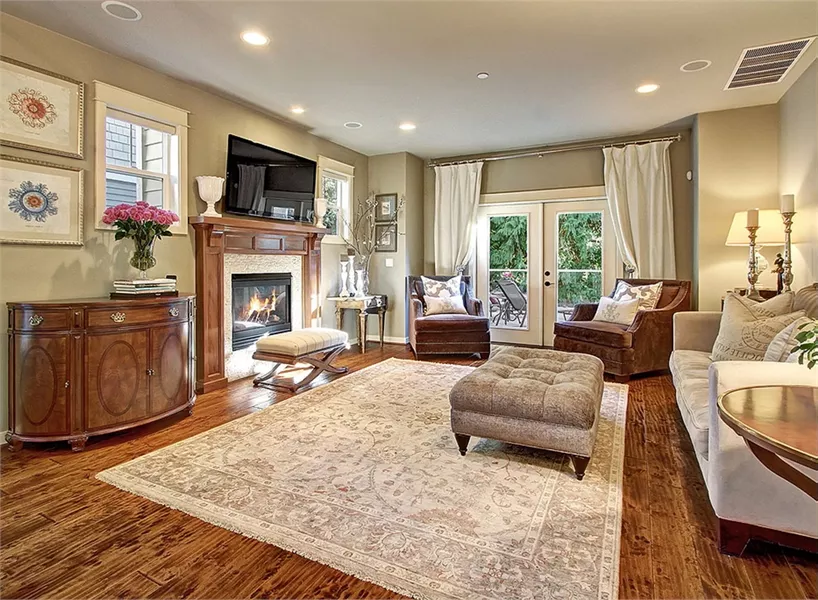

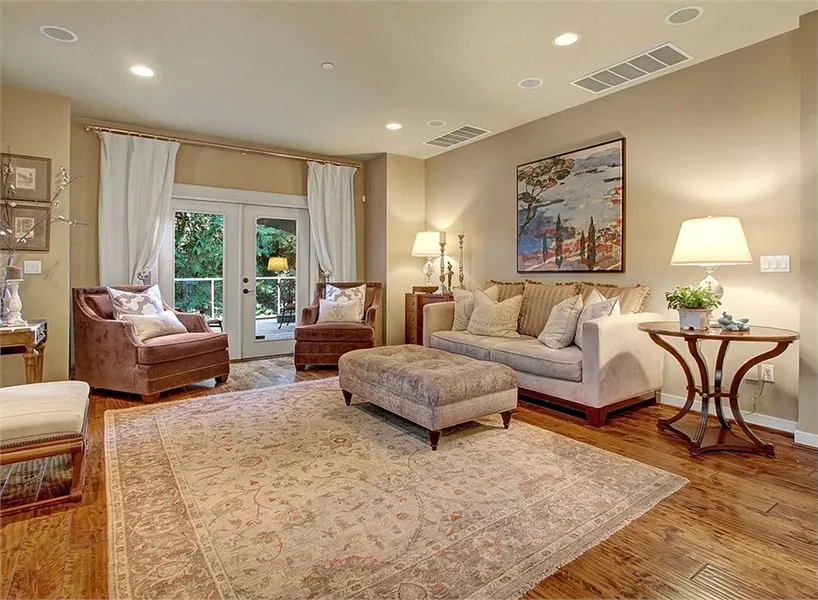

Family Room
Family Room

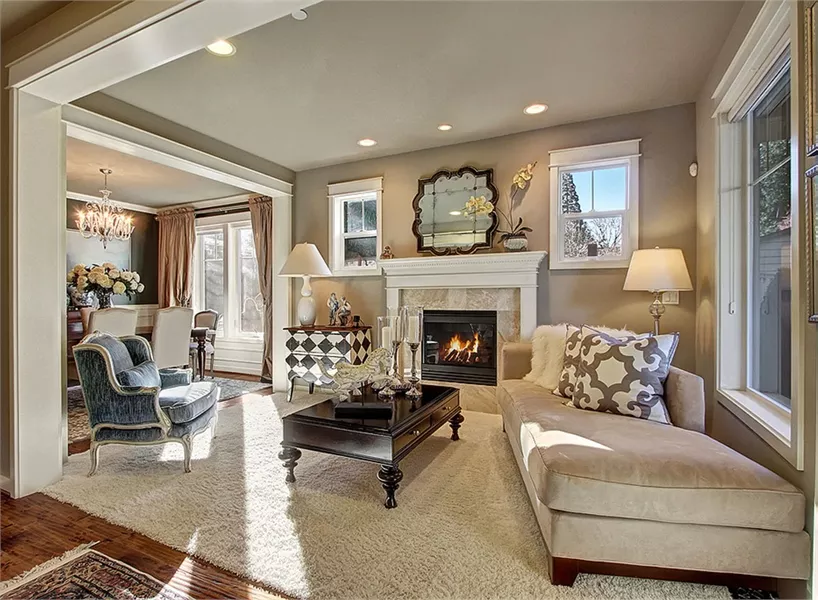

Living Room

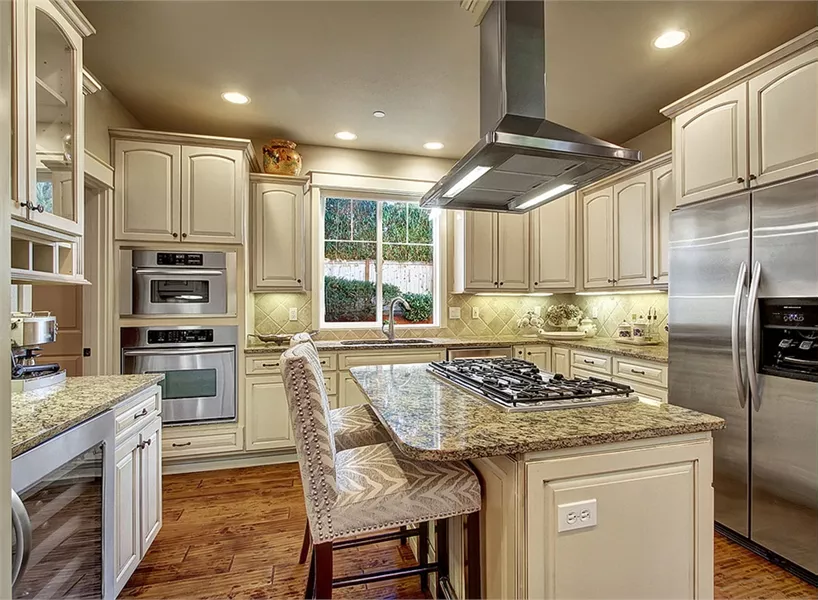

Kitchen

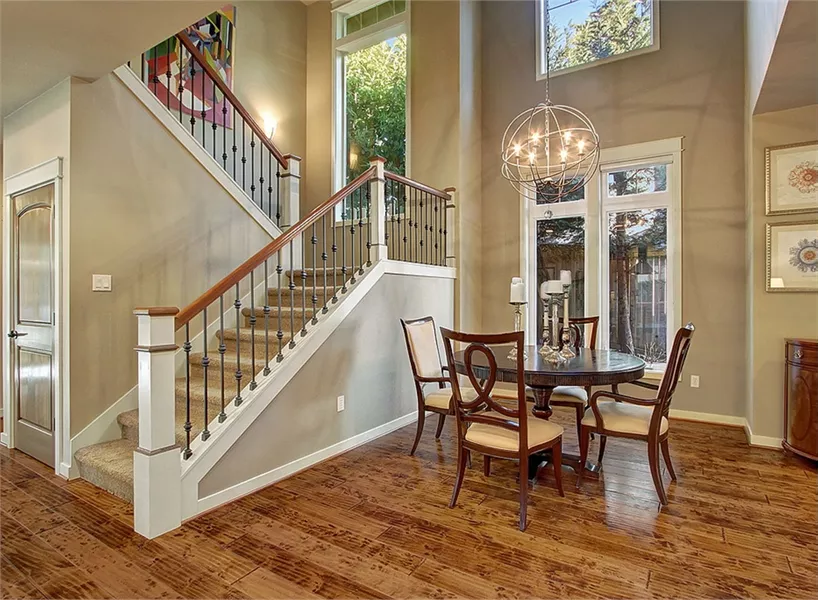

Nook

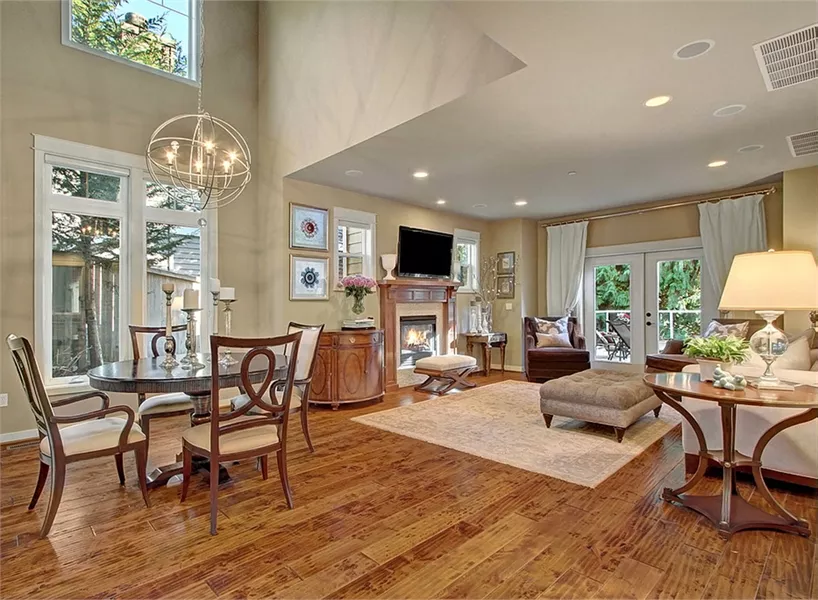

Nook

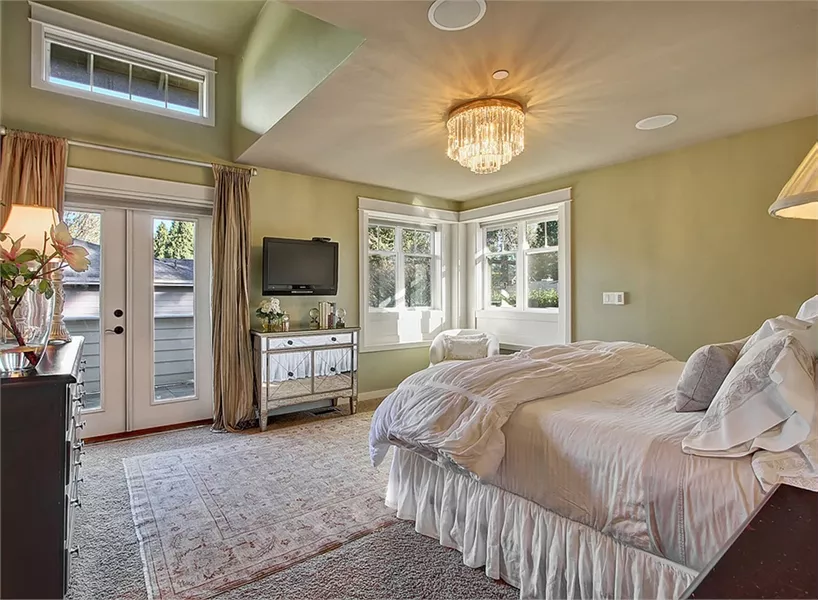

Master Bedroom

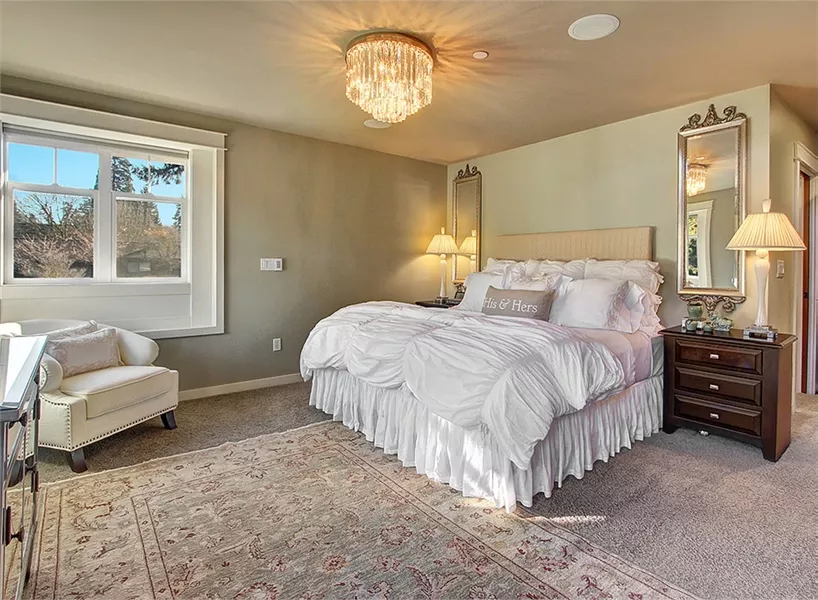

Master Bedroom

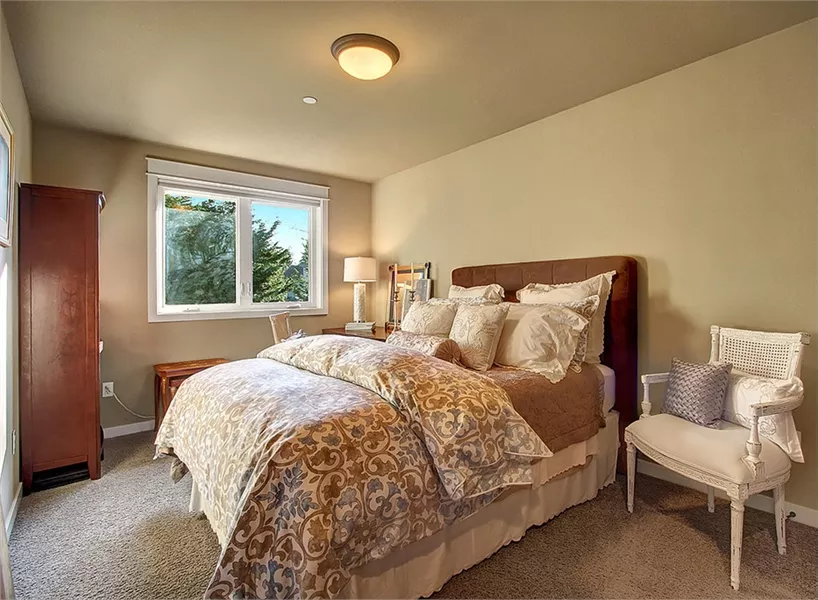

Bedroom

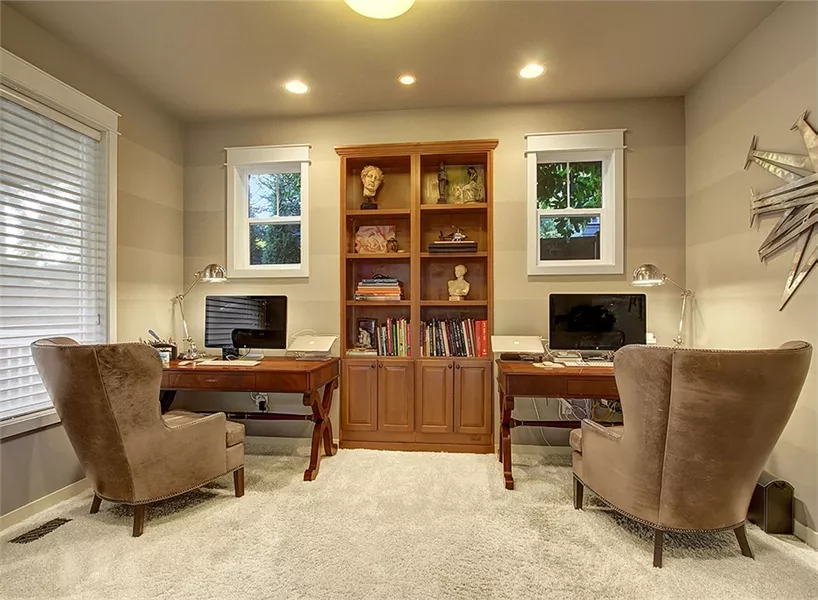

Den

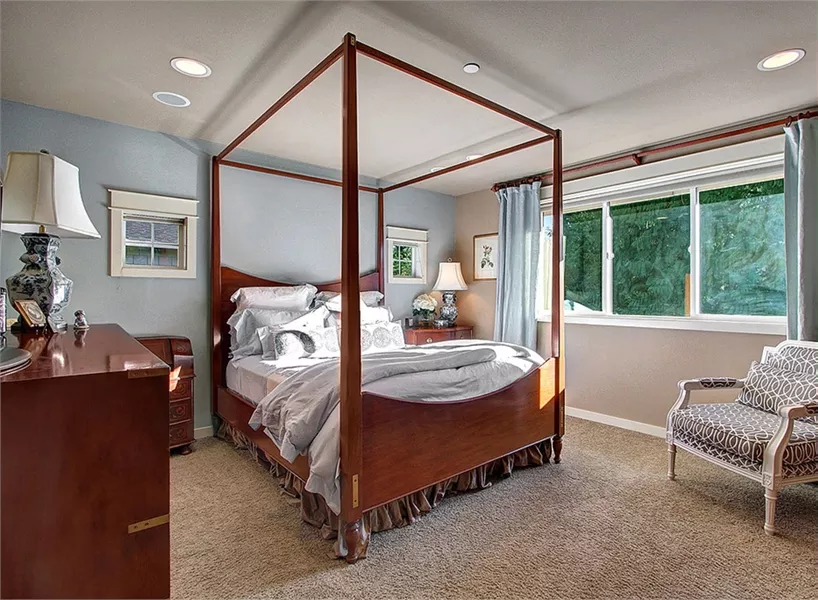

Bonus Room
Bathroom

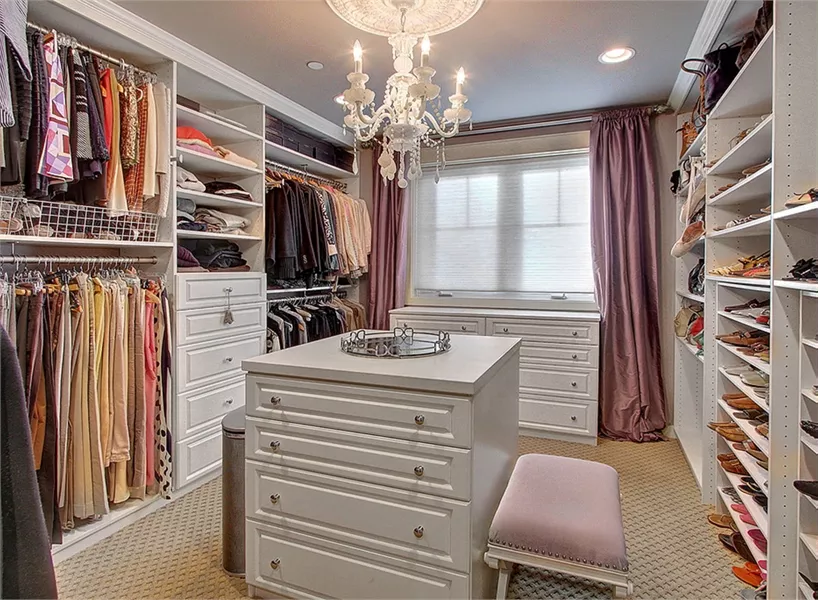

Closet

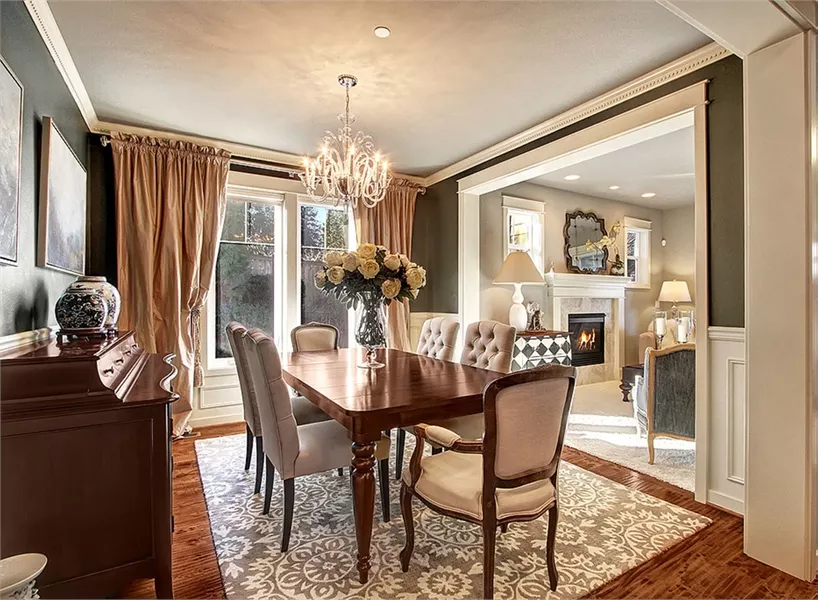

Dining

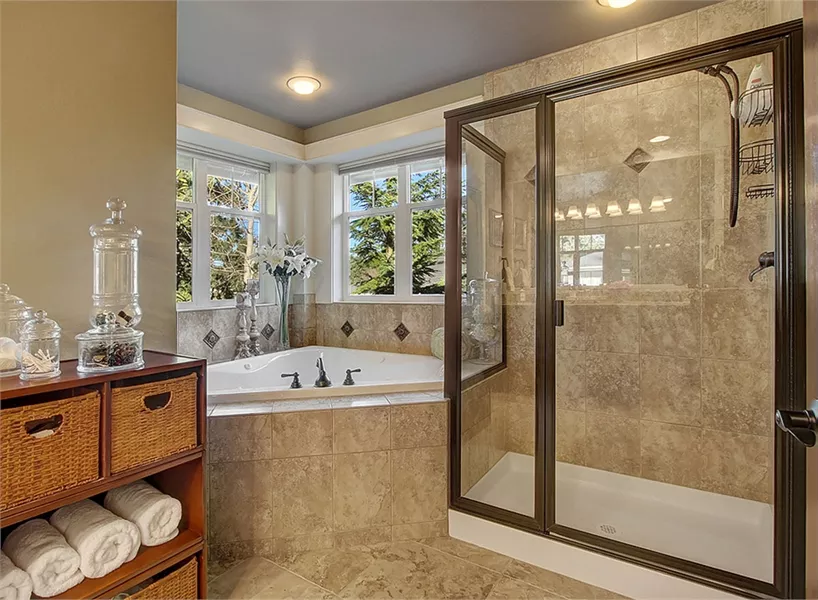

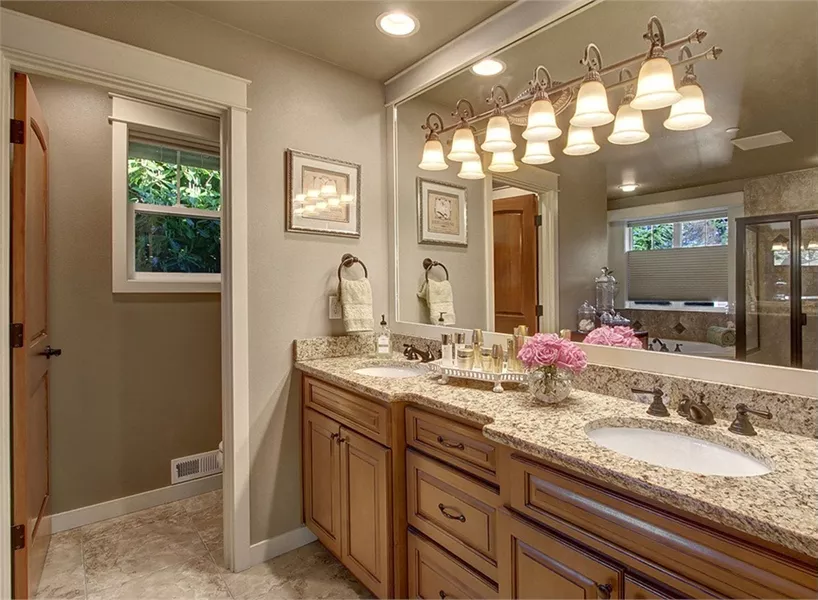

Master Bath

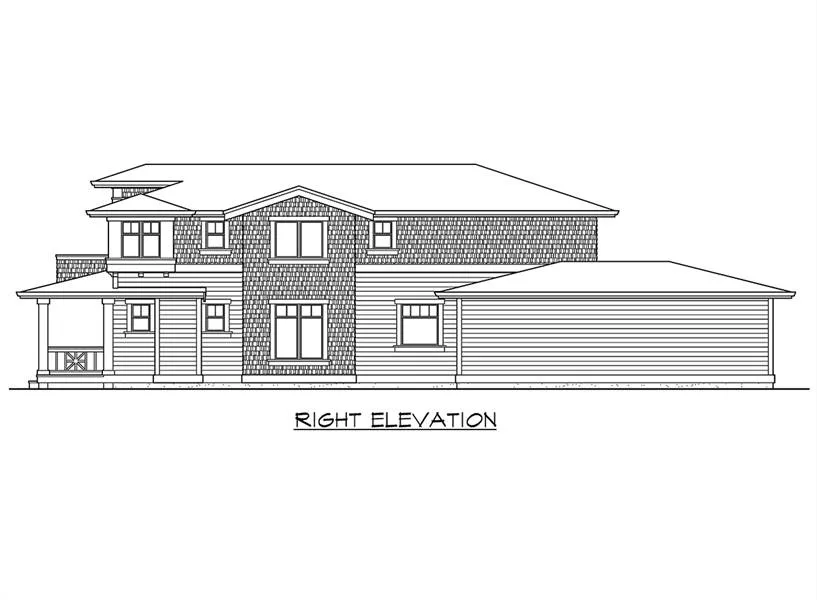

Right Elevation
Front Elevation

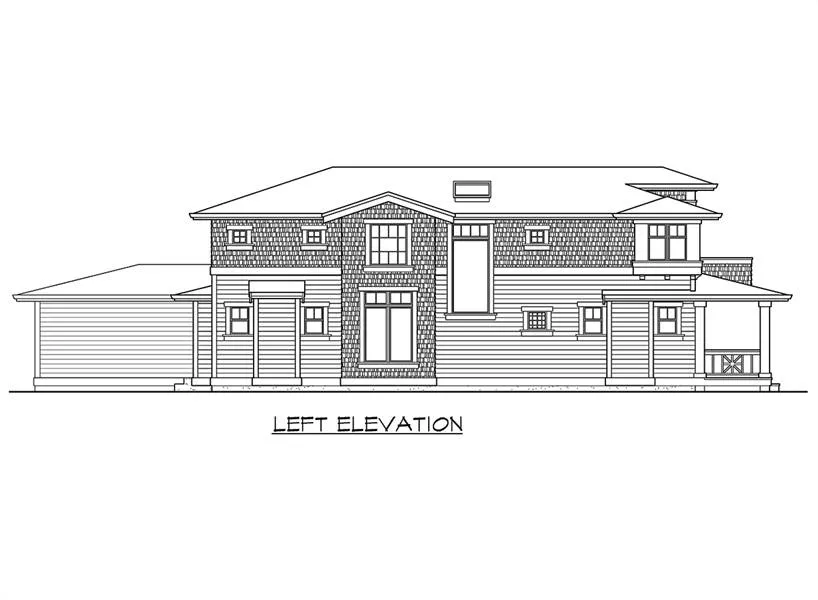

Left Elevation
Rear Elevation

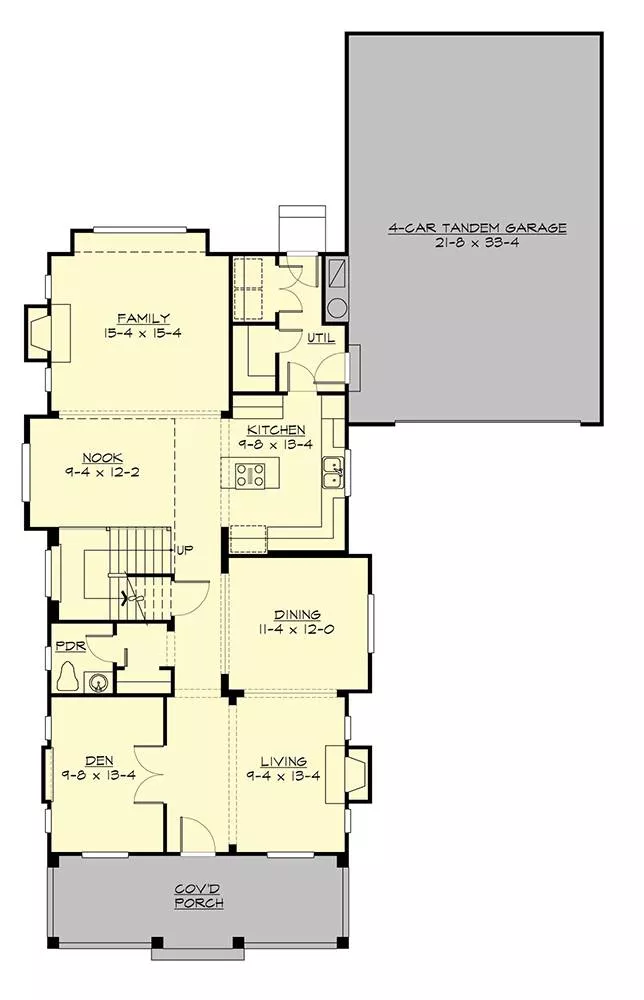

1st Floor Plan

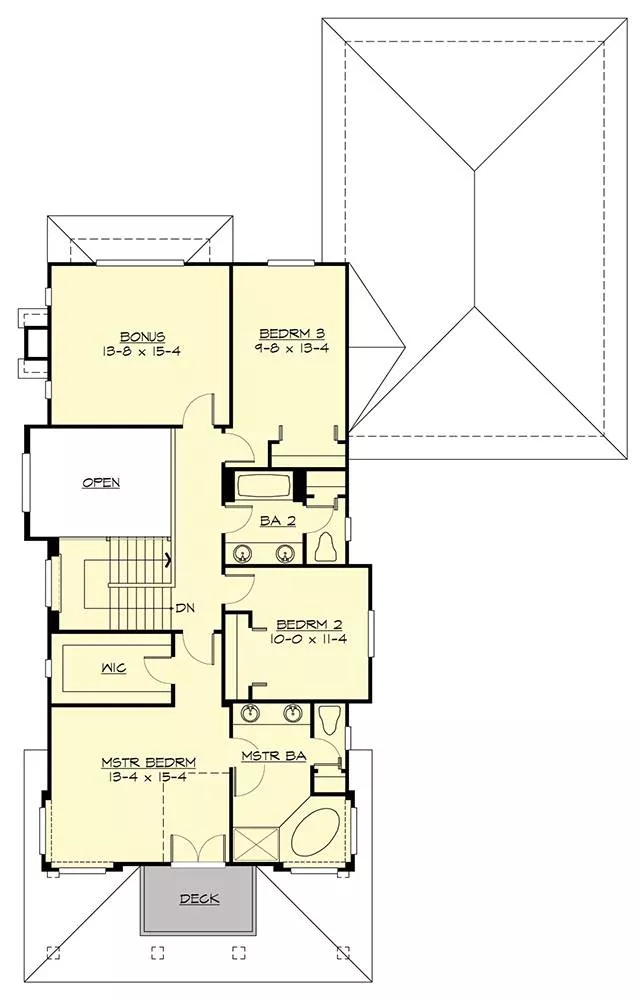

2nd Floor Plan
© copyright by designer
Mouse over photo to pause

Ferndale Crest Family Craftsman Style Narrow Lot House Plan 7767

A spectacular family home with plenty of personality and style, this 2-story Craftsman plan is brimming with uniquely designed spaces. This home's one-of-a-kind floor plan provides 2,602 square feet of living space, in a layout that has been created to suit even the most challenging of lots.  Read more >

House Plan Details

Sq. Ft.
2,602
Beds
3
Baths
2.5
Stories
2
Garages
4
Width
50' 0"
Depth
79' 0"
Select Plan Package
PDF Files - Single Use Li
$1650
Select Foundation Options
$0
Crawl Space
$0
Optional Add-Ons
Subtotal: $0
IMPORTANT NOTE: Due to state regulations, this home is not available for purchase in the State of Washington. Contact us for more information.
If a foundation or optional add-on is not listed, please live chat, email or call for availability.

PLAN IMAGES

1st Floor Plan

1st Floor Plan
© copyright by designer
DETAILS
Total SQ. FT.:
2,602
1st Floor SQ. FT.:
1,408
2nd Floor SQ. FT.:
1,194
Bedrooms:
3
Bathrooms:
2.5
Garage:
4
Stories:
2
Main Ceiling Height:
9'
Upper Ceiling Height:
8'
Framing:
2x6
Roof Framing:
Truss
Roof Pitch:
Primary: 6
Width:
50' 0"
Depth:
79' 0"
Height:
22' 6"
Exterior Styles:
Bungalow
Cottage
Craftsman
Farm House
Unheated Living Space:
Garage: 769
HOME FEATURES
Bedroom Features:
Double Vanity Sink
Master Bdrm Upstairs
Separate Tub and Shower
Sitting Area
Walk-in Closet
Kitchen Features:
L-Shaped
Nook / Breakfast Area
Additional Features:
Bonus Room
Dining Room
Family Room
Formal LR
Laundry 1st Fl
Garage Features:
Tandem
Garage Location:
Front
Lot Features:
Suited for narrow lot
