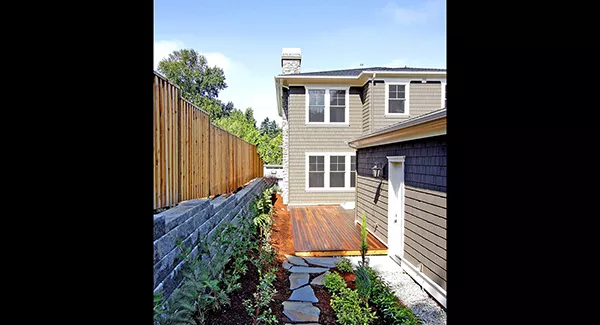

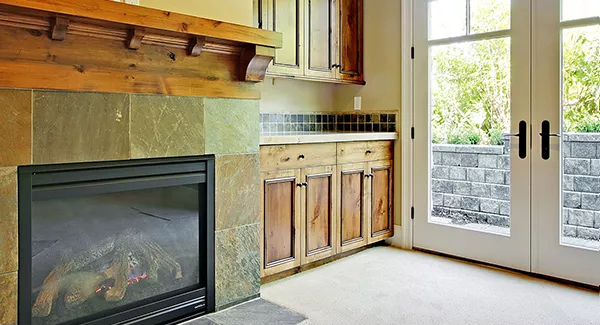

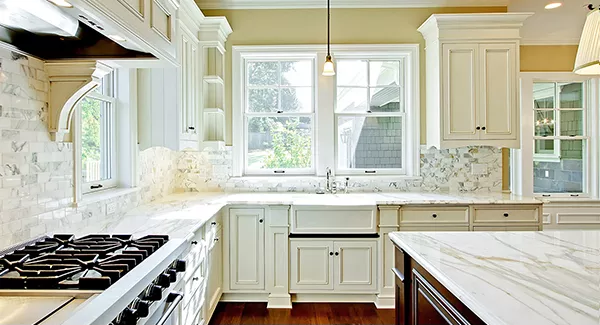

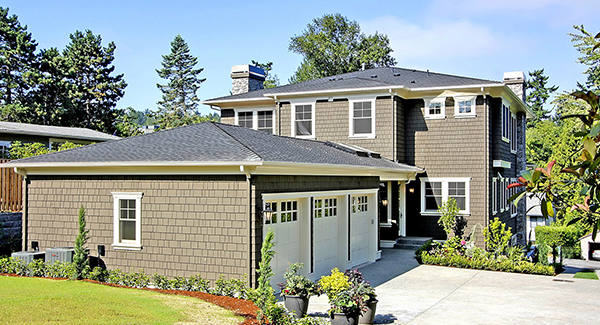

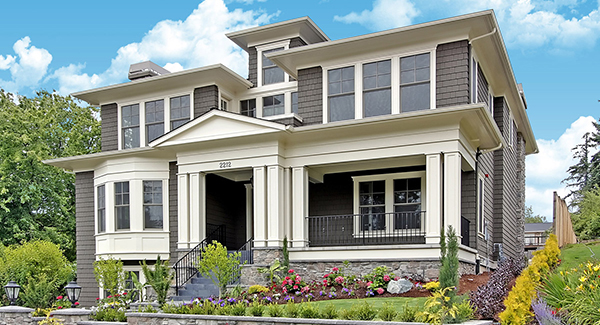

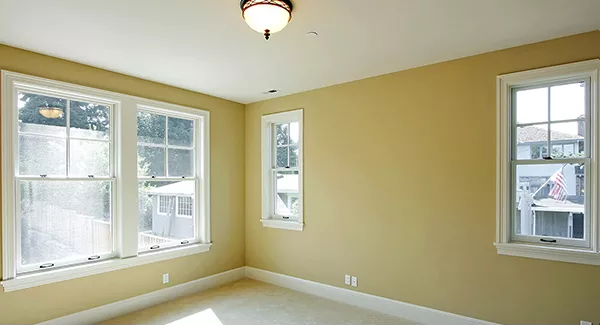

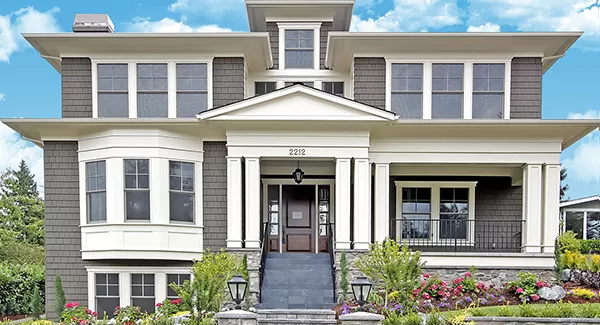

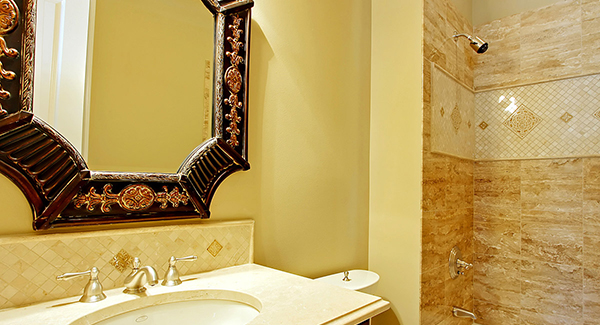

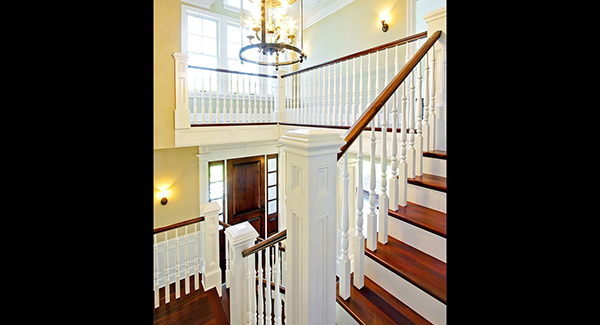

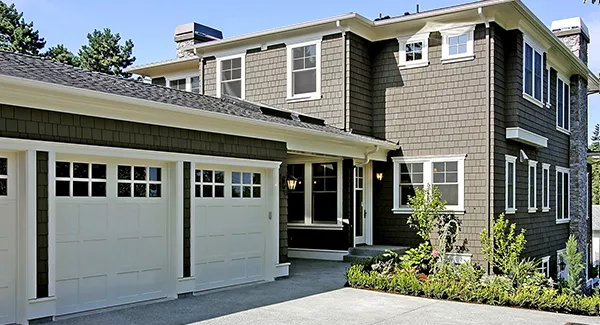

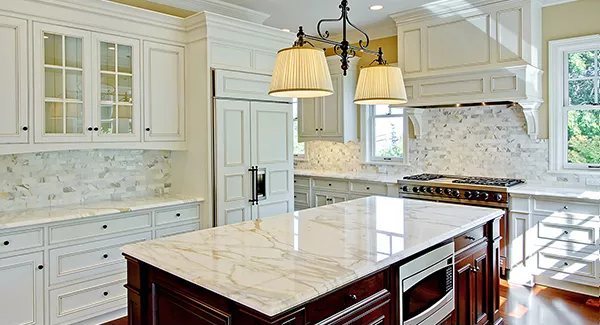

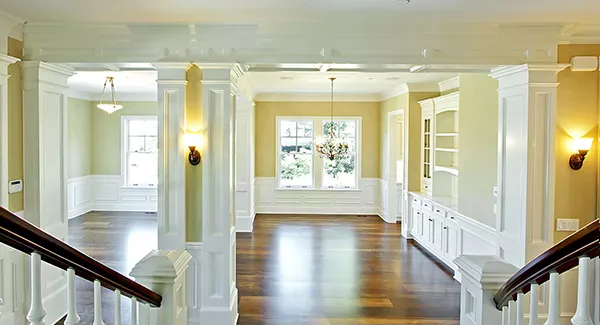

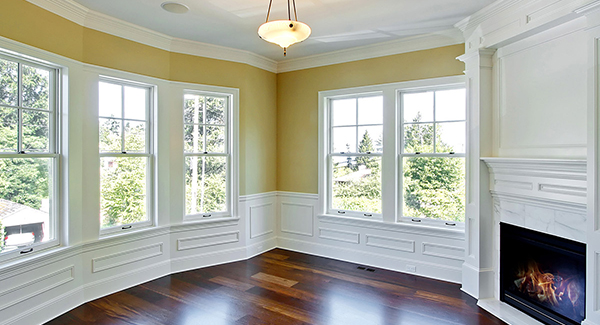

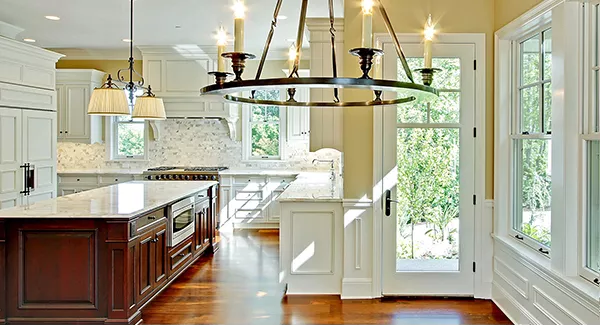

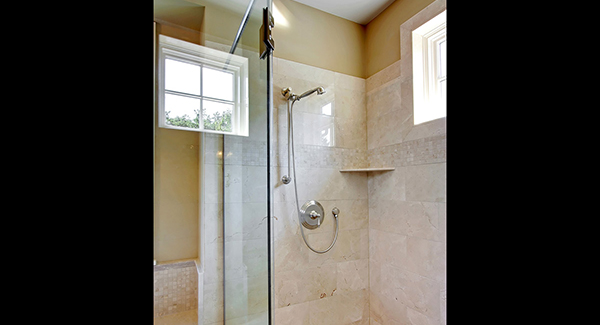

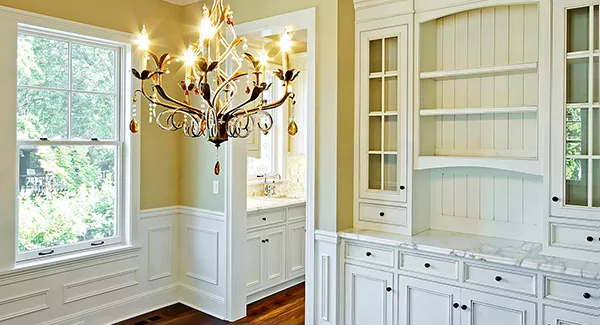

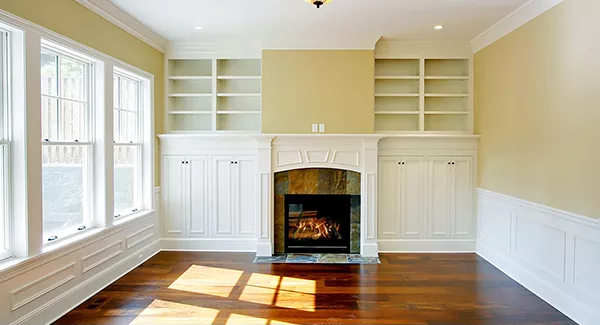

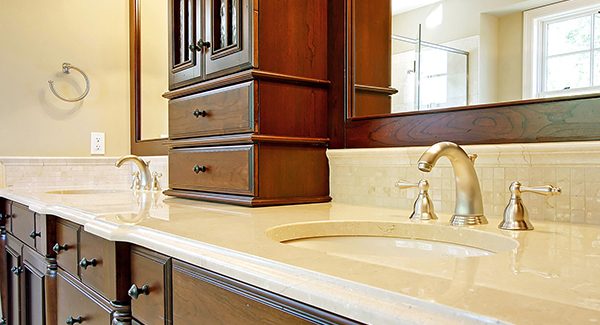

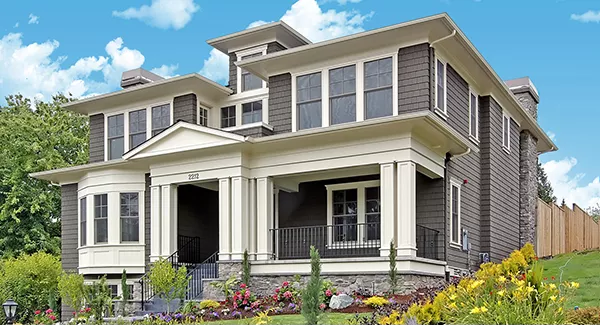

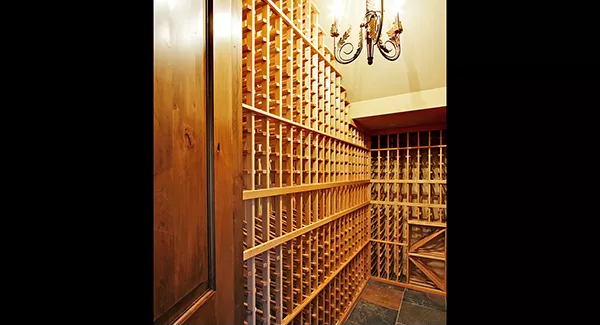

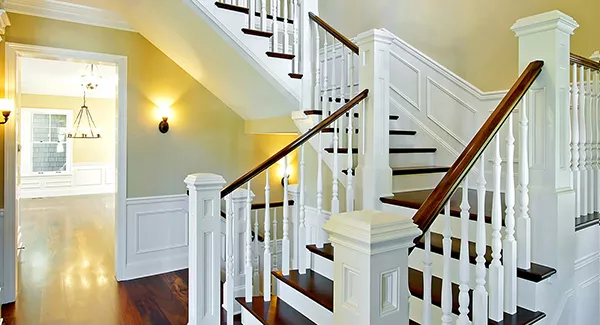

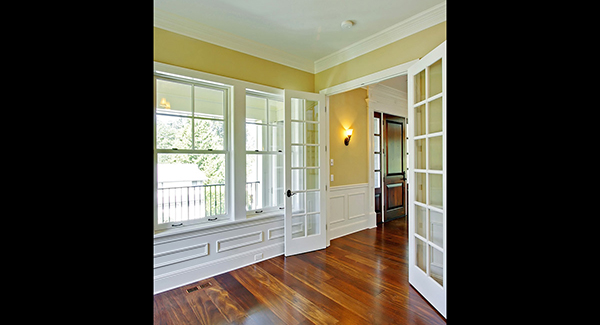

See all 40 photos (photographs may reflect modified homes)
© copyright by designer

Mouse over photo to pause

House Plan 3356: Dartmouth

See Architect Preferred Products For This Plan >

House Plan Details

Sq. Ft.
5,188
Beds
5
Baths
5.1
Stories
3
Garages
3
Width
44' 0"
Depth
100' 6"
1st Floor
2,005
2nd Floor
1,792

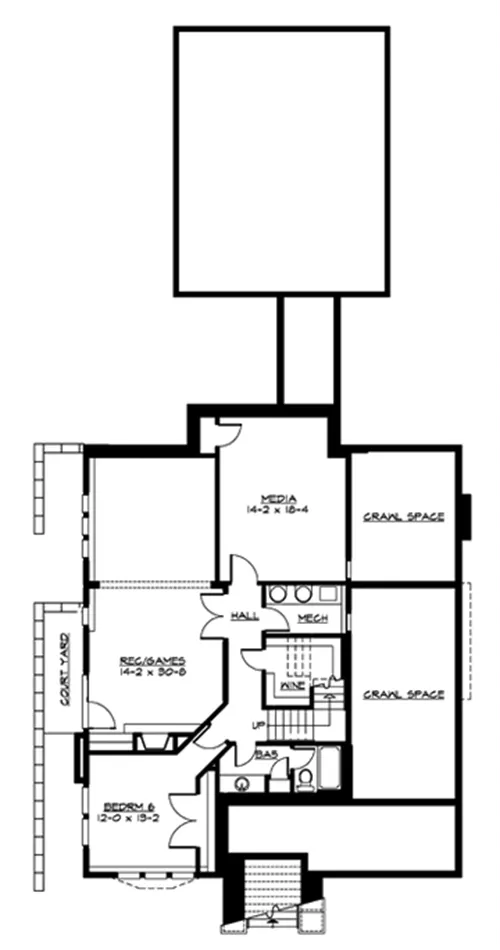

Lower
1,391
Bonus
716
Customize this Home Plan
Estimate Cost to Build
Free Cost Estimator >
For assistance, email, live chat, or call us at 866-214-2242
Select Plan Package
PDF Files - Single Use Li
$1650
Select Foundation Options
$0
Daylight Basement
$0
Optional Add-Ons
Subtotal: $1650
SEE DETAILED PLAN OPTIONS
What You Should Know Before Buying! >
Note: This plan cannot be purchased for construction in Washington State.

PLAN IMAGES

Add to Favorites   Save

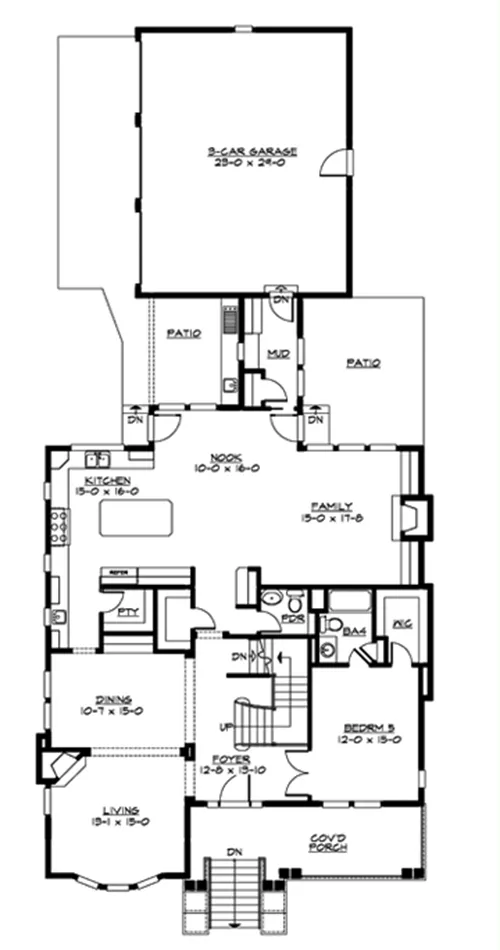

Main Floor

Main Floor
© copyright by designer

Plan Details

Basic Information
Bedrooms: 5
Bathrooms: 5.1
Garage: 3
Stories: 3
Exterior Style
Farm House
Lake
Traditional
Dimensions
Width: 44' 0"
Height: 28' 0"
Depth: 100' 6"
Heated Living Space
Total Sq. Ft: 5,188
1st Floor: 2,005
2nd Floor: 1,792
Lower: 1,391
Bonus: 716
Unheated Living Space
Ceiling
Upper Ceiling Ft: 9
Main Ceiling Ft: 10
Framing Information
Framing: 2x6
Roof Framing: Truss
Bedroom Features
Double Vanity Sink
His and Hers Master Closets
Master Bdrm Upstairs
Separate Tub and Shower
Walk-in Closet

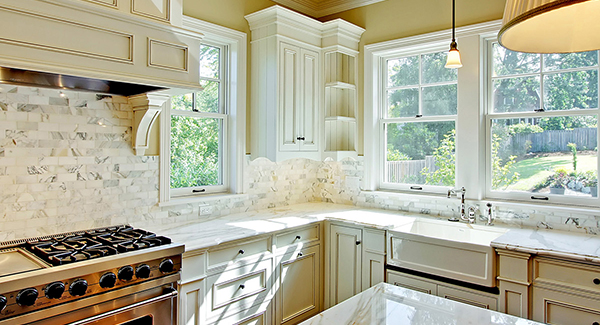

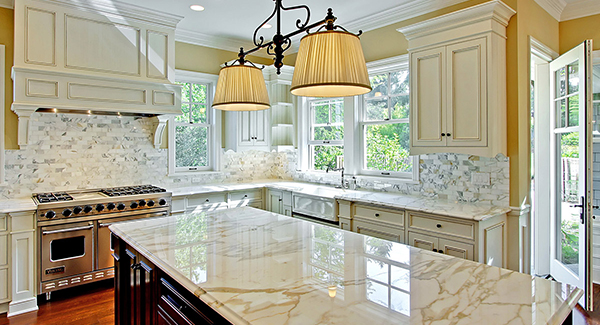

Kitchen Features
Butler's Pantry
Kitchen Island
Nook / Breakfast Area
Walk-in Pantry
Additional Room Features
2 Story Volume
Arches

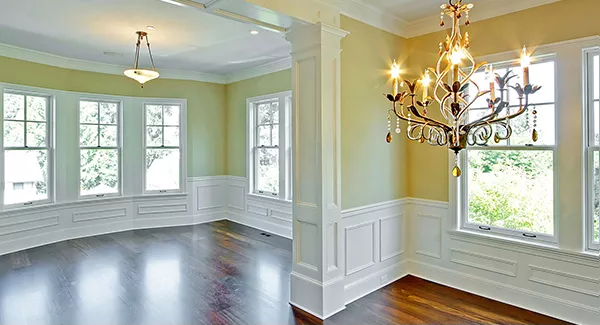

Dining Room
Family Room
Fireplace
Formal LR

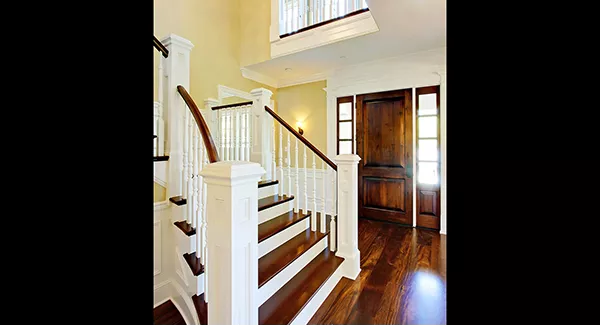

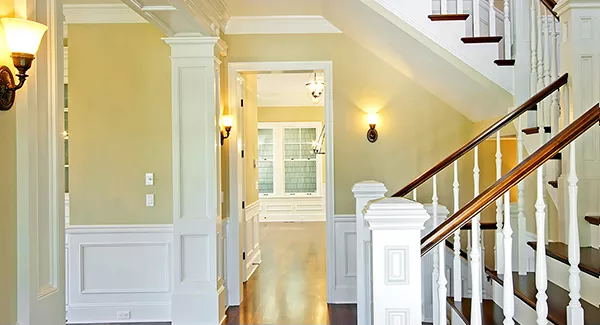

Foyer
Laundry 2nd Fl
Library/Media Rm
Mud Room
Open Floor Plan
Garage Location
Side
Garage Features
Attached
Side-entry
Lot Features
Suited for narrow lot
Suited for sloping lot
Roof Pitch
Primary: 4

Our Guarantee

  • Only the highest quality plans
  • International Residential Code compliant
  • Complete structural details on all plans
  • Best plan and modification price guaranteed
  • Builder-ready construction drawings
  • Expert advice from leading designers
  • House plans delivered in minutes
  • 100% satisfaction guarantee
