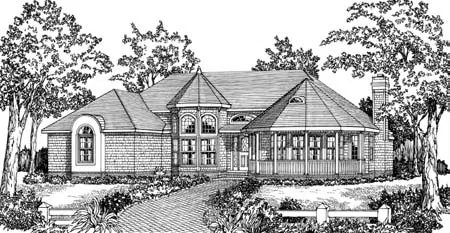

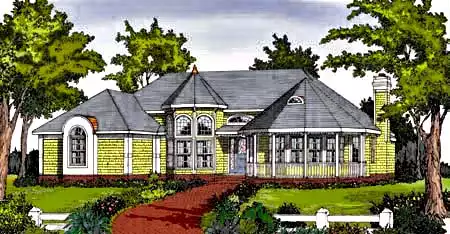

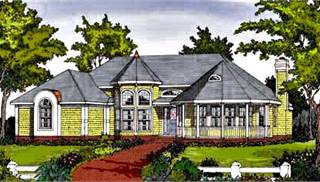

House Plan 5162: CRANBROOK

This comfortable 3 bedroom ranch features all the great elements found in our classic Victorian plans, but it does so in an up-to-date, exciting, single level plan. Volume ceilings predominate throughout this great plan. Angled plans in the kitchen and great master suite are new age additions that make the home even more exciting.  Read more >

House Plan Details

Sq. Ft.
2,367
Beds
3
Baths
2.0
Stories
1
Garages
2
Width
67' 0"
Depth
63' 10"

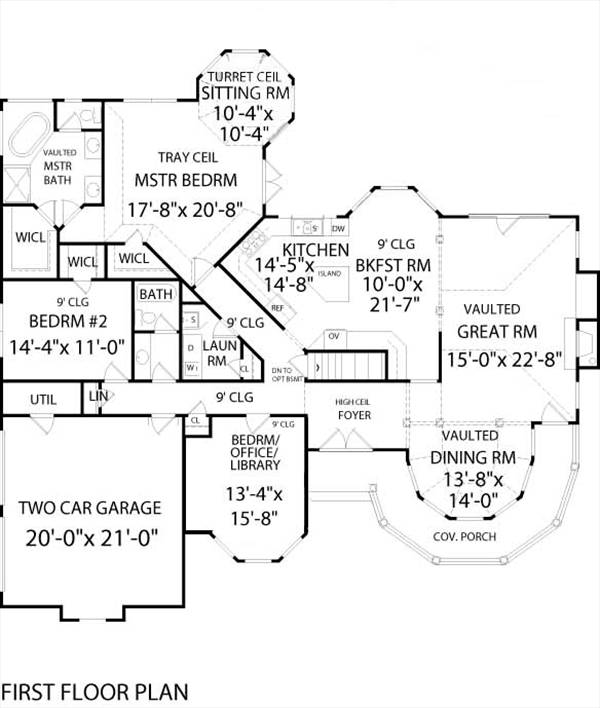

1st Floor
2,367
Garage
478
Porch
204
Select Plan Package
PDF Construction Set - Si
$995
Select Foundation Options
$0
Crawl Space
$0
Optional Add-Ons
Subtotal: $795

PLAN IMAGES

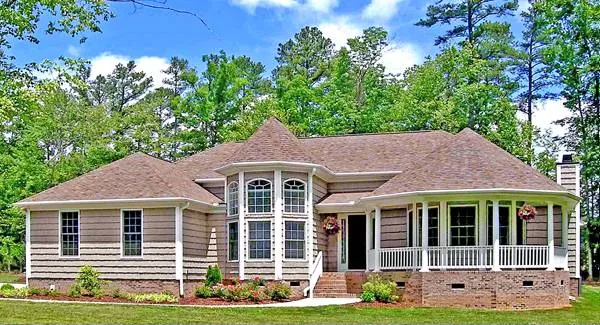

Front Photo

Front Photo
© copyright by designer

Plan Details

Basic Information
Bedrooms: 3
Bathrooms: 2.0
Garage: 2
Stories: 1
Exterior Style
Country
Ranch
Victorian
Dimensions
Width: 67' 0"
Height: 23' 2"
Depth: 63' 10"
Heated Living Space
Total Sq. Ft: 2,367
1st Floor: 2,367
Unheated Living Space
Garage: 478
Porch: 204
Ceiling
Upper Ceiling Ft: 0
Main Ceiling Ft: 9
Framing Information
Framing: 2x4
Roof Framing: Stick
Bedroom Features
Double Vanity Sink
His and Hers Master Closets
Master Bdrm Main Floor

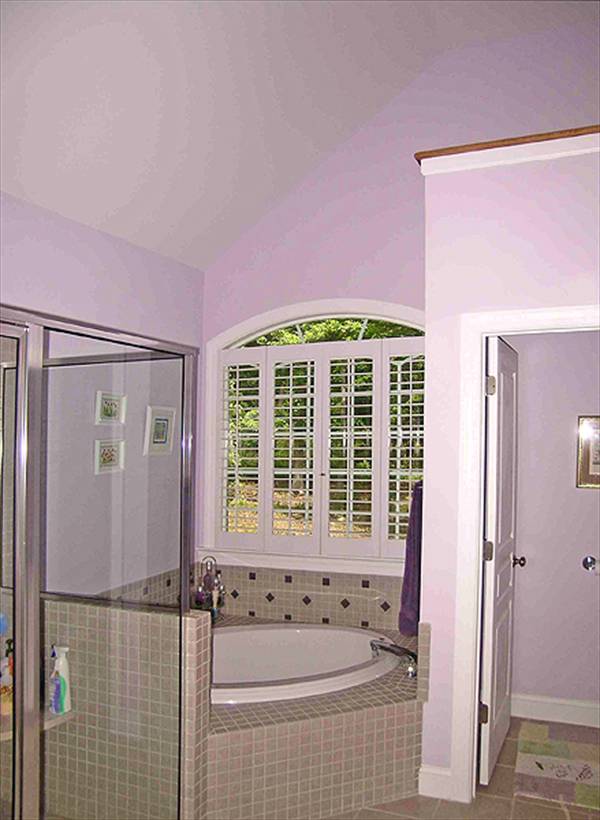

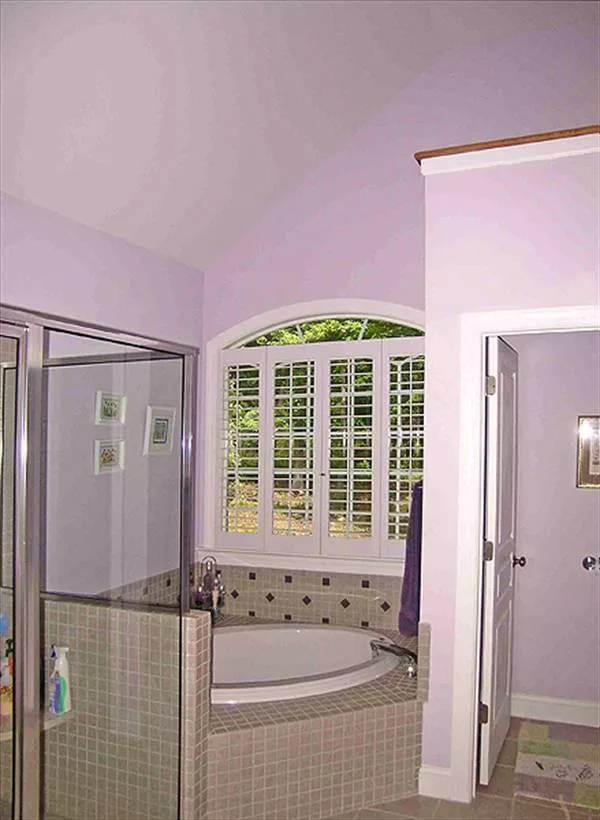

Separate Tub and Shower
Sitting Area
Split Bedrooms
Walk-in Closet
Kitchen Features

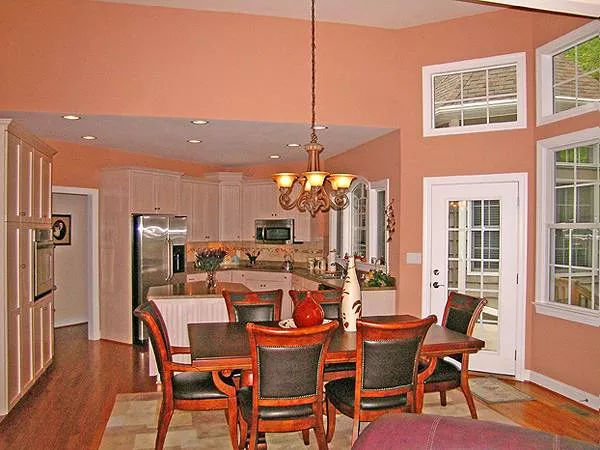

Country Kitchen
Kitchen Island
Nook / Breakfast Area
Additional Room Features
Dining Room
Fireplace
Foyer
Great Room
Home Office
Laundry 1st Fl
Vaulted Ceilings
Garage Location
Side
Garage Features
Attached
Lot Features
Roof Pitch
Primary: 10: 12
Secondary: 14: 12

Our Guarantee

  • Only the highest quality plans
  • Int’l Residential Code Compliant
  • Complete structural details on all plans
  • Full structural details on all plans
  • Best plan price guarantee
  • Free Modification Estimates
  • Builder-ready construction drawings
  • Expert advice from leading designers
  • House plans delivered in minutes
  • 100% satisfaction guarantee
