Recently Viewed Plans | Advanced Plan Search

Sq Ft
2,540 FT²

Beds
4

Baths
2.5

Stories
1

Garage
2

Depth
65' 2"

Width
70'

From
$1,525.00

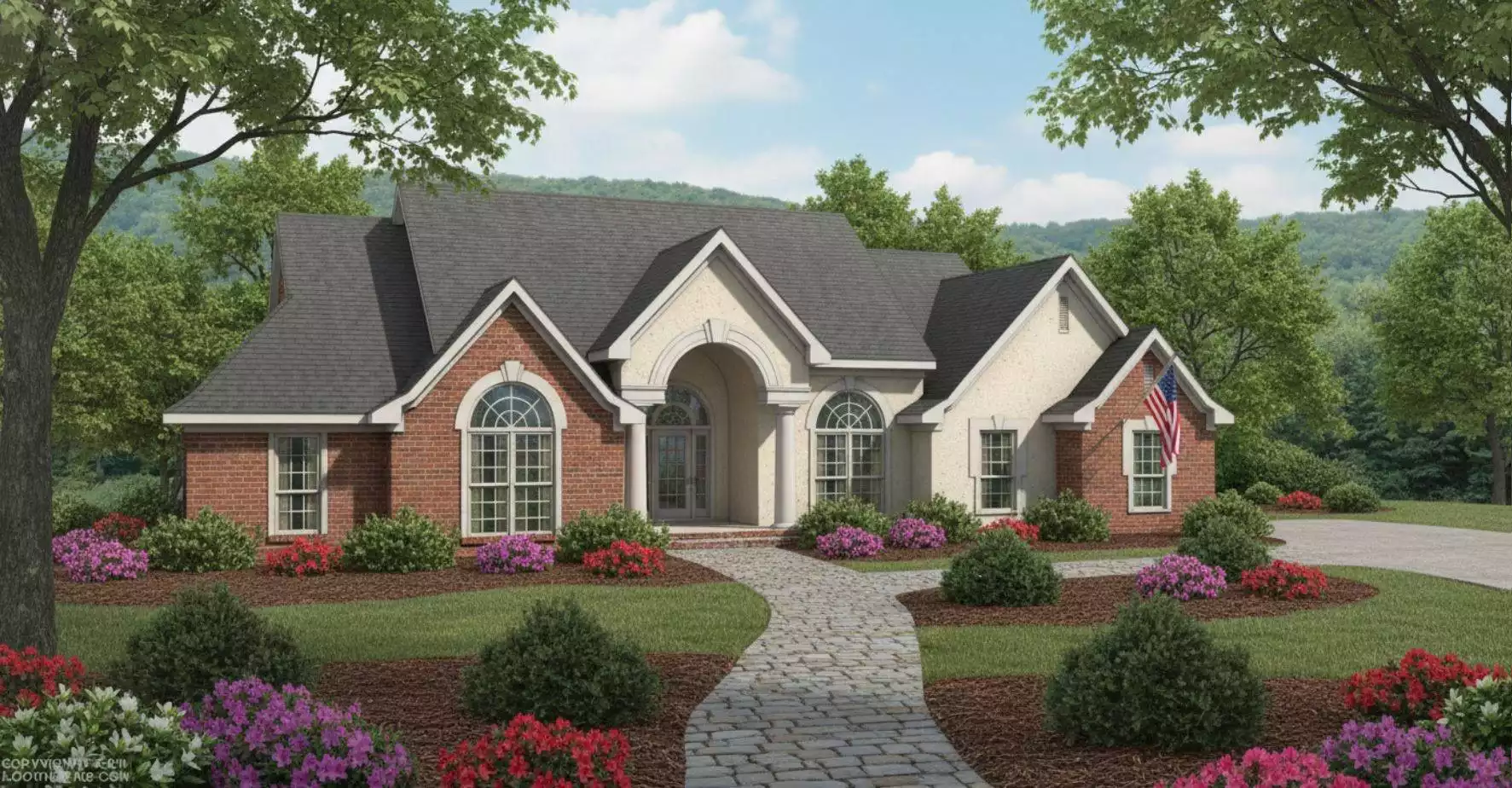

Front Rendering

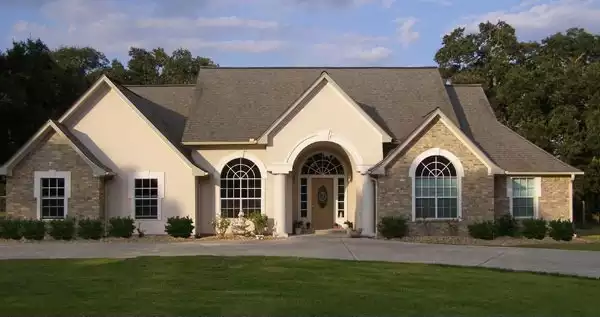

Front Photo

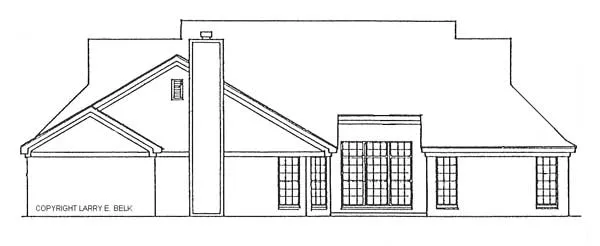

Rear Rendering

Floor Plan

View All 4 Images | Photographs may reflect modified home

Sq Ft

2,540 FT²

From

$1,525.00

Beds

Baths

2.5

Stories

Garage

Depth

65' 2"

Width

70'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

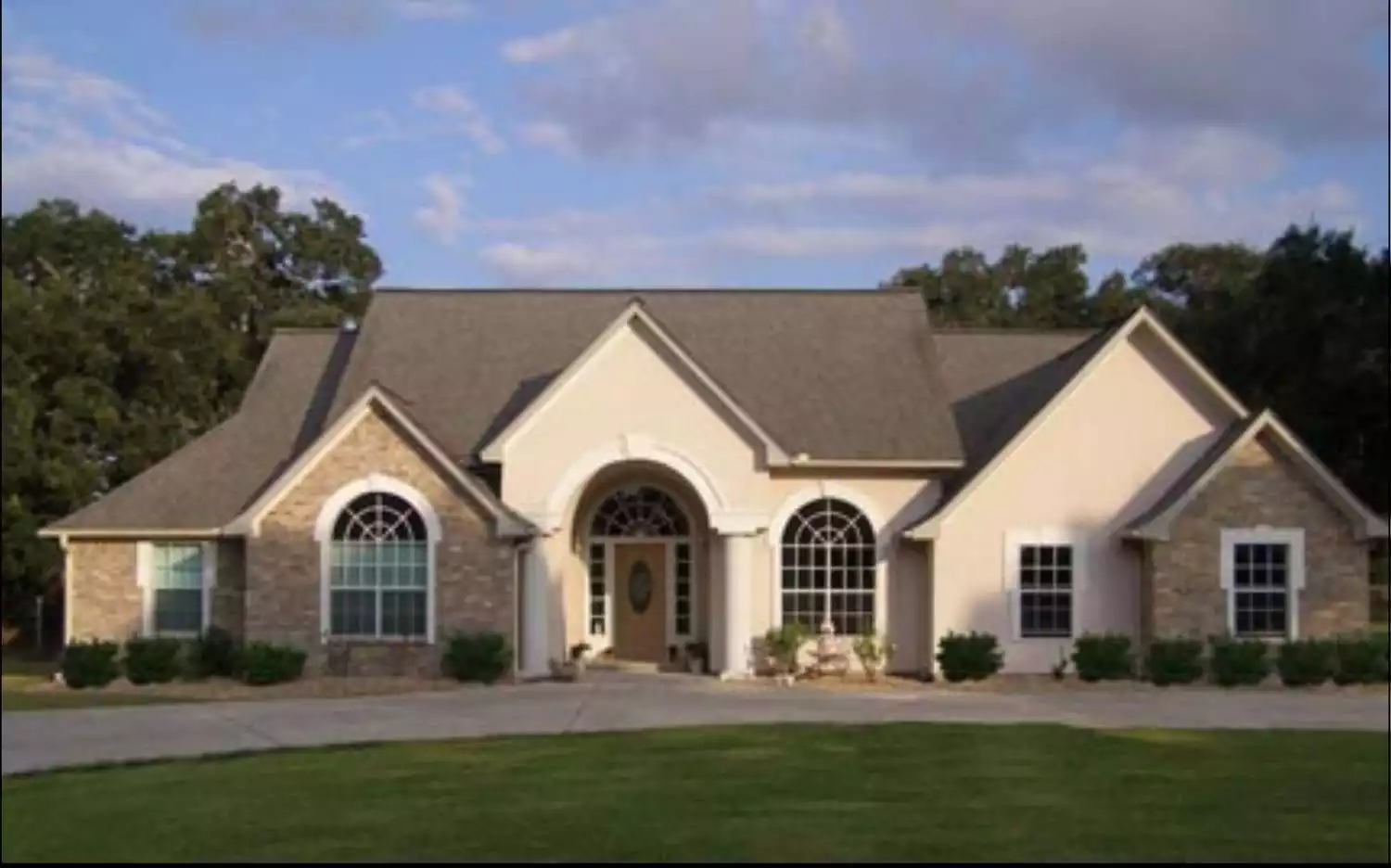

Reverse Plan

Click to Zoom In on Floor Plan

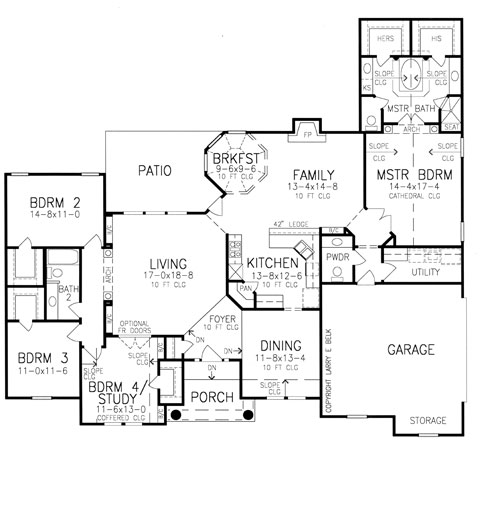

Floor Plan

About This Plan

A gabled stucco entry with oversized columns emphasizes the arched glass entry of this traditional brick home. The home includes a large Kitchen/Family Room with an octagonal shaped Breakfast area. The Master Bedroom features a cathedral ceiling and your attention centers immediately on the columned and arched entry to the spacious Master Bath.

See All Plan Options

FEATURES & DETAILS

Kitchen features

Nook / Breakfast Area
Peninsula / Eating Bar
Walk-in Pantry

Bedroom features

Double Vanity Sink
His and Hers Primary Closets
Primary Bdrm Main Floor
Separate Tub and Shower
Split Bedrooms
Walk-in Closet

Exterior features

Covered Front Porch
Front Porch
Rear Porch

Foundation Options

Basement
Crawlspace
Slab

Lot Options

Suited for corner lot

Additional features

Arches
Dining Room
Family Room
Fireplace
Formal LR
Foyer
Home Office
Laundry 1st Fl
Open Floor Plan
Storage Space

Garage Location

Side

Garage Options

Attached
Side-entry

2,540 Ft

Total Heated

Bedrooms

2.5

Bathrooms

Garage

Stories

70' 0"

Width

65' 2"

Depth

24' 0"

Height

10' 0"

Main Floor Ceiling

2x4

Framing

Stick

Roof Framing

9/12

Primary Roof Pitch

12/12

Secondary Roof Pitch

Single

Dwelling Number

Unheated Living Space

494 Ft

Garage

90 Ft

Porch

Exterior Styles

European

Ranch

Traditional

Collections

Old House Classics

Split Bedroom

Plan Package Options

Important info before you buy

Select Plan Package

$1,150

PDF Bid Set
PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$1,150

$1,525

PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,525

$1,995

Multi-Use PDF
PDFs NOW!™

Two Builds Only

$1,995

$2,995

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,995

Need To Reverse Plan? (Optional)

$325

Readable Reverse

Reverse house plans with readable text and dimensions

$325

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 30-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
