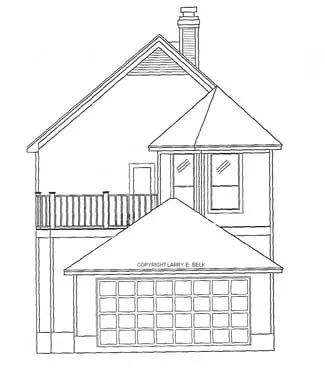

Rear Rendering

Floor Plan

See all 2 photos (photographs may reflect modified homes)

© copyright by designer

Mouse over photo to pause

House Plan 8480: Cohasset

This charming clapboard home is perfect for a narrow lot. The Kitchen features a window sink and a separate area for the Breakfast Room. Bedroom 2 and Bath 2 are conveniently located for guests on the first floor. Upstairs the Master Bedroom opens to a covered patio and features a luxury Master Bath. Read more >

See Plan Details

See Architect Preferred Products For This Plan >

House Plan Details

Sq. Ft.

1,999

Beds

3

Baths

3.0

Stories

2

Garages

2

Width

24' 11"

Depth

73' 10"

Customize this Home Plan

Estimate the Cost to Build

For assistance, email, live chat, or call us at 866-214-2242

10% Off ALL House Plans!

What's Included?

Select Plan Package

PDF

$975

Select Foundation Options

$0

Slab

$0

Optional Add-Ons

Subtotal: $0

Best Price Guarantee*

SEE DETAILED PLAN OPTIONS

What You Should Know Before Buying! >

PLAN IMAGES

Add to Favorites Save

Save

Floor Plan

Floor Plan

© copyright by designer

DETAILS

Total SQ. FT.:

1,999

1st Floor SQ. FT.:

1,078

2nd Floor SQ. FT.:

921

Bedrooms:

3

Bathrooms:

3.0

Garage:

2

Stories:

2

Main Ceiling Height:

9'

Upper Ceiling Height:

9'

Framing:

2x4

Roof Framing:

Stick

Roof Pitch:

Primary: 10/12

Width:

24' 11"

Height:

30' 6"

Depth:

73' 10"

Exterior Styles:

Unheated Living Space:

Garage: 503
Porch: 231

HOME FEATURES

Bedroom Features:

Double Vanity Sink
Master Bdrm Upstairs
Separate Tub and Shower
Walk-in Closet

Kitchen Features:

Nook / Breakfast Area
Peninsula / Eating Bar

Additonal Features:

Arches
Dining Room
Fireplace
Great Room
Laundry 2nd Fl
Loft / Balcony
Open Floor Plan
Storage Space

Garage Features:

Attached
Side-entry

Garage Location:

Rear

Lot Features:

Suited for narrow lot
