Cedarlake 4 - 6552-4, THD-6871


Sq Ft
3,341 FT²

Beds
0

Baths
0

Stories
2

Garage
0

Depth
41'

Width
70'
On Sale
$2,320.00
$2,900.00
© copyright by designer

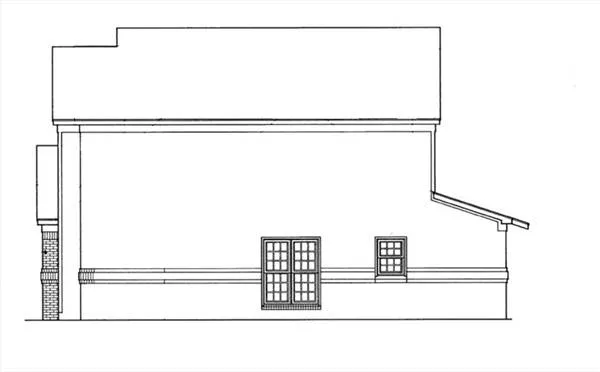

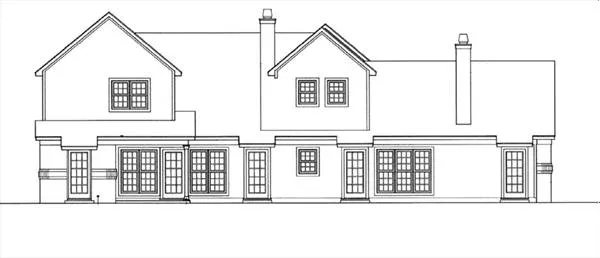

View All 3 Images | Photographs may reflect modified home
Sq Ft
3,341 FT²
From
$2,320.00
Beds
0
Baths
0
Stories
2
Garage
0
Depth
41'
Width
70'

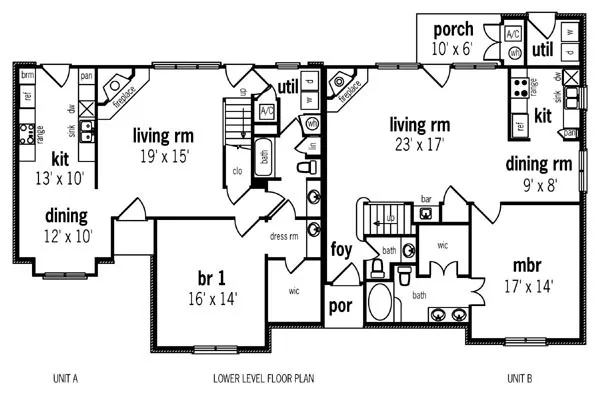

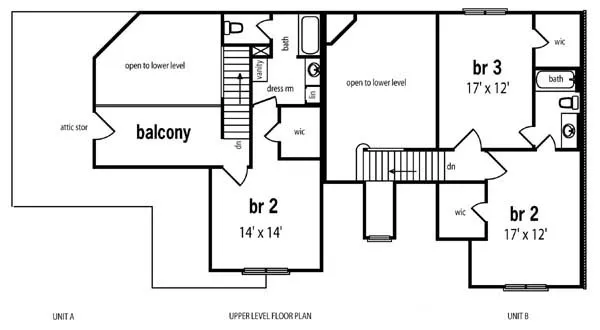

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

Unit A 2 bed room, 2 bath, 1638 sq. ft. of heated area. Unit B 3 bed room, 2 full baths, 1
half bath, 1703 sq. ft. of heated area. Living room with Fireplace in both units. Large bed
rooms with walk-in closets. Utility closet or utility room in all units. Use this plan to
create an entire apartment complex and save thousands of dollars in architectural fees. Check
out other plans in our "Briarcliff" appartment collection - click on "similar plans".


NOTE: A CUSTOM DRAWN FOUNDATION PLAN IS INCLUDED WITH APARTMENT PLANS. THE FOUNDATION PLAN
WILL BE DRAWN ACCORDING TO THE SPECIFICATIONS PROVIDED BY THE PLAN PURCHASER. SOME
LIMITATIONS APPLY


FEATURES & DETAILS

3,341 Ft
2
Total Structure
3,341 Ft
2
Unit Heated
2,184 Ft
2
1st Floor
1,157 Ft
2
2nd Floor
0
Garage
2
Stories
70' 0"
Width
41' 0"
Depth
34' 0"
Height
8' 0"
Main Floor Ceiling
8' 0"
Upper Floor Ceiling
2x4
Framing
Stick
Roof Framing
10/12
Primary Roof Pitch
Multi-Family
Dwelling Number

Unheated Living Space
110 Ft
2
Porch
Exterior Styles
Collections


Plan Package Options

 Select Plan Package
Sale: $1,760
PDF Bid Set
$2,200

PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

Sale: $1,760
Sale: $2,320
PDF Single Build
$2,900

PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

Sale: $2,320
Sale: $2,720
4 Printed Sets
$3,400

Four printed sets of construction drawings shipped and received in 3-5 business days

Sale: $2,720
Sale: $2,880
5 Printed Sets
$3,600

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

Sale: $2,880
Sale: $2,960
8 Printed Sets + PDF
$3,700

PDFs NOW!™

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS eight printed sets shipped and delivered 3-5 business days.

Sale: $2,960
Sale: $2,960
8 Printed Sets
$3,700

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

Sale: $2,960
  Select Foundation Option
  Add-Ons (Optional)
INCLUDED WITH YOUR PURCHASE

Free Ground shipping in the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your plan

Home Building & Product Ideas Organizer

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
