Sq Ft
6,658 FT²

Bed
4

Bath
3.5

Stories
2

Garage
4

Depth
77' 5"

Width
168' 7"

On Sale
$2,776.95
$3,267.00

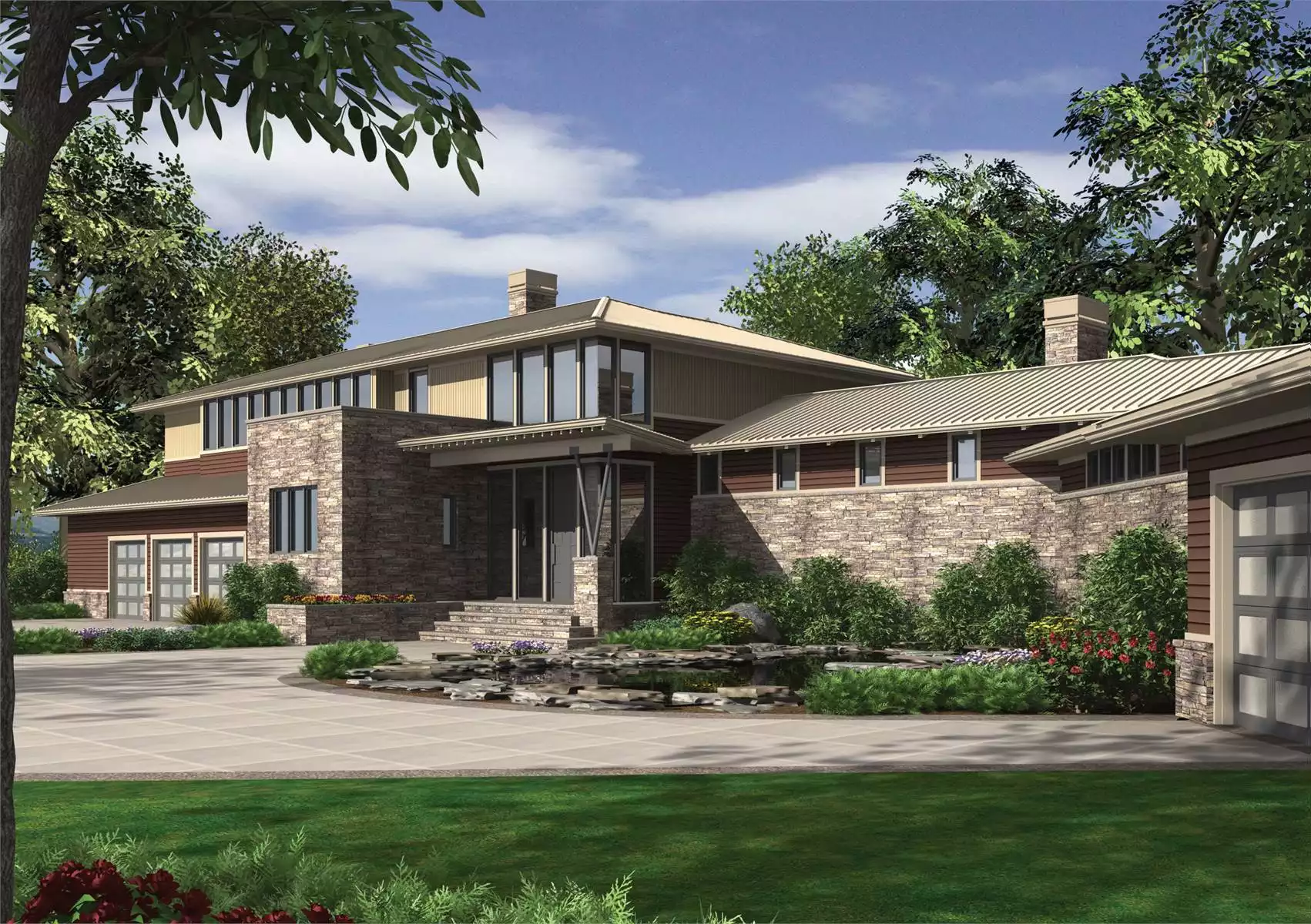

Front View

Rear View

View All 4 Images | Photographs may reflect modified home

Sq Ft

6,658 FT²

From

$2,776.95

Bed

Bath

3.5

Stories

Garage

Depth

77' 5"

Width

168' 7"

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

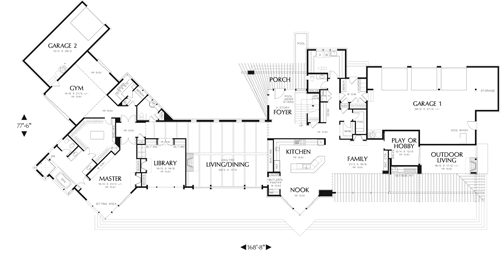

1st Floor

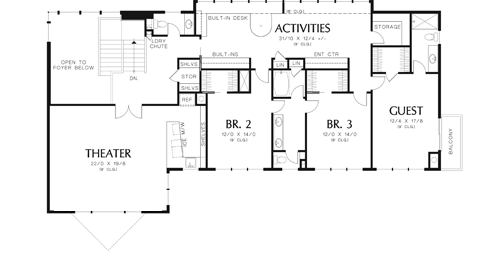

2nd Floor

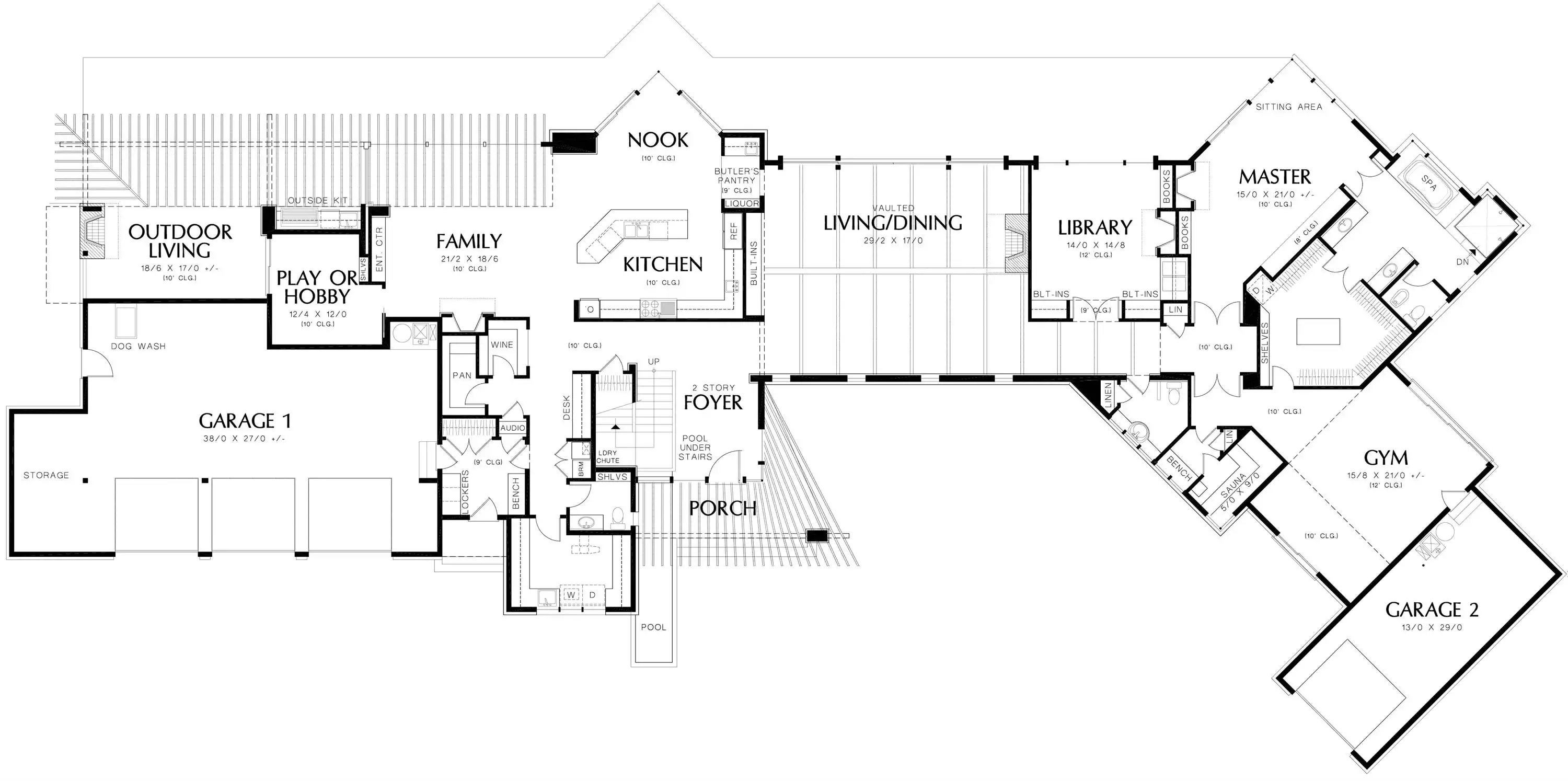

1st Floor

2nd Floor

About This Plan

This design is simple and cost-effective to build, yet offers the features and amenities most desired by homebuyers. Using the latest in computer-aided design and drafting, this computer-generated plan is clearer, easier to read and far more accurate than traditional blueprints. While clearly beautiful to look at, this floor plan was designed to accommodate busy day-to-day living. Open spaces and clean lines keep traffic flowing smoothly throughout the home. Entries to the home are inviting, and kitchen areas are functional. You will appreciate how the windows and lighting are used to create a comfortable and warm atmosphere, yet still maintain privacy and security.

FEATURES & DETAILS

Kitchen features

Butler's Pantry
Kitchen Island

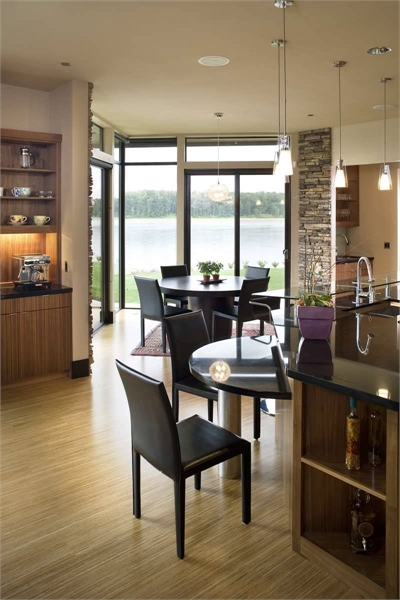

Nook / Breakfast Area
Walk-in Pantry

Bedroom features

Double Vanity Sink
Guest Suite
Primary Bdrm Main Floor
Separate Tub and Shower
Split Bedrooms
Walk-in Closet

Exterior features

Covered Front Porch
Covered Rear Porch
Front Porch
Rear Porch

Foundation Options

Basement
Crawlspace
Slab

Lot Options

Suited for view lot

Additional features

2 Story Volume
Dining Room
Exercise Room
Fireplace

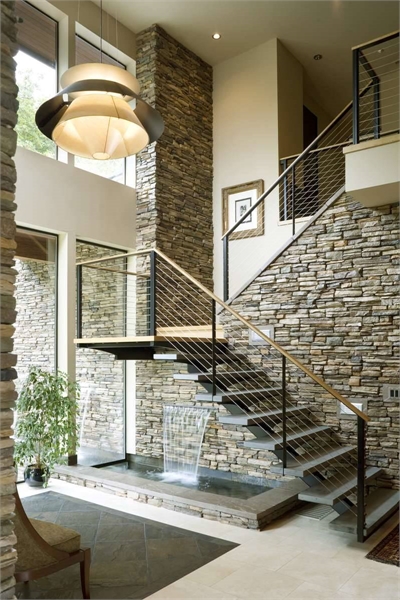

Foyer
Great Room
Home Office
Laundry 1st Fl
Library/Media Rm
Mud Room
Open Floor Plan
Rec Room
Vaulted Ceilings
Wine Cellar

Garage Location

Front

Garage Options

Attached
Front-entry

6,658 Ft

Total Heated

4,468 Ft

1st Floor

2,190 Ft

2nd Floor

Bedrooms

3.5

Bathrooms

Garage

Stories

168' 7"

Width

77' 5"

Depth

25' 8"

Height

Varies' 0"

Main Floor Ceiling

9' 0"

Upper Floor Ceiling

2x6

Framing

Truss

Roof Framing

4/12

Primary Roof Pitch

Single

Dwelling Number

None

Bonus Access

Unheated Living Space

1,533 Ft

Garage

Exterior Styles

Contemporary

Mid-Century Modern

Modern

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$3,267

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$3,267

$3,467

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$3,467

$3,517

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$3,517

$6,534

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$6,534

Need To Reverse Plan? (Optional)

$225

Readable Reverse

Reverse house plans with readable text and dimensions

$225

Select Foundation Option

Add-Ons (Optional)

	Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your house plan
	Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
