House Plan 8401: Bay View

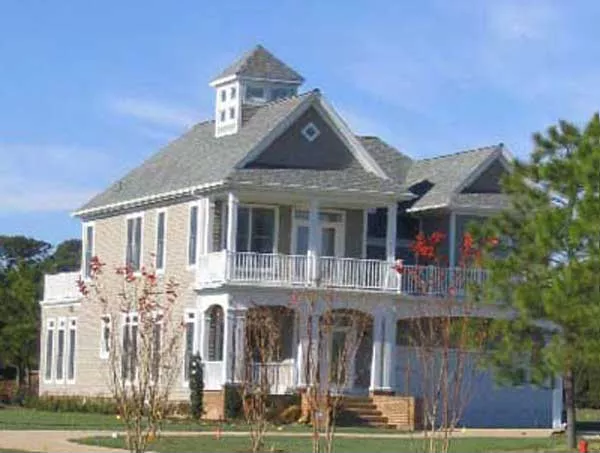

The timeless influence of the french quarter is exemplified in this home designed for river front living. The double french door entry opens into a large living room/dining room area with a cupola visible above. The Master Bedroom includes a sitting area and a roomy Master Bath.  Read more >

House Plan Details

Sq. Ft.
2,498
Beds
3
Baths
2.1
Stories
2
Garages
2
Width
40' 0"
Depth
66' 4"
Select Plan Package
PDF
$1150
Select Foundation Options
$0
Slab
$0
Optional Add-Ons
Subtotal: $0

PLAN IMAGES

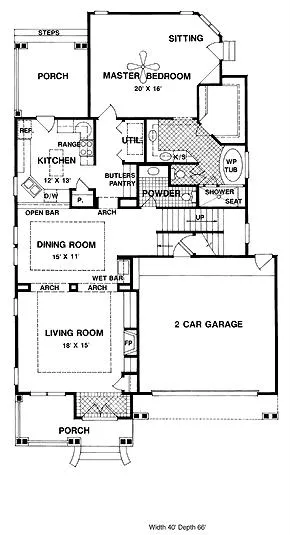

First Floor Plan

First Floor Plan
© copyright by designer
DETAILS
Total SQ. FT.:
2,498
1st Floor SQ. FT.:
1,530
2nd Floor SQ. FT.:
968
Bonus:
326
Bedrooms:
3
Bathrooms:
2.1
Garage:
2
Stories:
2
Main Ceiling Height:
10'
Upper Ceiling Height:
9'
Framing:
2x4
Roof Framing:
Stick
Roof Pitch:
Primary: 8/12
Secondary: 12/12
Width:
40' 0"
Height:
40' 0"
Depth:
66' 4"
Exterior Styles:
Cottage
French Country
Unheated Living Space:
Garage: 448
Porch: 382
HOME FEATURES
Bedroom Features:
Master Bdrm Main Floor
Master Bdrm Main Floor
Walk-in Closet
Walk-in Closet
Kitchen Features:
Butler's Pantry
Butler's Pantry
Kitchen Island
Kitchen Island
Additonal Features:
2 Story Volume
2 Story Volume
Bonus Room
Bonus Room
Dining Room
Dining Room
Fireplace
Fireplace
Loft / Balcony
Loft / Balcony
Open Floor Plan
Open Floor Plan
Garage Features:
Attached
Attached
Garage Location:
Front
Lot Features:
Suited for narrow lot
Suited for narrow lot
