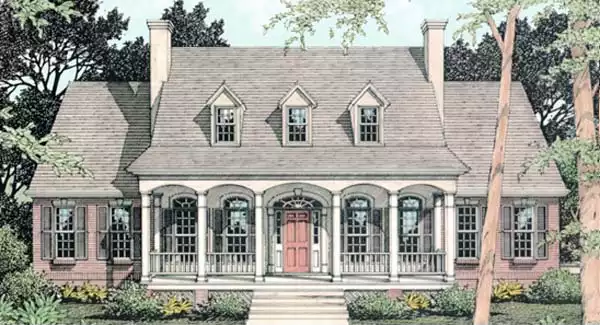

House Plan 5785: Ashbourne II

A long time favorite with even more style. A timeless facade opens to a spacious floor plan. The walk in pantry is convenient to the kitchen and garage entry while the laundry room has ample counter and storage space. Entertaining is a breeze with the large kitchen and formal dining room.  Read more >

House Plan Details

Sq. Ft.
2,683
Beds
3
Baths
2.1
Stories
2
Garages
2
Width
66' 4"
Depth
77' 4"
1st Floor
2,683

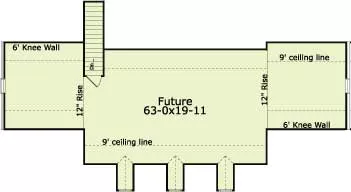

Bonus
1,219
Garage
528
Storage
54
Select Plan Package
Five Sets - Minimum Const
$1125
Select Foundation Options
$0
Basement
$0
Optional Add-Ons
Subtotal: $0

PLAN IMAGES

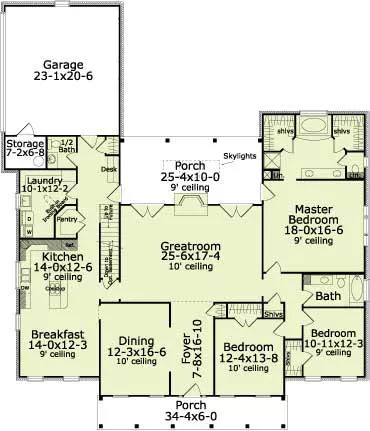

First Floor Plan

First Floor Plan
© copyright by designer

Plan Details

Basic Information
Bedrooms: 3
Bathrooms: 2.1
Garage: 2
Stories: 2
Exterior Style
Country
Southern
Traditional
Dimensions
Width: 66' 4"
Height: 28' 0"
Depth: 77' 4"
Heated Living Space
Total Sq. Ft: 2,683
1st Floor: 2,683
Bonus: 1,219
Unheated Living Space
Garage: 528
Storage: 54
Porch: 514
Ceiling
Upper Ceiling Ft: 9
Main Ceiling Ft: 9 & 10
Framing Information
Framing: 2x4
Roof Framing: Stick
Bedroom Features
His and Hers Master Closets
Master Bdrm Main Floor
Separate Tub and Shower
Walk-in Closet
Kitchen Features
Country Kitchen
Kitchen Island
Nook / Breakfast Area
Walk-in Pantry
Additional Room Features
Dining Room
Fireplace
Foyer
Great Room
Home Office
Laundry 1st Fl
Mud Room
Unfinished Space
Garage Location
Rear
Garage Features
Attached
Side-entry
Lot Features
Suited for corner lot
Roof Pitch
Primary: 11/12
Secondary: 5/12
Porch: 5/12
