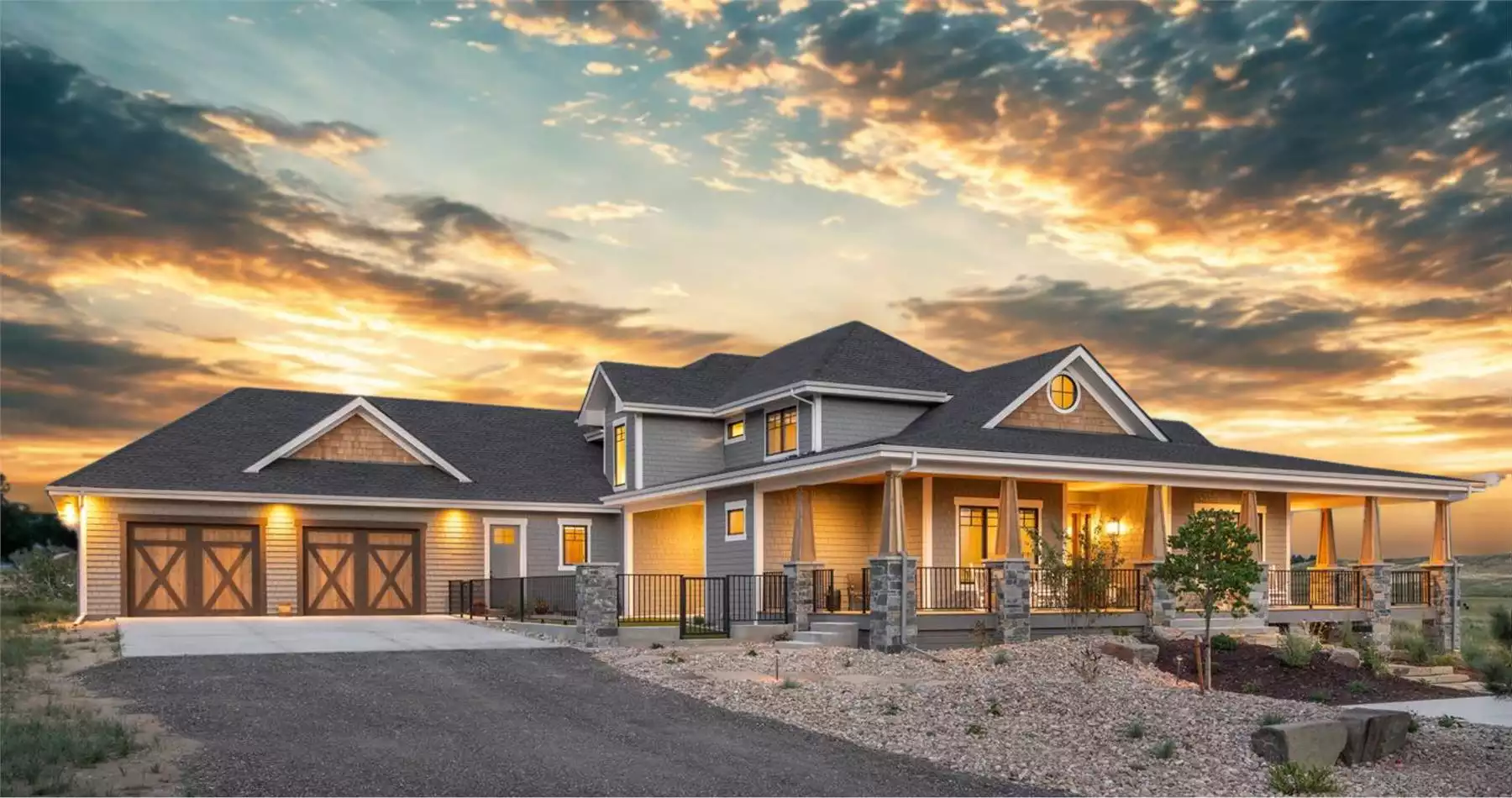

Chatfield | 4 Bedroom Country Lake Style House, Plan 10809




Sq Ft
3,739 FT²

Beds
4

Baths
3.5

Stories
2

Garage
2

Depth
88'

Width
104'
On Sale
$1,872.00
$2,400.00
© copyright by designer
 View All 27 Images | Photographs may reflect modified home
Sq Ft
3,739 FT²
Beds
4
Baths
3.5
Stories
2
Garage
2
Depth
88'
Width
104'

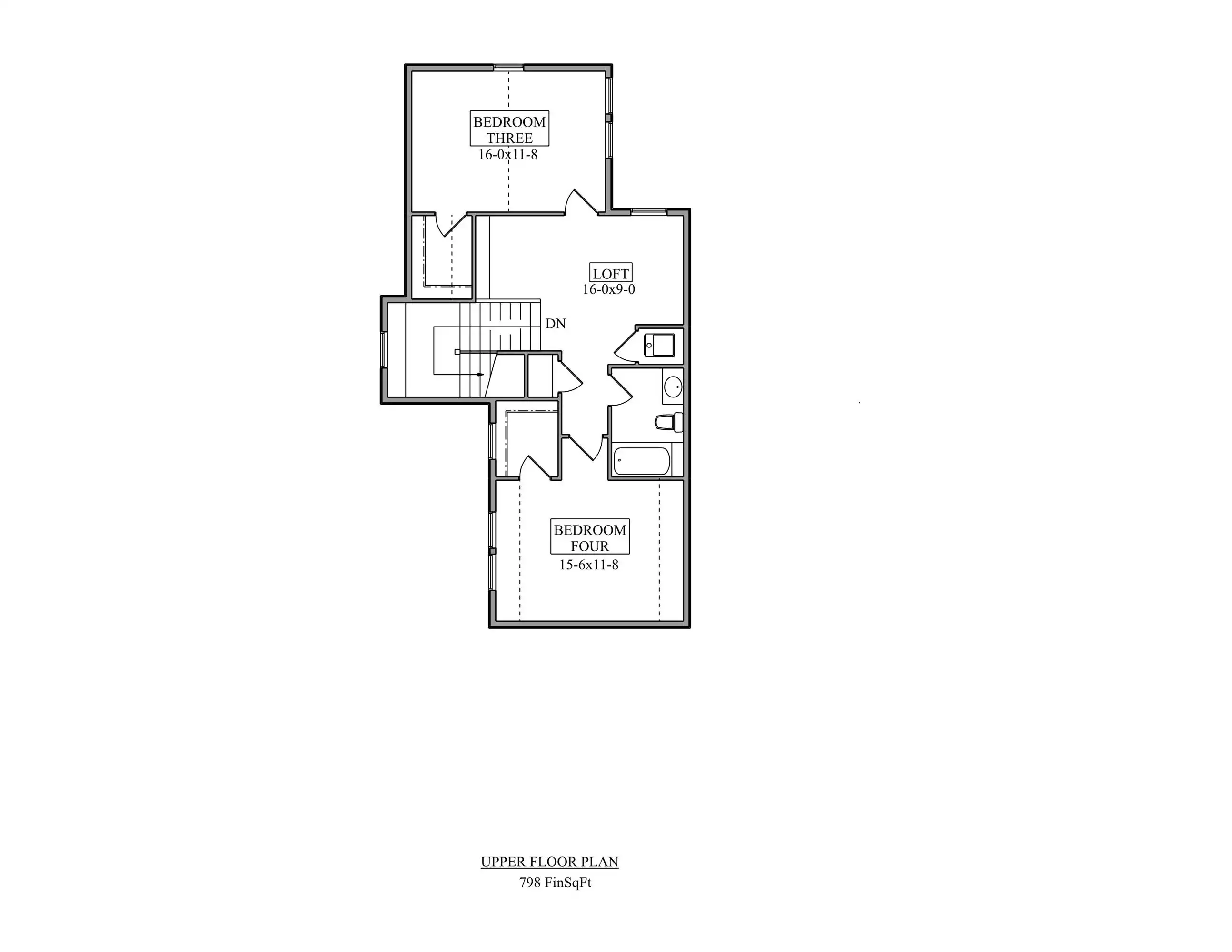

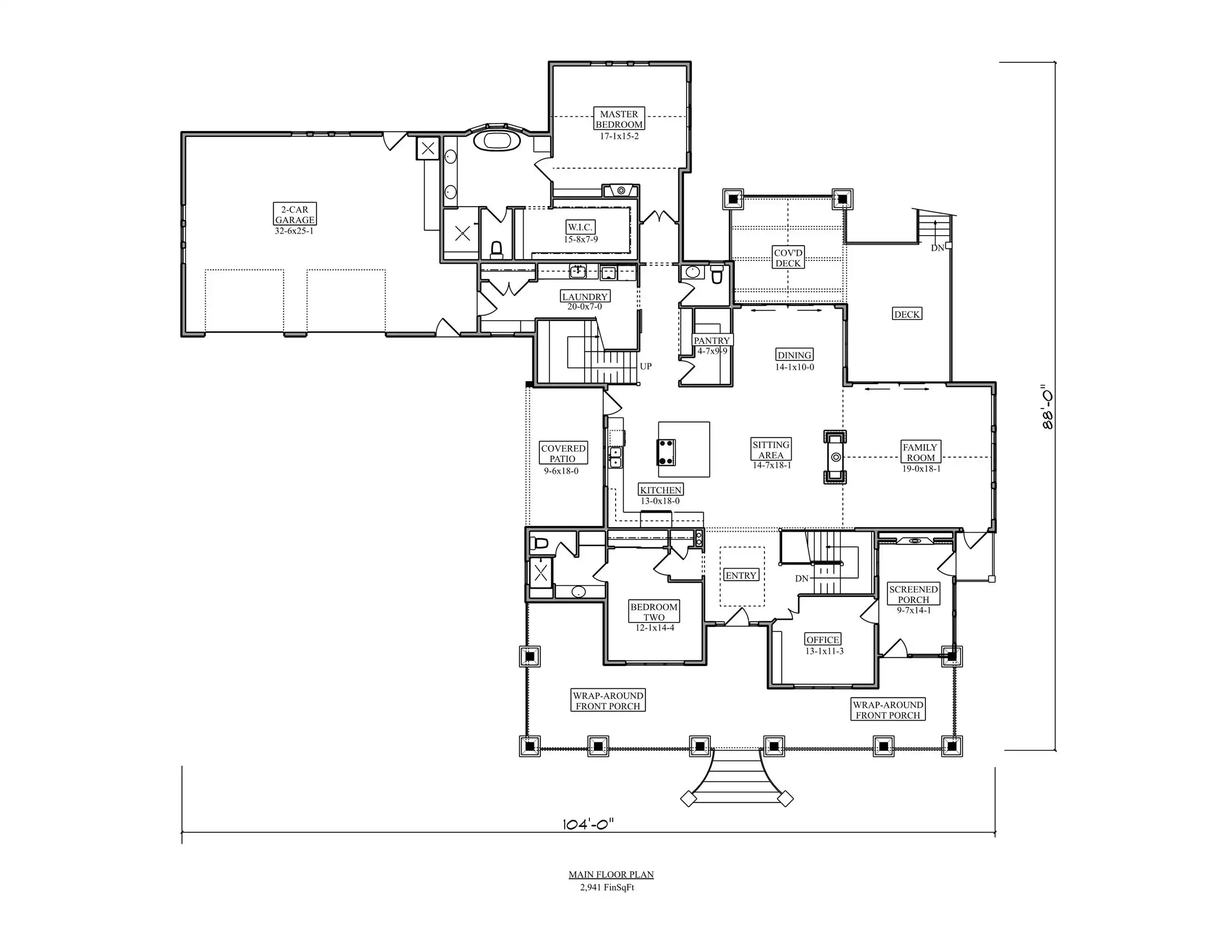

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

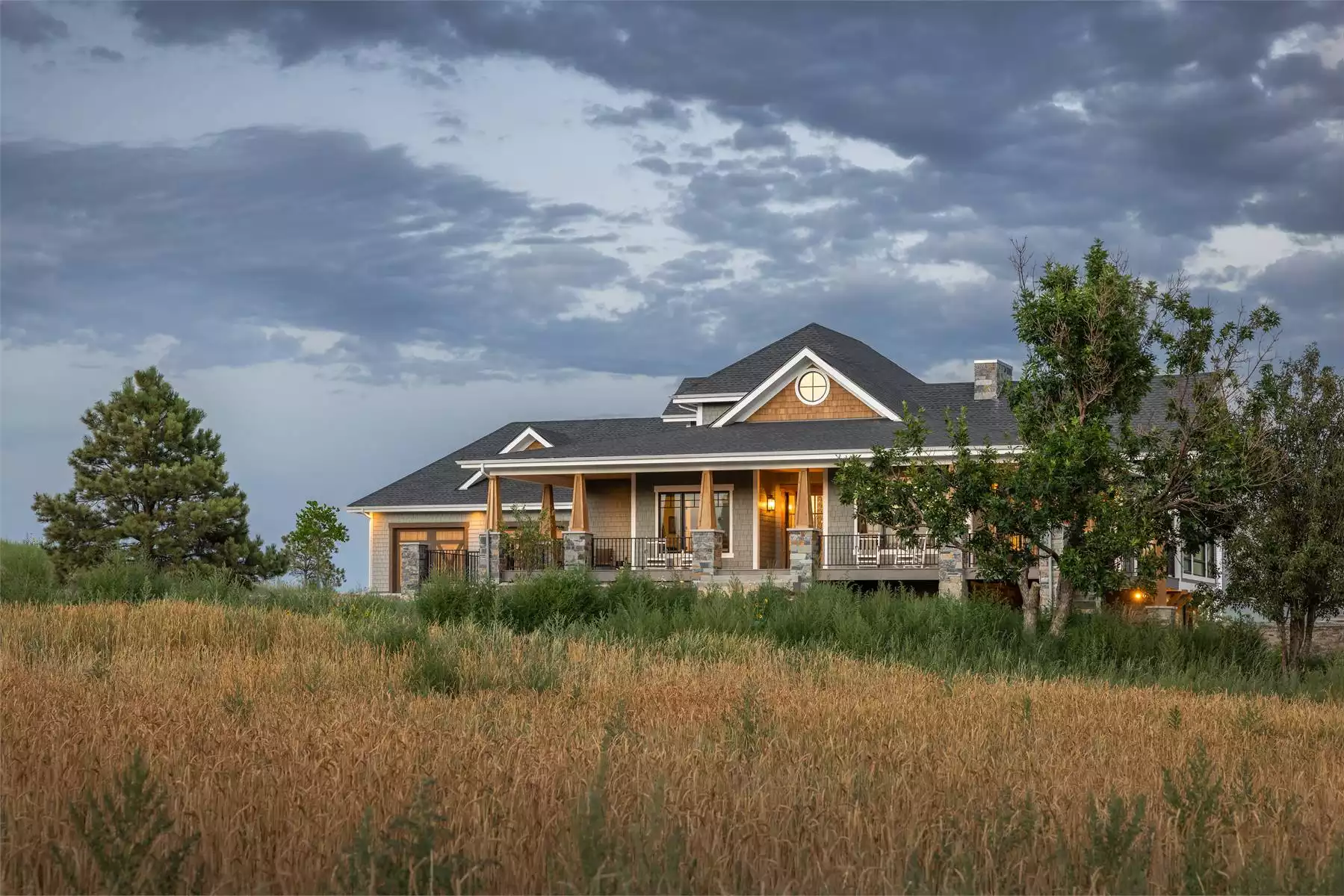

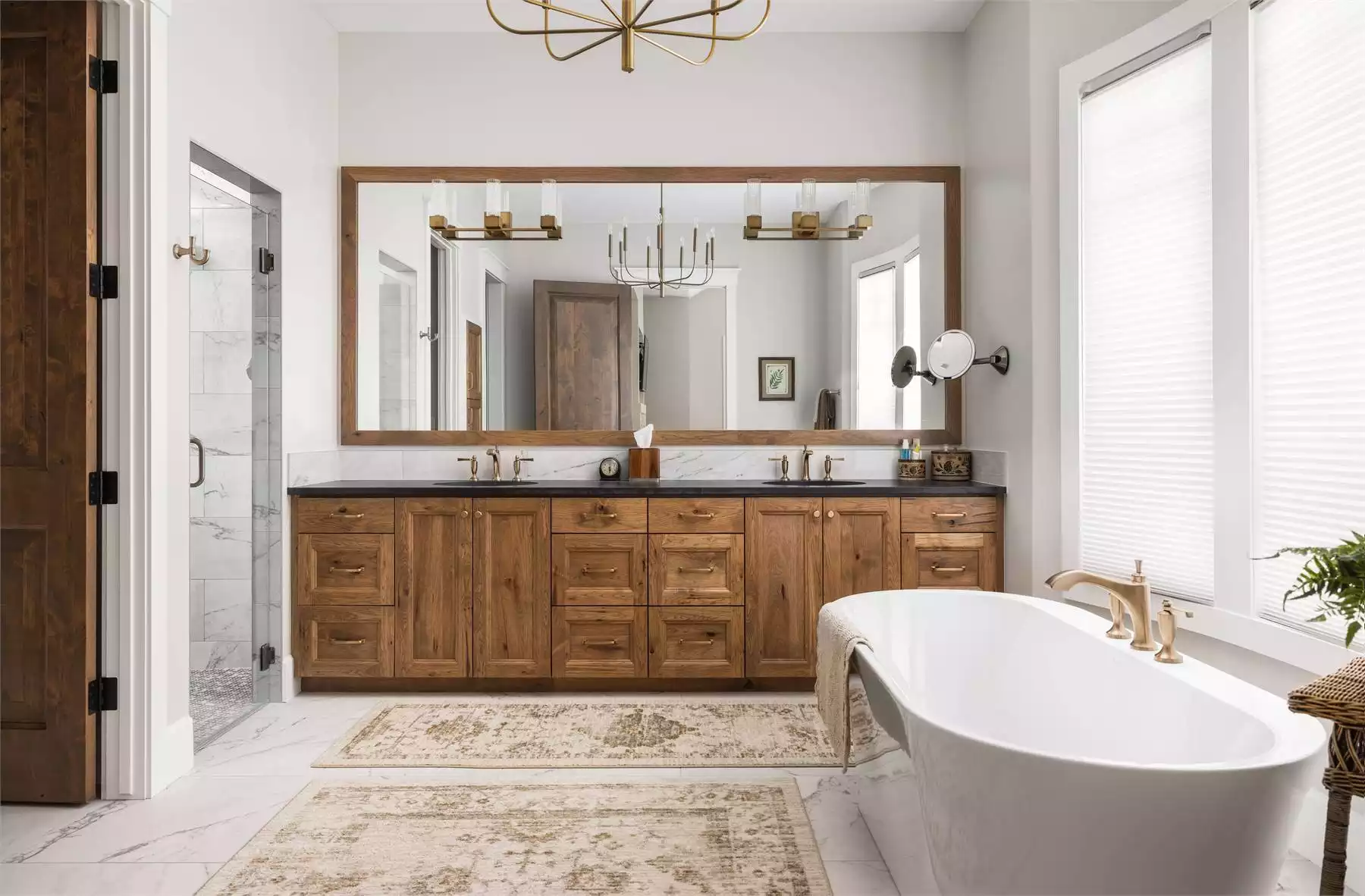

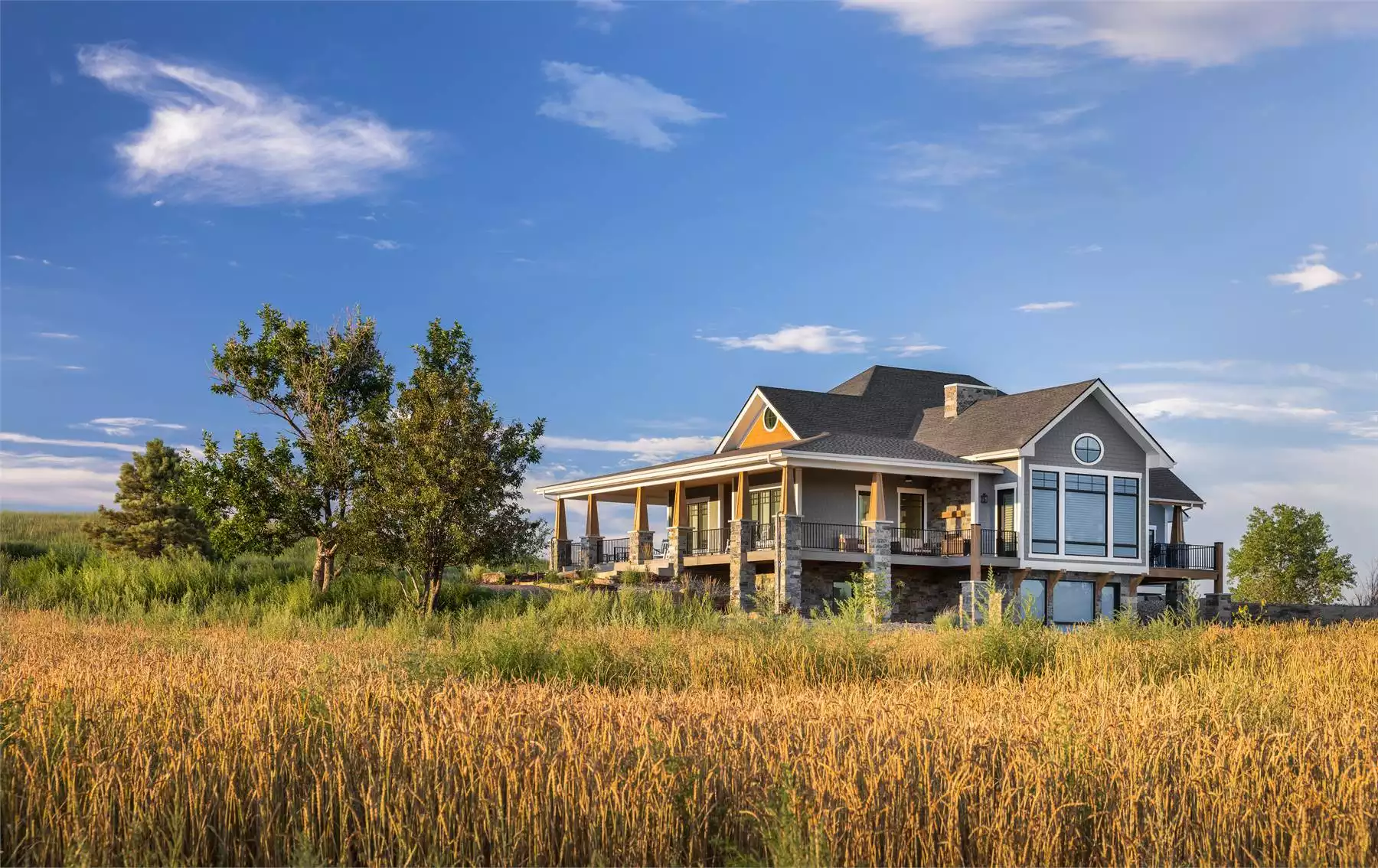

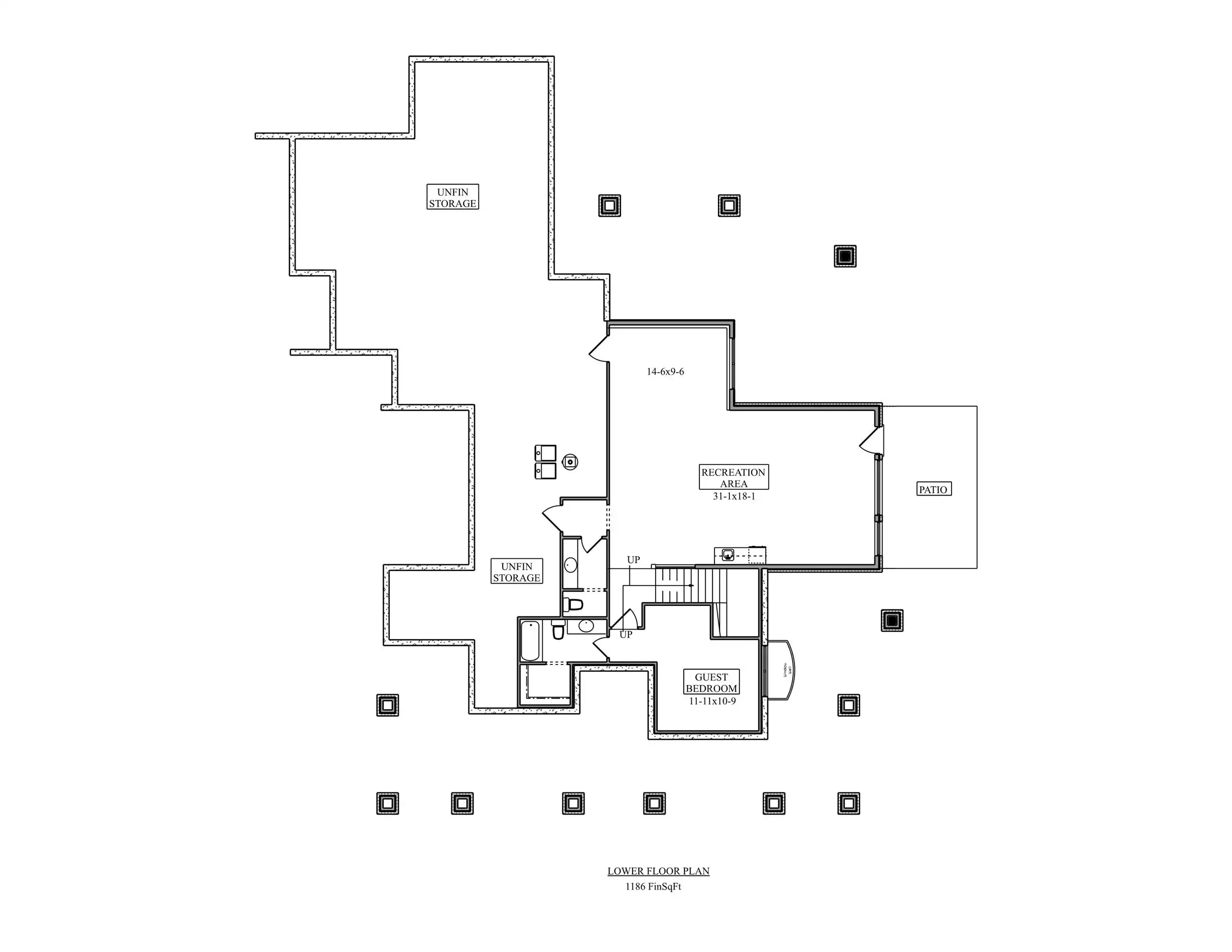

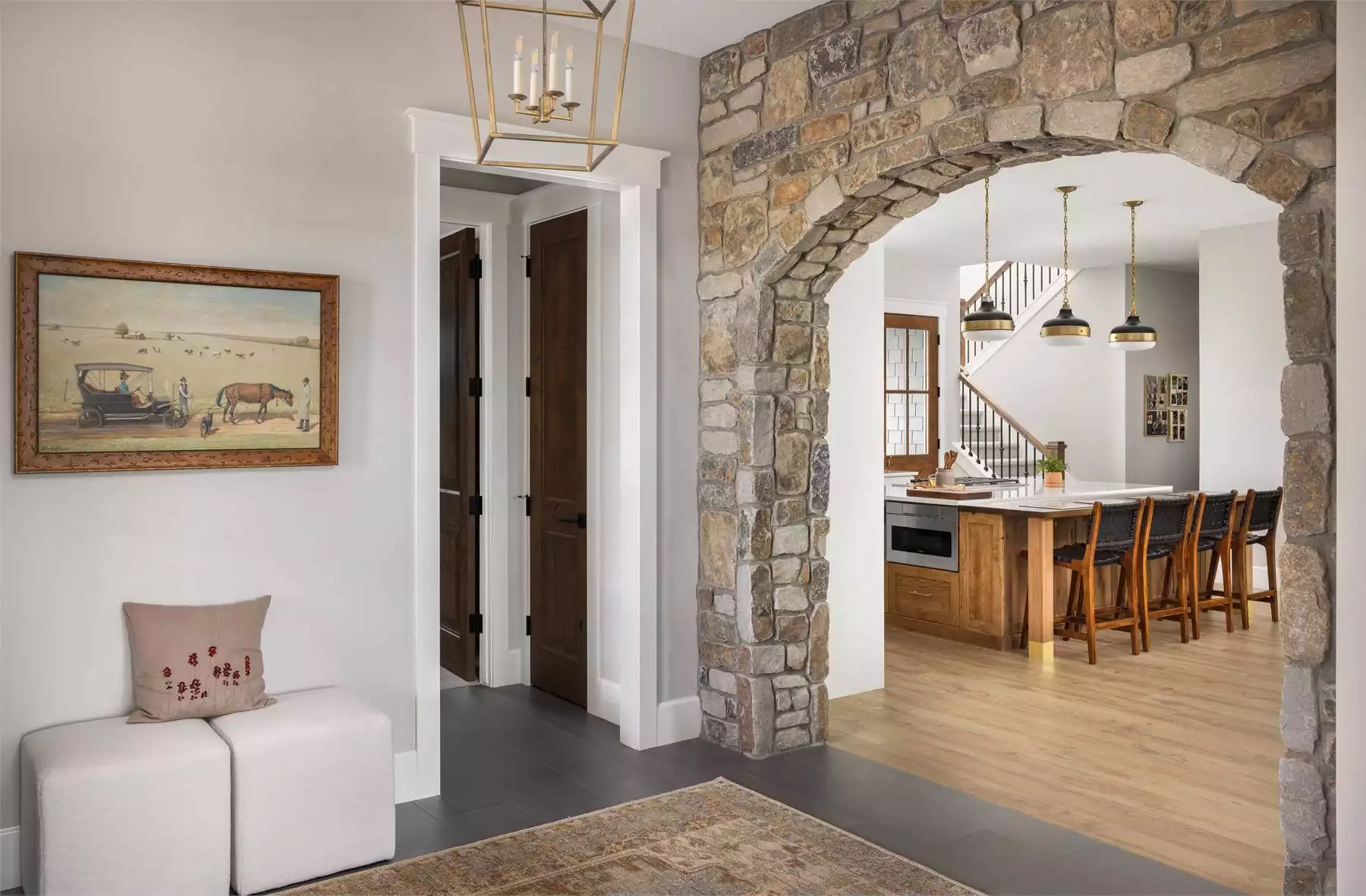

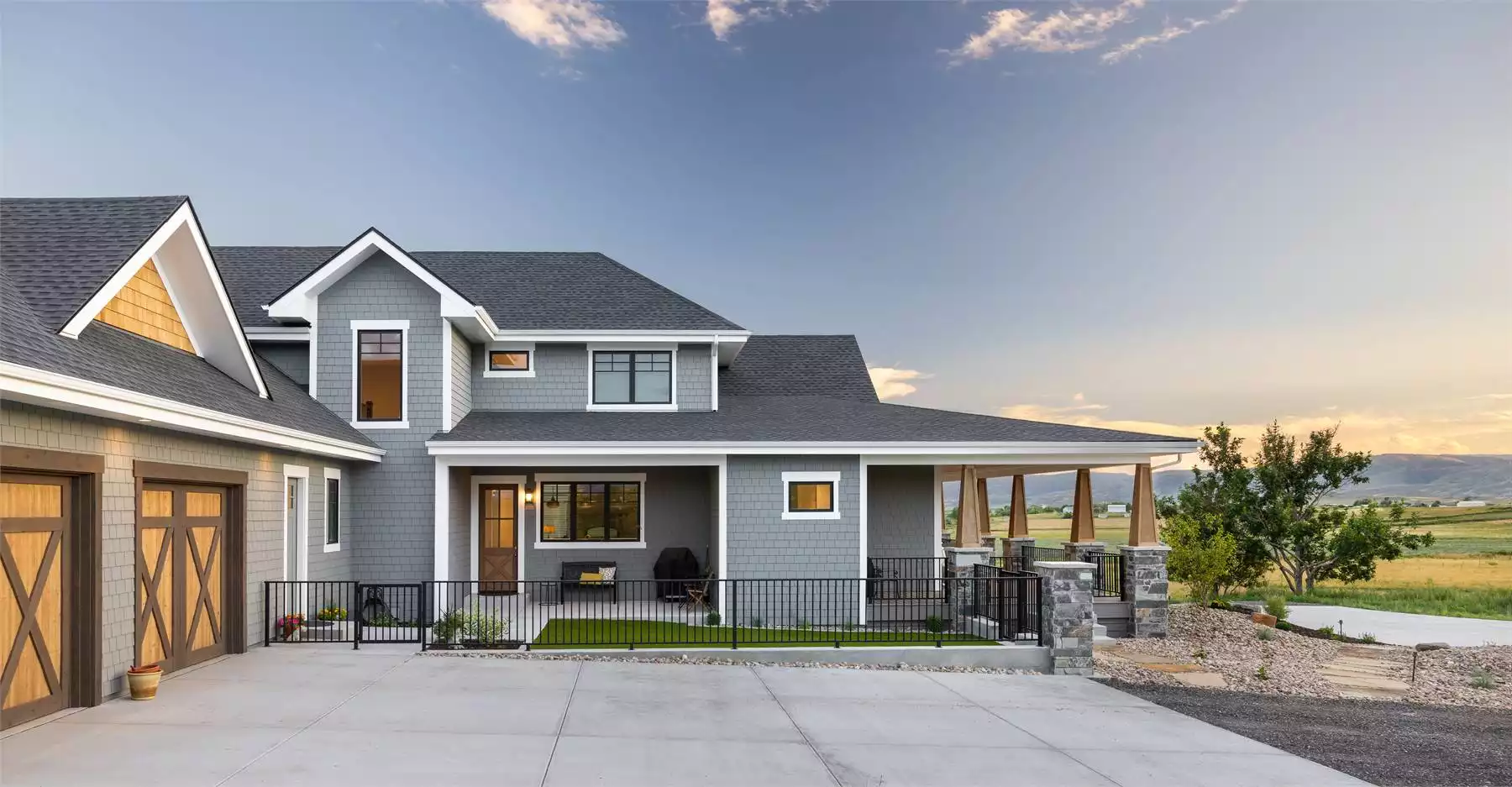

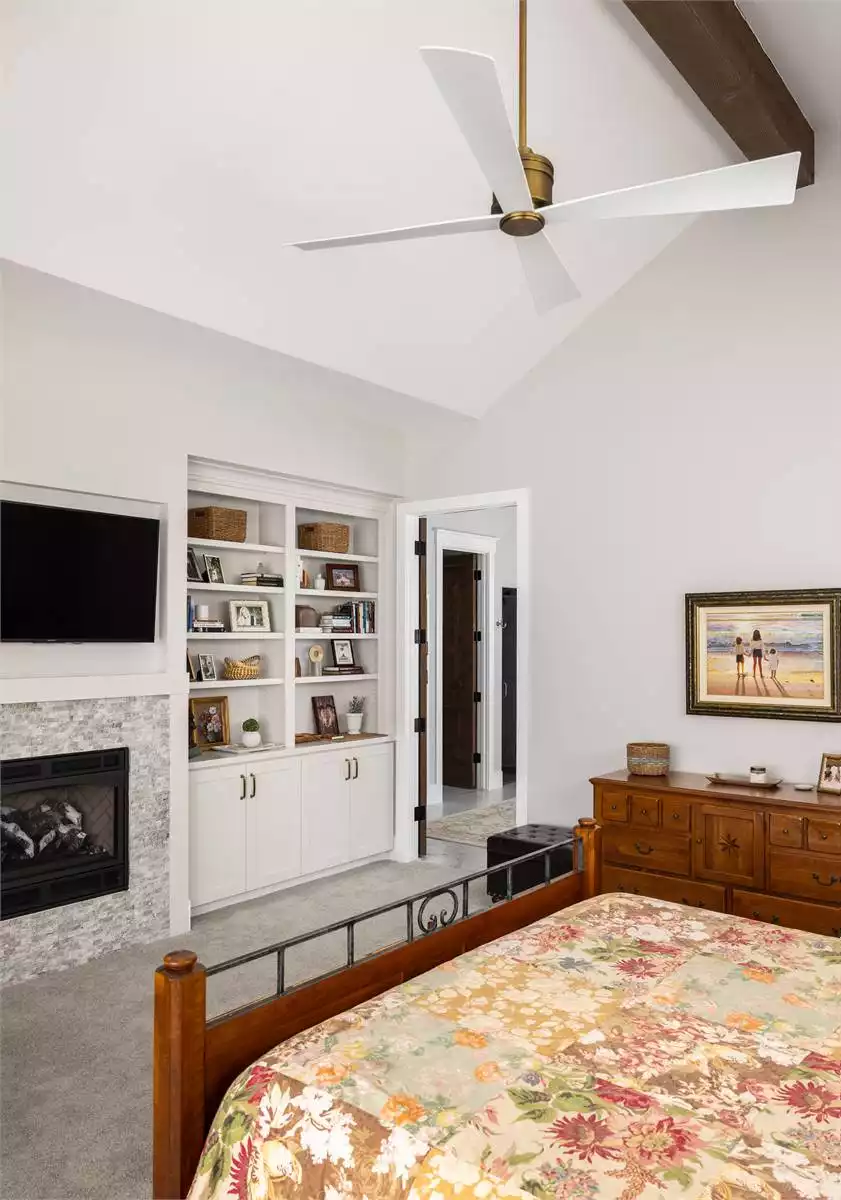

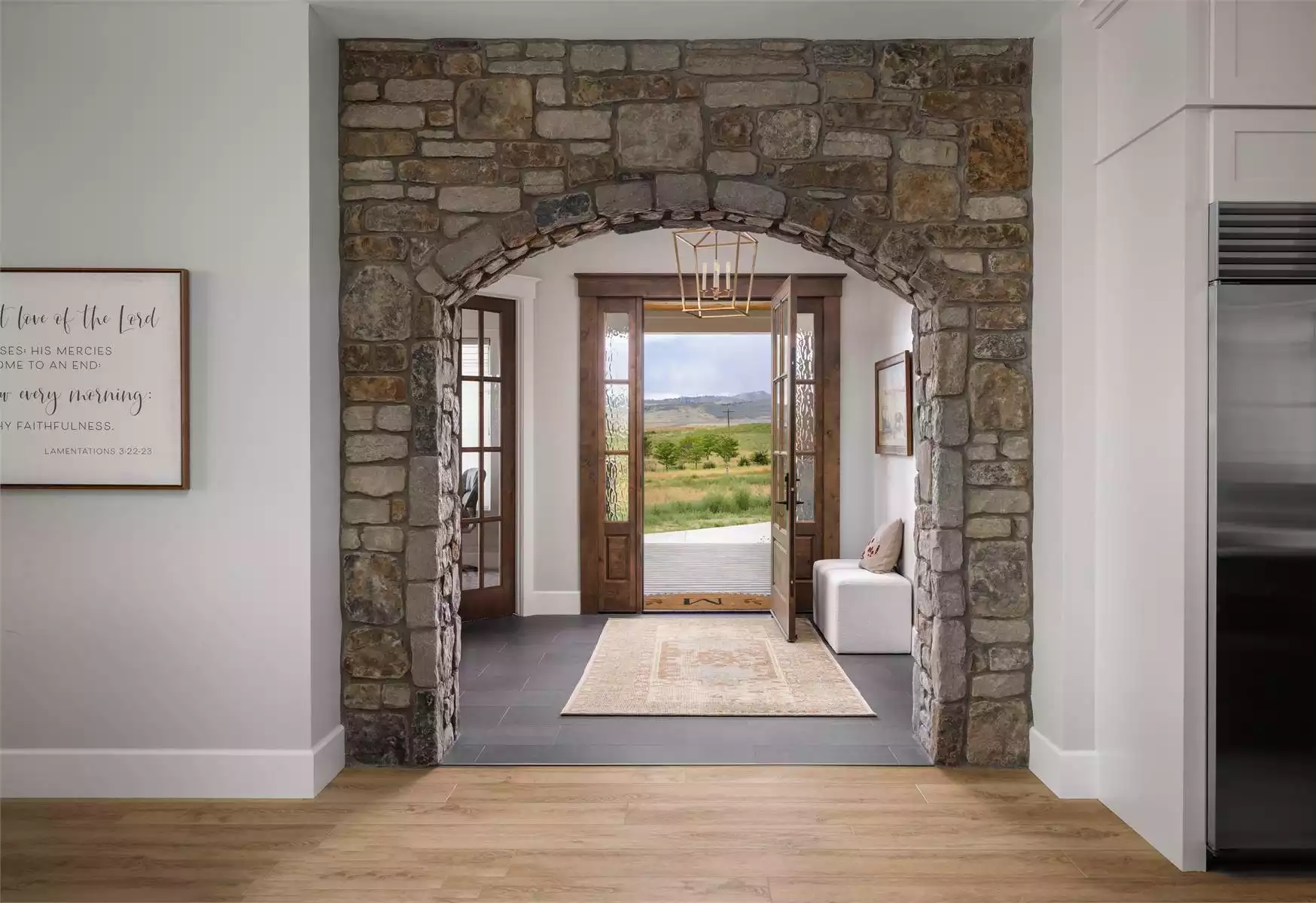

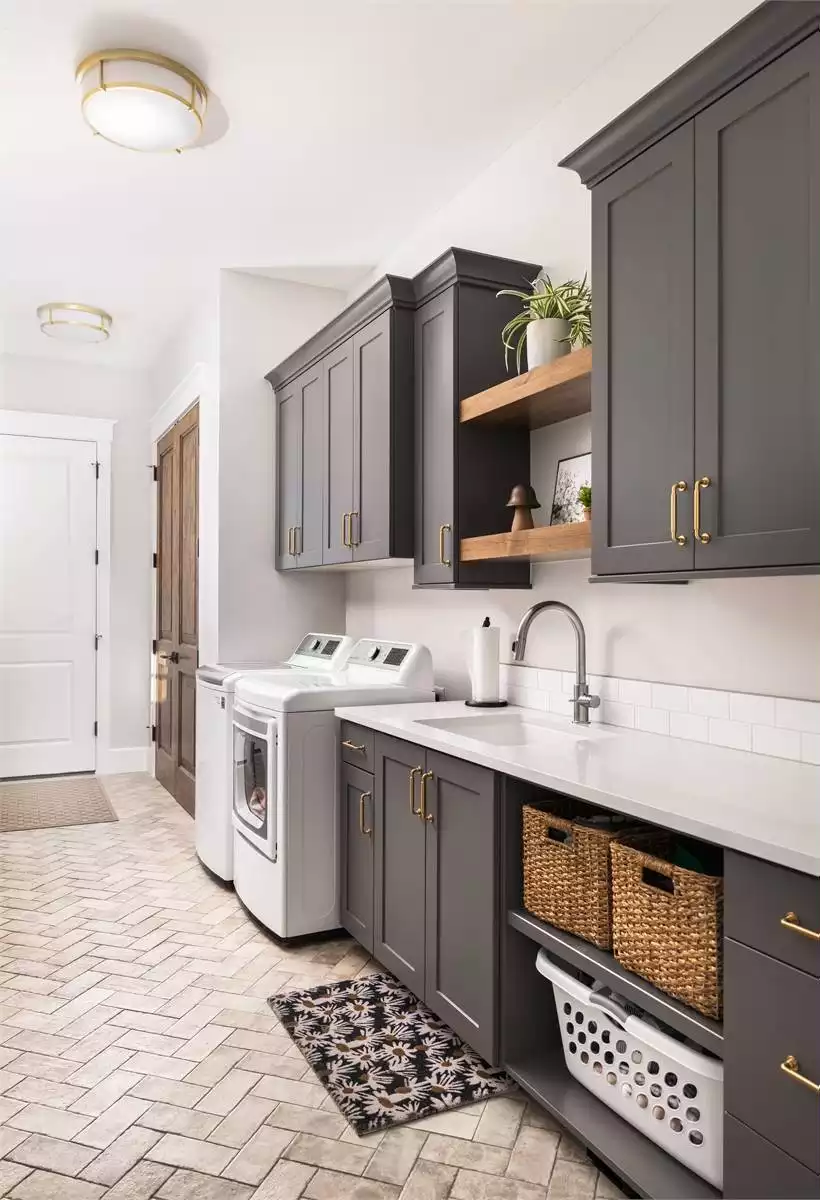

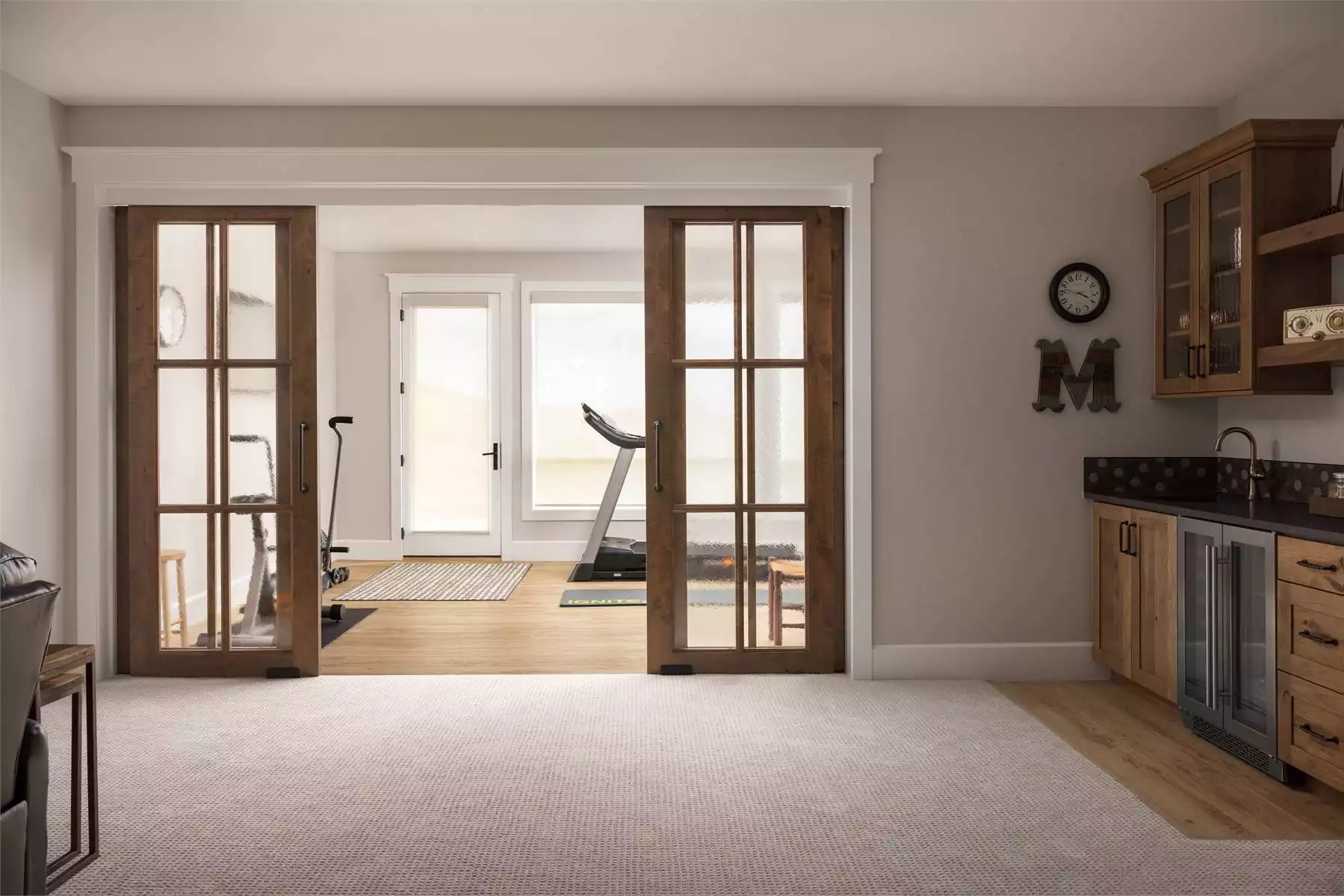

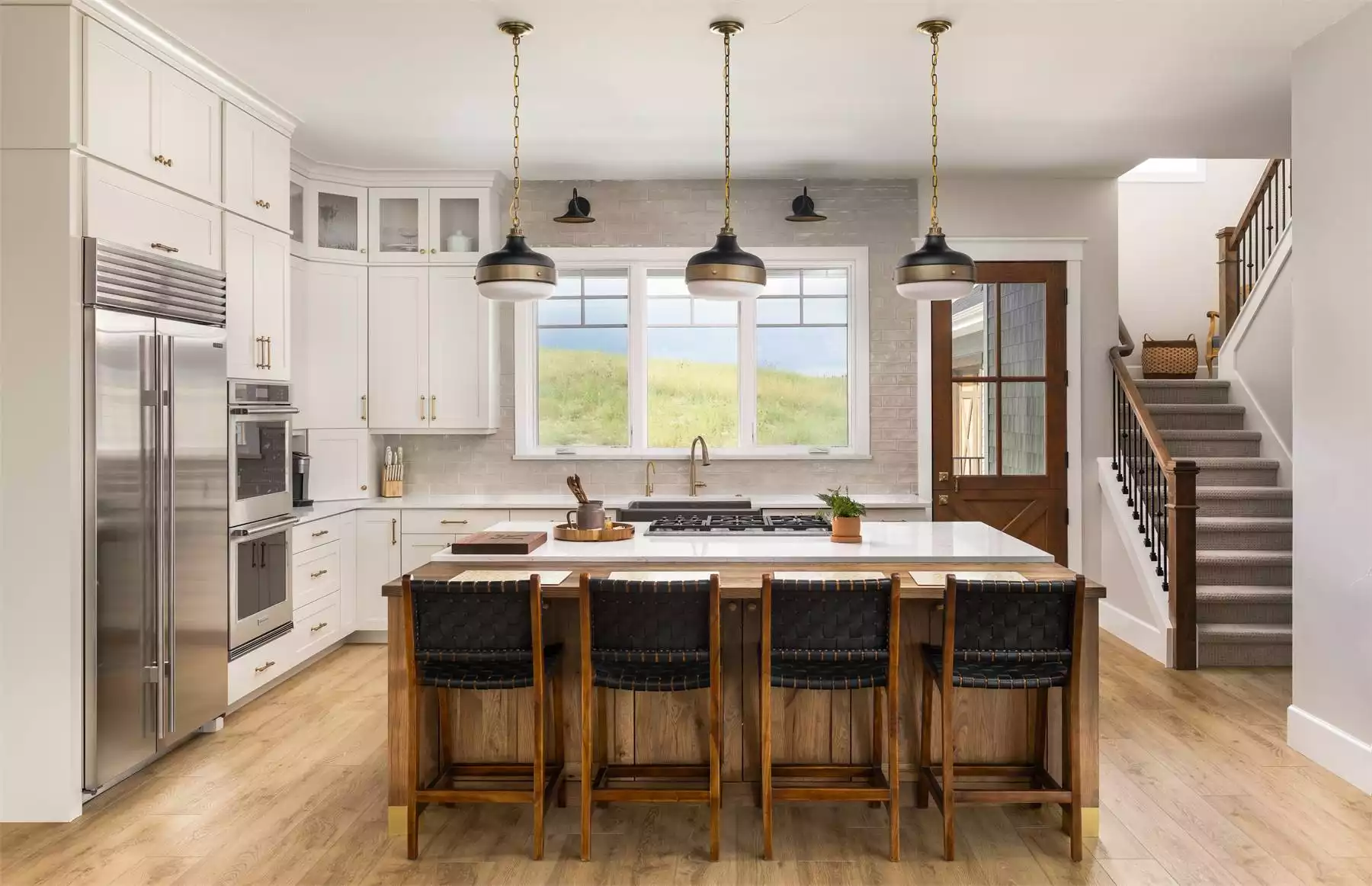

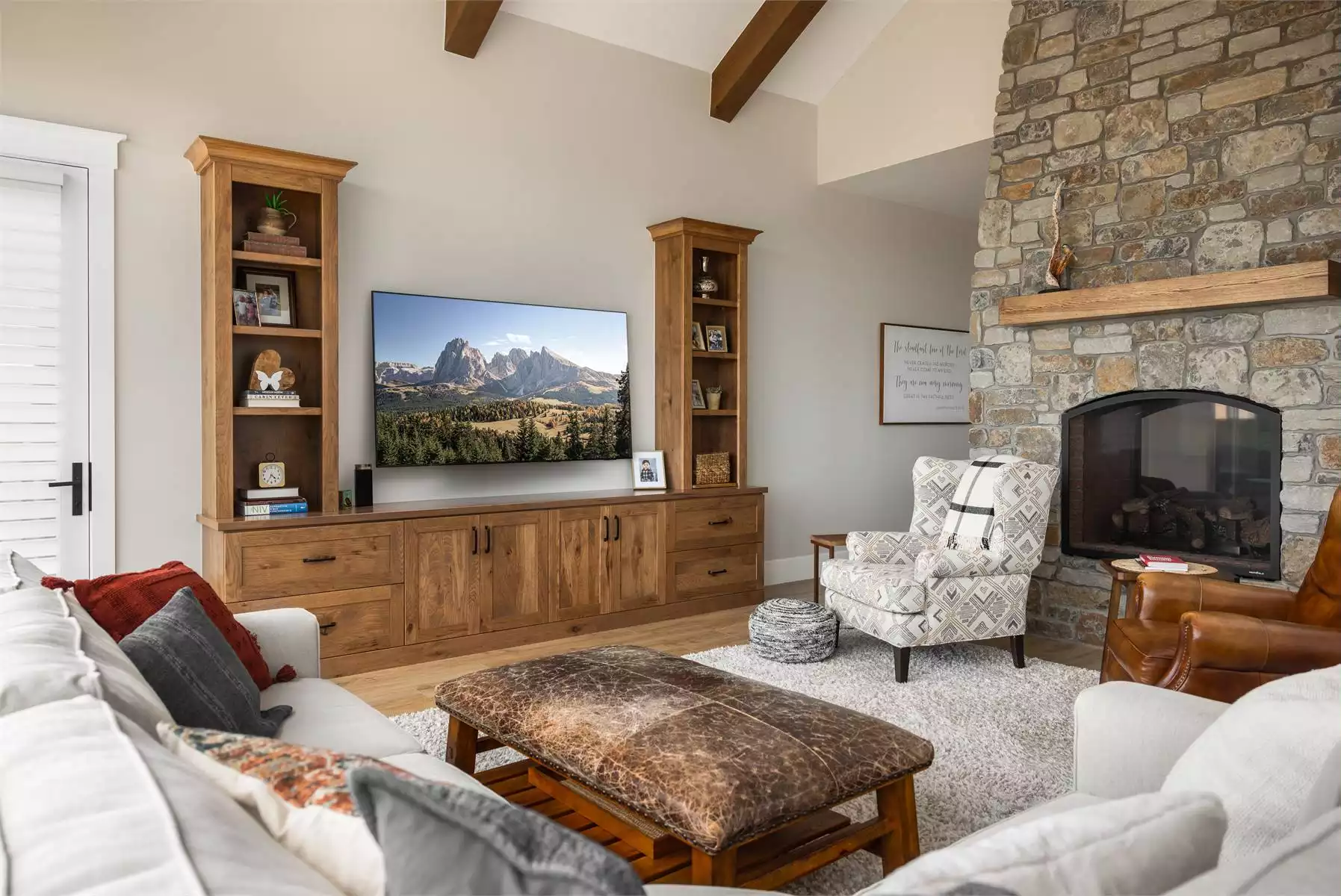

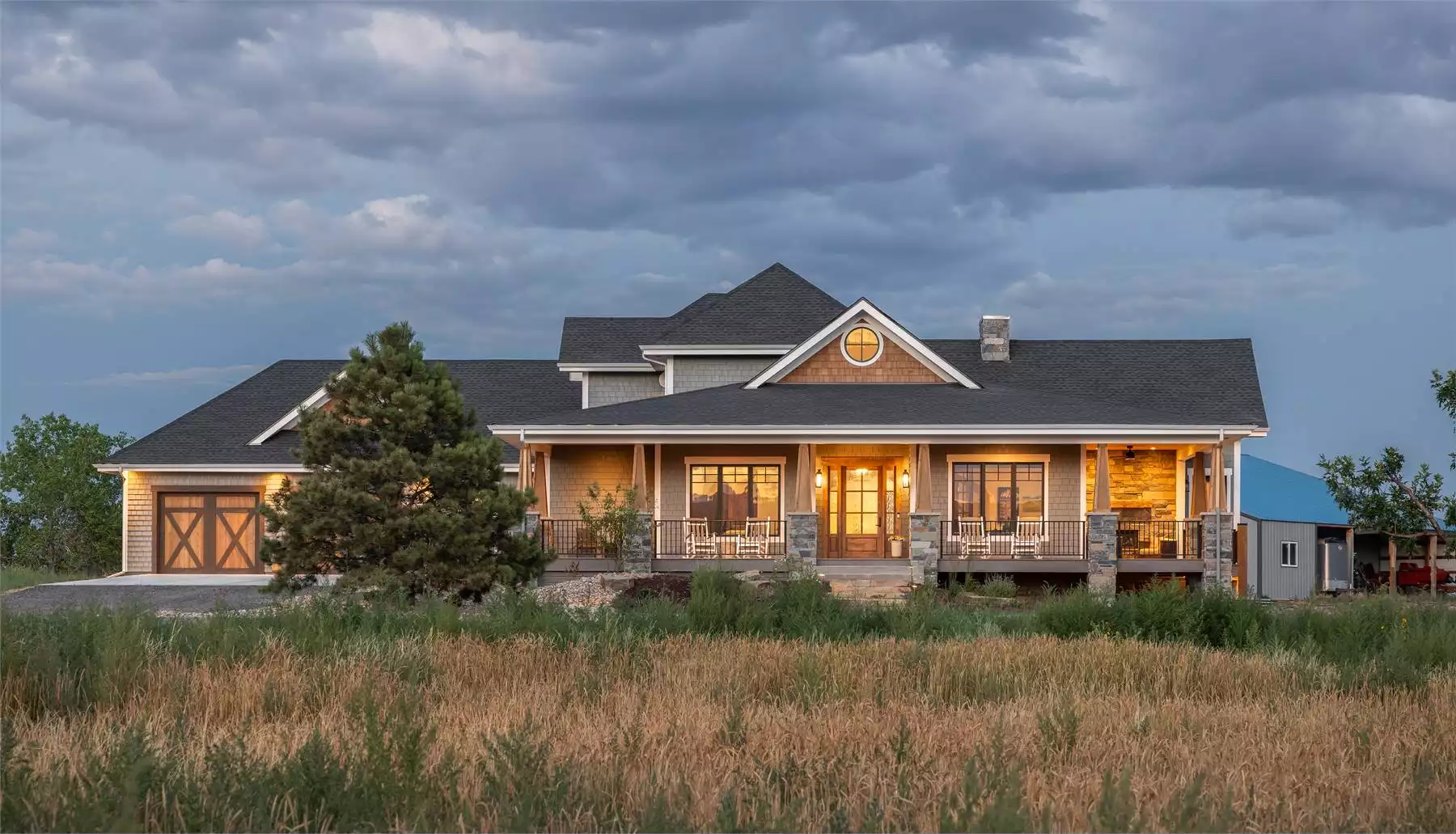

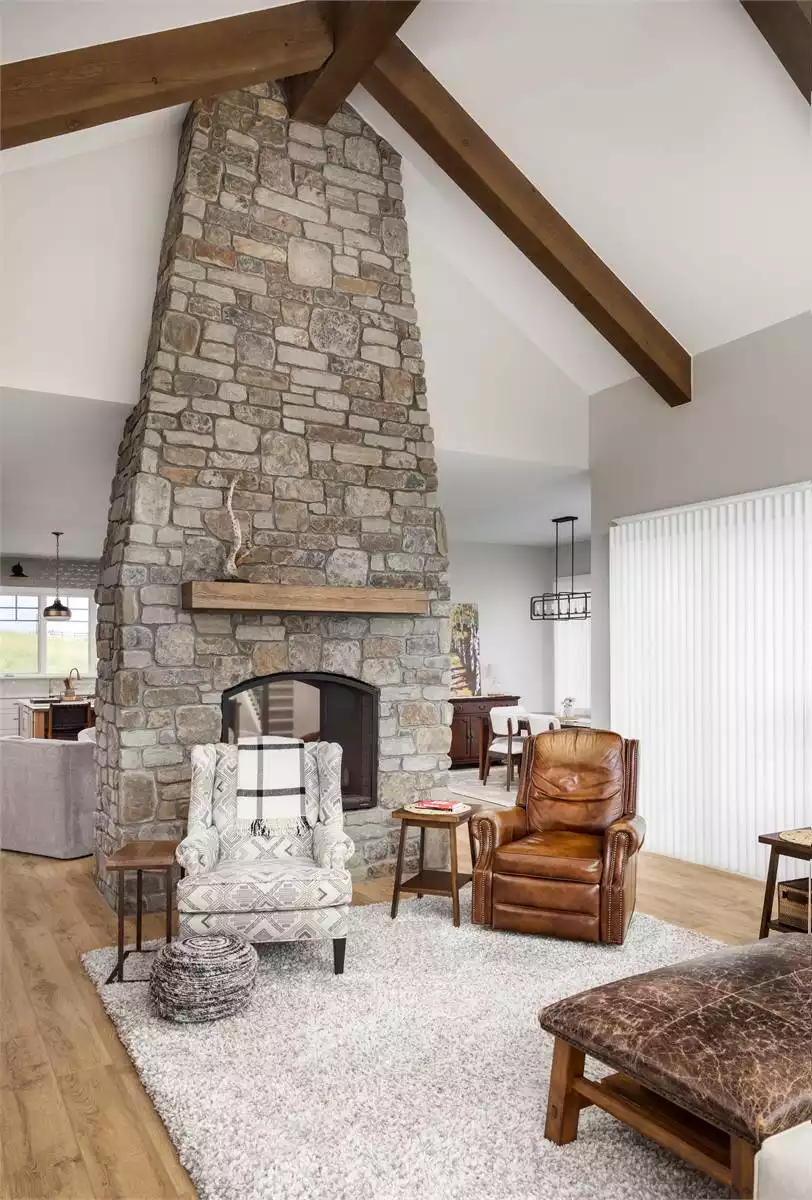

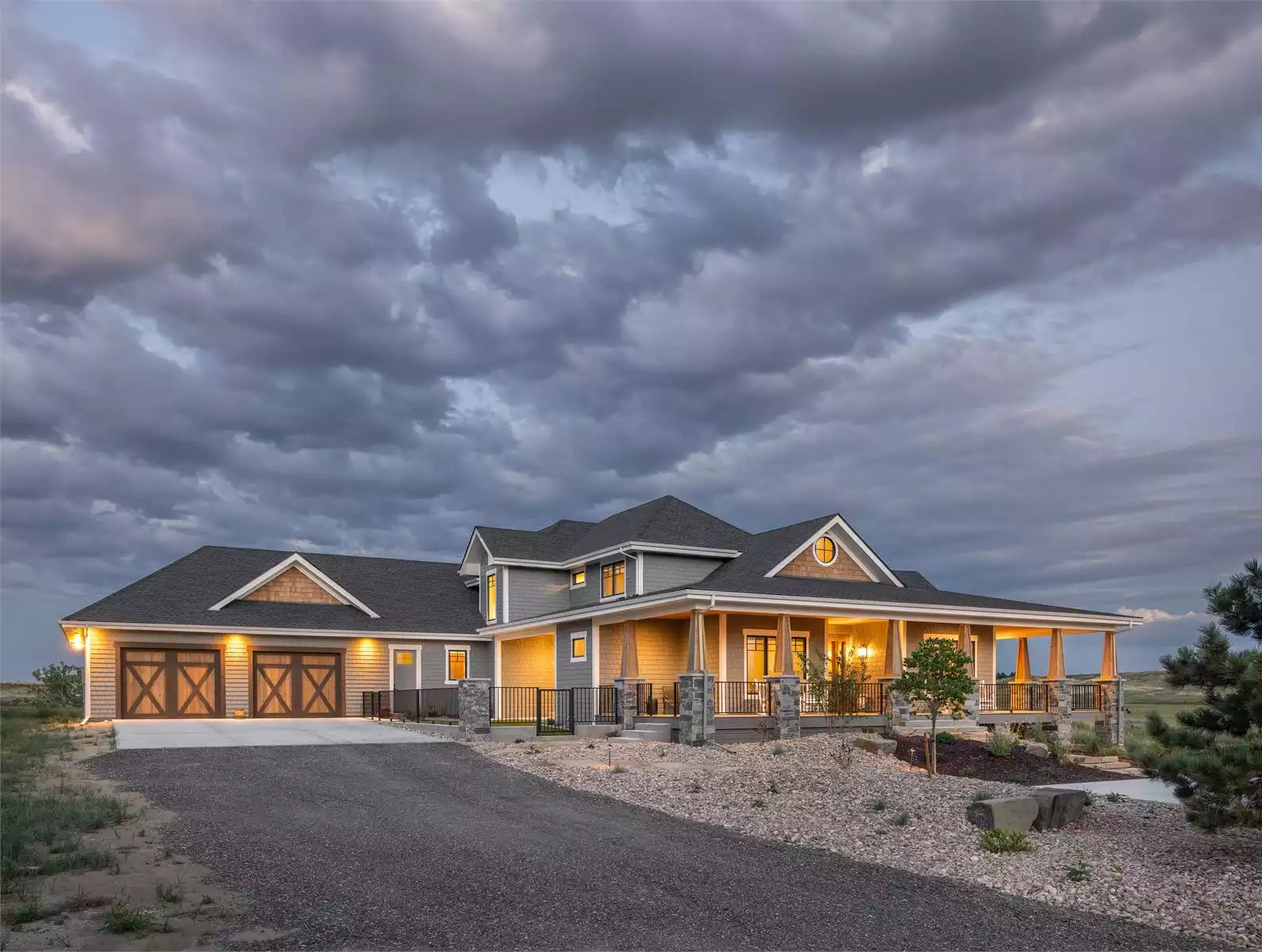

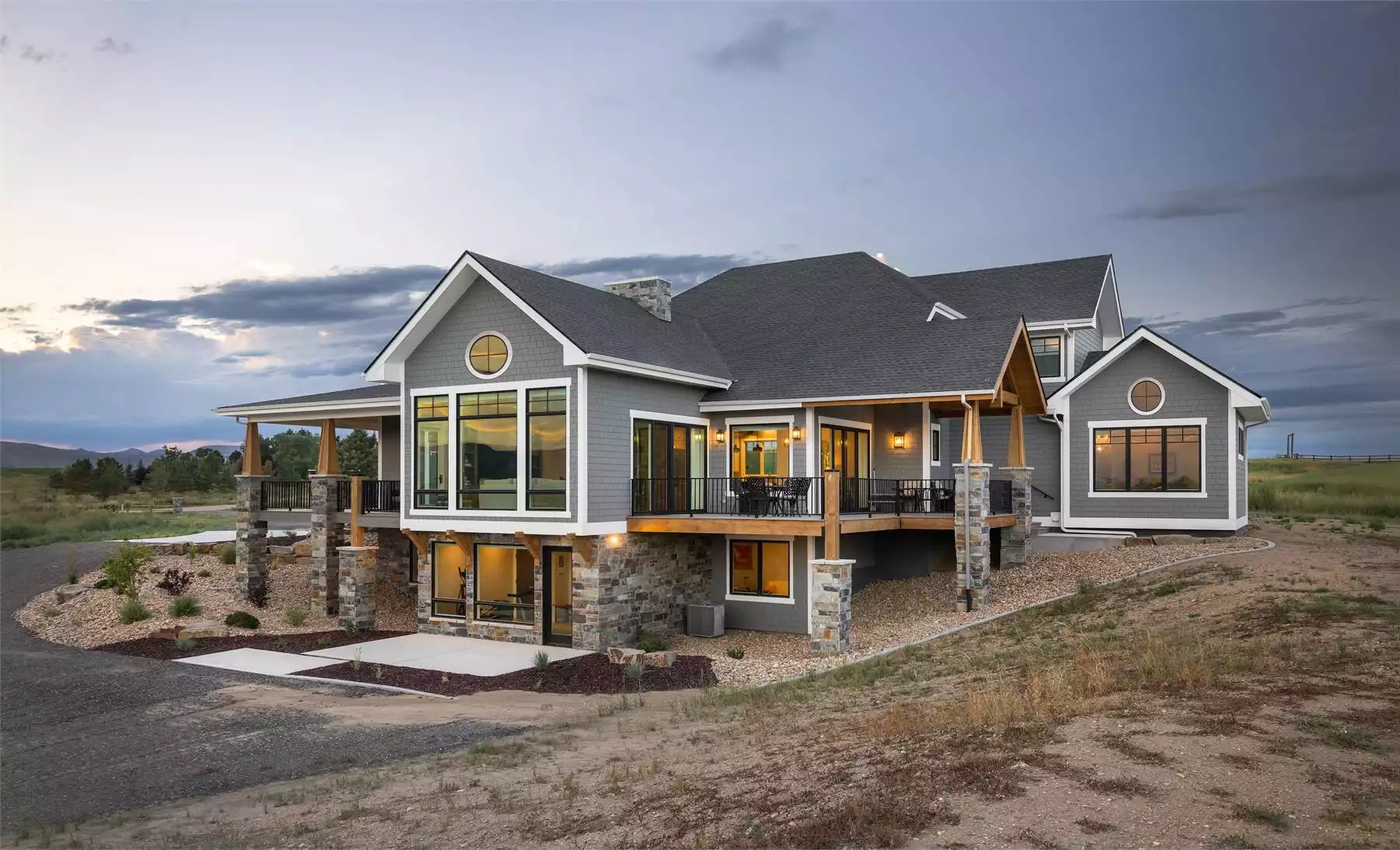

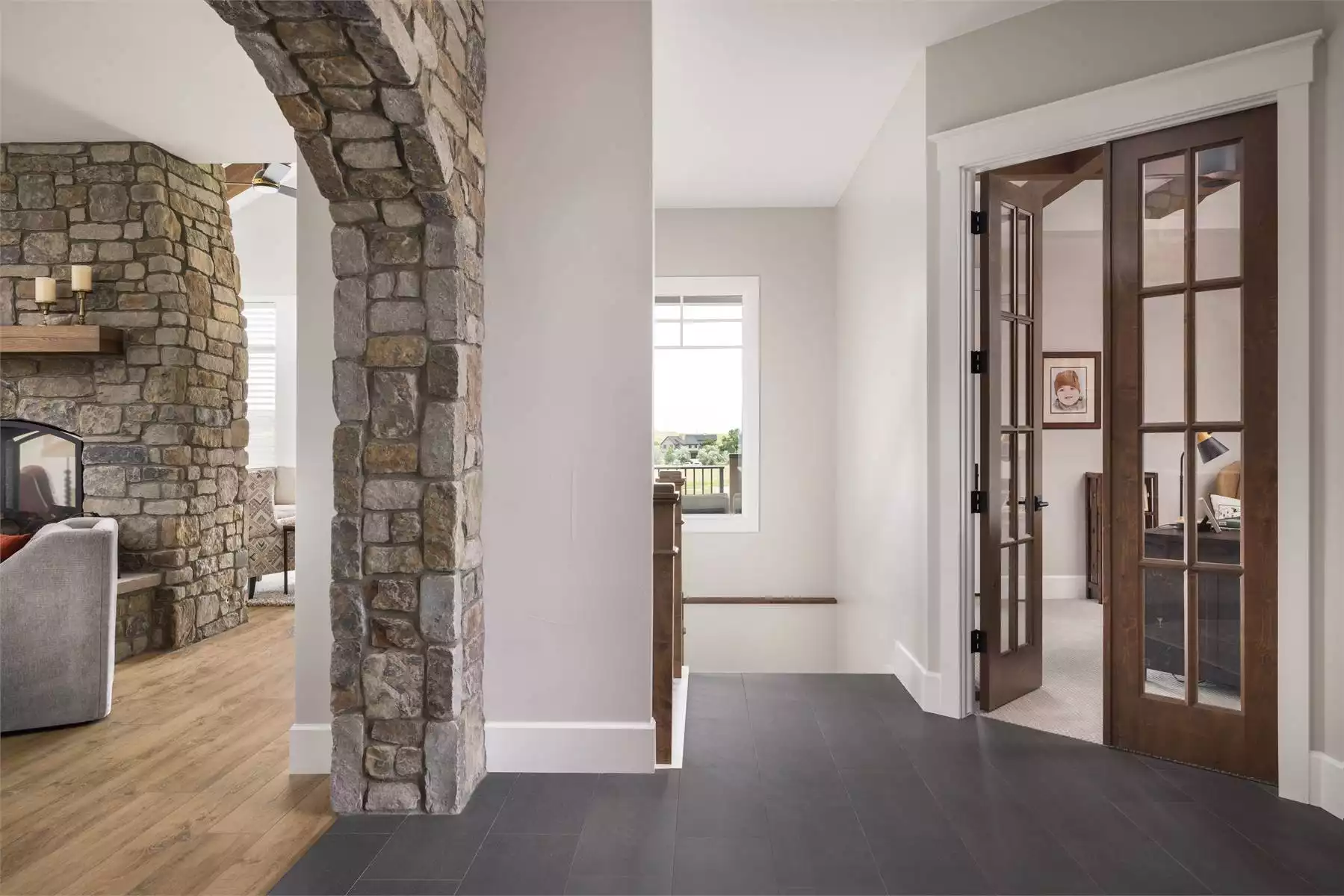

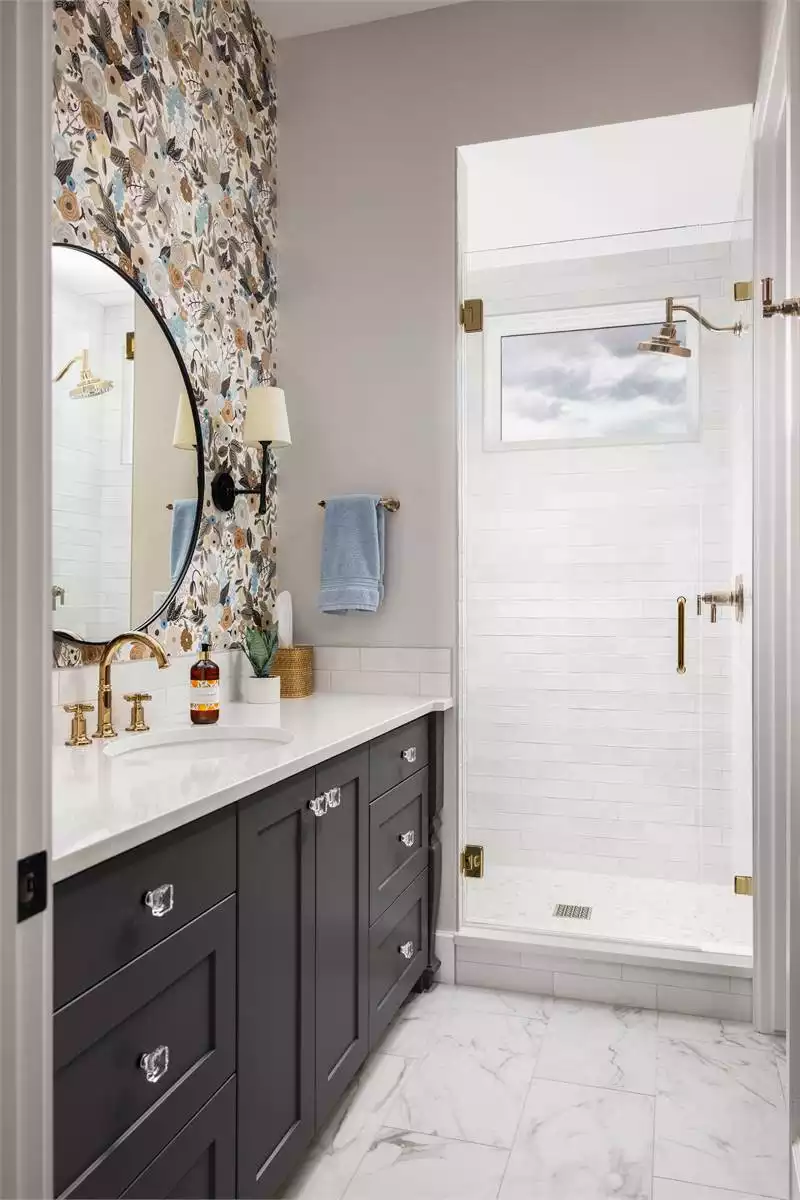

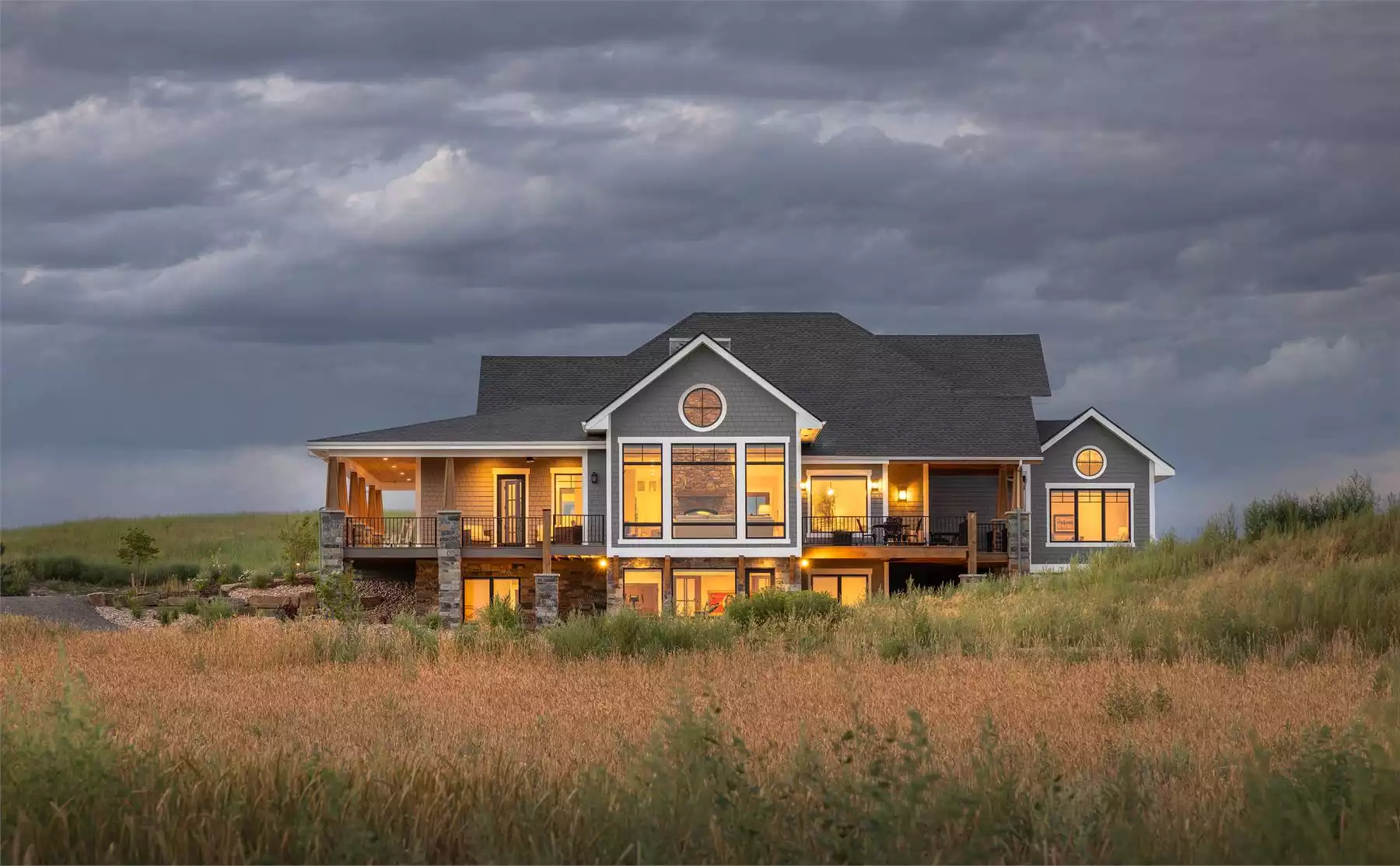

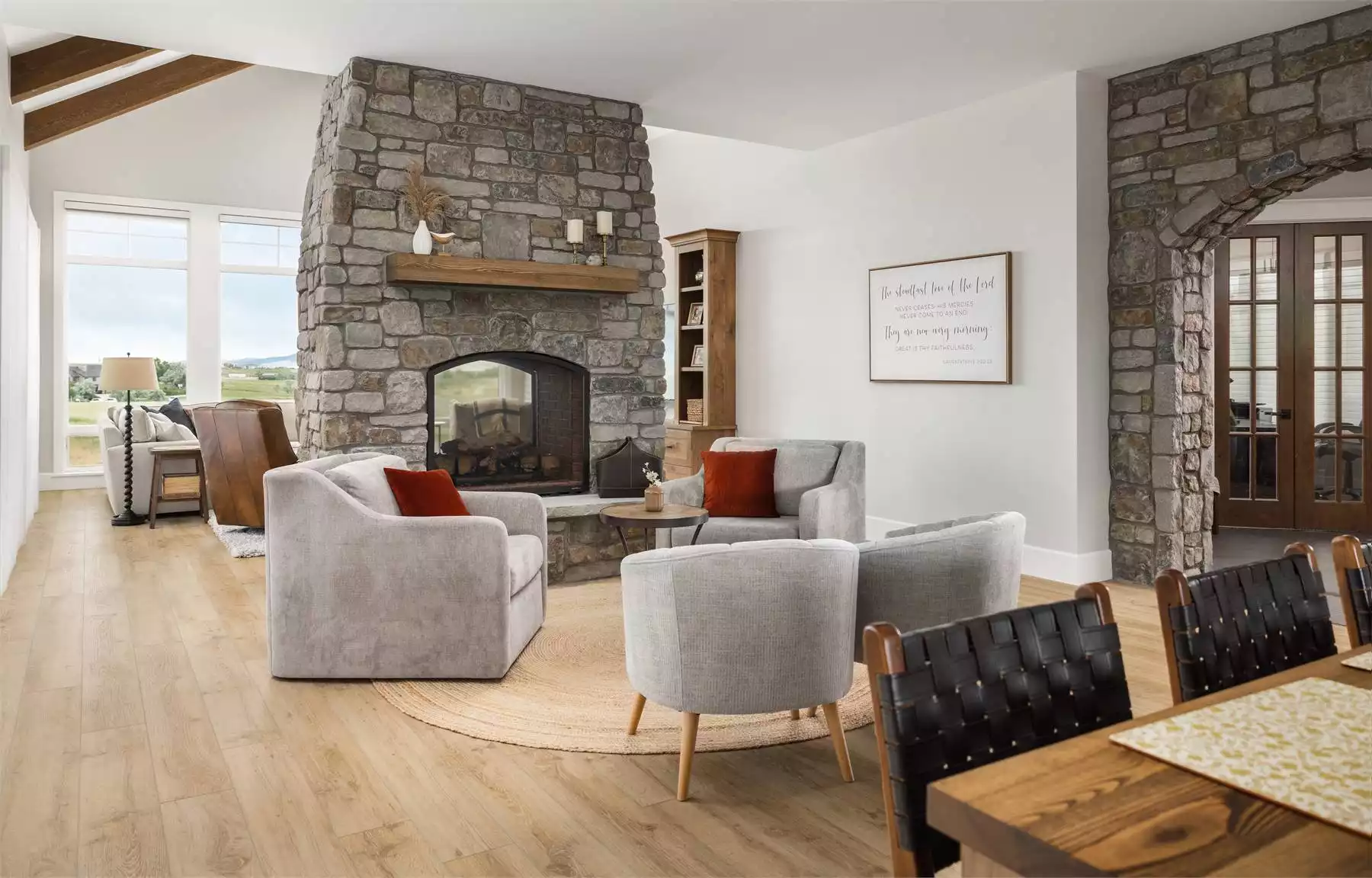

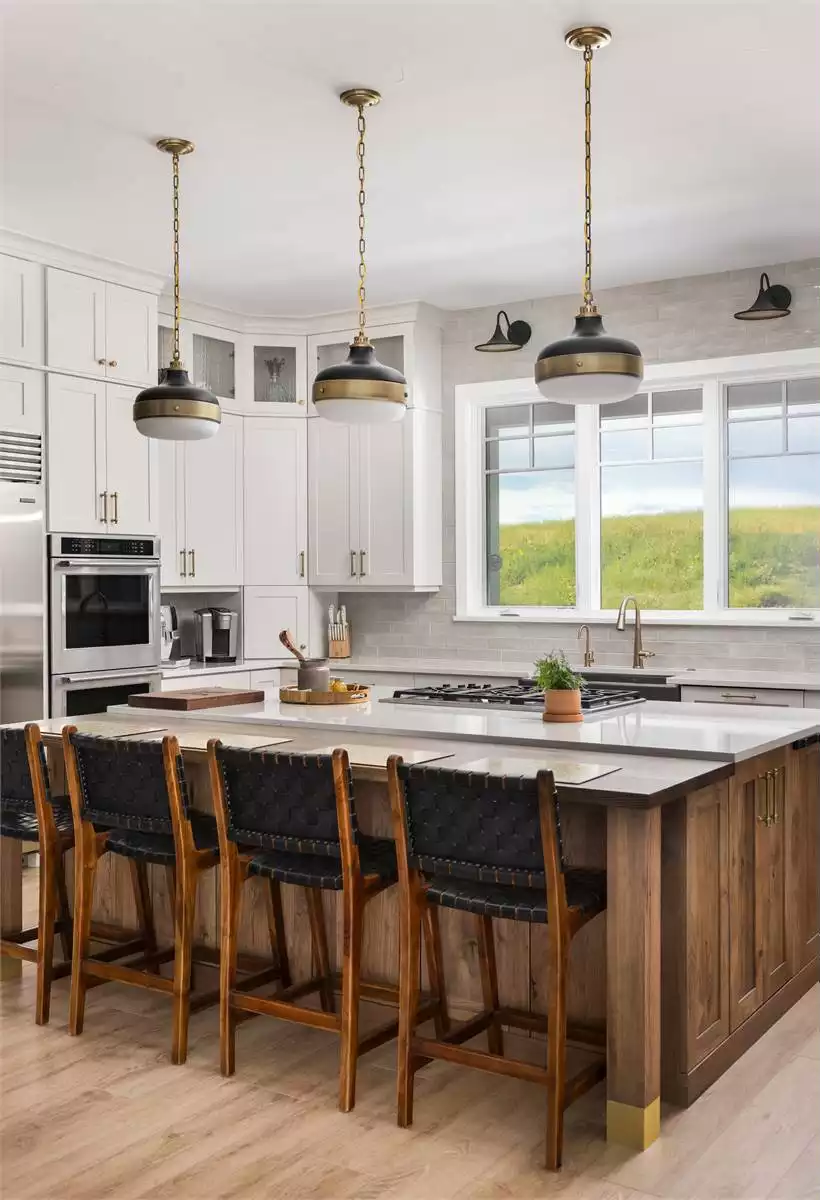

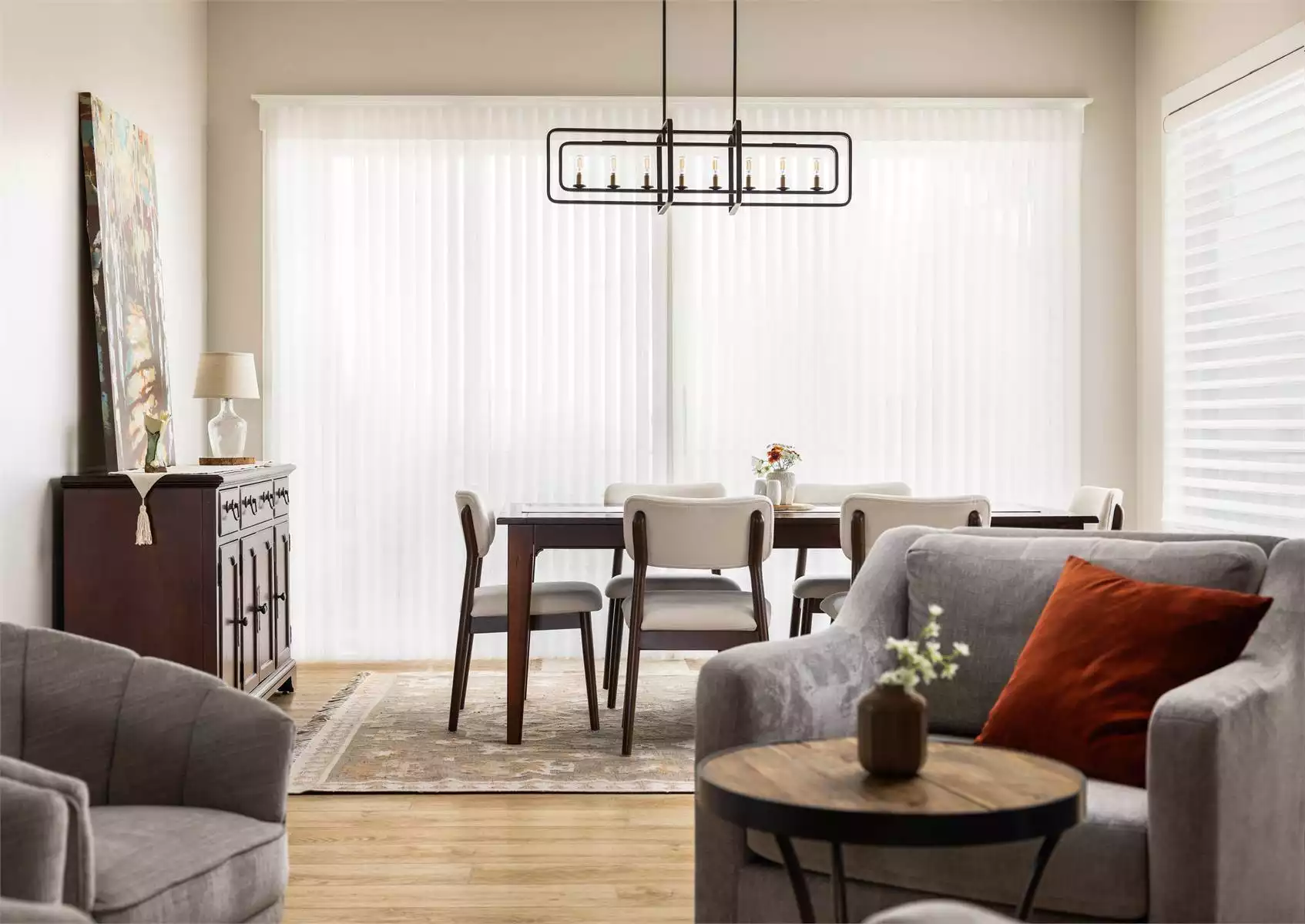

If you're looking for a country-style lake house with traditional charm, let us introduce you to House Plan 10809! This gorgeous 3,739-square-foot design impresses with four bedrooms and three-and-a-half baths across two stories, but that's only the beginning. Just look at all that outdoor living space across the wraparound porch, screened porch, and back decks! There's also more potential in the walkout basement, which allows you to add another bedroom suite and additional common space. But let's start from the beginning, the thoughtfully designed foyer area. It's flanked by an office and a bedroom suite perfectly suited to guests. Step farther in and you'll come to the informal sitting area beside the island kitchen. The sitting area shares a two-sided fireplace with the vaulted family room on the other side, which has a more formal feel. There's also a dining room in back for sit-down meals. The rear hallway has the laundry/mudroom that connects to the two-car garage, the powder room, and the luxurious primary suite. The primary bedroom has a vaulted ceiling and a fireplace while its spacious bathroom boasts dual vanities, a tub beside bow windows, a stall shower, a private toilet closet, and a walk-in closet. Upstairs, the kids will enjoy two bedrooms that share a hall bath and a loft area between them. With this amazing layout, this home is perfect for year-round or vacation living!

See All Plan Options


FEATURES & DETAILS

Kitchen features
Kitchen Island
L-Shaped
Walk-in Pantry
Bedroom features
Double Vanity Sink
Guest Suite
Primary Bdrm Main Floor
Separate Tub and Shower
Split Bedrooms
Walk-in Closet
Exterior features
Covered Front Porch
Covered Rear Porch
Deck
Rear Porch
Screened Porch/Sunroom
Wraparound Porch
Lot Options
Suited for view lot
Additional features
Dining Room
Family Room
Fireplace
Formal LR
Foyer
Home Office
Laundry 1st Fl
Mud Room
Open Floor Plan
Unfinished Space
Vaulted Ceilings
Vaulted Great Room/Living
Garage Location
Side
Garage Options
Attached
Front-entry
8,939 Ft
2
Total Structure
3,739 Ft
2
Total Heated
2,941 Ft
2
1st Floor
798 Ft
2
2nd Floor
1,189 Ft
2
Lower Floor
1,752 Ft
2
Basement Unfinished
4
Bedrooms
3.5
Bathrooms
2
Garage
2
Stories
104' 0"
Width
88' 0"
Depth
28' 5"
Height
10' 0"
Main Floor Ceiling
8' 0"
Upper Floor Ceiling
10' 0"
Lower Floor Ceiling
2x6
Framing
Truss
Roof Framing
9/12
Primary Roof Pitch
3/12
Secondary Roof Pitch
Single
Dwelling Number
None
Bonus Access

Unheated Living Space
903 Ft
2
Garage
1,356 Ft
2
Porch


Plan Package Options

 Select Plan Package
Sale: $1,872
PDF Single Build
$2,400

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

Sale: $1,872
Sale: $2,691
PDF Unlimited Build
$3,450

Digital plans with an unlimited build license emailed in PDF format, that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators and more

Sale: $2,691
Sale: $3,042
CAD + PDF Single Build
$3,900

CAD files are a complete set of construction drawings delivered electronically. They can be used for any type of modification—including major design changes and engineering—and include a release granting permission to modify the plan. Most CAD plan orders are emailed the same or next business day.

This package also comes with a PDF set of plans and a copyright release for making modifications and printing unlimited copies.

CAD files are provided in .dwg format. For details on the specific CAD program used, please refer to the PLAN DETAILS section located above the floor plan on each plan’s page.

Sale: $3,042
Sale: $4,446
CAD Unlimited Build
$5,700
CAD files are a complete set of construction drawings delivered electronically. They can be used for any type of modification—including major design changes and engineering—and include a release granting permission to modify the plan. Most CAD plan orders are emailed the same or next business day. CAD files are provided in .dwg format. For details on the specific CAD program used, please refer to the PLAN DETAILS section located above the floor plan on each plan’s page.
Sale: $4,446
 Need To Reverse Plan? (Optional)
$245
Readable Reverse

Reverse house plans with readable text and dimensions

$245
  Select Foundation Option
  Add-Ons (Optional)
INCLUDED WITH YOUR PURCHASE

Free Ground shipping in the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your plan

Home Building & Product Ideas Organizer

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractors, and/or local engineers.
