Recently Viewed Plans | Advanced Plan Search

Sq Ft
2,680 FT²

Beds
3

Baths
2.5

Stories
1.5

Garage
3

Depth
53' 11"

Width
88' 6"

On Sale
$1,142.70
$1,465.00

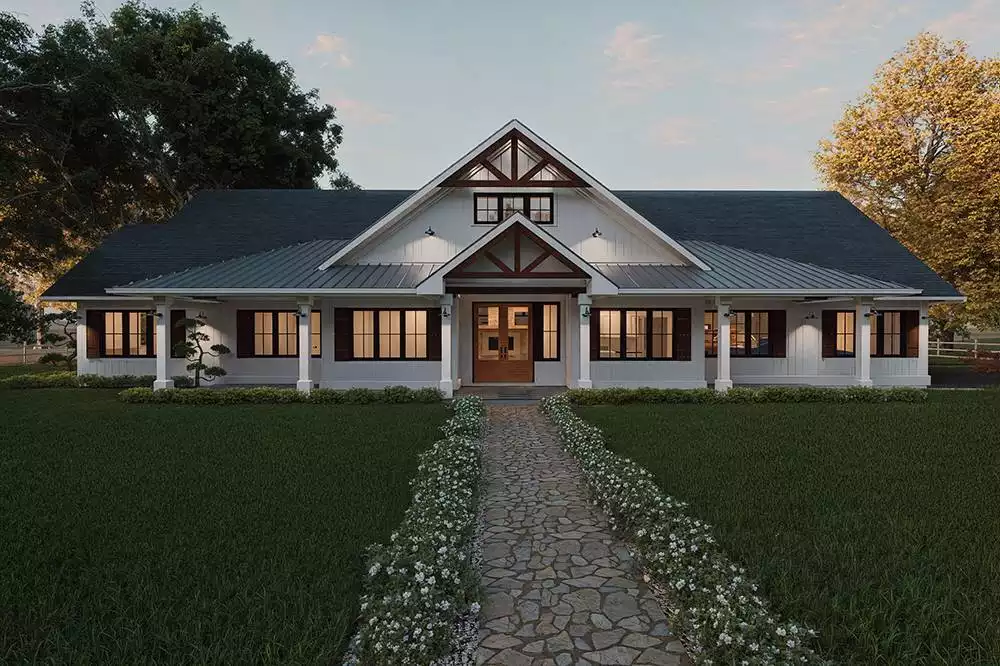

Front View

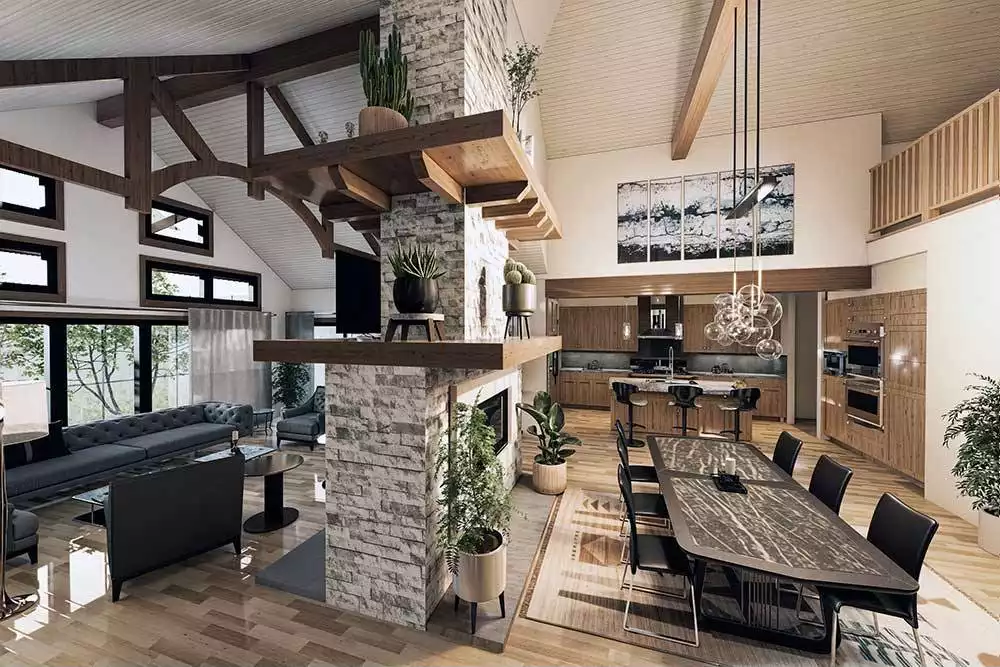

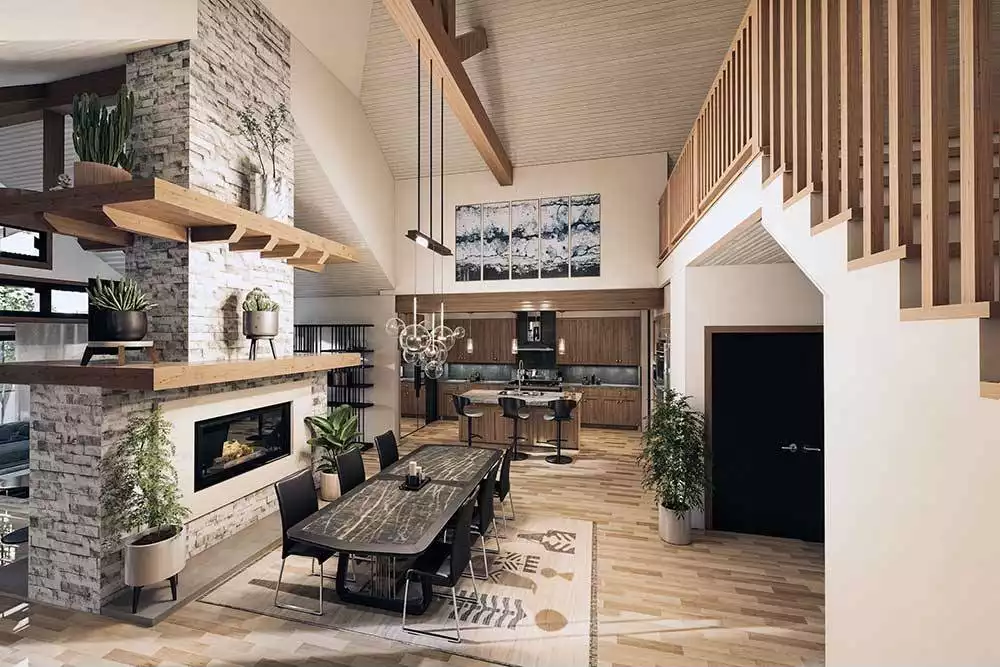

Kitchen and Dining

Great Room

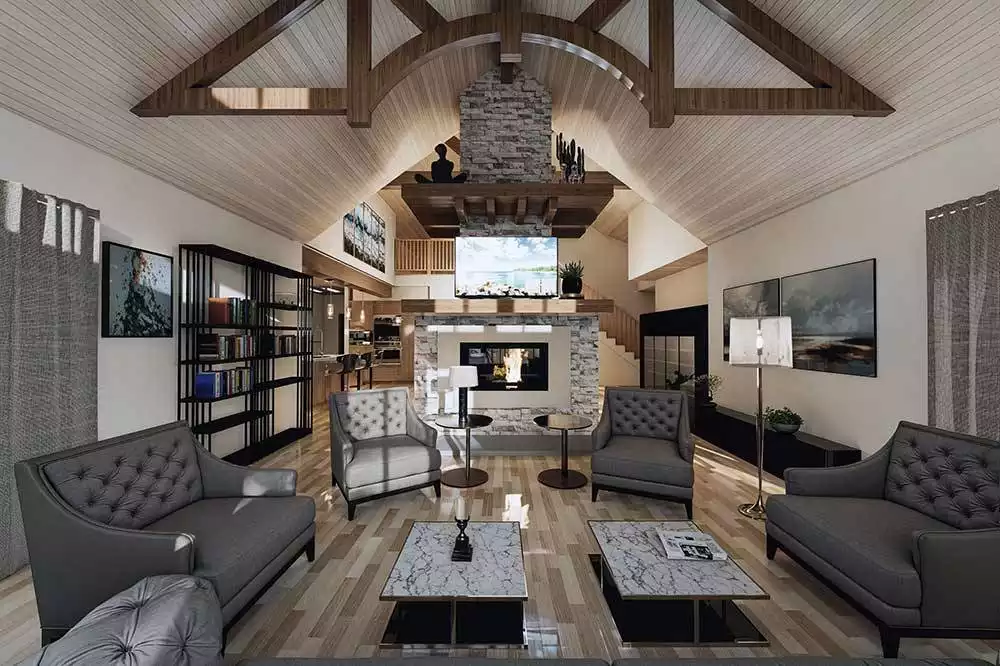

Living Room

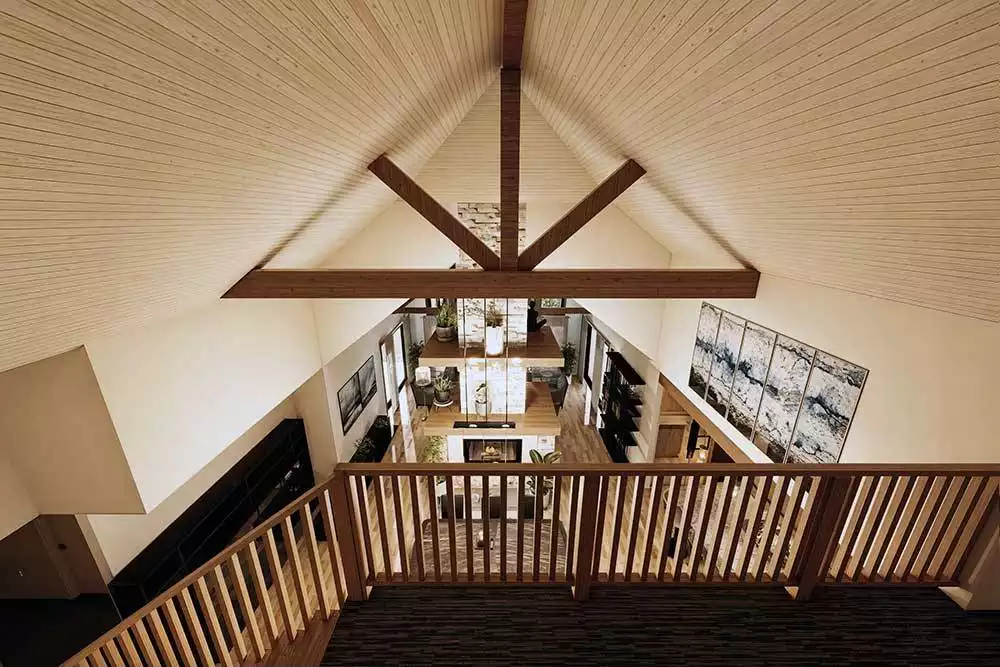

Loft

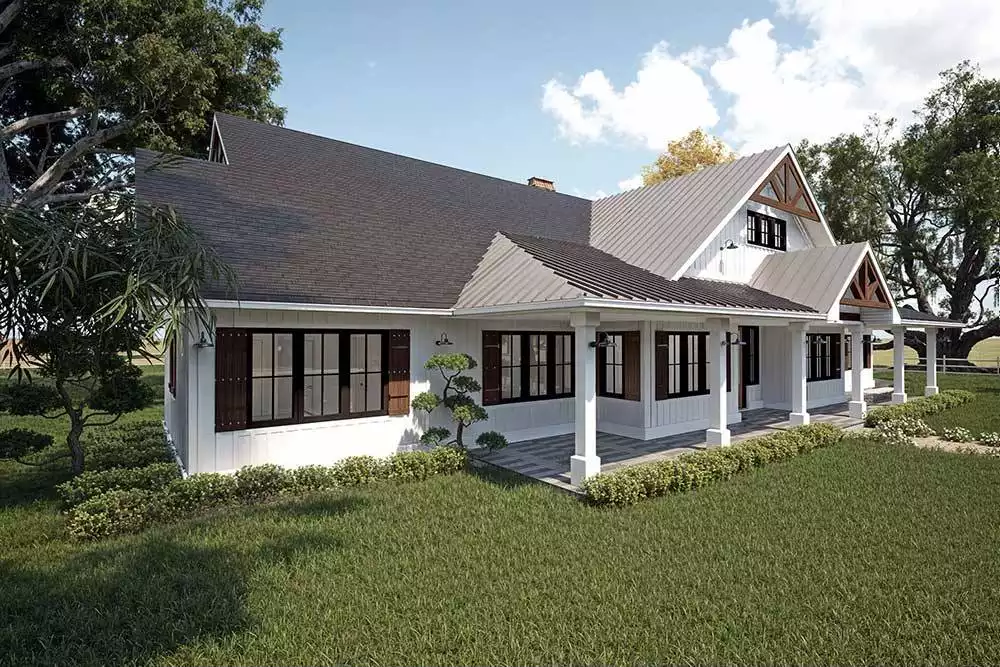

Side View

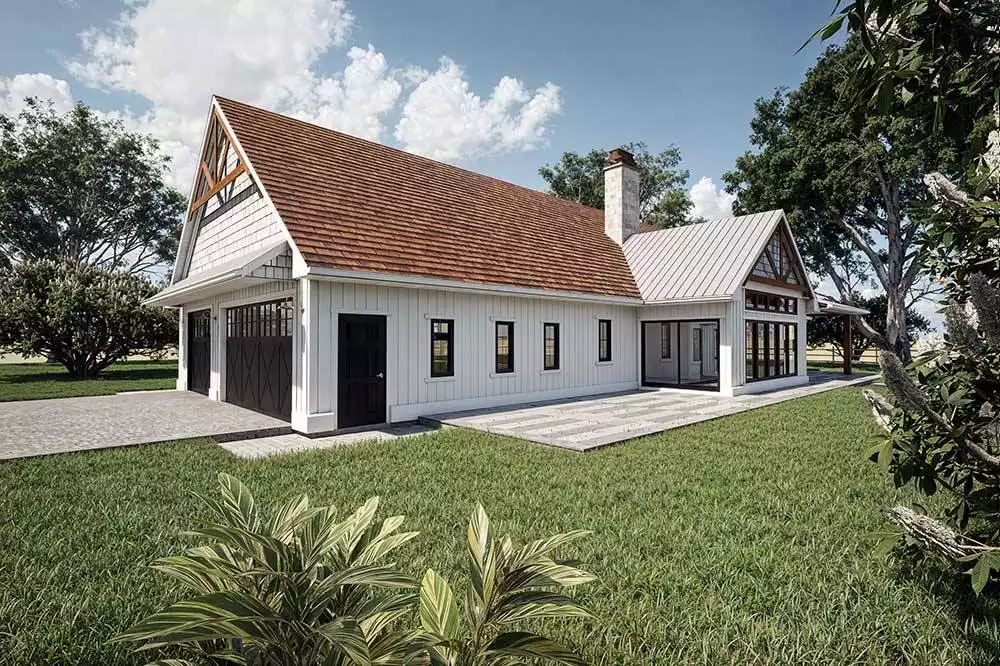

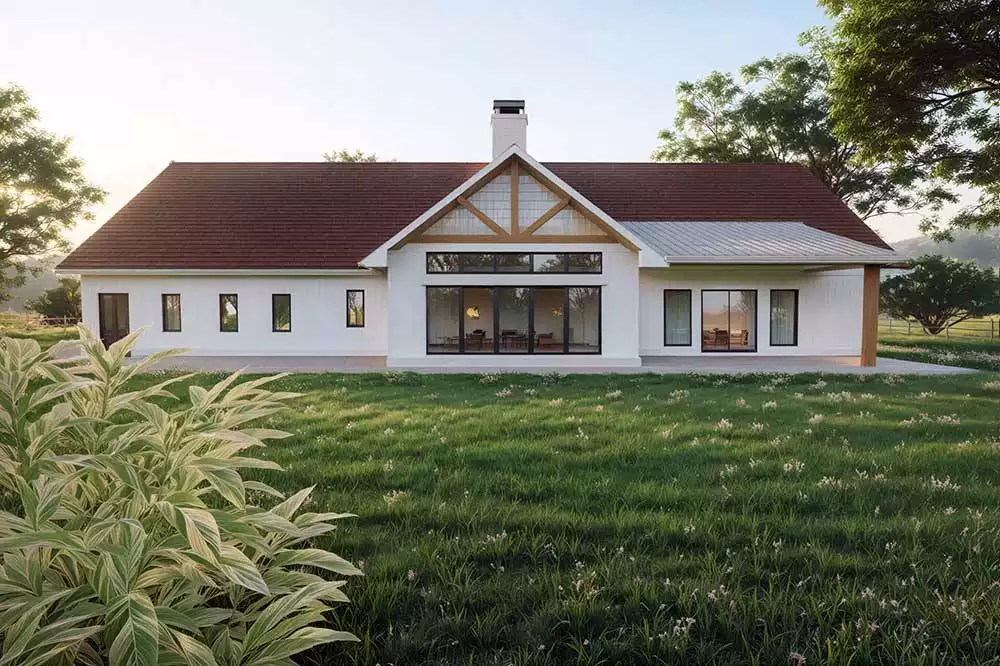

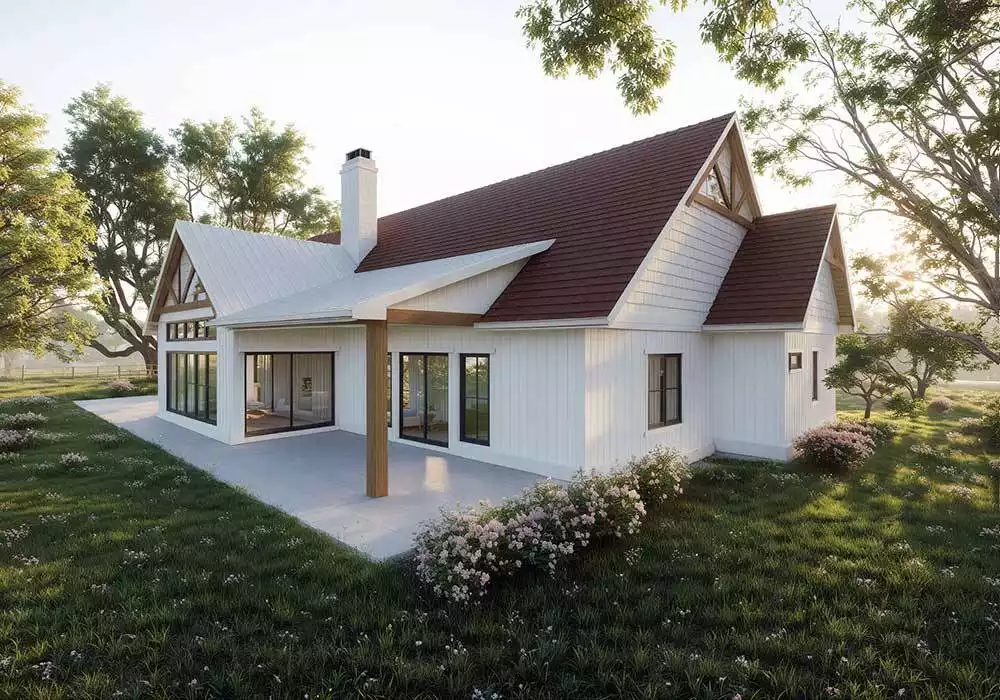

Rear View

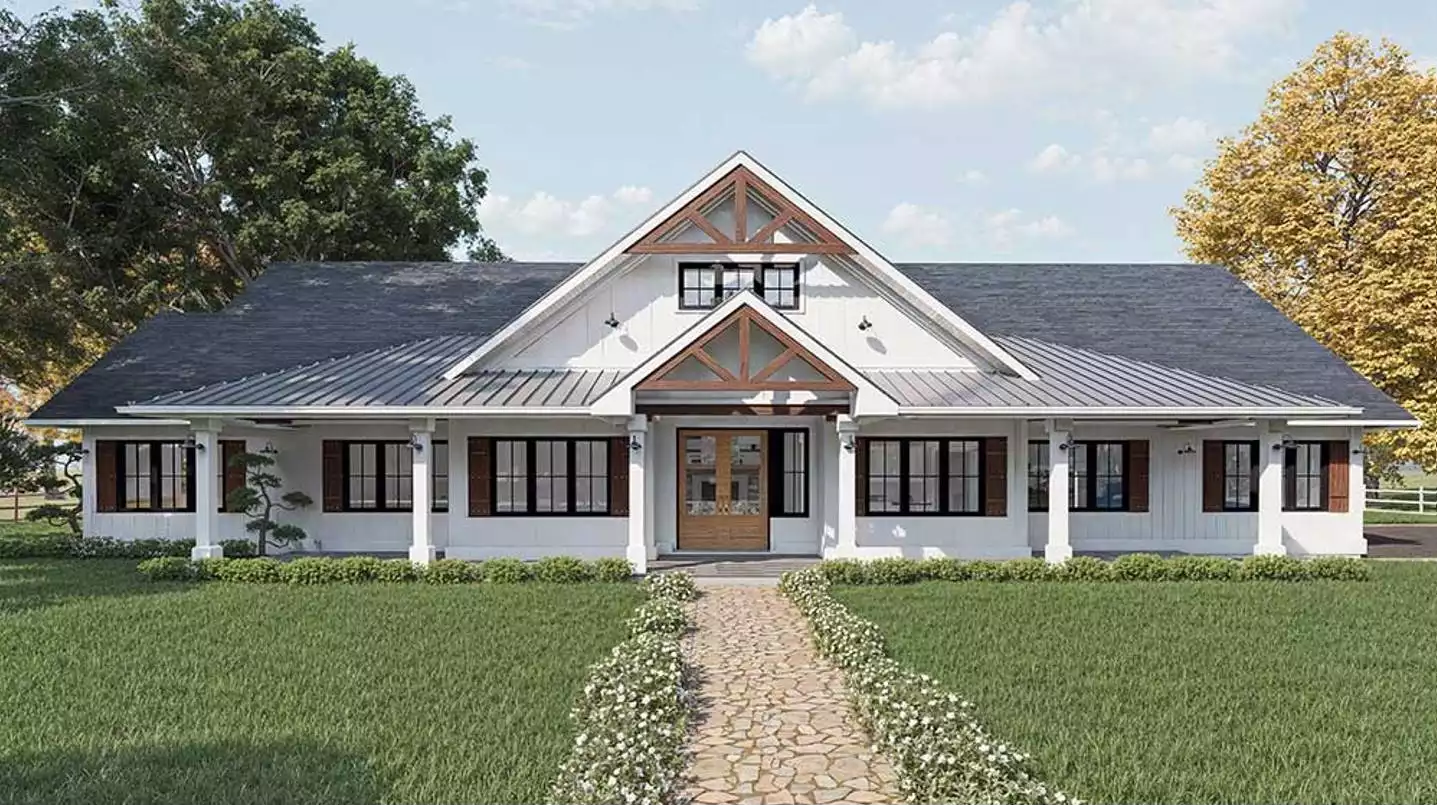

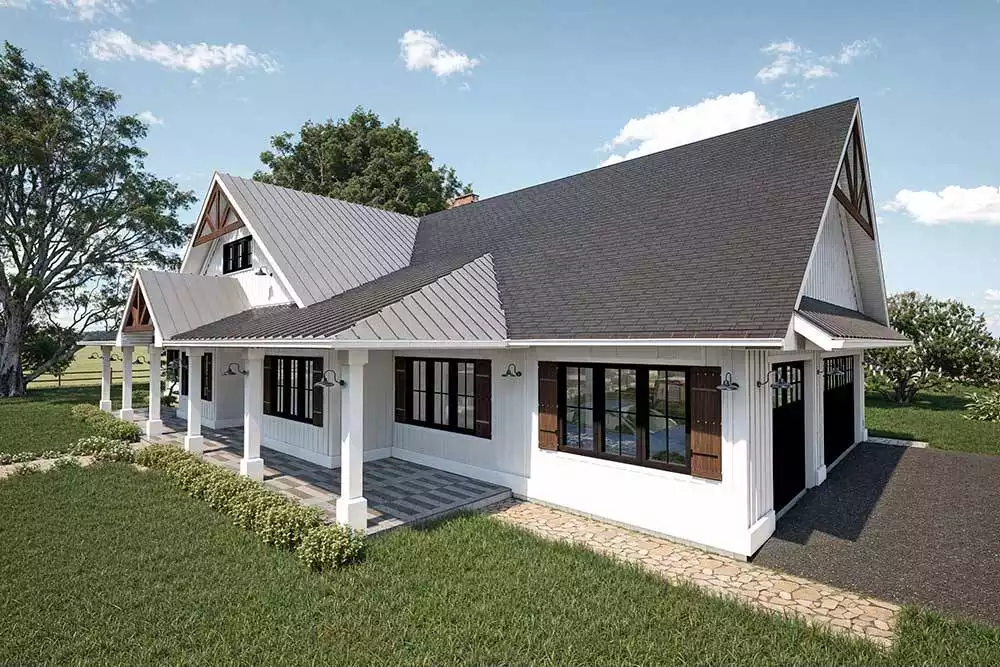

Front View

Side View

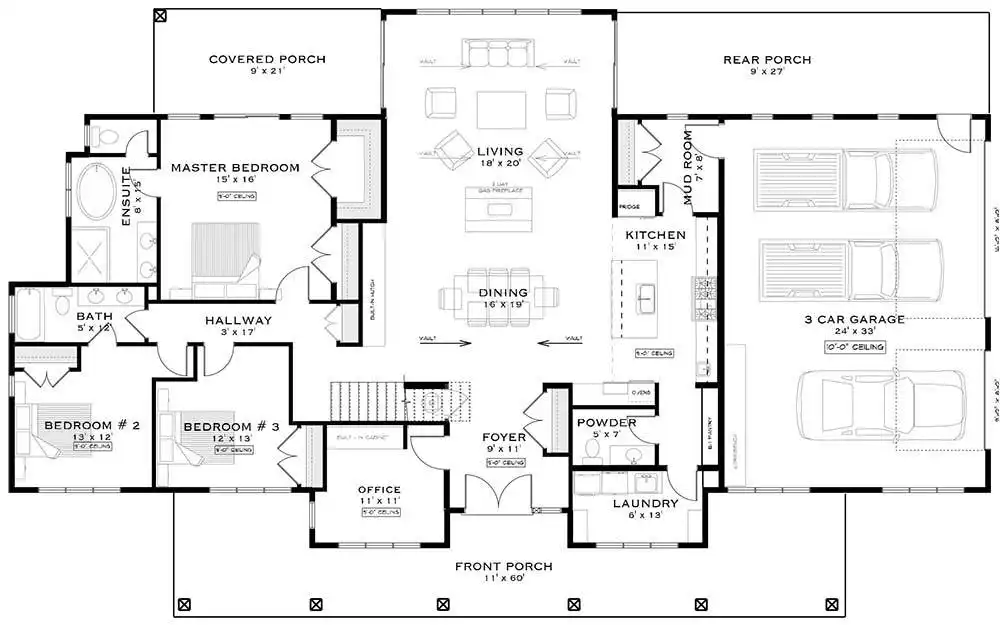

1st Floor

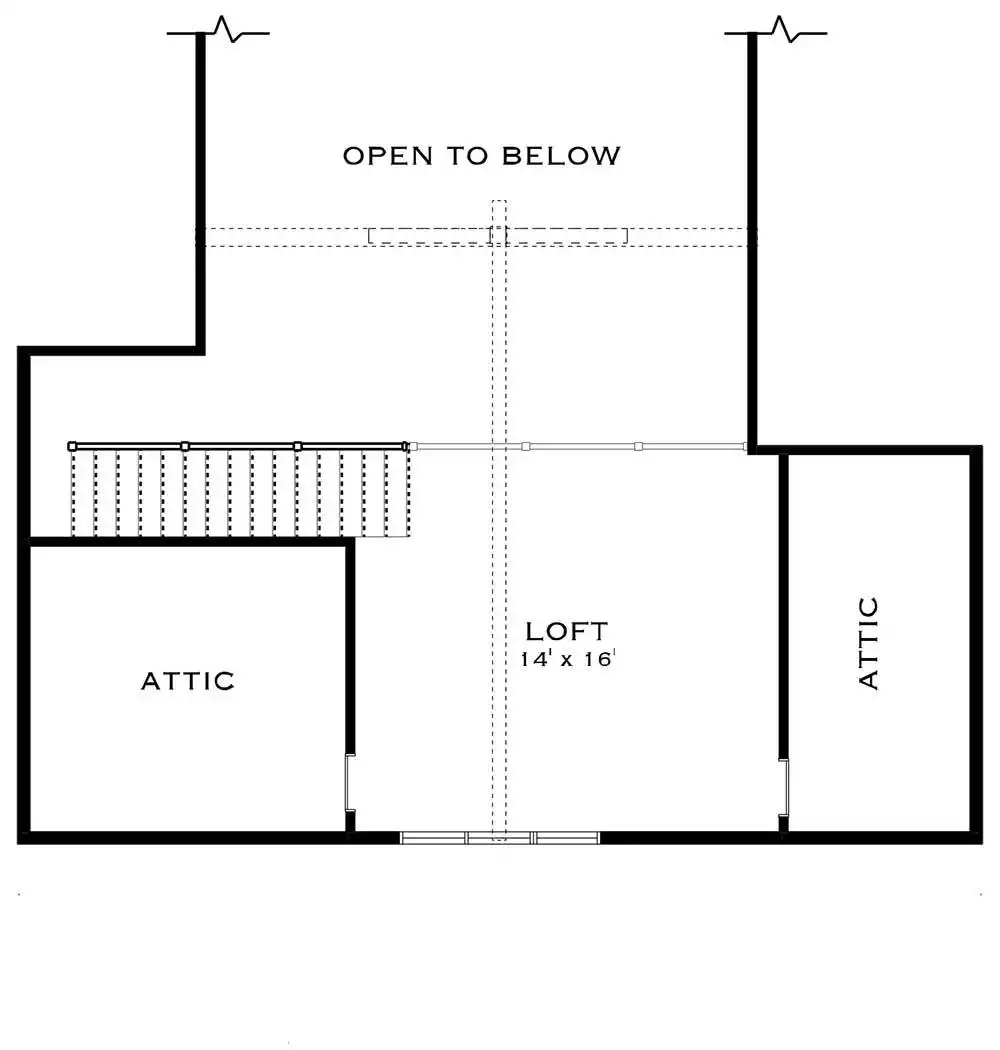

2nd Floor

View All 13 Images | Photographs may reflect modified home

Sq Ft

2,680 FT²

From

$1,142.70

Beds

Baths

2.5

Stories

1.5

Garage

Depth

53' 11"

Width

88' 6"

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

1st Floor

2nd Floor

1st Floor

2nd Floor

About This Plan

Whether you're shopping for a year-round or vacation home with rustic charm to complement your natural lot, House Plan 10616 could be the perfect fit! This main-level-focused design of 2,680 square feet offers three bedrooms and two-and-a-half baths in a traditional layout. The floor plan welcomes you in with an office off the foyer before leading to the country kitchen. The U-shaped island kitchen sits beside the dining space for an eat-in feel. The laundry room and powder room are on one side while the mudroom to the three-car garage is on the other. The living area in back has tons of windows and is separated from the dining room by a two-sided fireplace. A gorgeous cathedral vaulted ceiling spans the living and dining, too! All the bedrooms--including a five-piece primary suite and two that share a hall bath--are grouped together in the side hallway. As for the second level, head up the stairs and you'll find a loft that overlooks the common spaces. Just imagine how you could make this beautiful home your own!

See All Plan Options

FEATURES & DETAILS

Kitchen features

Country Kitchen
Kitchen Island
U-Shaped

Bedroom features

Double Vanity Sink
Family Style
His and Hers Primary Closets
Primary Bdrm Main Floor
Separate Tub and Shower
Walk-in Closet

Exterior features

Covered Front Porch
Covered Rear Porch
Rear Porch

Lot Options

Suited for corner lot
Suited for view lot

Additional features

Dining Room
Fireplace
Foyer
Great Room
Home Office
Laundry 1st Fl
Mud Room
Open Floor Plan
Vaulted Ceilings
Vaulted Great Room/Living
Workshop

Garage Location

Side

Garage Options

Attached
Side-entry

4,773 Ft

Total Structure

2,680 Ft

Total Heated

2,439 Ft

1st Floor

241 Ft

2nd Floor

Bedrooms

2.5

Bathrooms

Garage

1.5

Stories

88' 6"

Width

53' 11"

Depth

24' 7"

Height

9' 0"

Main Floor Ceiling

8' 0"

Upper Floor Ceiling

Vaulted' 0"

Living/Great Room Ceiling

9' 0"

Foyer Ceiling

9' 0"

Primary Ceiling

2x4

Framing

Combination

Roof Framing

10/12

Primary Roof Pitch

9/12

Secondary Roof Pitch

4/12

Porch Roof Pitch

Single

Dwelling Number

None

Bonus Access

Unheated Living Space

838 Ft

Garage

1,255 Ft

Porch

217 Ft

Front Porch

1,038 Ft

Rear Porch

Exterior Styles

Collections

Plan Package Options

Important info before you buy

Select Plan Package

Sale: $1,143

PDF Single Build

~~$1,465~~

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

Sale: $1,143

Sale: $1,455

CAD + PDF Single Build

~~$1,865~~

CAD files are a complete set of construction drawings delivered electronically. They can be used for any type of modification—including major design changes and engineering—and include a release granting permission to modify the plan. Most CAD plan orders are emailed the same or next business day.

This package also comes with a PDF set of plans and a copyright release for making modifications and printing unlimited copies.

CAD files are provided in .dwg format. For details on the specific CAD program used, please refer to the PLAN DETAILS section located above the floor plan on each plan’s page.

Sale: $1,455

Sale: $1,689

PDF Unlimited Build

~~$2,165~~

Digital plans with an unlimited build license emailed in PDF format, that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators and more

Sale: $1,689

Sale: $1,923

CAD + PDF Unlimited Build

~~$2,465~~

CAD files are a complete set of construction drawings delivered electronically. They can be used for any type of modification—including major design changes and engineering—and include a release granting permission to modify the plan. Most CAD plan orders are emailed the same or next business day.

This package also comes with a PDF set of plans and a multi-use building license, granting permission to construct the home an unlimited number of times, along with a copyright release for making modifications and printing unlimited copies.

CAD files are provided in .dwg format. For details on the specific CAD program used, please refer to the PLAN DETAILS section located above the floor plan on each plan’s page.

Sale: $1,923

Need To Reverse Plan? (Optional)

$245

Readable Reverse

Reverse house plans with readable text and dimensions

$245

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractors, and/or local engineers.
