Sq Ft
1,656 FT²

Beds
3

Baths
2

Stories
1

Garage
1

Depth
46'

Width
53'

From
$1,145.00

Front View

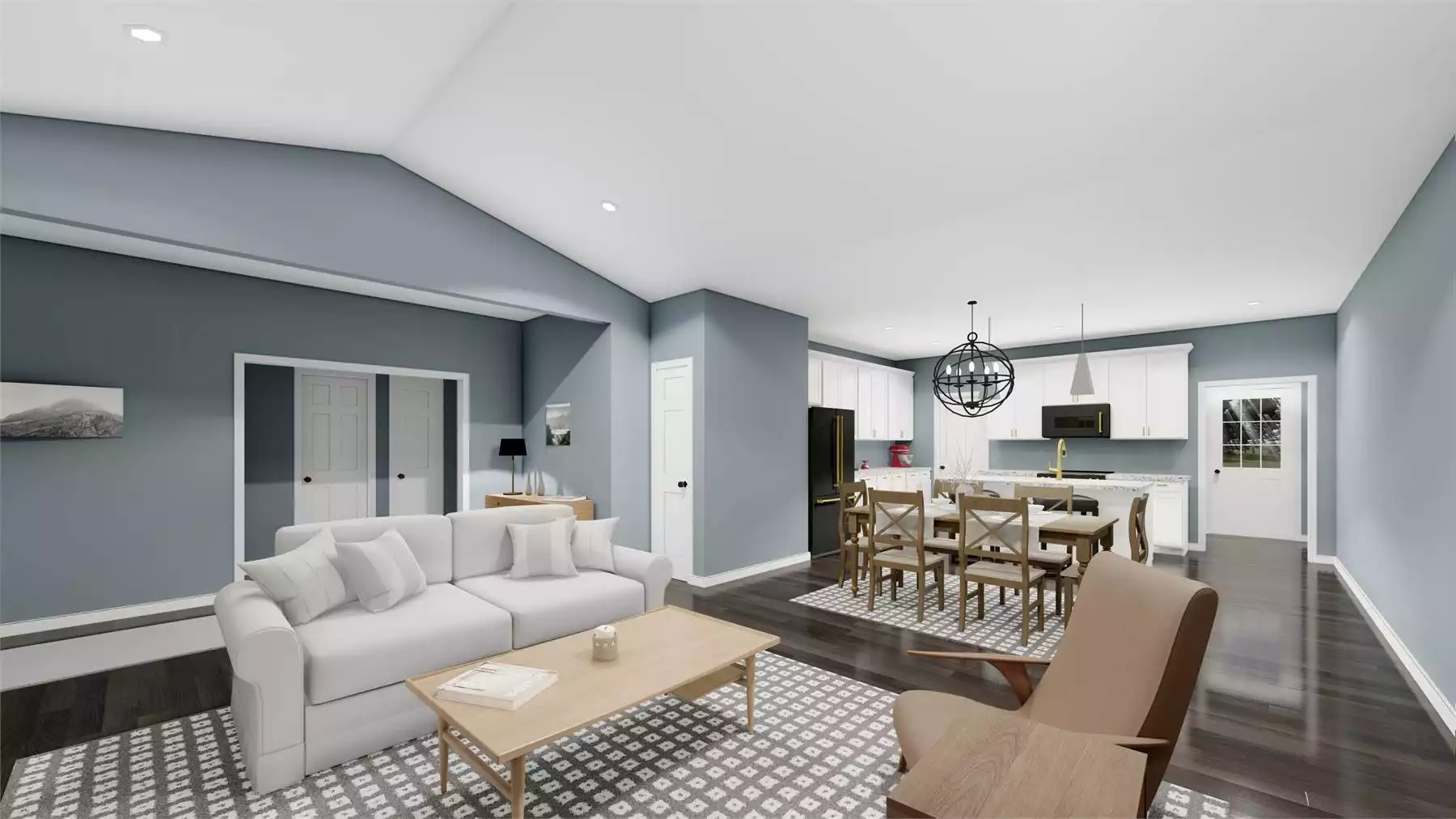

Entry and Living Area

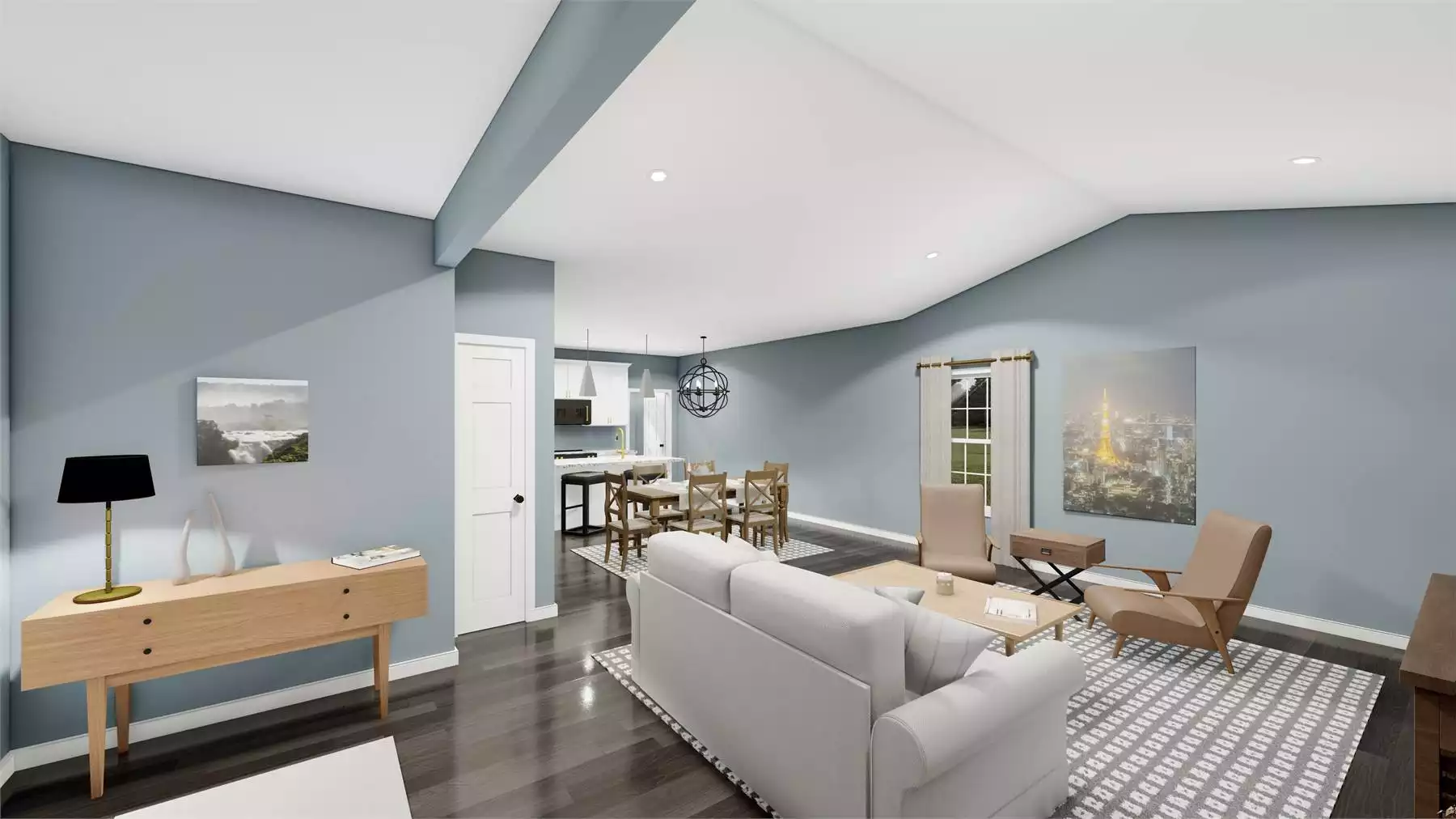

Great Room

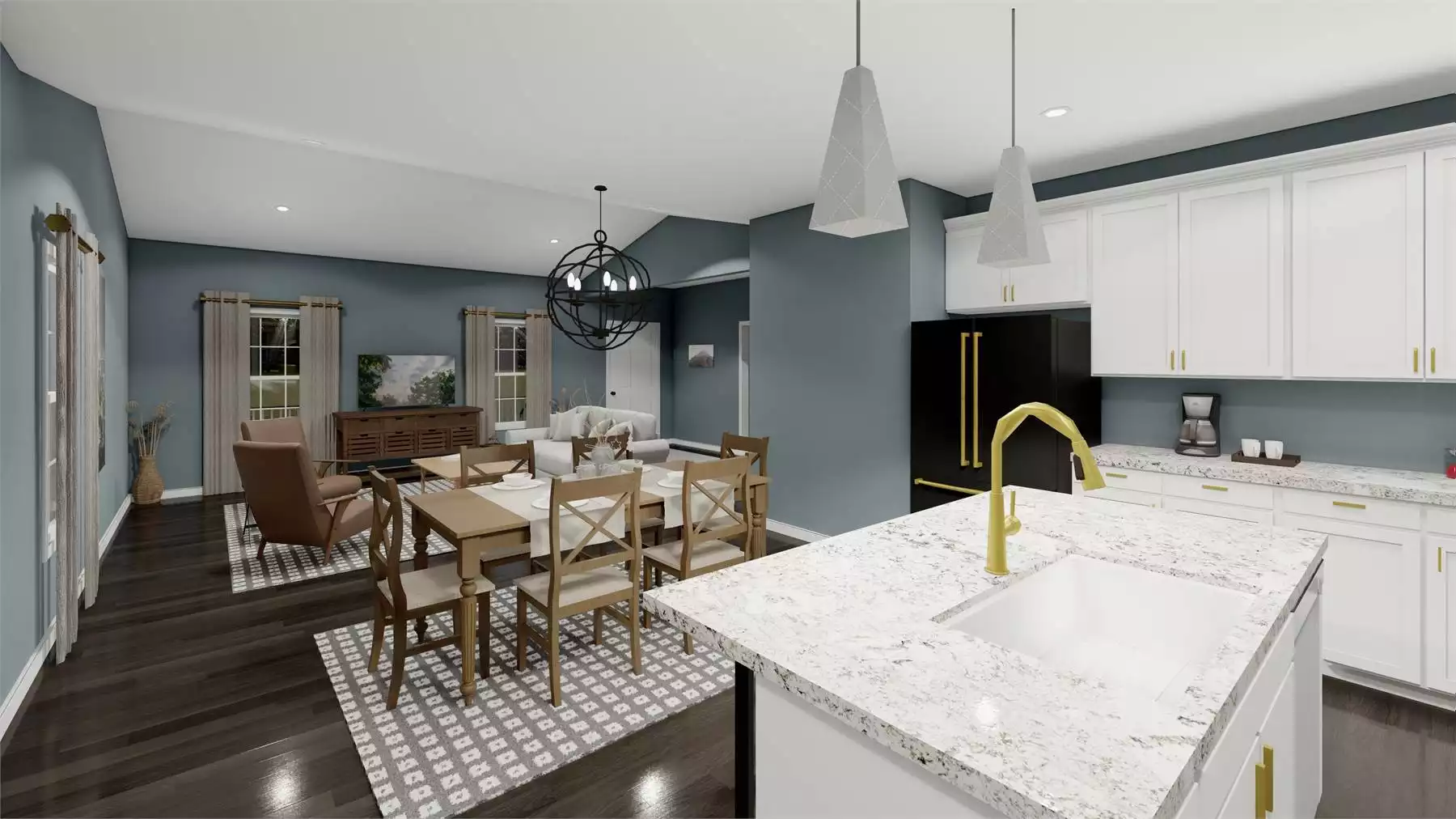

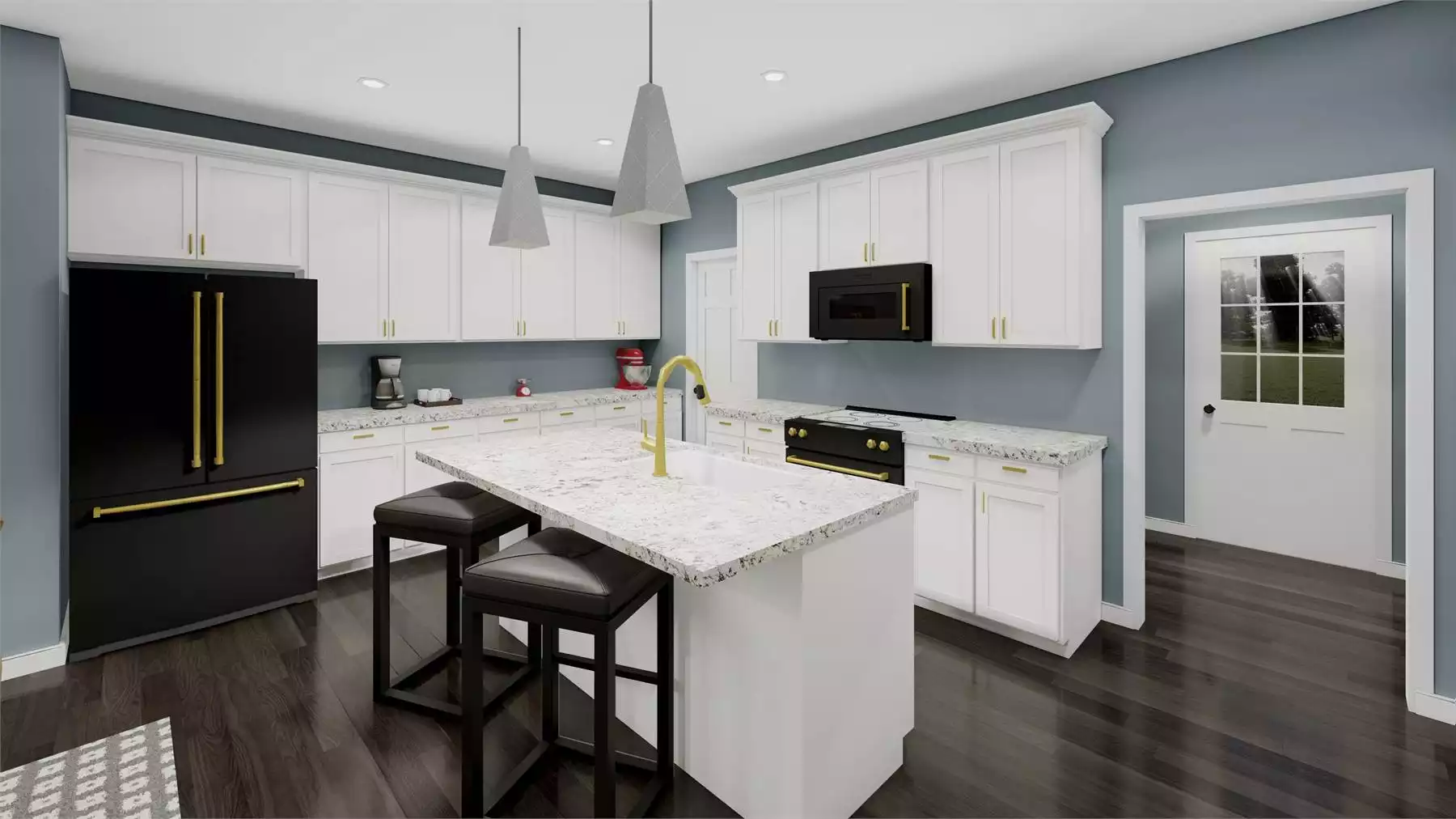

Kitchen

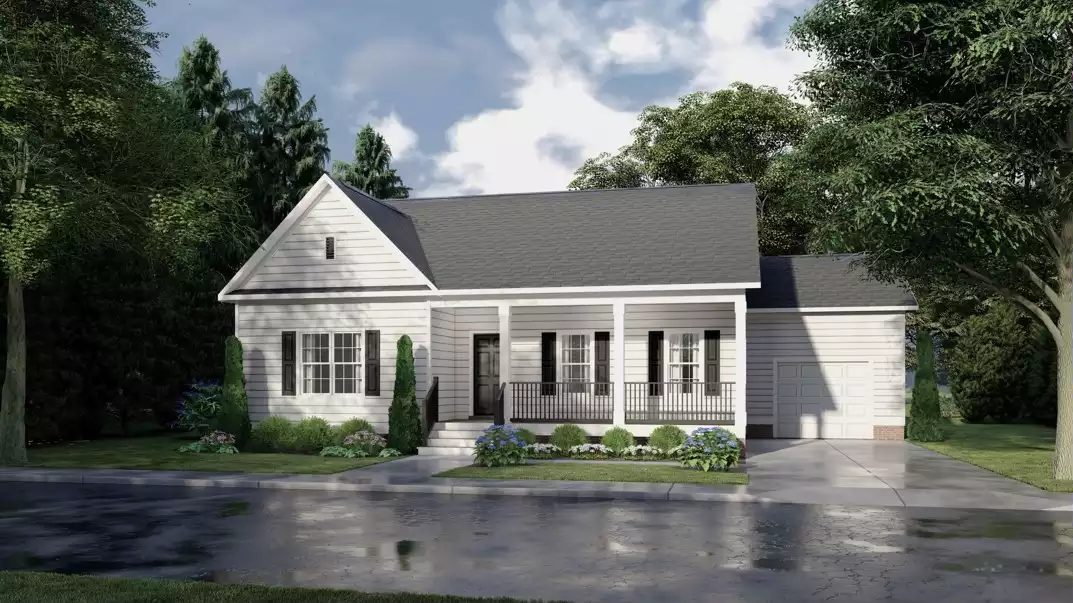

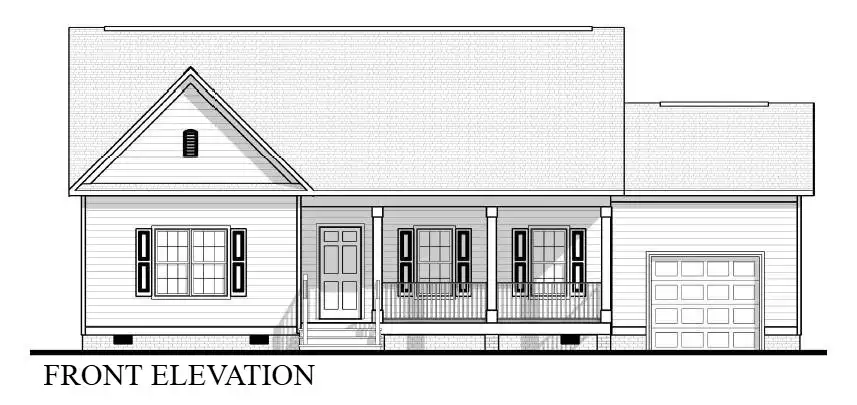

Front View

Right View

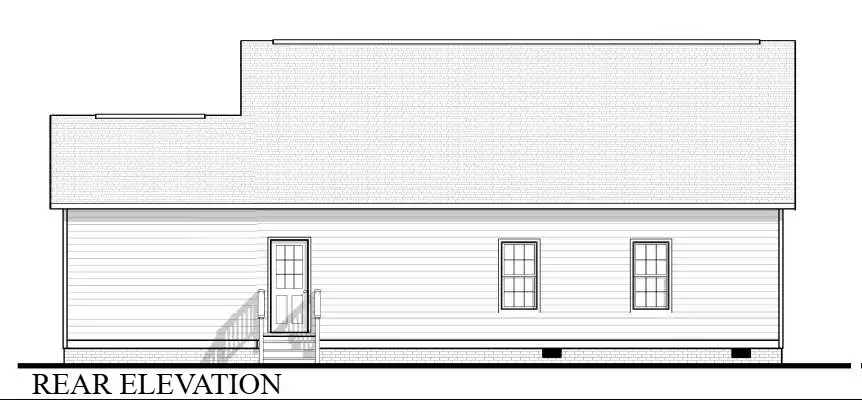

Rear View

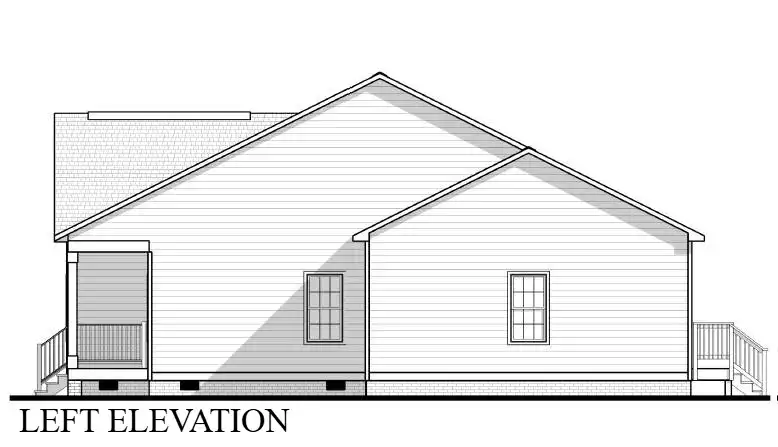

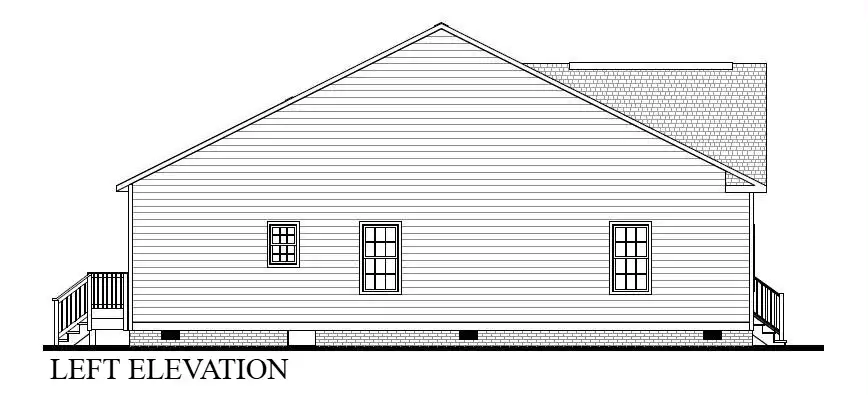

Left View

1st Floor

View All 11 Images | Photographs may reflect modified home

Sq Ft

1,656 FT²

From

$1,145.00

Beds

Baths

Stories

Garage

Depth

46'

Width

53'

Modify

Cost Estimator

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

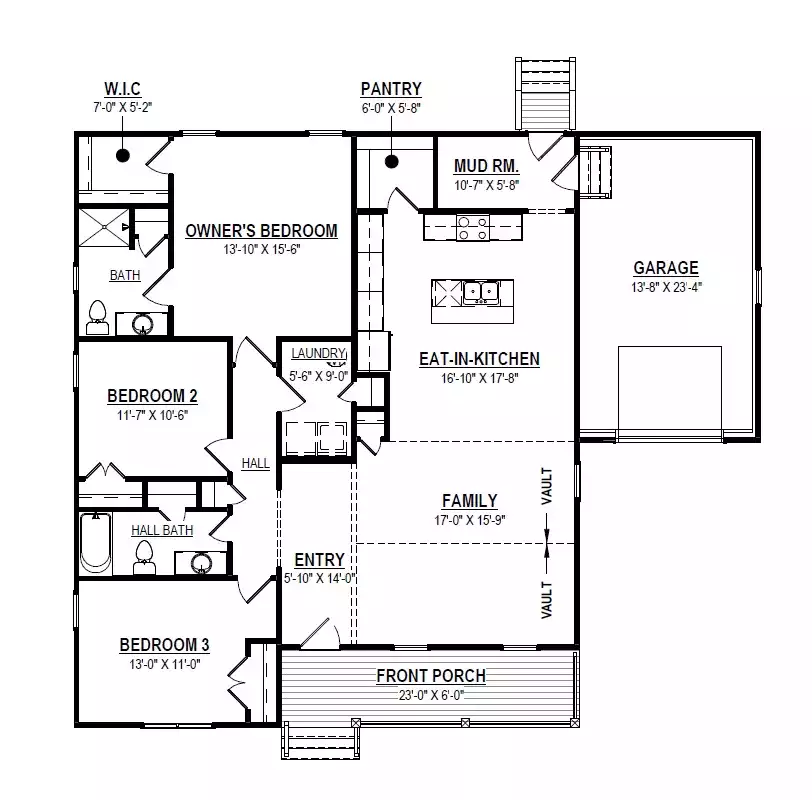

1st Floor

About This Plan

House Plan 10789 is a traditional country ranch with 1,656 square feet, three bedrooms, and two bathrooms that is designed to serve a family well. There's also a front porch with railing for the requisite curb appeal! The floor plan places the bedrooms on one side and the living space on the other. The grouped bedrooms include a primary suite and two that share a hall bath, and the laundry room is located nearby for convenience. The living spaces place the vaulted family room in front, dining area in the middle, and island kitchen in back. There's also a mudroom behind the kitchen that connects to the one-car garage!

See All Plan Options

FEATURES & DETAILS

Kitchen features

Kitchen Island
L-Shaped
Walk-in Pantry

Bedroom features

Family Style
Primary Bdrm Main Floor
Walk-in Closet

Exterior features

Covered Front Porch

Additional features

Family Room
Great Room
Laundry 1st Fl
Mud Room
Open Floor Plan
Vaulted Ceilings
Vaulted Great Room/Living

Garage Location

Side

Garage Options

Attached
Front-entry

2,130 Ft

Total Structure

1,656 Ft

Total Heated

Bedrooms

Bathrooms

Garage

Stories

53' 0"

Width

46' 0"

Depth

21' 6"

Height

9' 0"

Main Floor Ceiling

2x4

Framing

Truss

Roof Framing

6/12

Primary Roof Pitch

12/12

Secondary Roof Pitch

Single

Dwelling Number

None

Bonus Access

Unheated Living Space

336 Ft

Garage

138 Ft

Front Porch

Exterior Styles

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$1,145

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,145

$1,345

CAD + PDF Single Build

$1,345

$1,470

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$1,470

$1,645

PDF Unlimited Build

Digital plans with an unlimited build license emailed in PDF format, that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators and more

$1,645

$1,845

CAD + PDF Unlimited Build

$1,845

Need To Reverse Plan? (Optional)

$195

Readable Reverse

Reverse house plans with readable text and dimensions

$195

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
