Sq Ft
2,537 FT²

Beds
3

Baths
2.5

Stories
1

Garage
3

Depth
72' 10"

Width
106' 5"

On Sale
$1,010.10
$1,295.00

View All 20 Images | Photographs may reflect modified home

Sq Ft

2,537 FT²

From

$1,010.10

Beds

Baths

2.5

Stories

Garage

Depth

72' 10"

Width

106' 5"

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

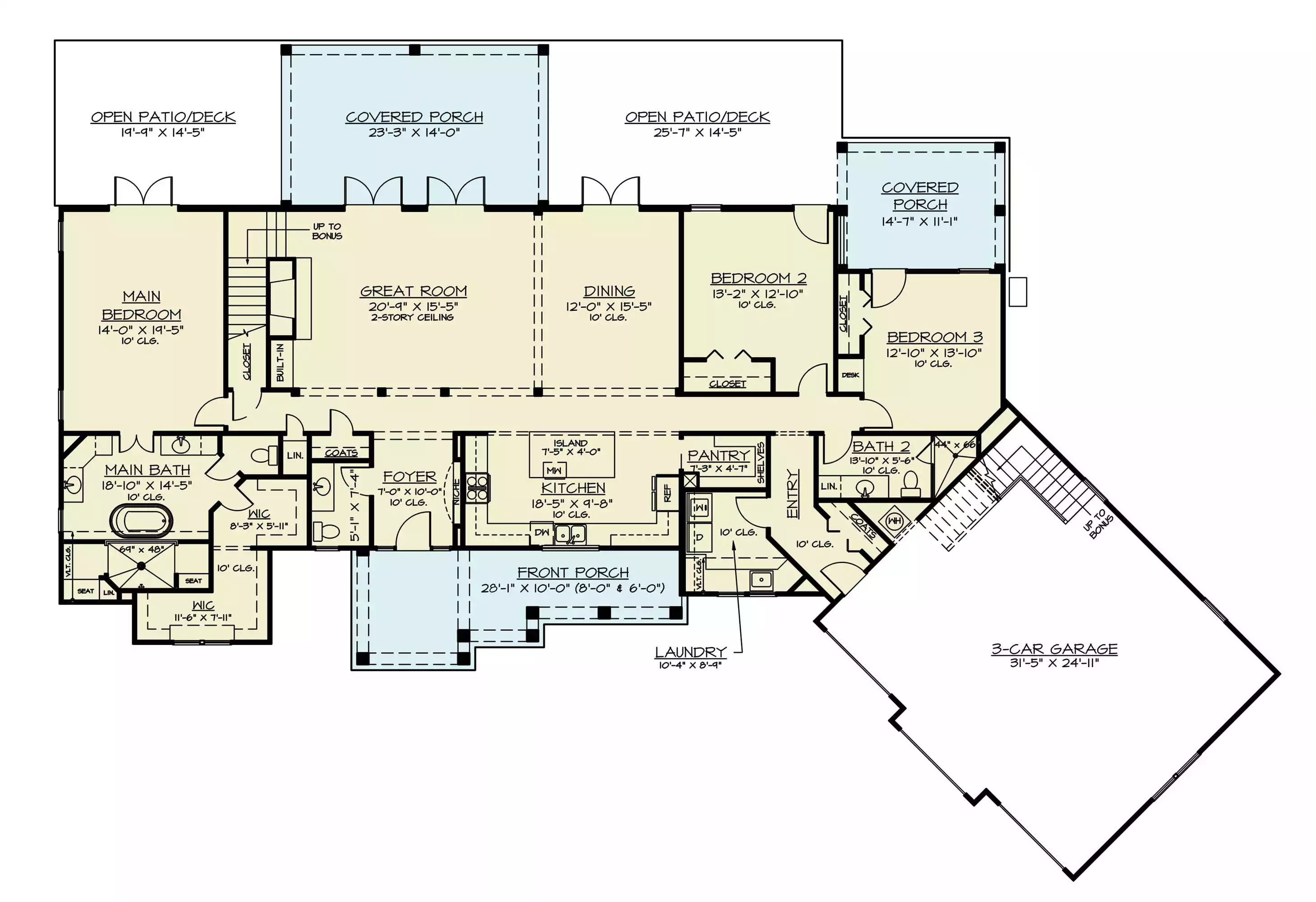

1st Floor

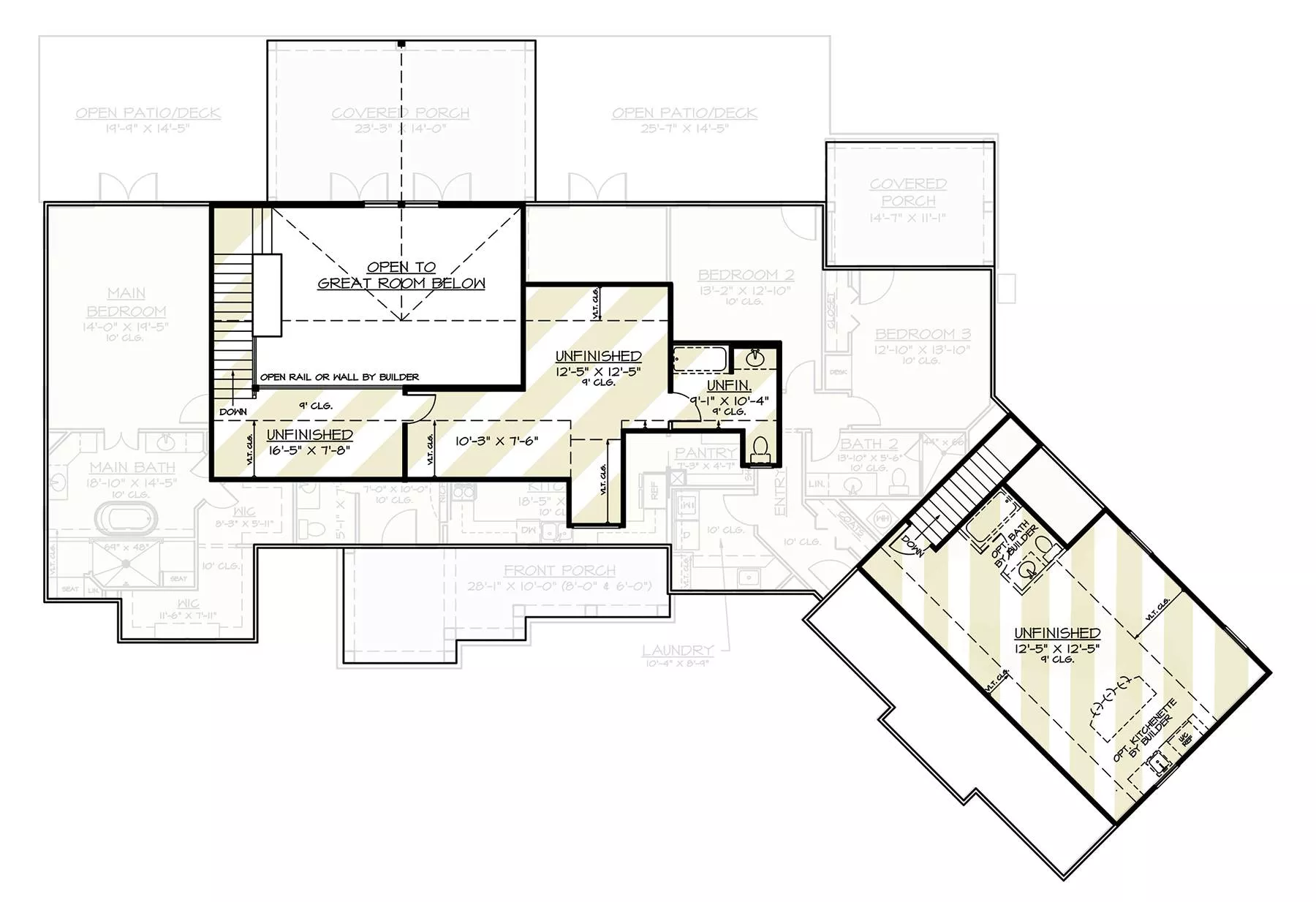

Bonus Plan

1st Floor

Bonus Plan

About This Plan

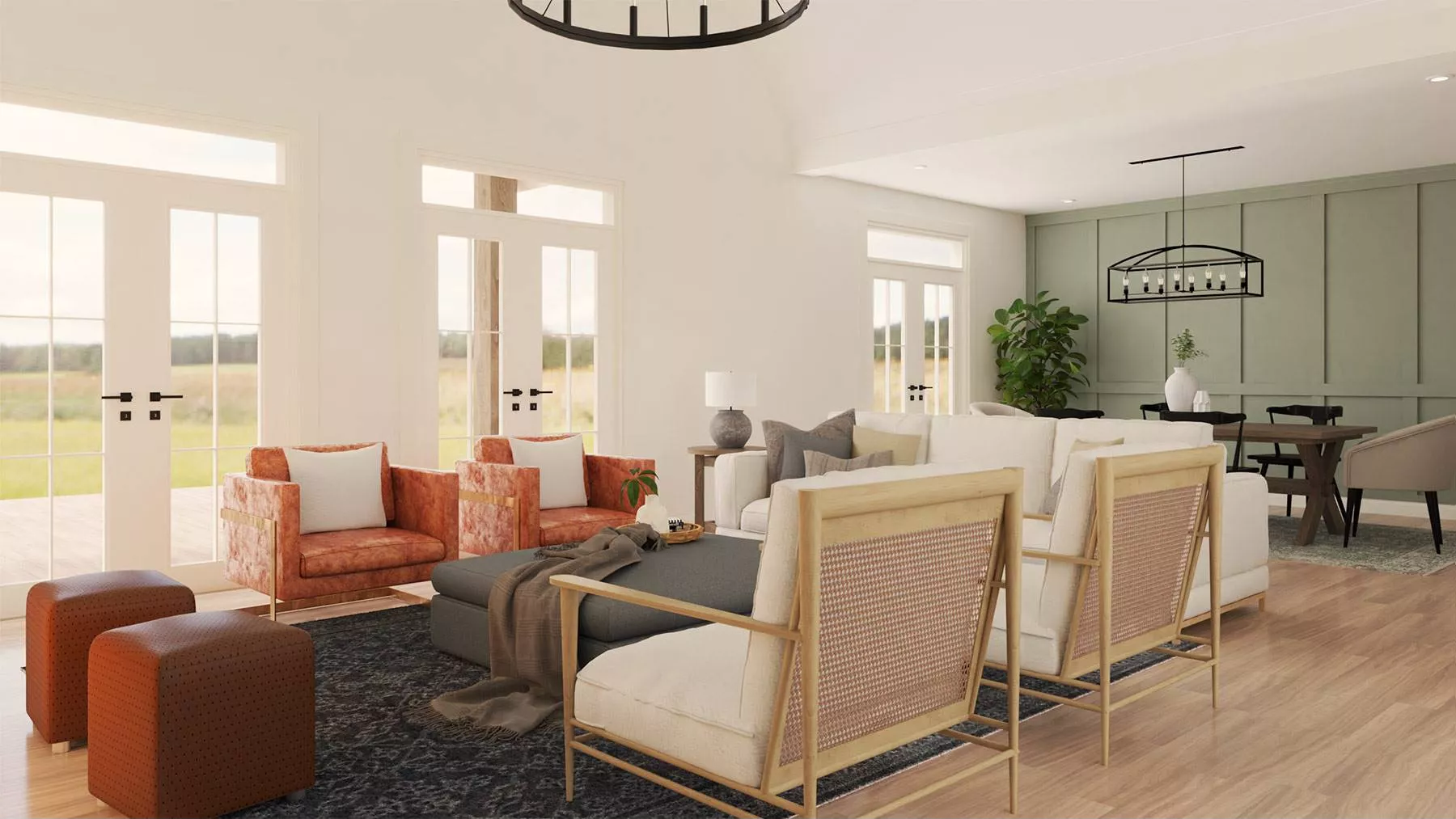

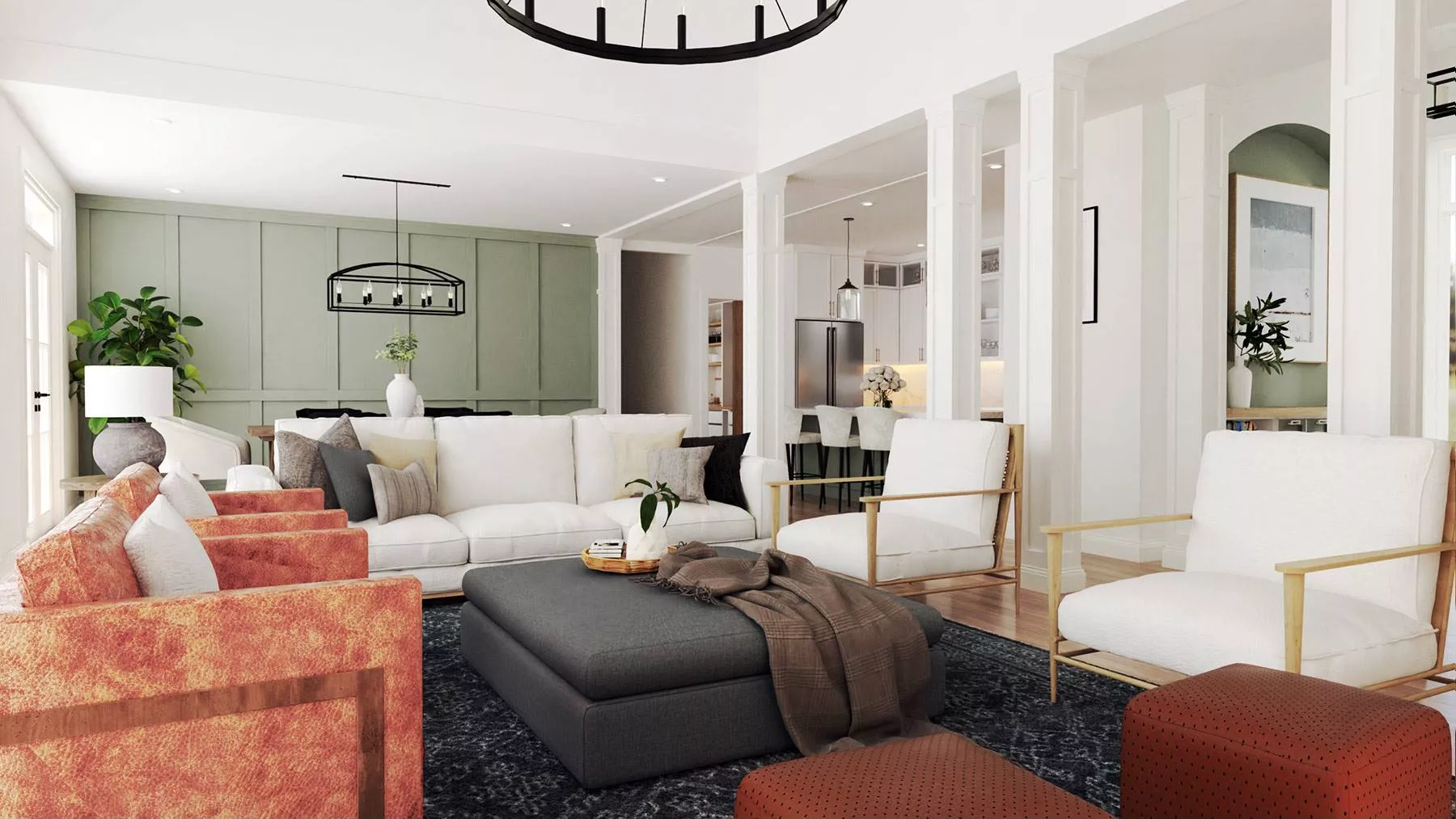

A sprawling midsize design with a lot of impact, House Plan 4686 wows with its spacious main-level-focused layout and future potential. It offers 2,537 square feet with three split bedrooms and two-and-a-half bathrooms--the perfect balance for modern families! When you step inside, the powder room is located right off the foyer and the open-concept living spaces spread through the heart of the home, with a U-shaped island kitchen in front and the dining room beside the two-story great room in back. The master suite is located on one side of the gallery hallway, and it boasts a five-piece bath and a large walk-in closet. The two secondary bedrooms are located on the other side, with a hall bath to share near the entrance from the garage and the laundry room. If you need more than this, there are distinct unfinished bonus areas over the main house and the garage just waiting for your finishing touches! House Plan 4686 has a crafty lake aesthetic and would be perfect for a view lot with all the windows across the back!

See All Plan Options

FEATURES & DETAILS

Kitchen features

Kitchen Island
U-Shaped
Walk-in Pantry

Bedroom features

Primary Bdrm Main Floor
Separate Tub and Shower
Split Bedrooms
Walk-in Closet

Exterior features

Covered Front Porch
Covered Rear Porch
Deck
Outdoor Living Space

Lot Options

Suited for view lot

Additional features

Bonus Room
Dining Room
Fireplace
Foyer
Great Room
Laundry 1st Fl
Open Floor Plan
Unfinished Space
Vaulted Ceilings
Vaulted Great Room/Living

Garage Location

Front

Garage Options

Attached
Front-entry

5,148 Ft

Total Structure

2,537 Ft

Total Heated

Bedrooms

2.5

Bathrooms

Garage

Stories

106' 5"

Width

72' 10"

Depth

23' 2"

Height

10' 0"

Main Floor Ceiling

9' 0"

Upper Floor Ceiling

20' 0"

Living/Great Room Ceiling

10' 0"

Foyer Ceiling

10' 0"

Primary Ceiling

2x4

Framing

Stick

Roof Framing

9:12

Primary Roof Pitch

14:12

Secondary Roof Pitch

Single

Dwelling Number

2nd Floor

Bonus Access

Unheated Living Space

826 Ft

Garage

730 Ft

Porch

1,055 Ft

Bonus Room

Exterior Styles

Collections

Plan Package Options

Important info before you buy

Select Plan Package

Sale: $1,010

PDF Single Build

~~$1,295~~

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

Sale: $1,010

Sale: $1,346

5 Printed Sets

~~$1,725~~

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

Sale: $1,346

Sale: $1,424

5 Printed Sets + PDF

~~$1,825~~

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

Sale: $1,424

Sale: $1,634

CAD + PDF Single Build

~~$2,095~~

CAD files are a complete set of construction drawings delivered electronically. They can be used for any type of modification—including major design changes and engineering—and include a release granting permission to modify the plan. Most CAD plan orders are emailed the same or next business day.

This package also comes with a PDF set of plans and a copyright release for making modifications and printing unlimited copies.

CAD files are provided in .dwg format. For details on the specific CAD program used, please refer to the PLAN DETAILS section located above the floor plan on each plan’s page.

Sale: $1,634

Sale: $2,254

CAD + PDF Unlimited Build

~~$2,890~~

CAD files are a complete set of construction drawings delivered electronically. They can be used for any type of modification—including major design changes and engineering—and include a release granting permission to modify the plan. Most CAD plan orders are emailed the same or next business day.

This package also comes with a PDF set of plans and a multi-use building license, granting permission to construct the home an unlimited number of times, along with a copyright release for making modifications and printing unlimited copies.

CAD files are provided in .dwg format. For details on the specific CAD program used, please refer to the PLAN DETAILS section located above the floor plan on each plan’s page.

Sale: $2,254

Need To Reverse Plan? (Optional)

$200

Readable Reverse

Reverse house plans with readable text and dimensions

$200

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractors, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 30-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
