Main Level Floor Plan

Main Level Floor Plan image of RV-Garage House Plan
All images copyrighted by designer.


House Plan: THD-3070

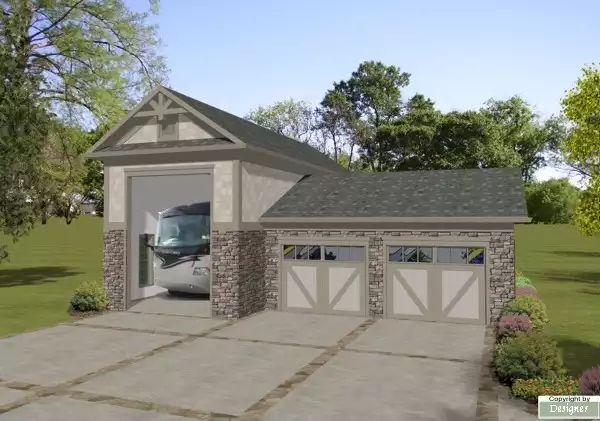

RV-Garage House Plan

Heated Area: 1,252 Sq. Ft.
Width: 40 Ft.    Depth: 42 Ft.
Garage: 3
Styles: Craftsman, Southern
Foundation: Slab Foundation (Please allow 2-3 Days for Delivery)
Designer Notes:
COMING SOON...

This is one of our latest designs. We welcome your suggestions and will be happy to work with you to modify this plan to suit your specific needs.

Get Your House Plans In Minutes!

NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
Available Packages
 PDF Bid Set  $400.00
 Five Sets  $465.00
 Eight Sets  $510.00
 PDF File PDFs Now!   $600.00
 Reproducible Set  $650.00
 CAD File  $900.00
Foundation Options
 Slab Foundation (Please allow ... PDFs Now! available   $0.00
Plan Options
 Right Reading Reverse   $150.00
 2x6 Wall Construction-Please allow 2-3 Days for Delivery   $250.00

Best Price Guarantee, learn more
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments
Plan Specifications
  GENERAL HOUSE INFORMATION
Number of Stories:2
Width:40' 0"
Depth:42' 0"
Dwelling Number:Garage
  EXTERIOR STYLE
Craftsman
Southern
  FINISHED SQUARE FOOTAGE
Total: 1,252 Sq. Ft.
  GARAGE
Garage Location:Front
Garage Size:3
  FOUNDATION
Slab Foundation (Please allow 2-3 Days for Delivery)
  HOUSE AND CEILING HEIGHTS
First Floor Ceiling:9
Maximum House Height:22' 11"
  FRAMING INFORMATION
Roof Framing:Stick
Exterior Wall Framing:2x4
  ROOF PITCH
Primary:8/12
  INSULATION (R)
Exterior Wall:0
Interior Wall:0
Ceiling:0
Floor:0
  KEY FEATURES
Detached
Oversized
  KEY FEATURES
Slab
