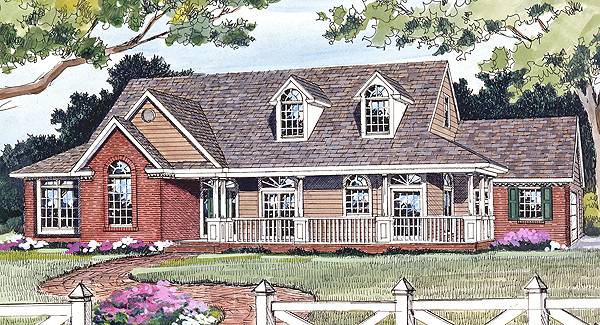

RICHMOND II House Plan

All images copyrighted by designer

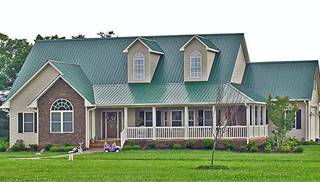

Photographed homes may have been modified from original design. Construction plans are provided as per renderings.

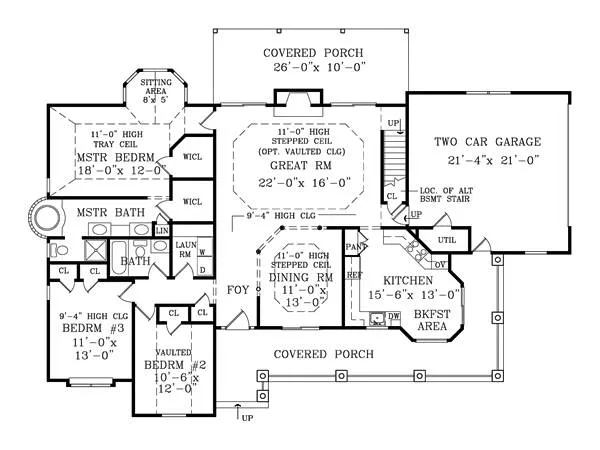

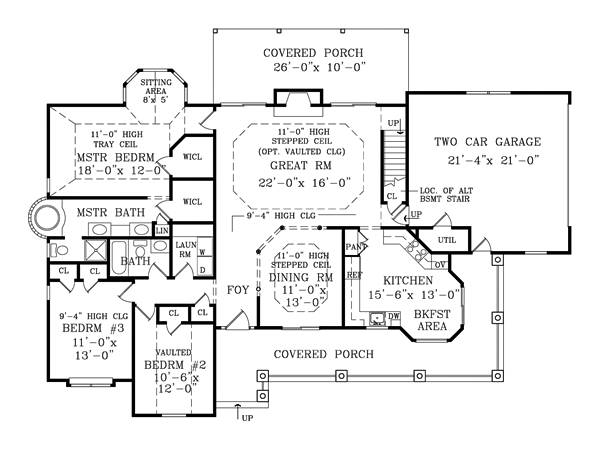

First Floor Plan

First Floor Plan image of RICHMOND II House Plan
All images copyrighted by designer.

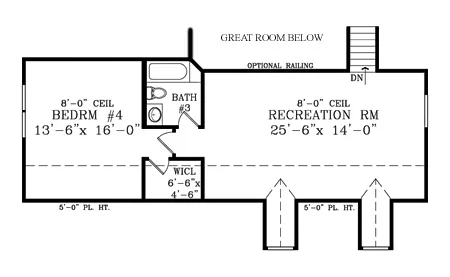

Second Floor Plan

Second Floor Plan image of RICHMOND II House Plan
All images copyrighted by designer.





Plan: THD-JAA-1875
Heated Area: 2582 Sq. Ft.
First Floor: 1793 Sq. Ft.
Second Floor: 789 Sq. Ft.
Width: 69 Ft. 10 In.    Depth: 59 Ft. 8 In.
Bedrooms: 4           Bath: 3
Garage: 2
Styles: Ranch, Country
Foundation: Basement, Crawl Space, Slab Foundation, Walk-out Basement
Designer Notes:
Learn more about the amenities and key features of RICHMOND II House Plan.

Available Packages
 Review Set with Material List  $179.00
 Upgrade From a Review Set  $716.00
 PDF BID SET  $725.00
 Four Set Package  $825.00
 Eight Set Package  $955.00
 PDF Construction Set - Single Use  $1,055.00
 Reproducible Vellum Set  $1,085.00
 CAD FILE - single use  $1,595.00
Foundation Options
 Crawl Space  $0.00
 Slab Foundation  $0.00
 Basement  $150.00
 Walk-out Basement  $175.00
Plan Options
 Additional Set   $50.00
 Mirror Reverse   $50.00
 Multiple Use License For more than one home   $250.00
 High Wind Structural Drawings   $150.00
 Full Reverse Plans If available   $350.00
Best Price Guarantee, learn more
Architect's Preferred Products:
Decorative Millwork and Columns
Visit Fypon >
Classic-Craft® American Collection™ Fiberglass Entry Door
Visit Therma-Tru >
Prefinished Hardwood Flooring
Visit Lumber Liquidators >
Decorative Window Treatments
Visit Smith + Noble >
Plan Specifications
  GENERAL HOUSE INFORMATION
Number of Stories:1.5
Width:69' 10"
Depth:59' 8"
Dwelling Number:Single
  EXTERIOR STYLE
Ranch
Country
Farm House
Mountain
  NUMBERS OF ROOMS
Bedrooms:4
Full Baths:3
  FINISHED SQUARE FOOTAGE
Main Level:1793 Sq. Ft.
Upper Level: 789 Sq. Ft.
Total: 2582 Sq. Ft.
  UNFINISHED SQUARE FOOTAGE
Garage:471 Sq. Ft.
Porch:578 Sq. Ft.
  GARAGE
Garage Type:
Garage Size:2
  FOUNDATION
Basement
Crawl Space
Slab Foundation
Walk-out Basement
  HOUSE AND CEILING HEIGHTS
First Floor Ceiling:9'-4"
Second Floor Ceiling:9'-0"
Maximum House Height:24' 8"
  FRAMING INFORMATION
Roof Framing:Stick
Exterior Wall Framing:2x4
  ROOF PITCH
Primary:9:12
Secondary:12:12
  ROOF LOAD
Live:30
Dead:10
Wind:90
  INSULATION (R)
Exterior Wall:13
Interior Wall:0
Ceiling:30
Floor:19
  KEY FEATURES
Attached
Basement
Covered Front Porch
Covered Rear Porch
Crawlspace
Dining Room
Double Vanity Sink
Fireplace
Foyer
Great Room
Guest Suite
His and Hers Master Closets
  KEY FEATURES
In-law Suite
Laundry 1st Fl
Master Bdrm Main Floor
Nook / Breakfast Area
Open Floor Plan
Separate Tub and Shower
Side-entry
Sitting Area
Slab
Split Bedrooms
Vaulted Ceilings
Walk-in Closet
